Chris Elms with the RME and Ferrofish playback rig - Björk - Synthax Audio UKFront of House engineer John Gale, playback engineer Chris Elms and Musical Director Matt Robertson choose RME and Ferrofish for the upcoming Björk Utopia live shows.

Icelandic phenomenon Björk released her ninth studio album Utopia back in August last year. Known for her unique and avant-garde take on pop and electronic music, the singer's mesmerising live performances have also consistently drawn her critical acclaim.

In support of the latest album, Björk and her production team are currently out on a European tour, with dates including Iceland, UK, Spain, France, Denmark, Italy, Belgium and Sweden, with more likely to follow.

Musical Director Matt Robertson, alongside his colleagues Chris Elms and John Gale, was tasked with putting together a new playback rig for the show, deciding upon a selection of hardware from RME and Ferrofish. Matt was kind enough to speak to us about how the system operates, and why he prefers to use MADI for live audio setups.

"There are two computer systems on stage using RME Fireface 802 interfaces, for both the audio and MIDI sides of the electronic drums and synth setups" explains Matt. "Both these machines can chase timecode, which is sometimes used to change patches and add automation where needed. The playback system uses dual RME MADIface USBs, linked to a MADI switcher, which deal with the multiple timecode systems for video, lighting and music."



RME-Fireface-802-Front-and-Rear-Angle-Synthax-Audio-UK



RME MADIface Pro - Synthax Audio UKWhat is MADI?

MADI is a purpose-built digital audio format that allows for the transfer of up to 64 channels of audio via a single cable each way. The connection is made over coaxial cabling terminating in BNC connection, or via optical fibre. The range of the MADI transmission over coax is up to 100m, whereas with optical fibre, you can transfer over distances up to 2km!

This occurs with no deterioration in sound quality, and with minimal latency. MADI is also unaffected by interference, so you don’t need to worry about power supplies or cables causing problems with your signal. The cabling itself is also far cheaper than traditional analogue multicore cabling, not to mention incredibly light-weight by comparison.

"MADI for live work seems to be a really solid platform for large channel counts," Matt tells us. "It’s relatively easy to route over longer distances, and unlike Dante or other ethernet beased solutions, it requires very little setup. You basically plug one cable in to one end, and one into the other end, and you have a bunch of digital channels that just work! The combination of using MADI with the redundant switcher has been really good for us. It's conveniant , physically small, quick to setup, and with the Ferrofish converter at the end of it, sounds really good!"



Ferrofish A32 – Redundant MADI streams, power supplies and MIDI over MADI

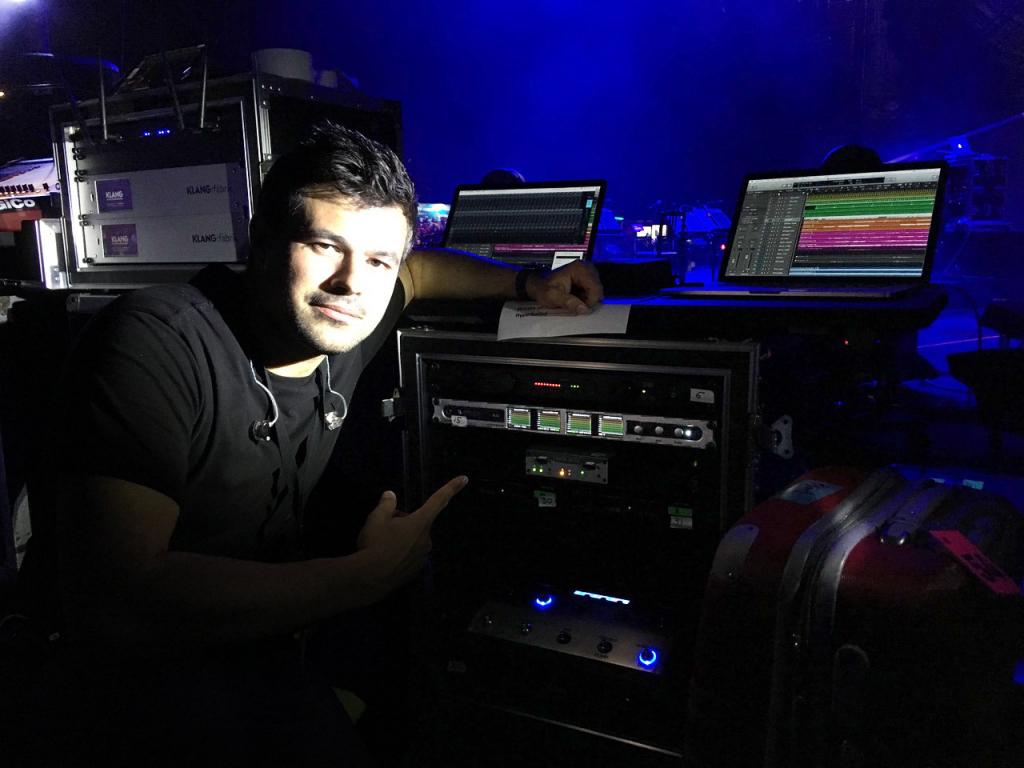

The MADI feeds are sent to a Ferrofish A32, a cost-effective 1U AD/DA Converter with 32 analogue inputs and 32 analogue outputs on D-Subs, plus ADAT and MADI I/O, and with both coaxial and optical MADI streams providing redundancy (a backup stream). The Ferrofish A32 also features comprehensive displays on its front panel, with level metering for all 64 channels visible at any time from the 4x colour TFT displays. Dual-redundant power supplies provide an additional level of security for recording, live and broadcast.



"we chose [the Ferrofish A32] because of the excellent sound quality, MADI redundancy, dual power supplies, and the small footprint – the audio side of this playback system only takes up 3U!"



"The switcher then feeds a Ferrofish A32, which we chose because of the excellent sound quality, MADI redundancy, dual power supplies, and the small footprint – the audio side of this playback system only takes up 3U!" says Matt. "This setup allows us the option to run analogue out of the A32, or digital directly from the switcher."

By utilising 2x RME MADIface USBs, a Ferrofish A32 and a MADI switcher, the setup provides a reliable failsafe against issues during the live show. Were a fault to develop in one of the laptops, all audio channels will automatically be switched over to the backup streams and devices. This occurs without any dropouts, so the audience will never know that it's occured.

Both RME and Ferrofish also feature MIDI over MADI, which allows for MIDI data to also be transmitted via the MADI cable.

"We're also using MIDI over MADI, to get a redundant switching MIDI output from the playback machines. MIDI comes in from the playback laptops, through the RME Madiface USB, through the switcher and then to the A32, where it is converted to 5pin MIDI. From there the MIDI goes to a splitter, and to two iConnectivity USB Host units. This means that in the event of a playback laptop failing, not only does the audio switch to the backup machine, but the MIDI does as well!"

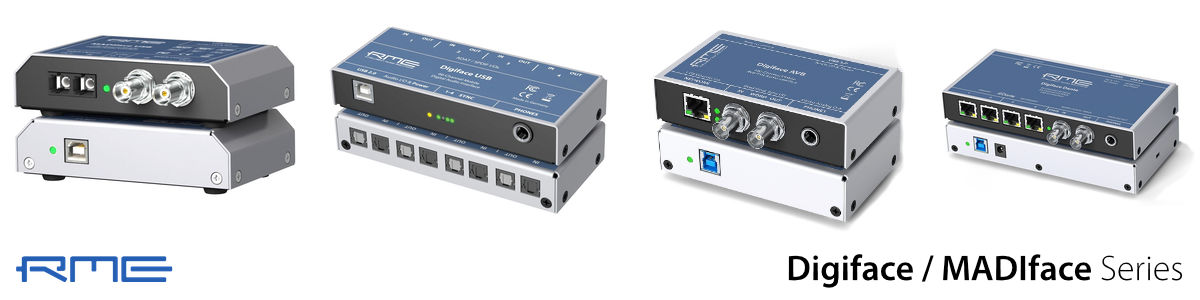

RME Digiface-MADIface Series - Synthax Audio UK

Along with the RME MADIface USB used on the Björk rig, RME recently added three new digital interfaces
to the range – the Digiface USB, Digiface AVB and the Digiface Dante.



The RME MADIface USB is a longtime favourite for playback engineers, particularly in combination with Ferrofish Converters. We've previously spoken to the band Disclosure, as well as Ellie Goulding's engineer Will Sanderson and Emeli Sandé's engineer Oliver Waton, all of whom are using the RME and Ferrofish combo for their live rigs. The original Ferrofish A16 MK-II was retired last year, but Ferrofish has added a selection of variations with their new 16 channel Pulse 16 AD/DA Converter, with options for MADI and Dante (the Ferrofish Pulse 16 MX, and the upcoming Ferrofish Pulse 16 DX respectively).

RME also recently added three new devices to the range of digital interfaces – the Digiface USB, an ADAT to USB interface; the Digiface AVB, an AVB to USB interface; and the RME Digiface Dante, a Dante to USB interface. This provides the stability of RME drivers and routing flexibility of TotalMix FX, with the network audio capabilities of AVB and Dante, and ubiquity of USB.

"At the Front of House we're using a similar RME Madiface USB setup, but this time with two ProTools machines, which take care of all the reverbs and delays for the show. These two machines chase timecode from the playback machine, and in this way we can automate all the FX throughout each song, and also have redundancy if we need it."

"There's 96 channels being sent to the FoH in total. Roughly 20 I/O for the FX sends and returns to the ProTools FX rack, along with around 24 outs from the playback rig. These are mainly different timecodes and clicks, along with MIDI info sent via MIDI over MADI."

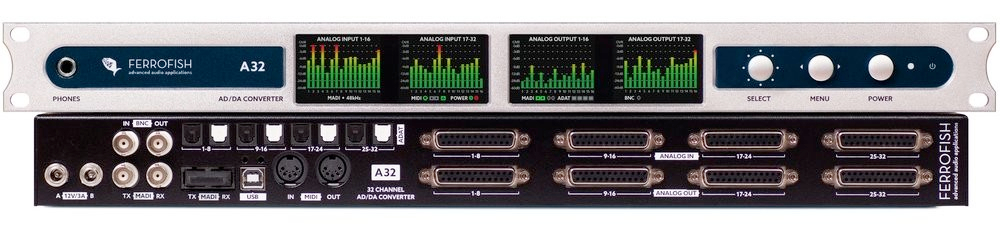

Ferrofish A32 - Synthax Audio UKThe Ferrofish A32 features 32 analogue I/O, 4x ADAT I/O, plus MADI I/O on optical and coaxial BNC connections. A Dante version is also available.



Thoughts on RME and TotalMix FX

To finish off, Matt told us why he chose RME for this setup, illustrating why the company continues to be a go-to for live audio systems and playback rigs.

"I've used RME products for a long time, both in live setups and in studio setups. For me, the most important things (after sound quality) are the reliability of the software / drivers, and also the ease with which you can change software routings if you need to. For example, we use a few different Totalmix setups on the playback rig, which allow us to send 24 seperate outs to FoH, but at the same time have a mix of channels 1-16 (which are the music tracks, excluding clicks and timecodes) going to a headphone amp for quick monitoring."



"[TotalMix FX] is invaluable in rehearsals, but also in pre-show setup checks."

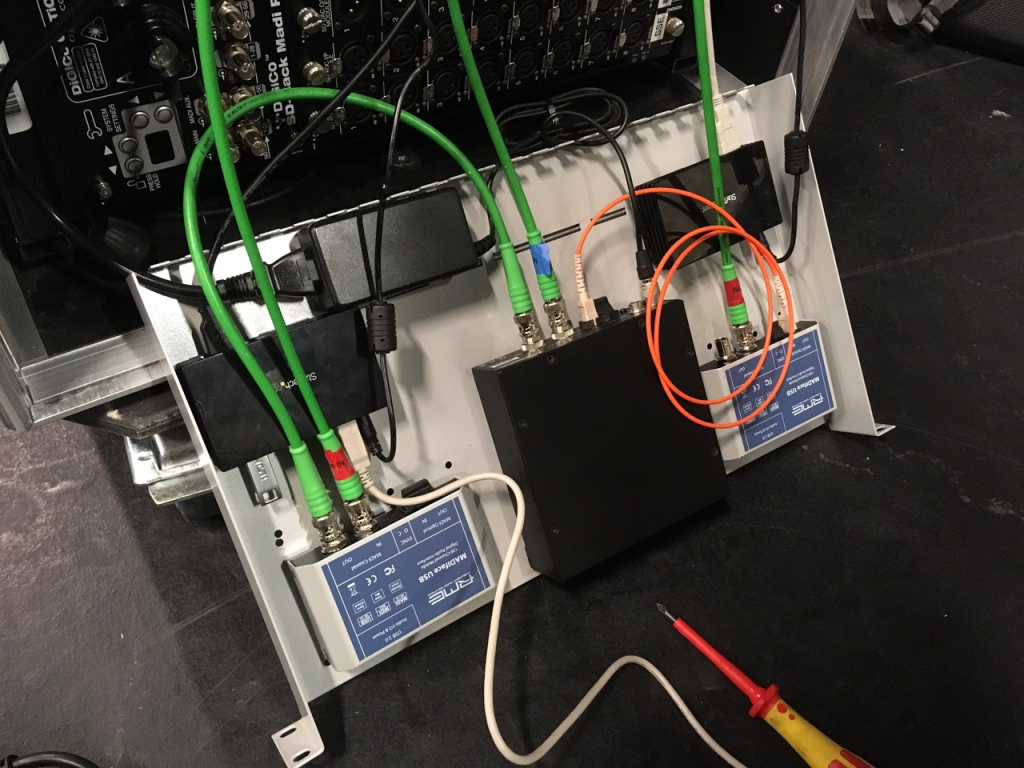

Dual RME Madiface USB on the Front of House FX rig - Björk - Synthax Audio UK

"Likewise, the musicians on stage have TotalMix setups too, so that they can listen to their own mixed outputs, without having to have the monitor engineer switch to a particular scene or snapshot. This is invaluable in rehearsals, but also in pre-show setup checks."

"There is also some very clever stuff you can do with Total Mix to route Timecodes to various outputs, and even back into the same device which can sometimes be really useful. Need a duplicate Timecode output on 36? Easy – route it in TotalMix without having to make any changes to your playback session!"


Our thanks to Matt Robertson, Chris Elms and John Gale.

To keep up to date with the latest news and dates for Björk, visit her website here.



Other links;
Playback engineer Chris Elm's website
FoH engineer John Gale's website
Musical Director Matt Robertson's website



Find out more about the RME MADIface USB here

Find out more about Ferrofish AD/DA Converters here




RME-Logo - Synthax Audio UKFerrofish-LogoIf you'd like help designing your RME or Ferrofish playback rig, give us a call on 01727 821 870 to speak to one of our team or to arrange a demo. You can also contact us.
