Ferrofish A16 MK-II
AD/DA Converter

This product has been discontinued.

For the latest version, see the Ferrofish Pulse 16.

  • Analogue: 16 balanced TRS I/O - 24 bit / 192 kHz converters
  • MADI: optical MADI I/O (incl. MIDI over MADI)
  • ADAT: 2 x ADAT I/O (16 channels)
  • BNC Wordclock
  • 2 x TFT displays with high-res level metering on all inputs and outputs
  • Input-gain and output-levels individually adjustable for each channel
  • 32 bit high performance ARM(TM) processor
  • Easy channel assignment with the graphical routing software
  • Preset management
  • Key lock
  • SMUX control
  • Remote software for the A16 MK-II via MIDI or MADI (MIDI over MADI)
  • Cascading of multiple A16 MK-II via MADI

Description

The Ferrofish A16 MK-II is an extremely powerful AD/DA converter with 16 professional balanced analogue inputs and 16 outputs, as well as flexible digital I/O and an outstanding user interface. With one or more of these units in your arsenal you can easily expand your analogue I/O capacity to meet any challenge.

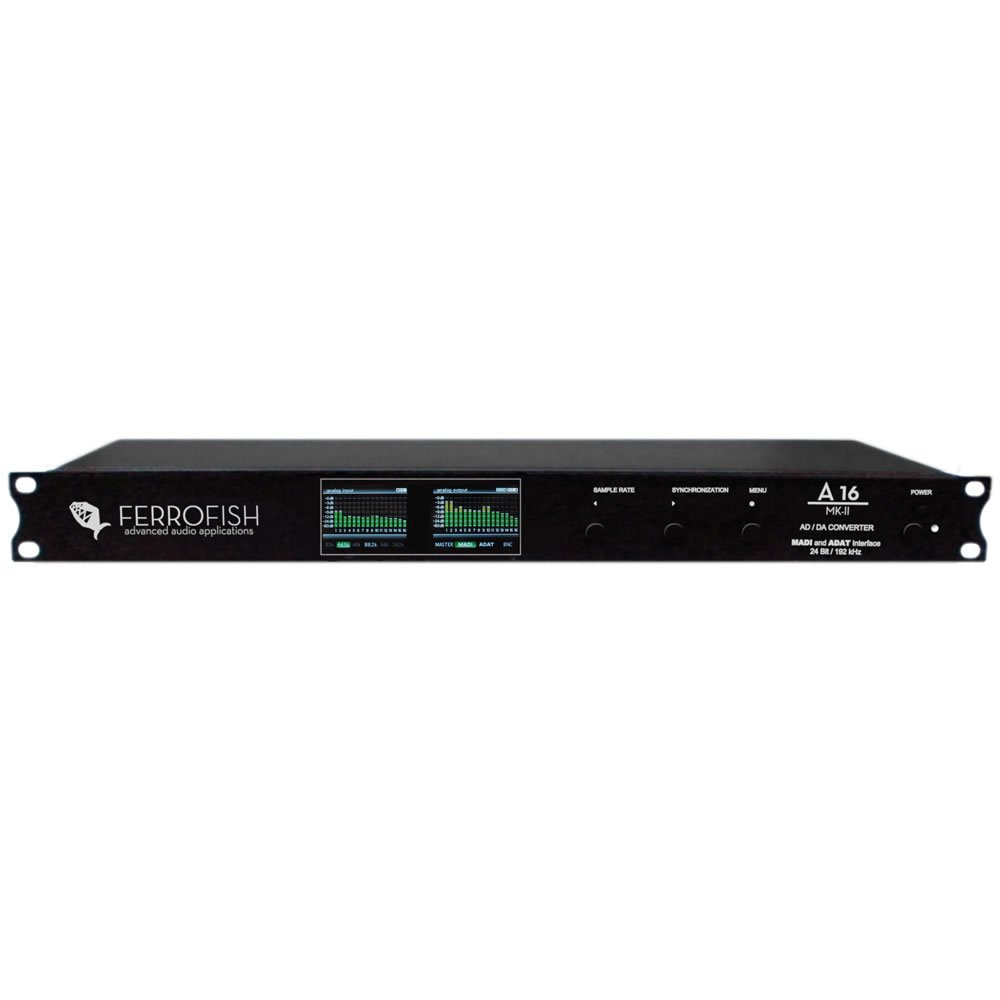

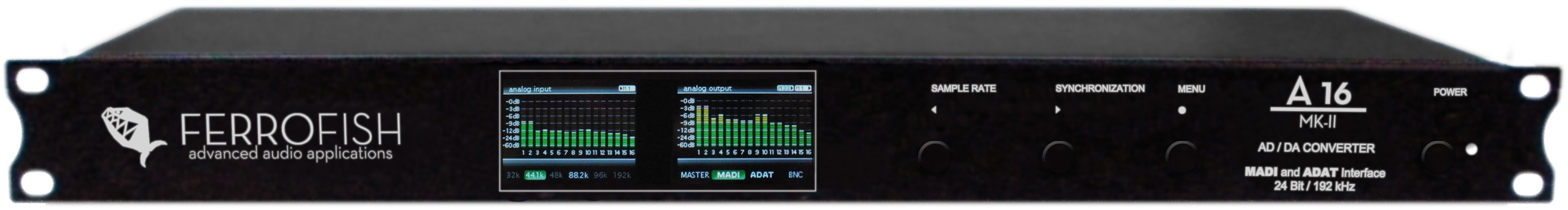

Ferrofish A16 MK-II - Front Panel

Ferrofish A16 MK-II - Front Panel - Click To Enlarge

Digital connectivity comes in the form of an optical MADI I/O and two sets of ADAT I/O, giving you a variety of interfacing options. Attach two Ferrofish A16 MK-II's to the RME HDSPe RayDAT over ADAT for 32 channels of analogue I/O, or four to the RME MADIface USB for 64 channels of analogue I/O.

Or if you really want to push the boundaries, the RME HDSPe MADI FX card can connect to twelve A16 MK-II's for a staggering 192 analogue I/O! Start with one A16 MK-II and an RME MADI interface and you'll have a system that can grow with you.

On top of this, the A16 MK-II is equipped with two high-resolution TFT screens displaying level meters and clock status, as well as a straightforward front panel menu with input gain, output trim, routing and clock options. Comprehensive remote control software is also available that allows you to configure all these parameters over a MIDI or MIDI-over-MADI connection.

All these features open up a whole host of possibilities. MADI optical cables can be run for up to 2 km between devices and, using the MIDI-over-MADI technology, carry all the necessary control data to adjust the A16 MK-II's internal settings from a remote computer equipped with an RME MADI interface.

You could have an A16 MK-II located in the roof of a theatre, on stage, or simply in your live room – connected with a light and inexpensive MADI fibre cable. Cut down on expensive copper cables and ensure that your converters are as close to the sound source as possible.

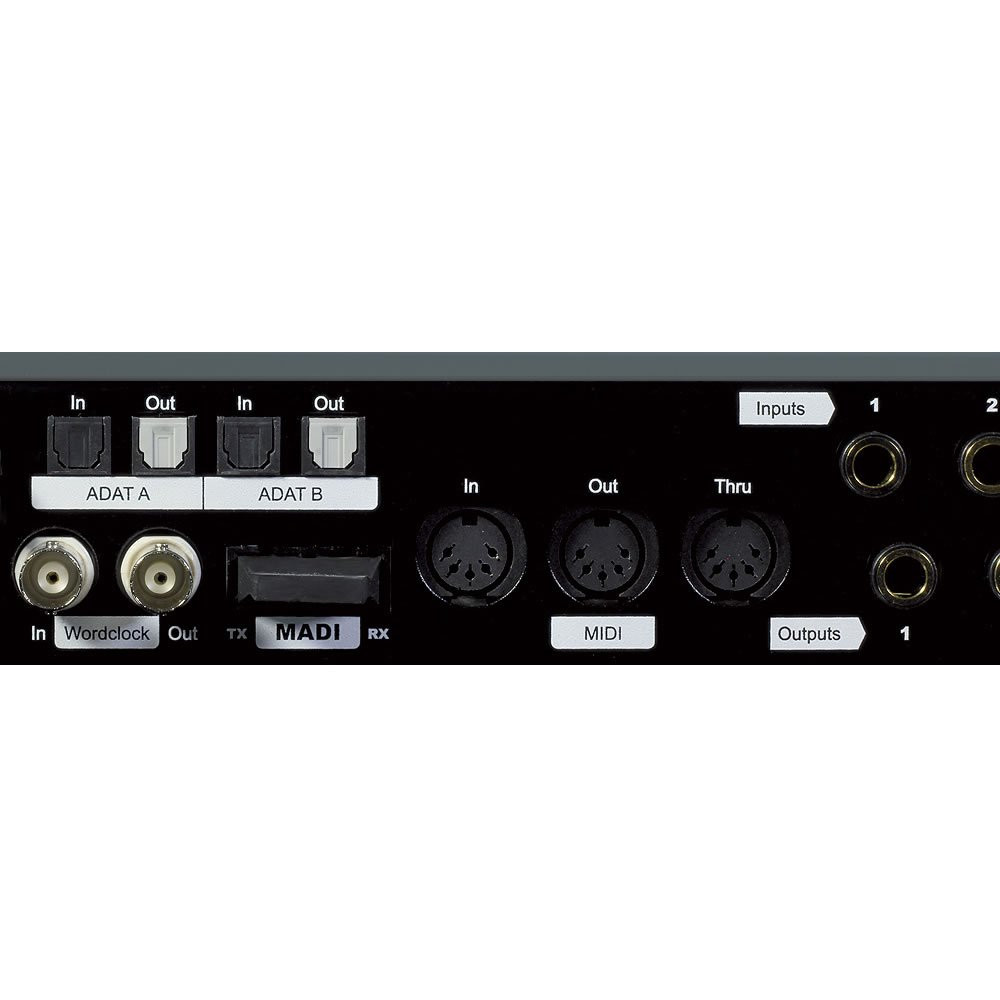

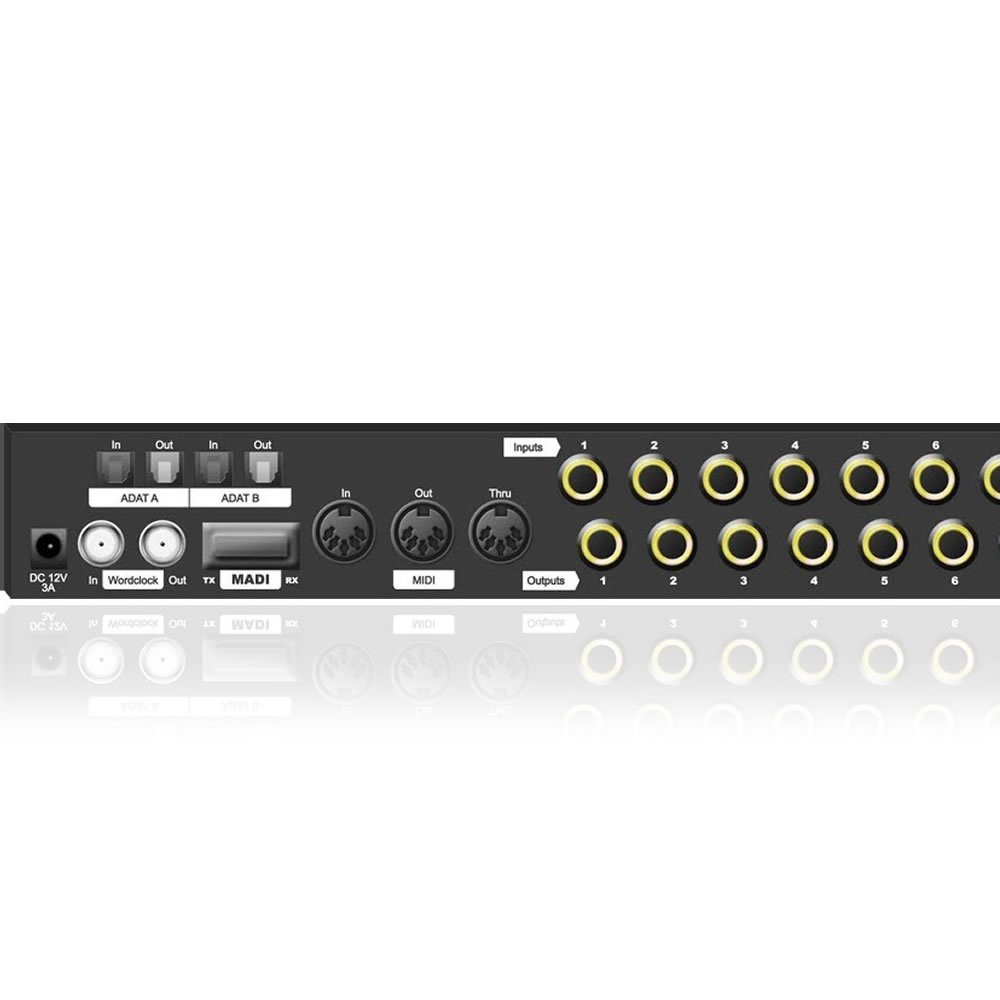

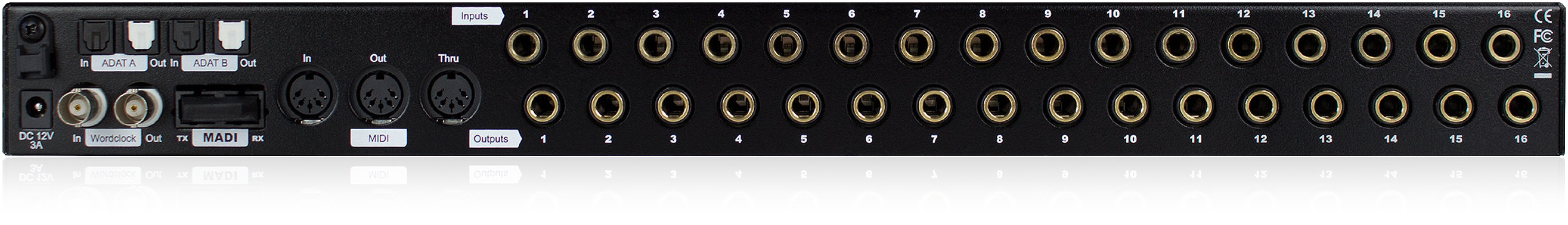

Ferrofish A16 MK-II - Rear Panel

Ferrofish A16 MK-II - Back Panel - Click To Enlarge


There is surely no other product that can come close to the Ferrofish A16 MK-II for sheer power and value for money.

A single mode version of the Ferrofish A16 MK-II is also available on enquiry.

For a non-MADI (ADAT only) version, see the the Ferrofish A16 AE.

Specifications

Analogue I/O

  • 16 x in, 16 x out, balanced phone plugs
  • 24 bit AKM converters, 32kHz – 192kHz
  • Input-gain and output-levels individually adjustable for each channel

Digital I/O

  • Optical MADI interface (incl. MIDI over MADI)
  • 2 x ADAT I/O (16 channels)

Connections

  • BNC wordclock
  • MIDI connectors for remote

Frontpanel

  • 2 x TFT displays show the high resolution level meters of all inputs and outputs
  • Preset management
  • Keyboard lock
  • Detailed status display for monitoring all inputs
  • Graphical adjustment of levels and gains
  • Routing Editor
  • SMUX control
  • 32 bit high performance ARM(TM) processor

Conversion

  • 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz & 192kHz (S/MUX)

PC Software

  • Remote software for the A16 MK-II via MIDI or MADI (MIDI over MADI)
  • Cascading of multiple A16 MK-II
  • Easy channel assignment with the graphical routing software
  • Adjustment of levels and gains with the mixer
  • Own graphics can be stored to individually label your A16 MK-II

Documents

Ferrofish A16 MK-II Manual (English)

Product Reviews

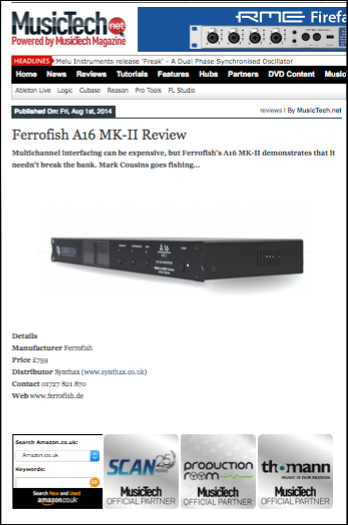

Ferrofish A16 MK-II Review by MusicTech
