Calrec JB5837 Digital I/O
Calrec Hydra2 JB5837 Digital I/O
4 x Digital AES Output (BNC)
Description

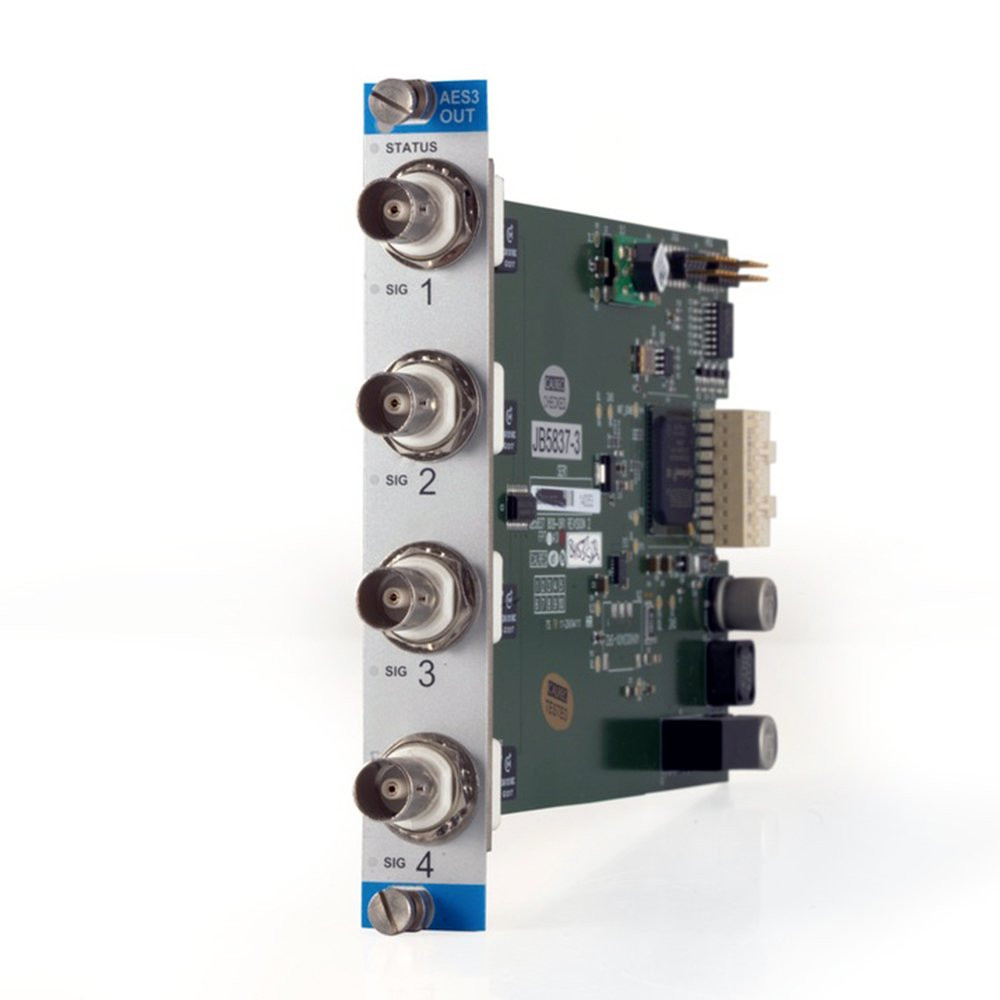

Calrec Hydra2 JB5837
4 x Digital AES Output (BNC)
The JB5837 provides 4 unbalanced digital AES3 outputs from the Hydra2 network in a 1 slot-wide module. The audio interface is via BNC connectors.
Front panel LEDs indicate audio presence for each output, lighting green when outputting signal over -60 dBFS.
The standard modular I/O status LED flashes green once the card has booted and lights solid green once a connection between the card and the Hydra2 interface has been established.
Call 01727 821 870 for more information.
Front Panel
Specifications
Calrec Hydra2 JB5837
| Format | Digital |
| Type | AES3 (75 Ω unbalanced) |
| Output | 1 V Pk-Pk nominal into 75 Ω |
| Audio Connector | BNC |
| Outputs | 4 |
