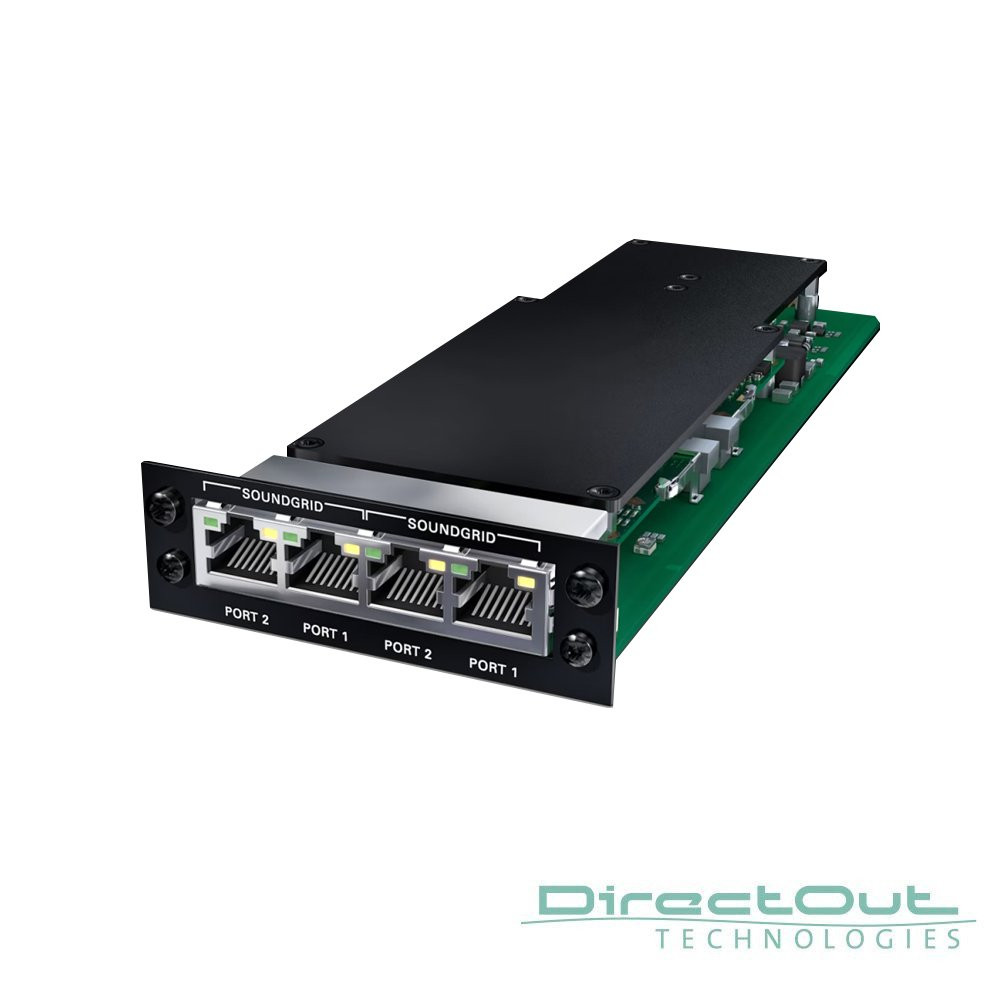

DirectOut SG.SG.SRC.IO Module

SG.SG.SRC.IO Module

SG.SG.SRC.IO is a dual audio network module for the PRODIGY Series and MAVEN.A to interface with 2 x 64 channels of Waves SoundGrid streams.

One module, two audio engines

Hosting two miniPCI boards the module offers 2 x 64 channels of SoundGrid input and output, reaching out 128 channels on a single A module.
It can also be connected to two different SoundGrid environments with 64 channels each.

Sample Rate Conversion

Individual HD SRC for bi-directional sample rate conversion is on board as a standard. The PRODIGY and MAVEN Series also offers low latency sample rate conversion (FastSRC) for input and output. The two audio network boards can be operated at different sample rates.

Dual network modules ensure a seamless connection across clock boundaries and different audio protocols on a single module.

Stream Redundancy

There are 2 x 2 independent network interfaces to connect each protocol via a second stream (Port 1 / Port 2).

The amount of audio channels per protocol is reduced at higher sample rates - 32 channels @ 2 FS or 16 channels @ 4 FS (SoundGrid supports 1 FS and 2 FS only).

SoundGrid is an audio networking technology from Waves that is based on ethernet layer 2.
