DirectOut PRODIGY.MX (Mainframe)
Modular Audio Matrix,
Converter, Processor
& Signal Router
The DirectOut Prodigy.MX is highly configurable and available in three different versions:
- Prodigy.MX Essential
- Prodigy.MX Advanced
- Prodigy.MX Unlimited
- Modular audio matrix with a capacity of 1664 x 1664 audio channels
- Support for multiple digital audio formats
- Front panel, touch-screen control
- Remote control via Globcon software (Mac, PC & Linux)
- 2 front panel headphone outputs for monitoring any I/O
- Dual redundant power supplies for reliability
Features:
If you are interested in the DirectOut Prodigy.MX, we highly
recommend contacting us to discuss pricing, as well as which modules you
require.
Contact us here, or call us on 01727 821 870 for more information.
Description
DirectOut PRODIGY.MX
DirectOut is proud to introduce the PRODIGY.MX, a multiformat audio matrix elevating the audio routing, converting, and processing capabilities of the PRODIGY Series to the next level.
PRODIGY.MX offers an impressive capacity of 1664 x 1668 audio channels, making it a formidable asset for professionals in need of versatile audio solutions. Its modular hardware simultaneously accommodates multiple audio formats, selectable between Dante, RAVENNA/AES67, SoundGrid, AVB/MILAN, and MADI, and ensures seamless interconnectivity among them.
The modules feature bidirectional sample rate conversion (HD SRC), enabling connections across various clock boundaries. Operational control is facilitated through globcon control software, compatible with both Mac and PC, while local operation is simplified with an intuitive touch display, providing essential monitoring and control capabilities. Third-party control protocols, like Ember+, are available as options to ease integration into larger systems.
In its first release PRODIGY.MX will already incorporate processing features, such as gain control for all inputs and outputs, and channel grouping . Additional DSP functions are planned for future updates, further expanding the application scenarios.
DirectOut is also introducing new high-channel count MADI modules shaped for the audio network slots of the PRODIGY devices and adding extra capacity and flexibility to the series.

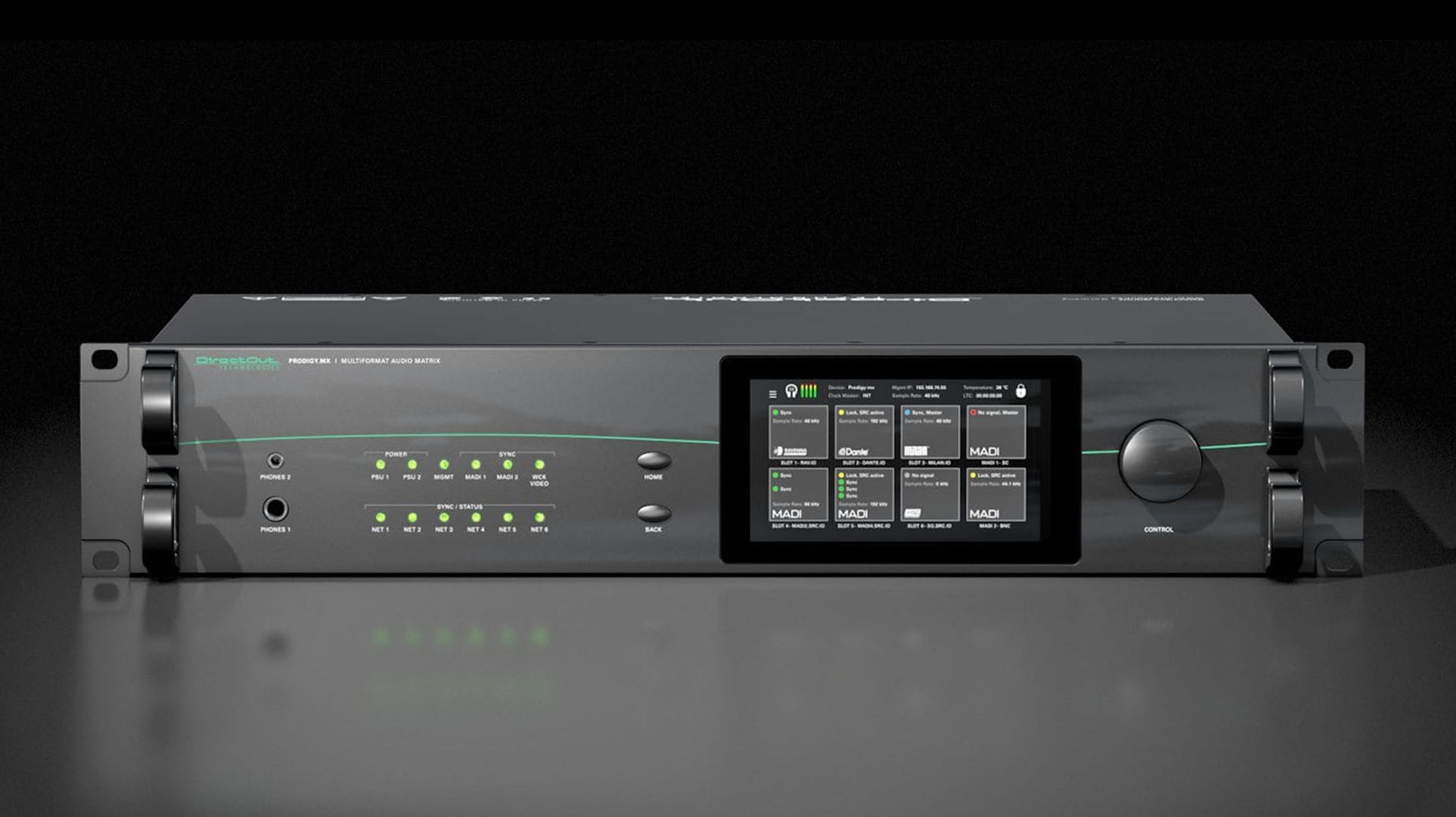

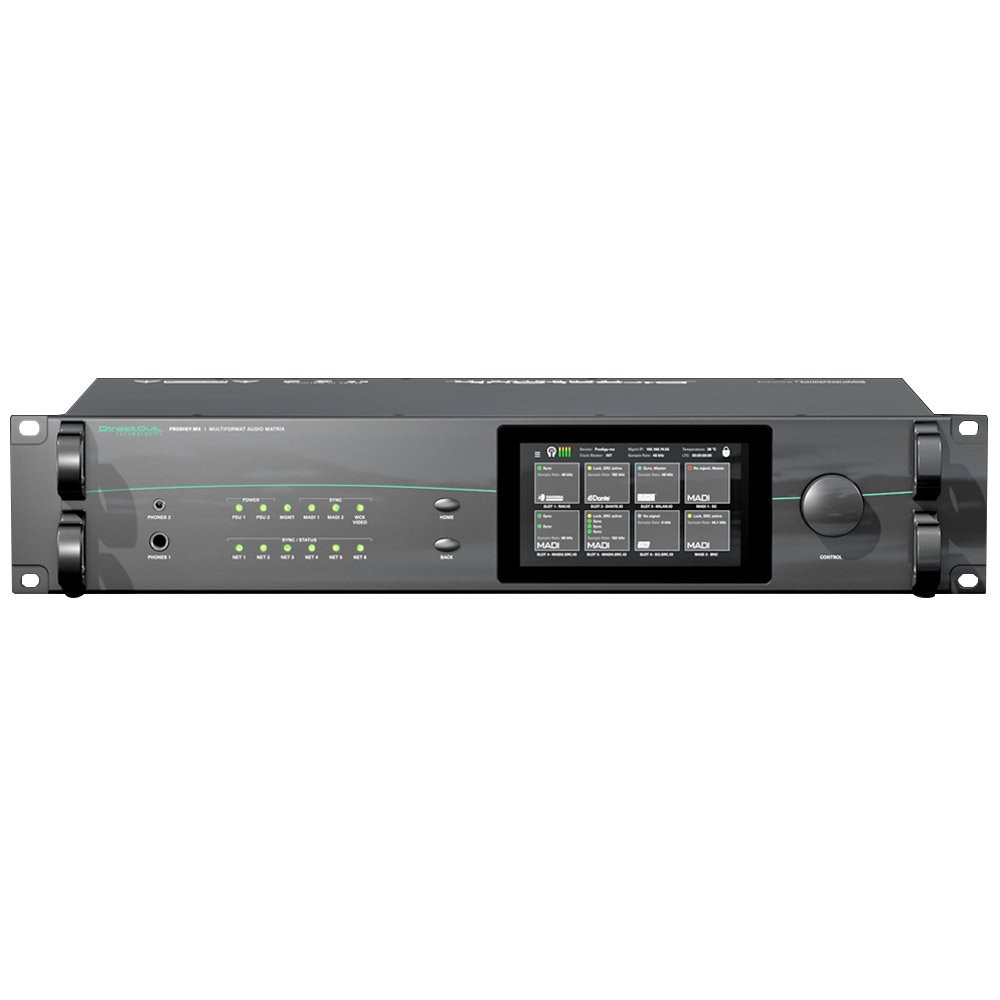

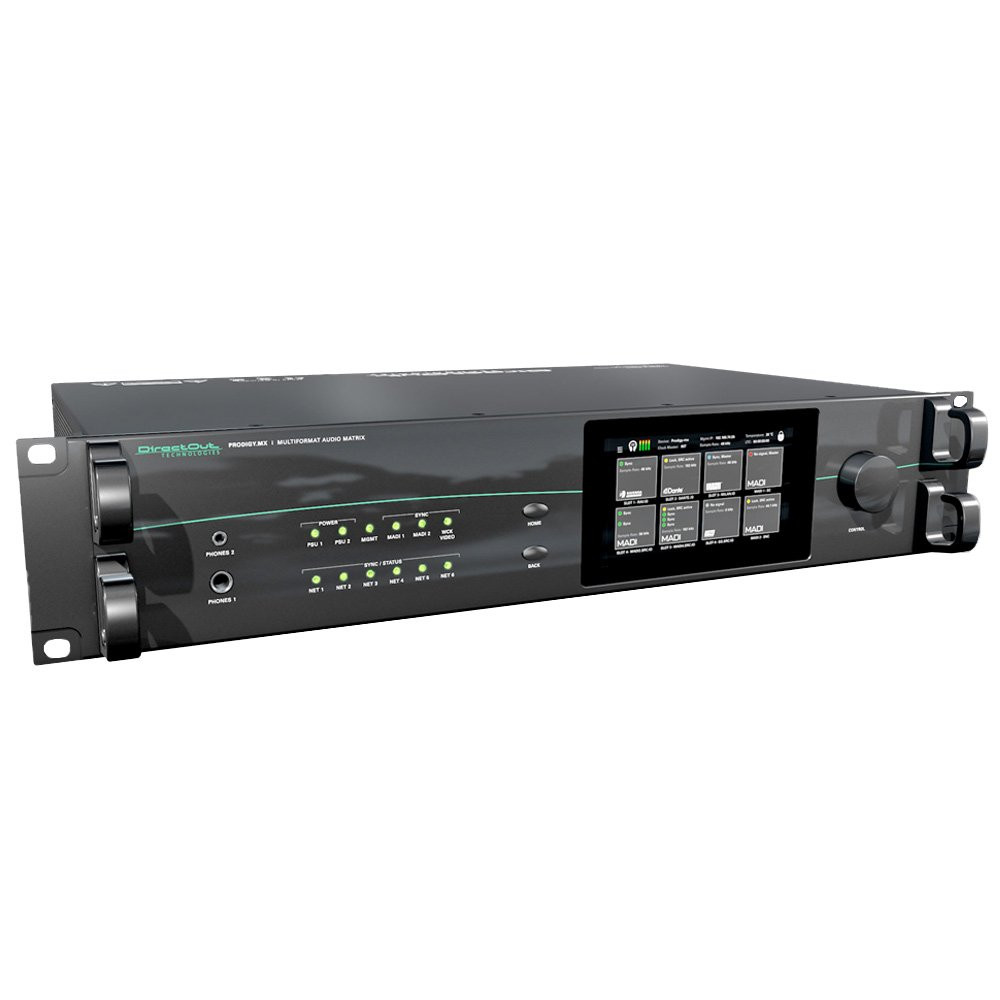

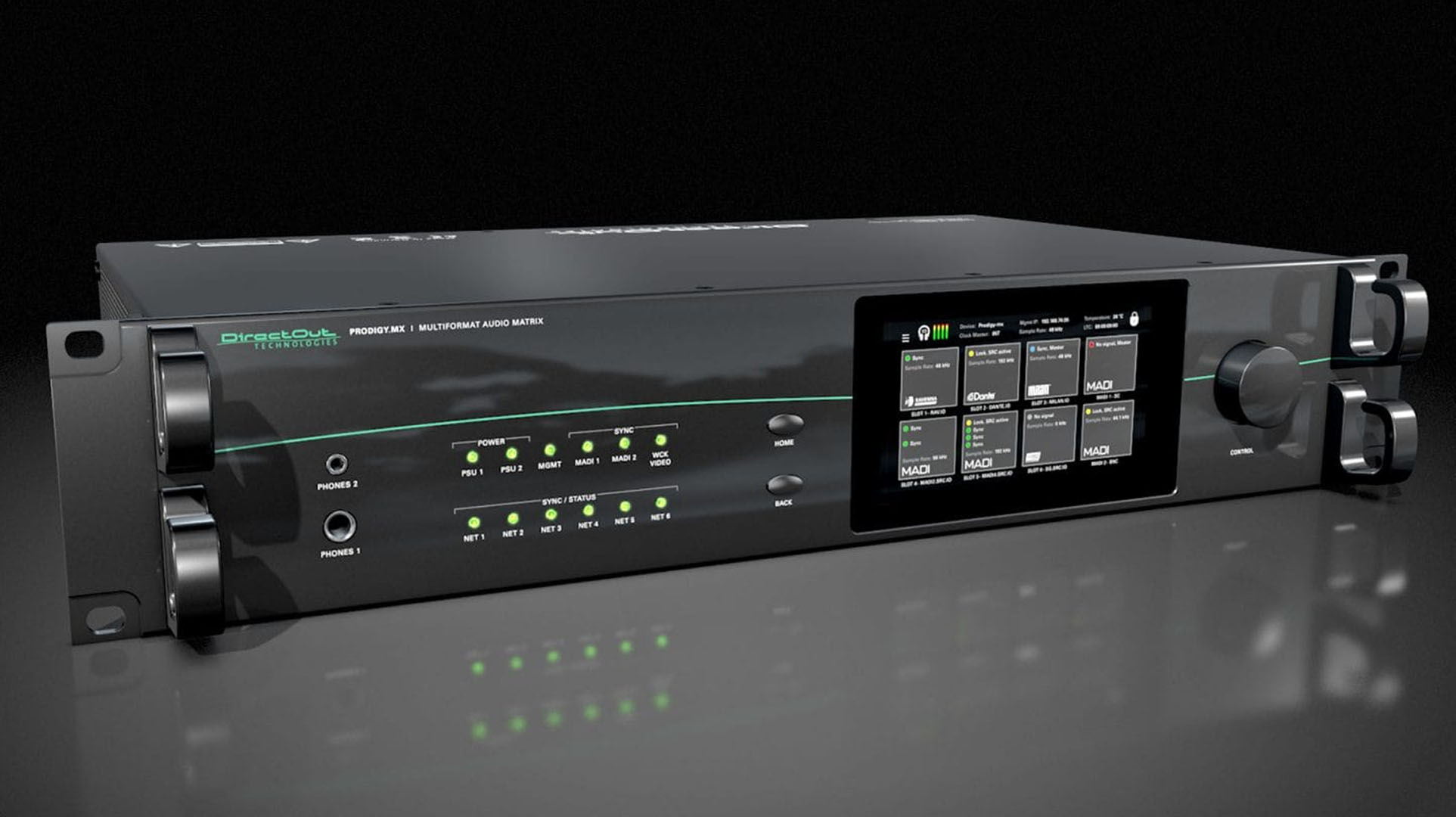

DirectOut Prodigy.MX front panel (click to enlarge)
DirectOut PRODIGY.MX at a glance
The DirectOut PRODIGY.MX is a multiformat audio matrix with a capacity of 1664 x 1664 audio channels.

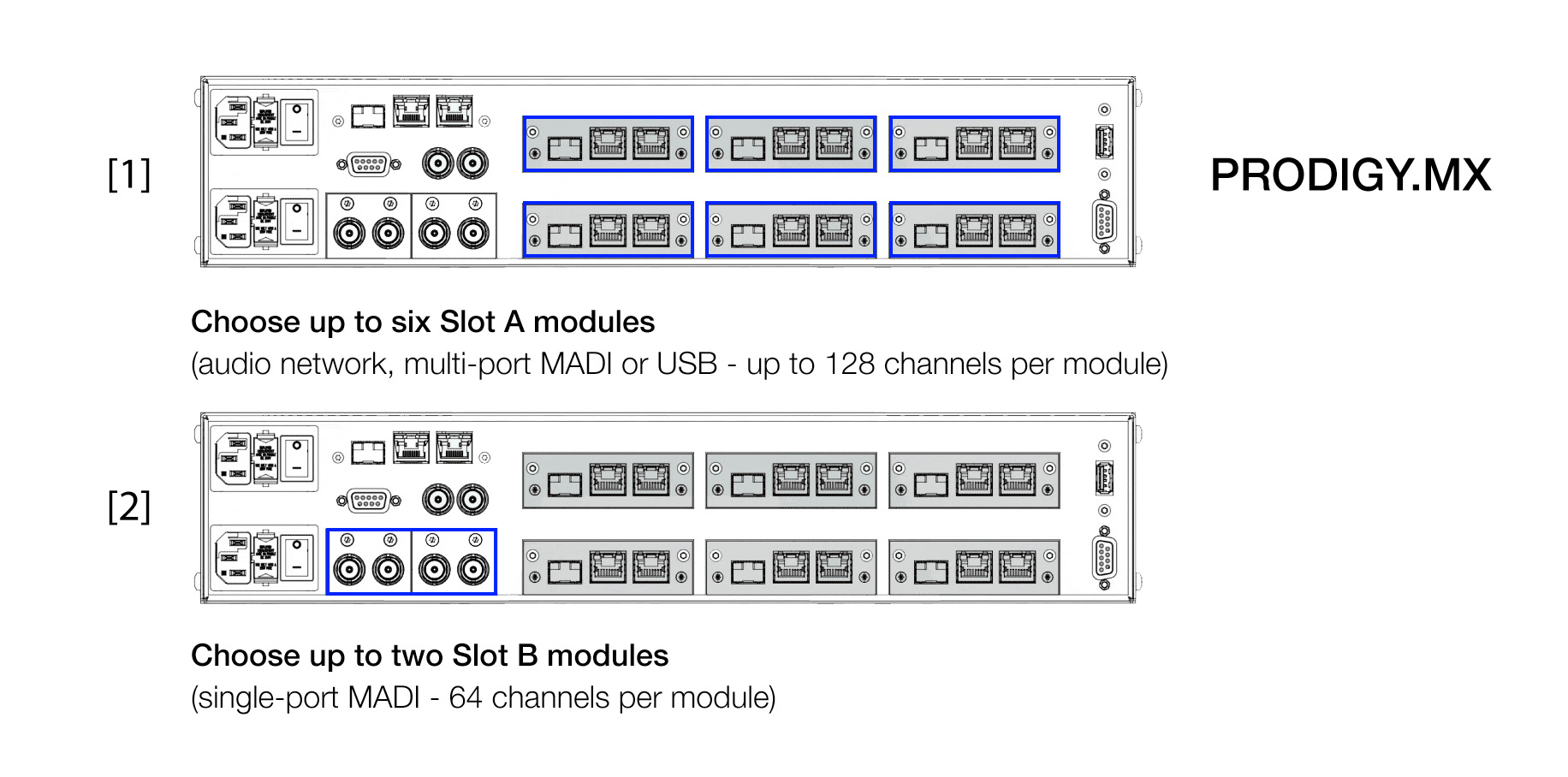

The mainframe hosts up to six audio network modules for interfacing with the whole range of audio protocols offered by DirectOut. Two additional MADI slots connect with selectable sockets.
The hardware is modular and the available licenses are granular - offering to make the best choice to meet your requirements.
Multi Format
- RAVENNA / AES67
- Dante
- SoundGrid
- AVB / MILAN
- MADI
Seamless connections
Bidirectional sample rate conversion (HD SRC) connects across clock boundaries.

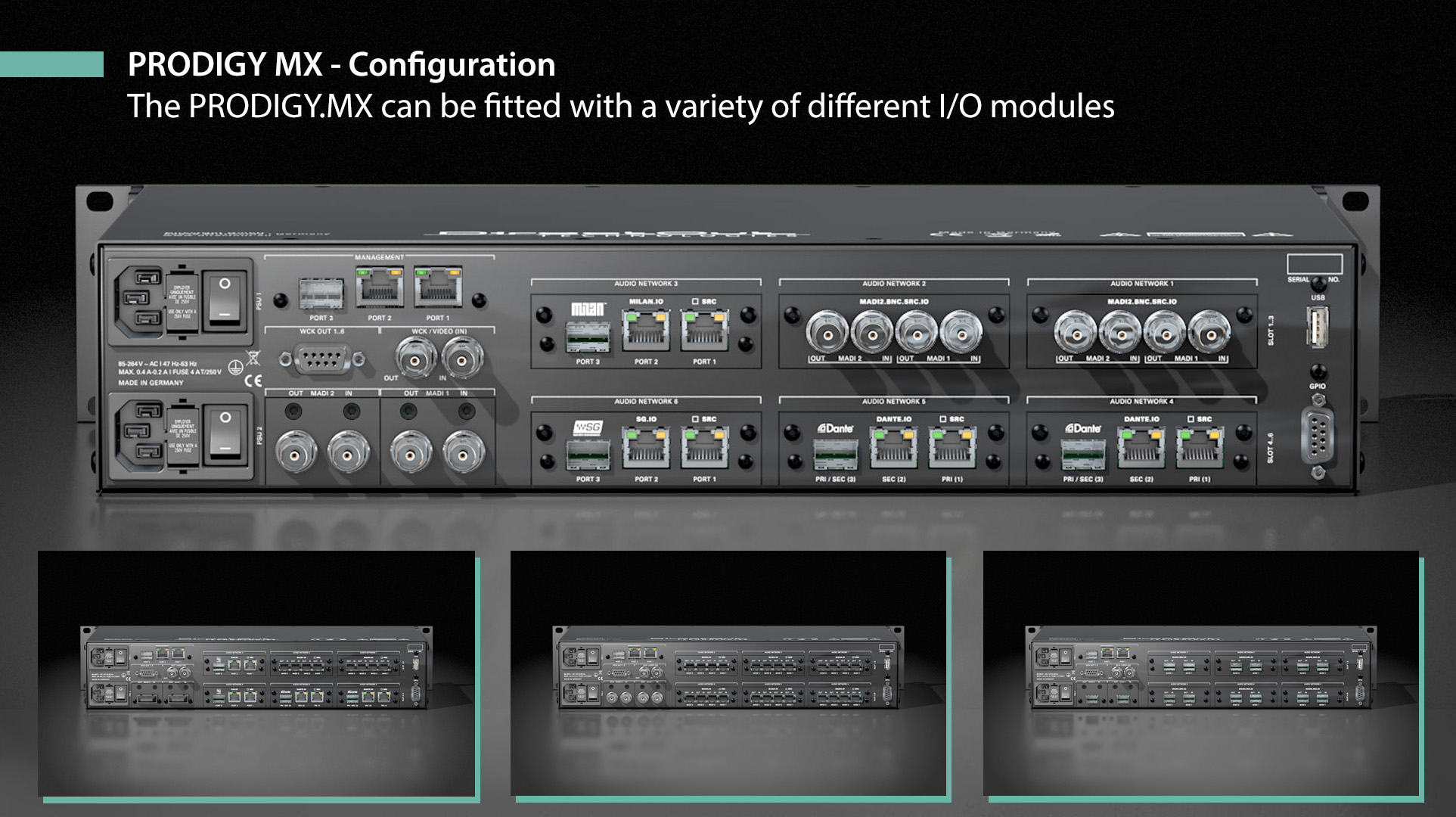

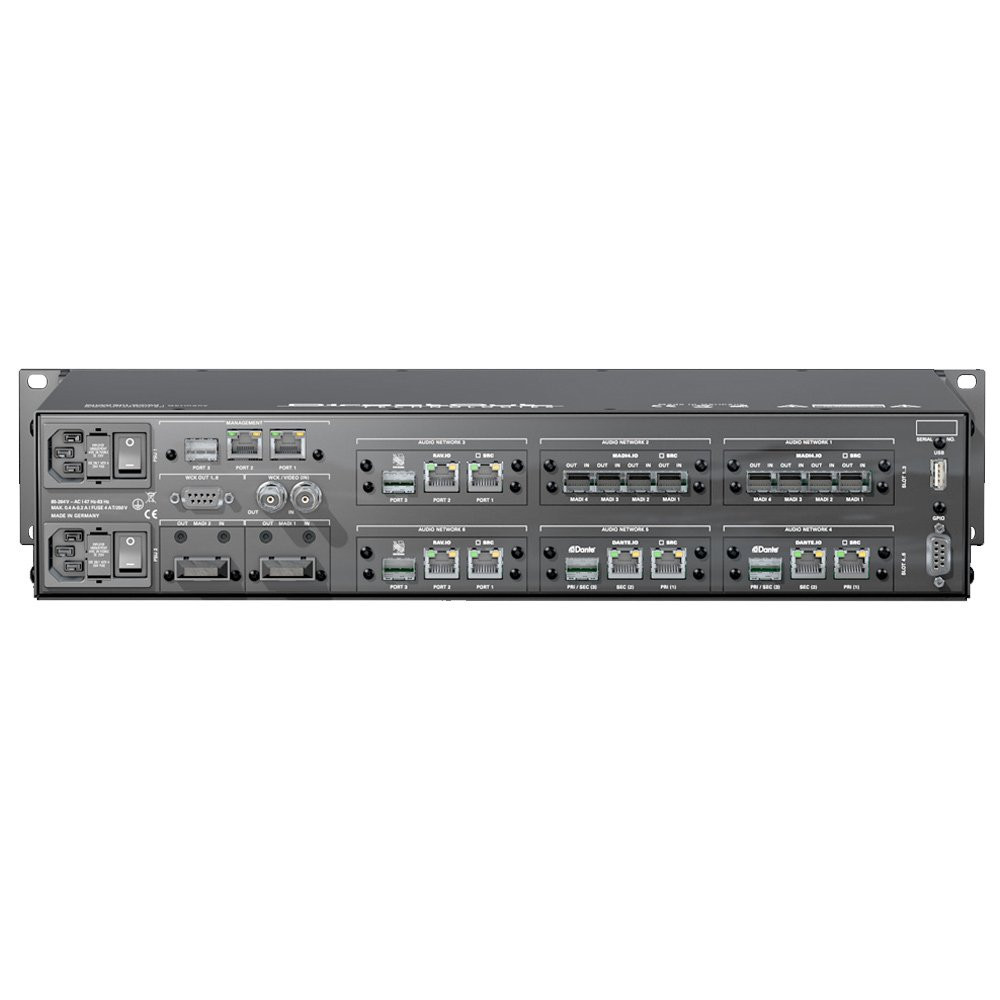

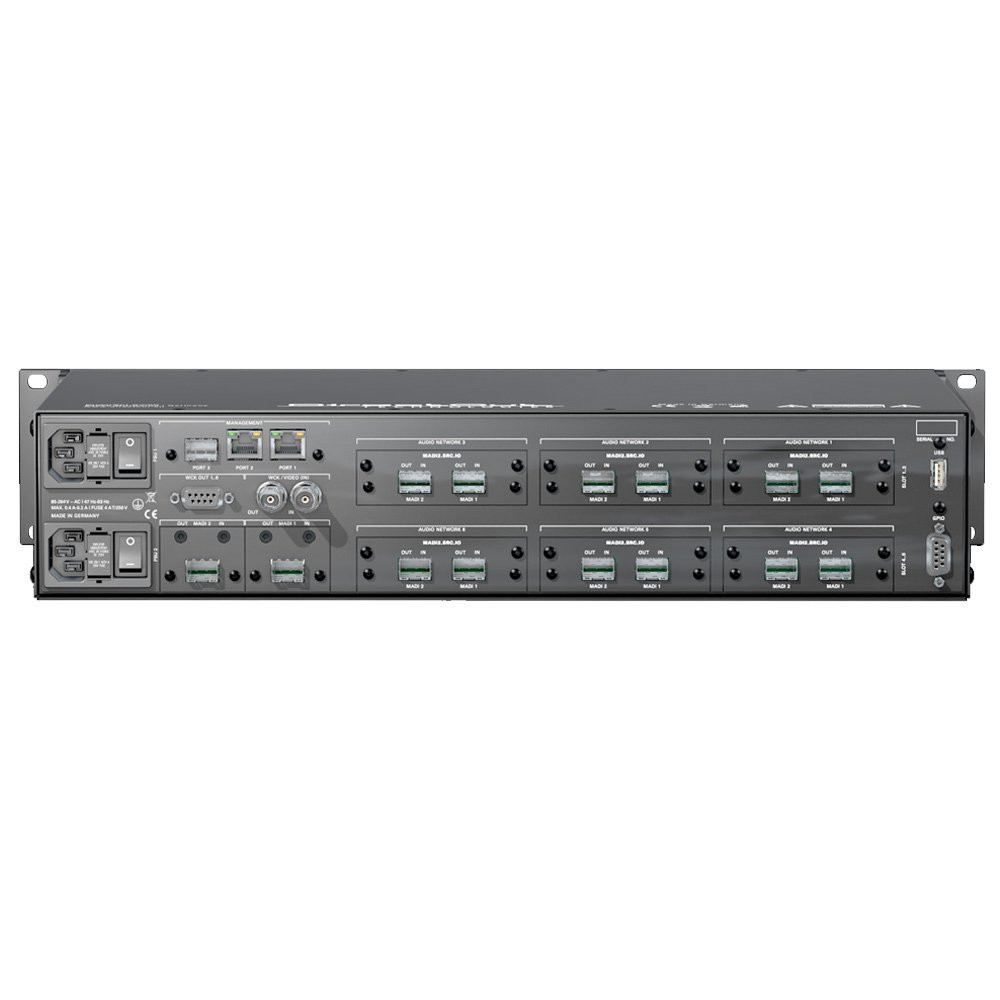

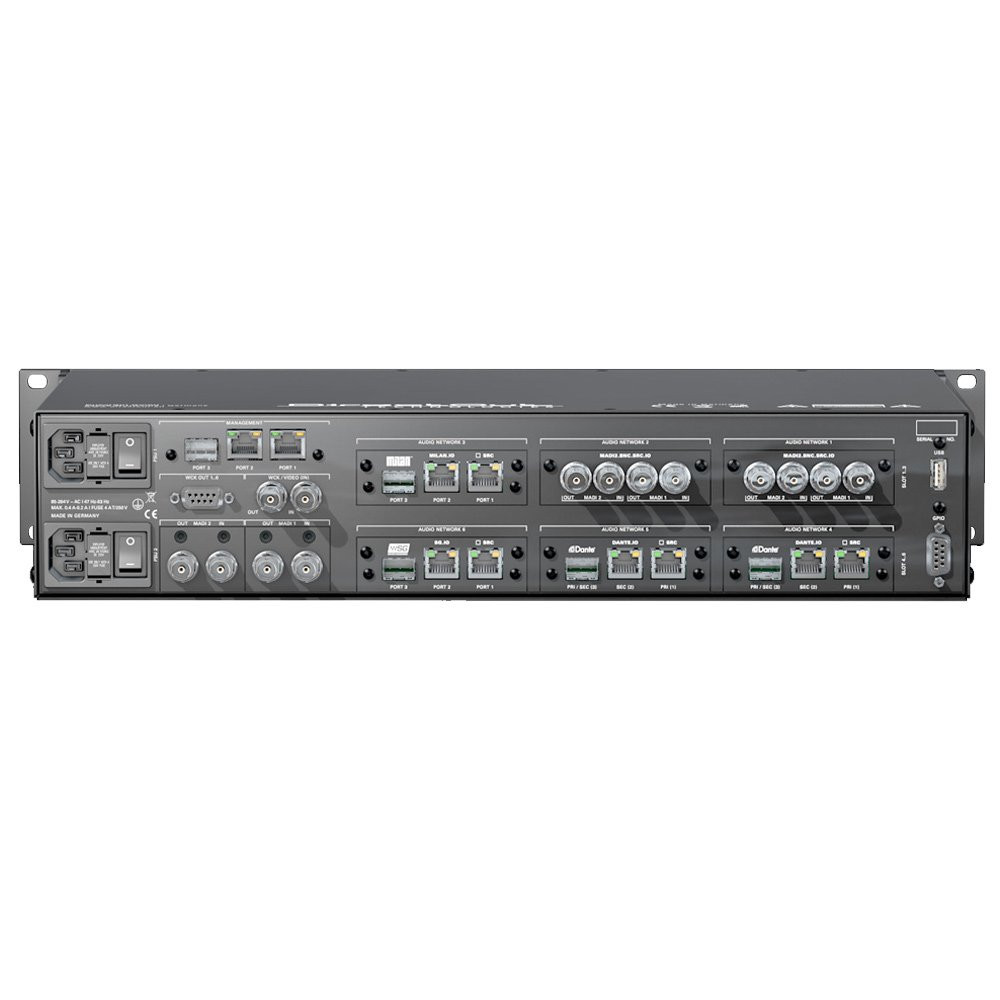

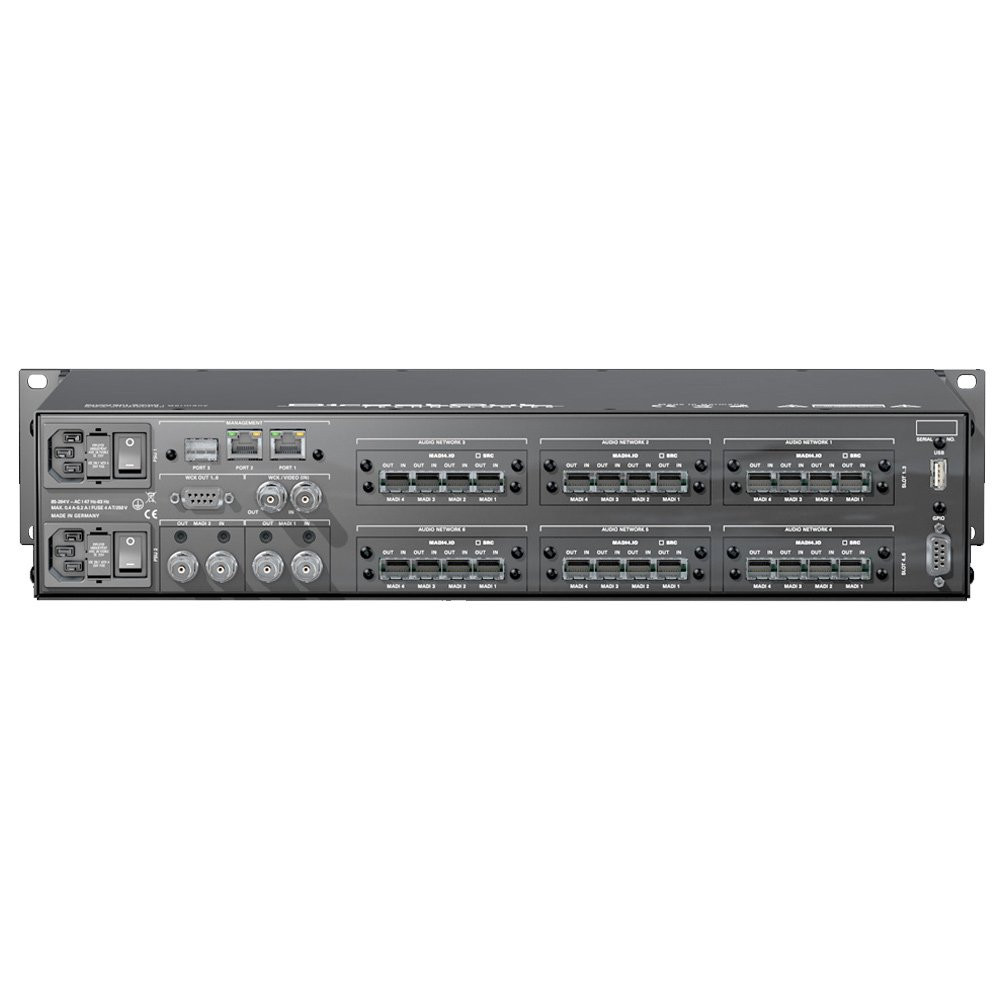

DirectOut Prodigy.MX rear panel (click to enlarge)
Control is key
Globcon control manages all DirectOut devices via network - either on Mac or PC.
Local display and operation on a touch display facilitates the overview and grants basic control.
Third-party control protocols (Ember+, OSC, SNMP, JSON-API) are available as options.
DSP
Signal processing offers gain control of all inputs and outputs and channel groups for comfortable fading.
Additional DSP functions are planned for future updates.
MADI unlocked
New MADI modules for the audio network slots with two or four MADI ports add extra capacity to the single MADI slots.
Specification
MADI Modules |
|
BNC.IO | 64 ch MADI, 1x coaxial BNC input, 1x coaxial BNC output, 75 Ω |
SC.IO | 64 ch MADI, 1x SC-Socket duplex multi-mode (single mode on request) |
SFP.IO | 64 ch MADI, 1x SFP cage (matching SFP modules available from DirectOut) with Sample Rate Converter |
MADI2.SRC.IO | 128 ch MADI, 2x SFP cage (matching SFP modules available from DirectOut) |
Network Modules |
|
RAV.IO | Audio Network RAVENNA / AES67 (2x RJ45, 1x SFP) |
RAV.SRC.IO | Audio Network RAVENNA / AES67 (2x RJ45, 1x SFP) with Sample Rate Converter |
DANTE.IO | Audio Network DANTE (2x RJ45, 1x SFP) |
DANTE.SRC.IO | Audio Network DANTE (2x RJ45, 1x SFP) with Sample Rate Converter |
SG.IO | Audio Network SoundGrid (2x RJ45, 1x SFP) |
SG.SRC.IO | Audio Network SoundGrid (2x RJ45, 1x SFP) with Sample Rate Converter |
MILAN.IO | Audio Network AVB/MILAN (2x RJ45, 1x SFP) |
MILAN.SRC.IO | Audio Network AVB/MILAN (2x RJ45, 1x SFP) with Sample Rate Converter |
Digital |
|
Sample rates: | 44.1, 48, 88.2, 96, 176.4, 192 kHz (+/- 12,5%) |
MADI formats: | 48k / 96k Frame, 56 / 64 channel, S/MUX |
Additional Interfaces |
|
Headphone Output #1: | 1 x 6.3 mm TRS jack, mono/stereo Output level: max. +18 dBu SNR: -115 dB RMS (20 Hz - 20 kHz) / -118 dB(A) THD+N @ 0 dBFS: -105 dB @ 600 Ω |
Headphone Output #2: | 1 x 3.5 mm TRS jack, mono/stereo Output level: max. +12 dBu SNR: -115 dB RMS (20 Hz - 20 kHz) / -118 dB(A) THD+N @ 0 dBFS: -105 dB @ 600 Ω |
Word Clock I/O: | 2 x coaxial BNC (75 Ω termination switchable), AES11 (DARS also supported), WCK switchable to Video Sync |
GPIO | 2 x GPI (MOSFET switch) 2 x GPO (MOSFET switch) |
USB | 1 x USB 2.0 for legacy control of ANDIAMO devices |
Signal DSP |
|
DSP | Gain/Mute, EQ, Dynamics, Delay, Summing Busses, Matrix Mixer |
SRC | Synchronous / asynchronous sample rate conversion |
Communication |
|
Remote Software: | globcon software control integrated web server with UI (HTML, JavaScript) |
Control Protocols: | JSON API, SNMP*, OSC, Ember+ |
Remote Network: | 2 x RJ45 Gigabit Ethernet, 1 x SFP |
Global |
|
Power supply: | 2 x 84 V to 264 V AC / 47 Hz to 63 Hz / safety class 1, phaseredundant |
Power Consumption: | 20 to 110 W, module dependent |
Display: | 5.0” Backlight LED LCD IPS Transmissive Resolution: 480 x 854 px |
Local Control: | 1 x Encoder knob with push functionality 2 x Push-Buttons |
Dimensions: | Width 19'' (483 mm) Height 2 RU (89 mm) Depth 10'' (254 mm) |
Weight: | about 10 kg |
No liability for misprints and technical changes assumed.
