Dynaudio Acoustics Delta 20 Amplifier
Delta Series Power Amplifier
Features
- 4-channel professional power amplifier
- 175W–480W per channel (depending on load)
- Bridged operation: up to 700W per channel at 8 ohms
- Analogue and Dante AoIP network audio connectivity
- Extremely low distortion: <0.01% @ 1kHz, <0.03% across 20Hz–20kHz
- Wide frequency response: 20Hz–20kHz (±0.3dB)
- Lightweight: 5.1 kg
- Remote control via GPIO
- Ideal for powering the Dynaudio M-Series Mk II Series of passive studio monitors
Dimensions (H x W x D)
- 44 x 482 x 428mm
Description

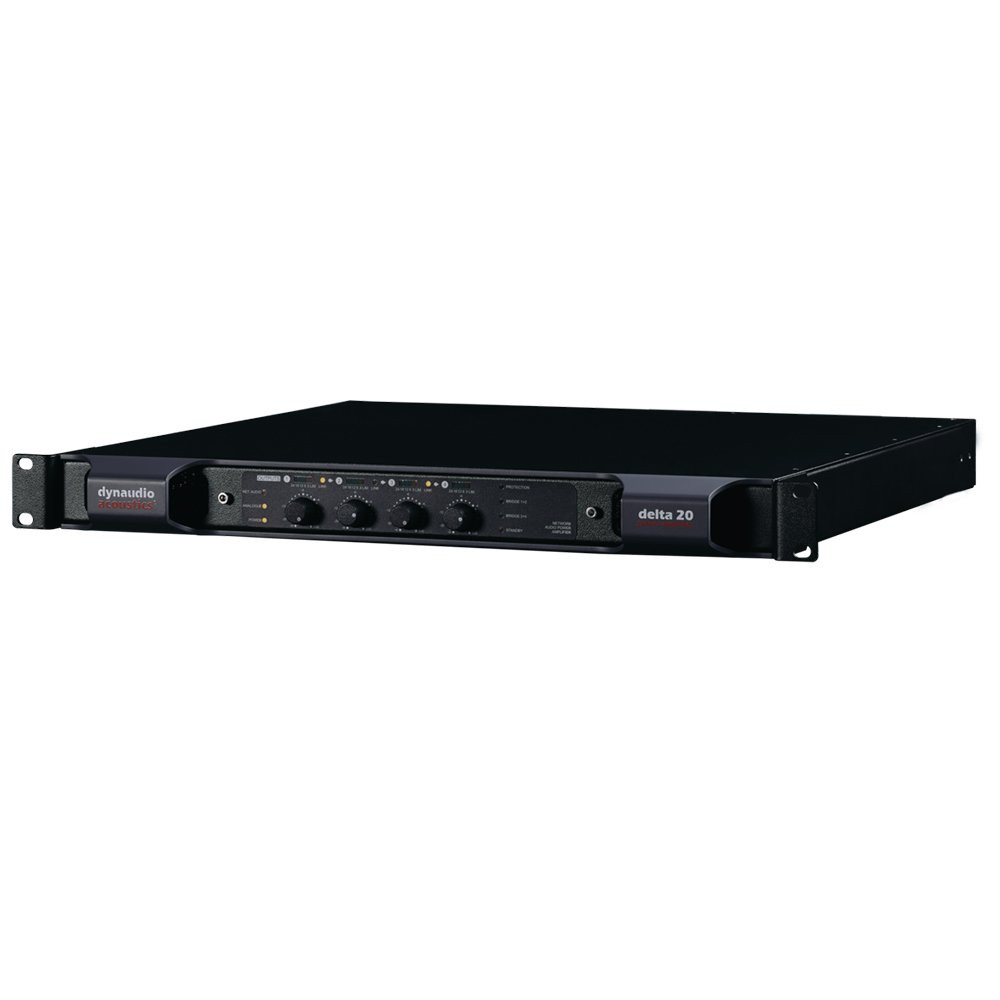

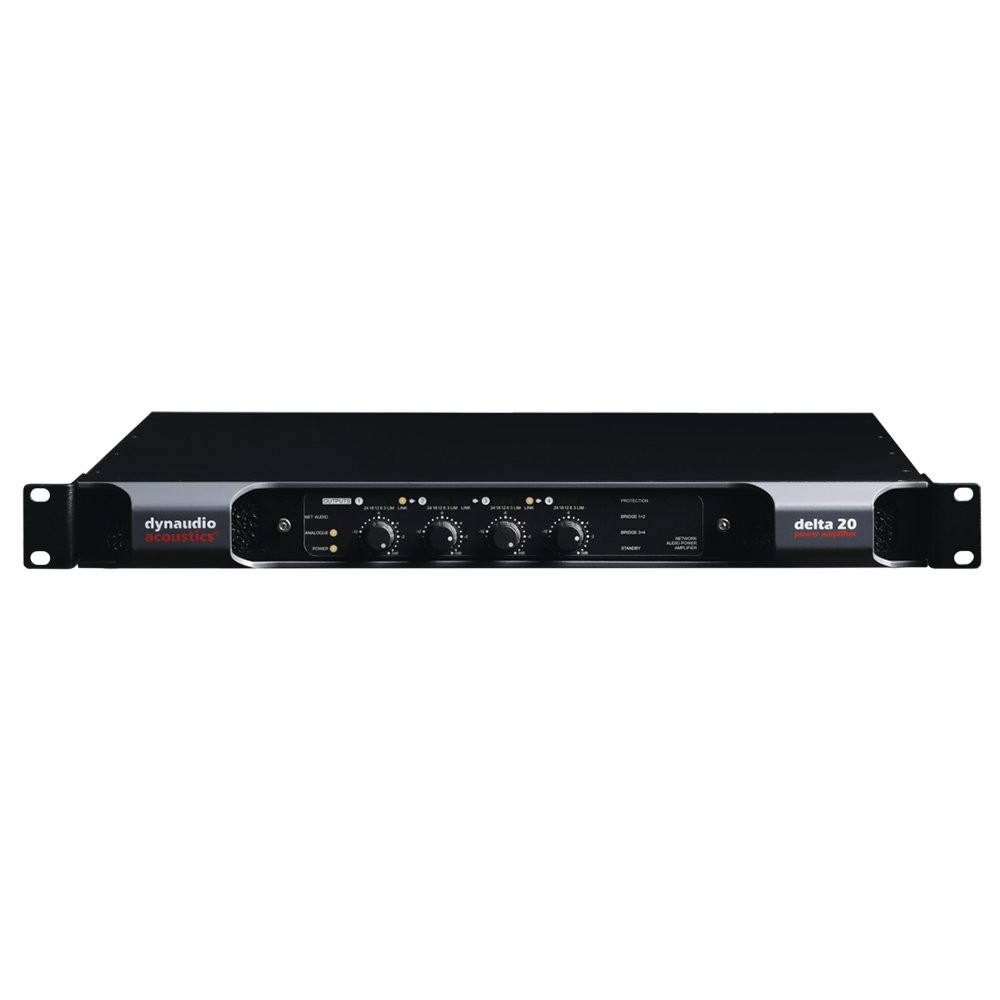

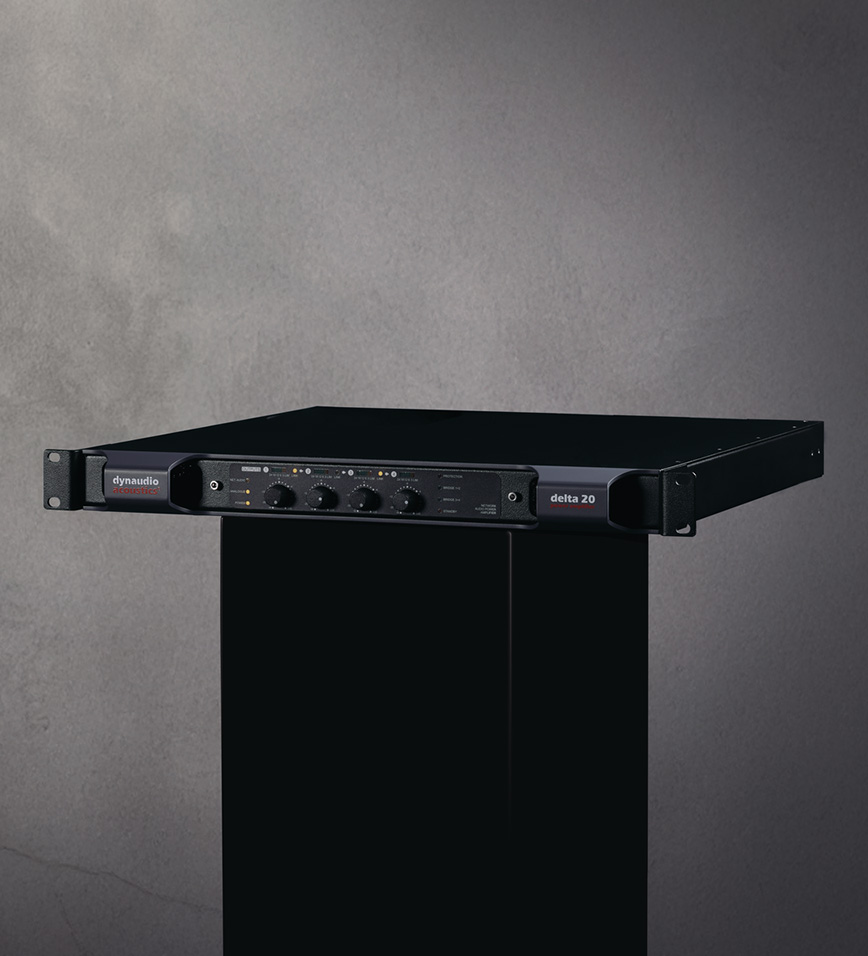

Dynaudio Acoustics Delta 20
Clean power with a minimal rack footprint
Every model uses the highest-quality power-amplifier technology – so you know for a fact that what goes in, comes out exactly as intended. Only louder.

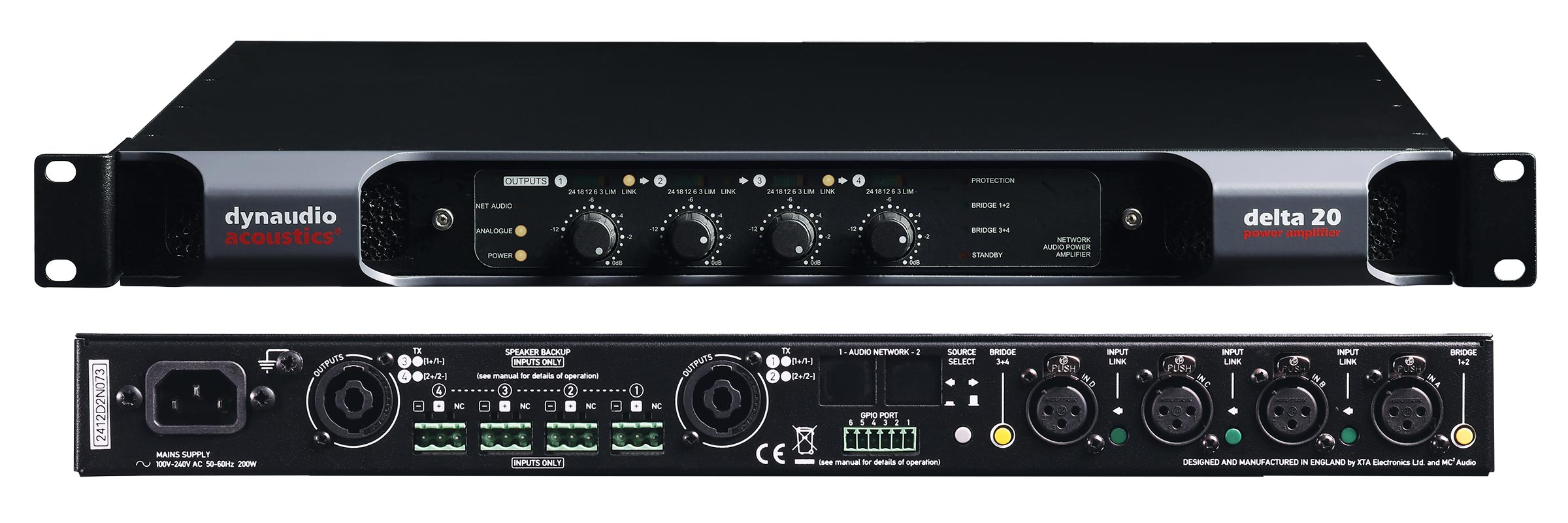

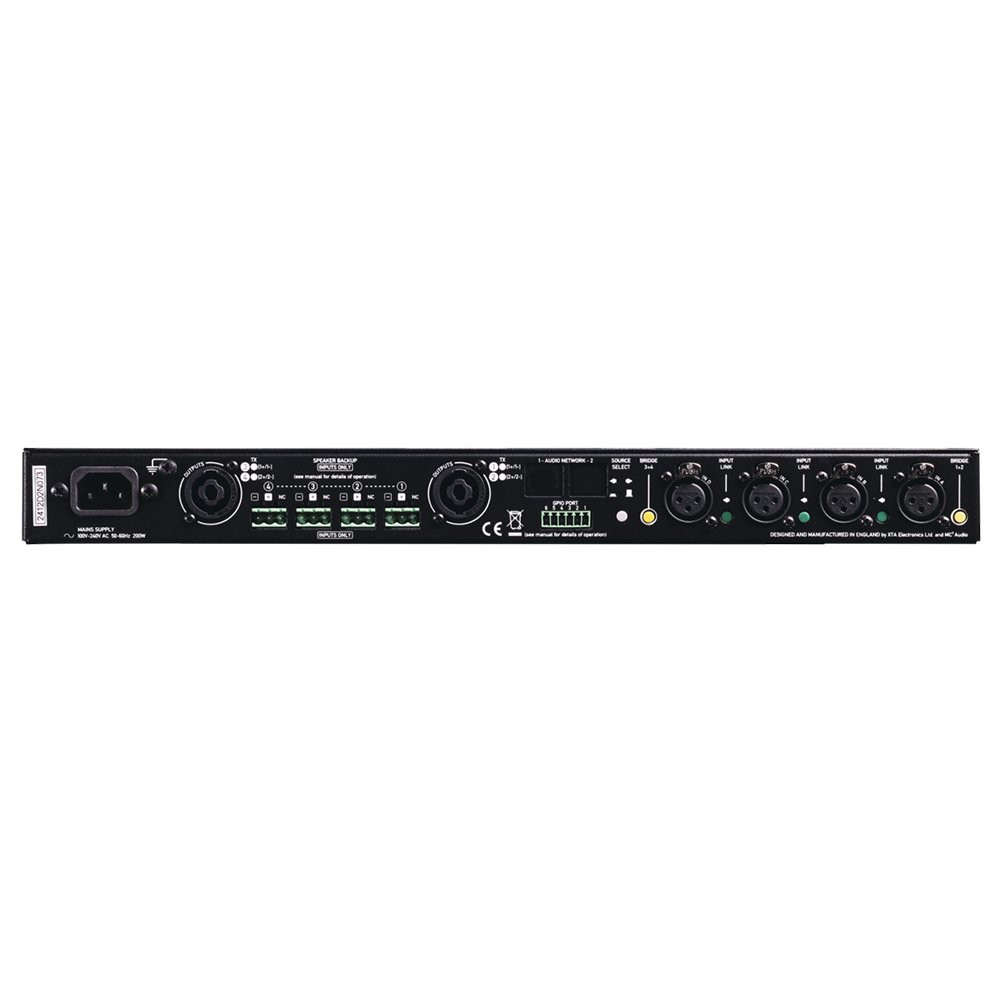

The 1U Delta 20 amplifies either four channels of analogue audio, or four channels of networked audio via Dante; it’s a future-proof system that can keep up with whatever your studio throws at it. When using Dante, your audio is converted by 24-bit/96kHz DACs.
Depending on impedance, Delta 20 offers output power from 175W to 480W per channel – and you can run bridged channel pairs or link-adjacent inputs in either analogue or digital modes, for complete flexibility.
On the power-supply side, Delta 20 features individual 70/100V line drive; auto-standby (with a sub-200ms wake-up); and a PFC-enabled universal mains supply for worldwide use. You also get GPIO for remote control and monitoring, back-up amp inputs, and even tuneable fans.
Want a stereo four-way system? Just connect to a Delta DSP amplifier with a single Cat 5 cable to eliminate the need for external processing.
Want to discuss your requirements?
Choosing the correct speakers for your room starts with a conversation. Thanks to our close relationship with Dynaudio Acoustics, we can help you can help you design the perfect loudspeaker system for your project.
Whether you're working in stereo, surround sound (5.1/7.1) or immersive audio formats like Dolby Atmos, we’ll ensure you're installing the perfect number of speakers and amplifiers for your space.
If you’re considering the Dynaudio M-series MkII for your recording studio or dubbing theatre, or would like to arrange a practical demonstration, give us a call on 01727 821 870 or contact us via our webform to discuss your requirements.
Specifications
* 70/100V line output transformer capability
Want to know more?
Give us a call on 01727 821 870 or contact us via our webform to discuss your requirements.
