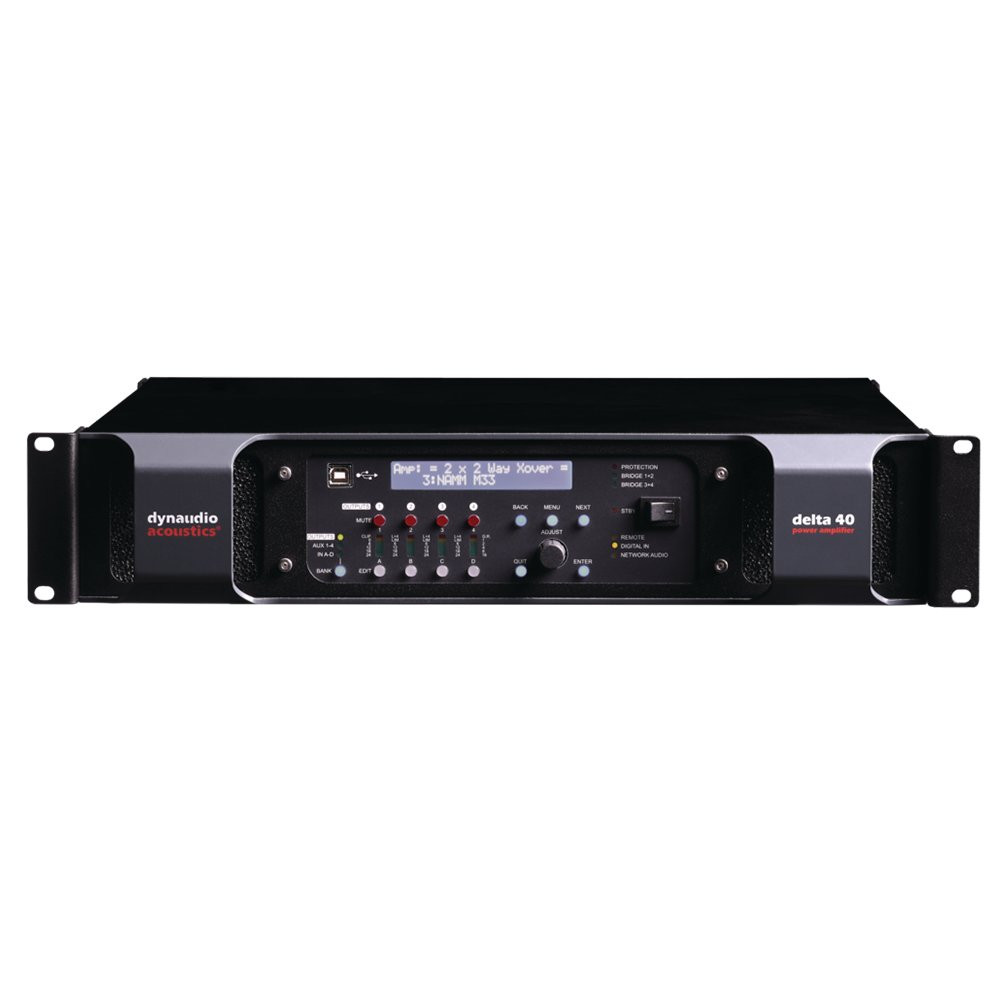

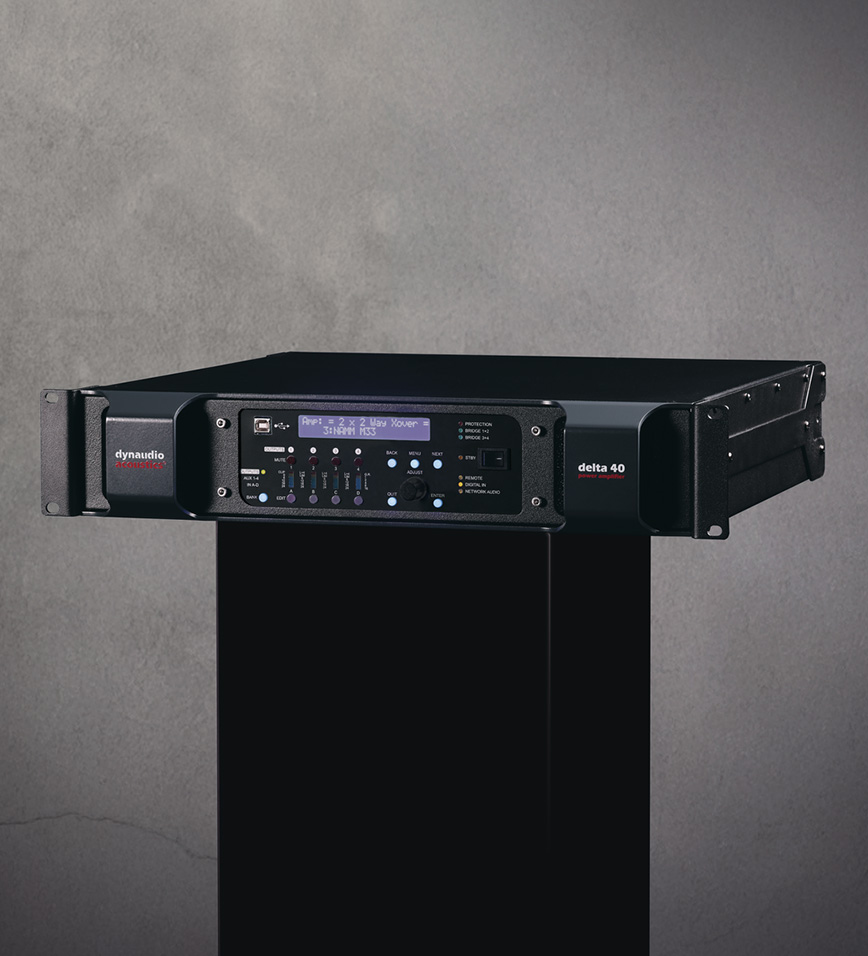

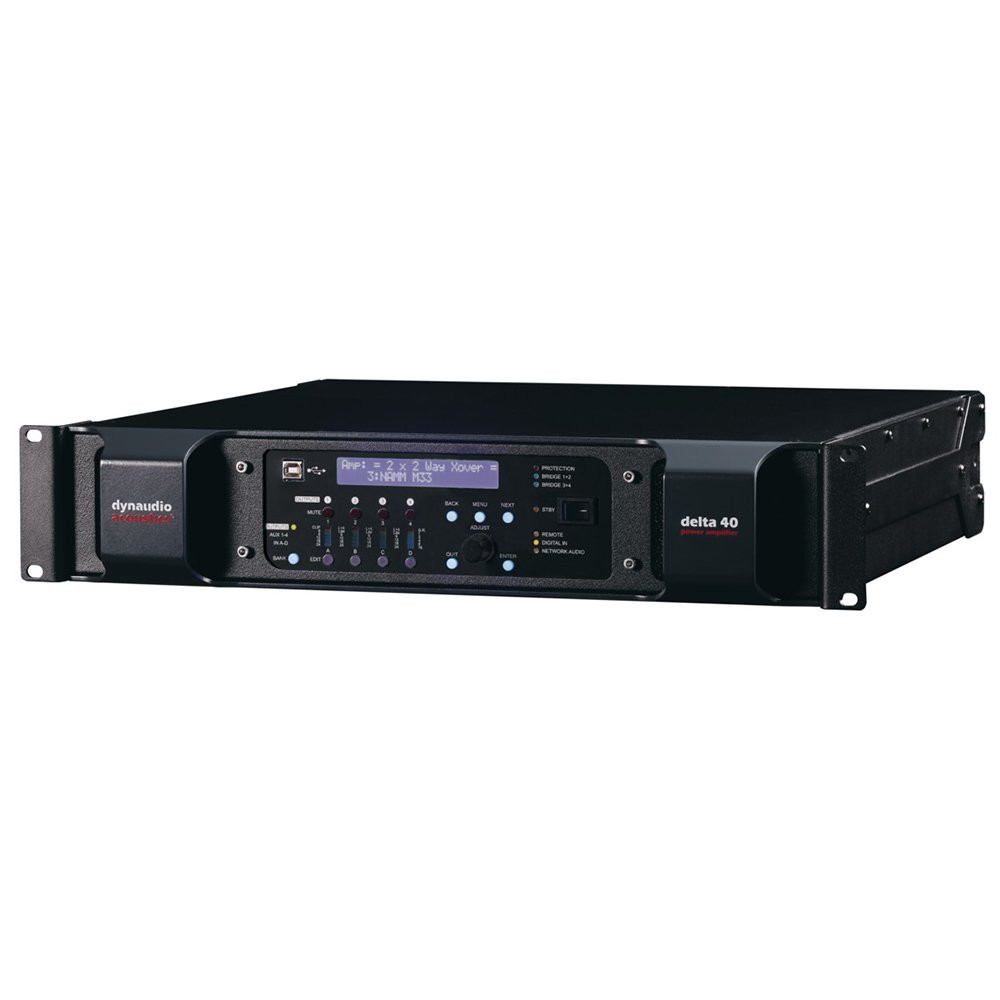

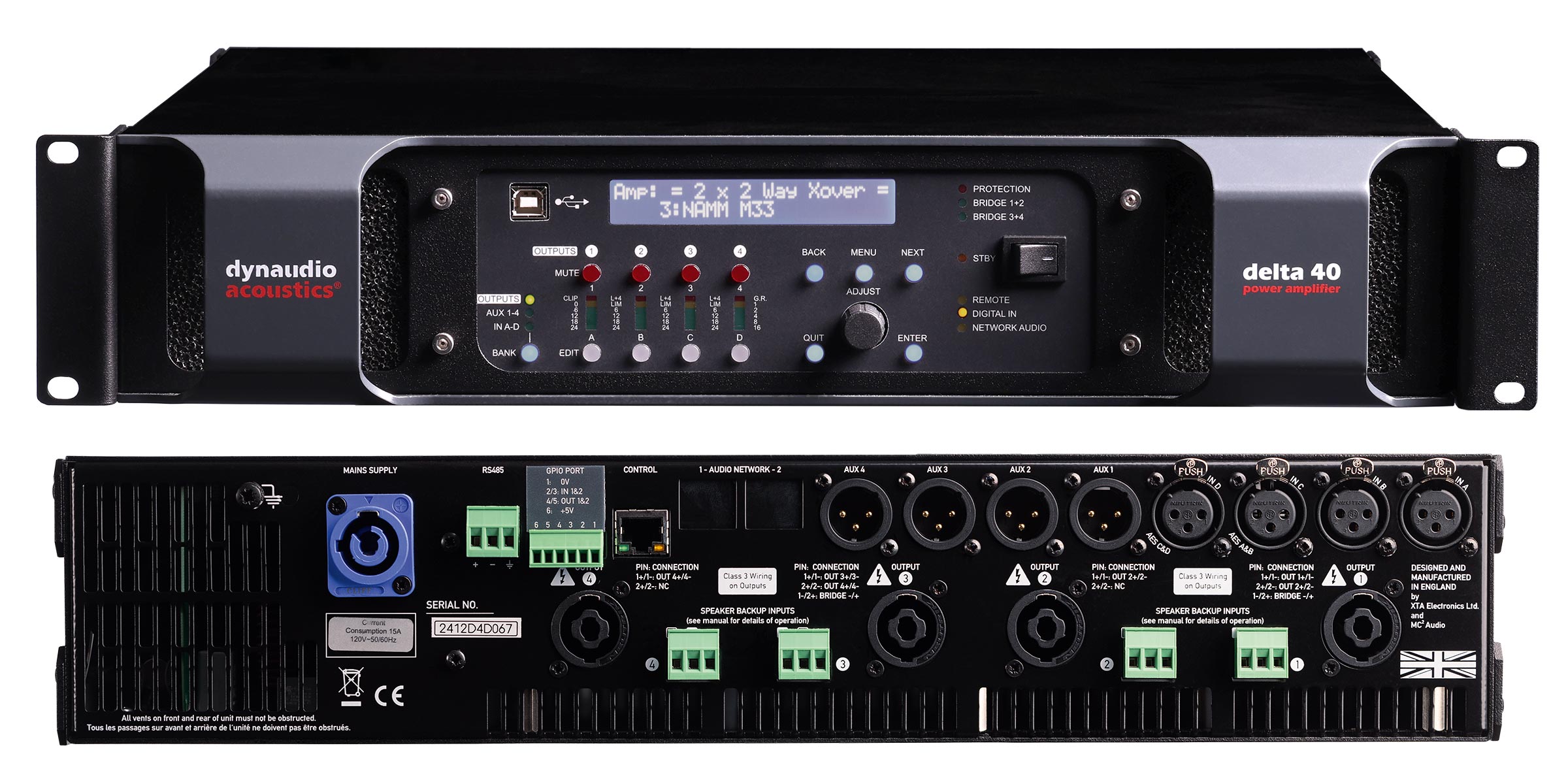

Dynaudio Acoustics Delta 40 DSP Amplifier
Delta Series Power Amplifier
Features
- 4-channel professional power amplifier
- 500W–1400W per channel (depending on load)
- Bridged operation: 2000W at 8 ohms / 2400W at 4 ohms
- On-board DSP with three dynamic and eight static EQ bands per input, nine static EQ bands per output, plus additional filters for room tuning

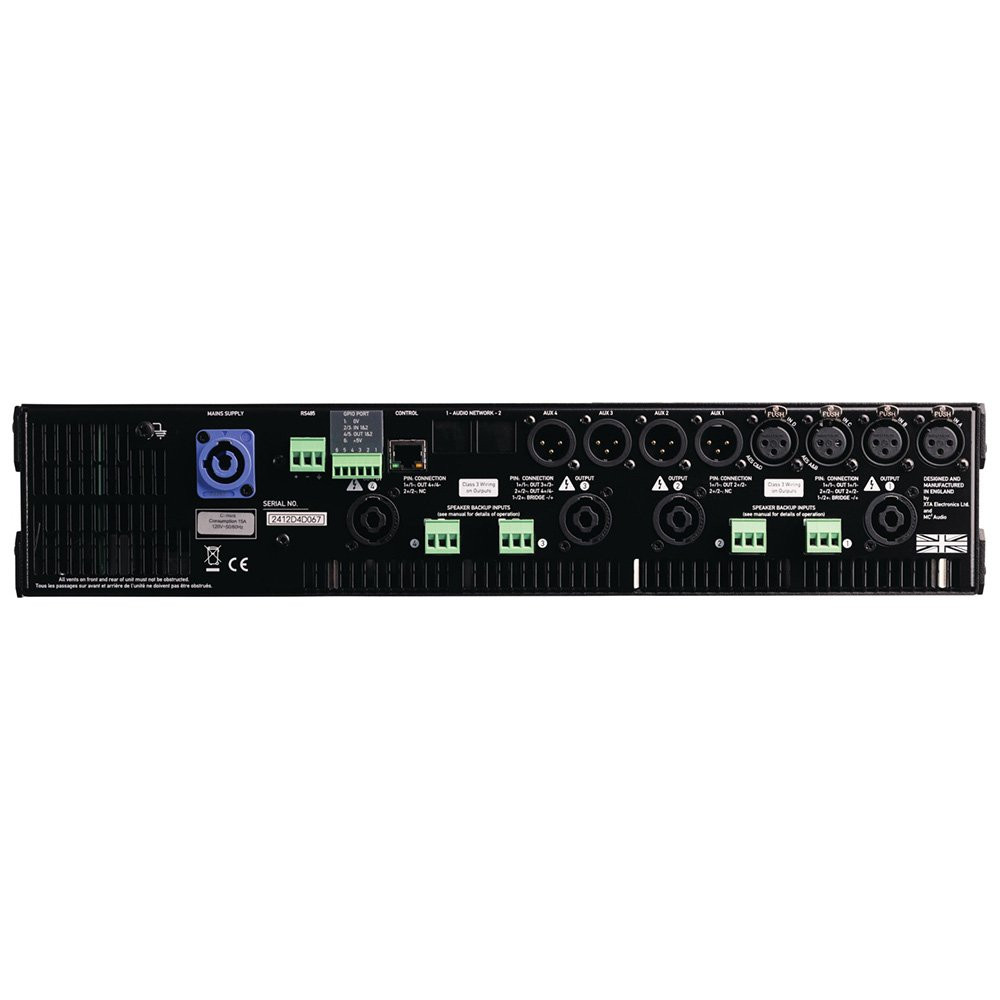

- Wireless control via DeltaDirect app for iPad, GPIO for remote control and monitoring, and redundant back-up amplifier inputs
- Analogue and Dante AoIP network audio connectivity
- Extremely low distortion: <0.18% @ 1kHz, <0.2% across 20Hz–20kHz
- Wide frequency response: 20Hz–20kHz (+0/-0.5dB)
- Lightweight: 10.0 kg / 22.0 lbs
- Ideal for powering the Dynaudio M-Series Mk II Series of passive studio monitors
Dimensions (H x W x D)
- 88 × 482 × 428 mm
Description

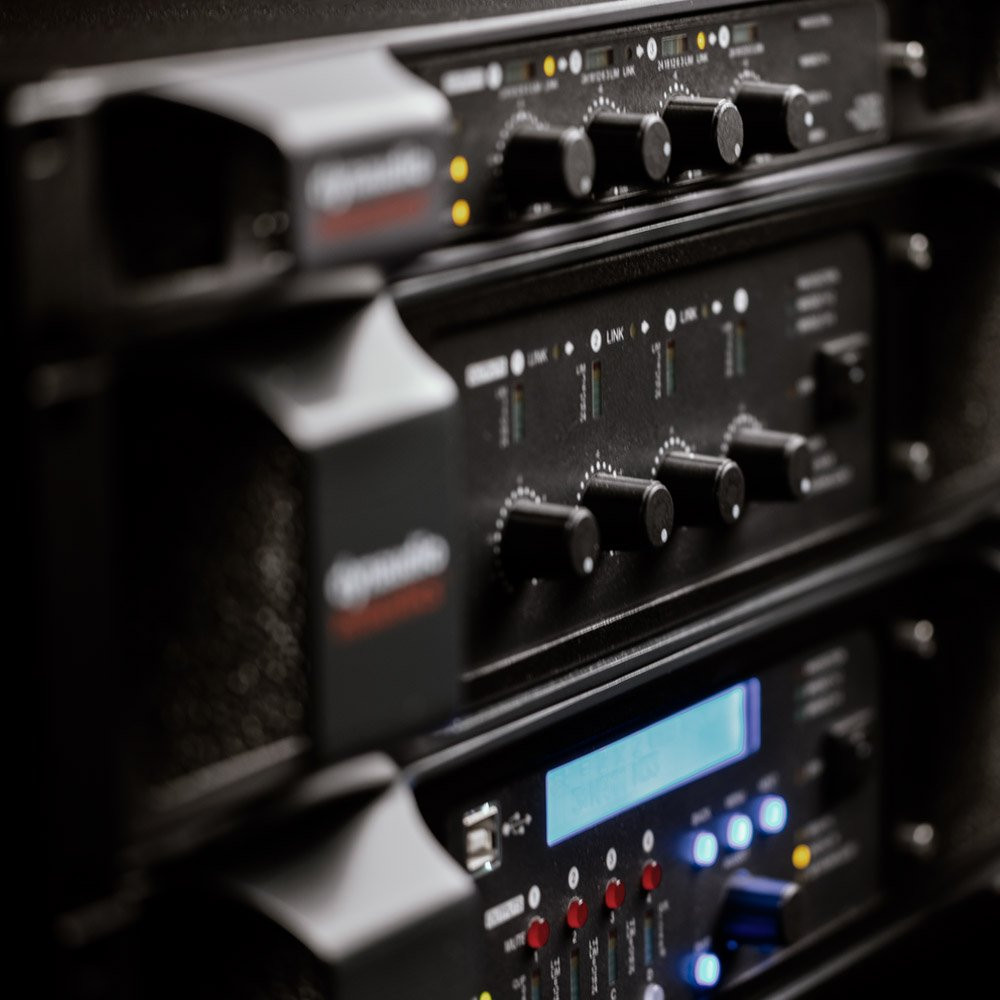

Dynaudio Acoustics Delta 40 DSP
Remote control, cutting-edge DSP and all the power you need. Rack ’em up…
Every model uses the highest-quality power-amplifier technology – so you know for a fact that what goes in, comes out exactly as intended. Only louder.
The 2U Delta 40 yields a huge 4x 1000W at 4 ohms – or 2x 2400W when bridged. And it does so without breaking a sweat, while delivering enviably low distortion and noise figures. For instance, THD is as low as <0.18% at 1kHz.&
Analogue or AoIP via Dante? Delta 40 handles up to four channels; it’s a future-proof system that can keep up with whatever your studio throws at it. When using Dante, your audio is converted by 24-bit/96kHz DACs.
Should the need for room tuning arise, you also get access to pristine DSP features. These span three dynamic and eight static EQ bands per input channel, and nine static EQ bands per output. Add to that, a suite of additional filters.
You also get wireless control via the DeltaDirect app for iPad, GPIO for remote control and monitoring, and redundant back-up amplifier inputs.
Want a stereo four-way system? Just connect to a Delta DSP amplifier with a single Cat 5 cable to eliminate the need for external processing.
Want to discuss your requirements?
Choosing the correct speakers for your room starts with a conversation. Thanks to our close relationship with Dynaudio Acoustics, we can help you can help you design the perfect loudspeaker system for your project.
Whether you're working in stereo, surround sound (5.1/7.1) or immersive audio formats like Dolby Atmos, we’ll ensure you're installing the perfect number of speakers and amplifiers for your space.
If you’re considering the Dynaudio M-series MkII for your recording studio or dubbing theatre, or would like to arrange a practical demonstration, give us a call on 01727 821 870 or contact us via our webform to discuss your requirements.
DSP Specifications
Specifications
* 2.7 ohm power quoted for highest single-ended output and greatest efficiency (3 × 8 ohm parallel drivers). Amplifier is stable with 2 ohm loads but output will be reduced.
