MADI Systems Setups

Contact us on 01727 821 870 for more information or to discuss your own MADI setup.

MADI is the perfect solution for the transmission of multiple audio channels. The technical problems of the standard multicore cables are well-known: cable loss, stray pick-up, ageing, weight, cumbersome handling etc. MADI is different: A thin cable transmits up to 64 audio channels, lossless, over a distance of up to 2000 meters!

MADI Setups

There are only few solutions to transmit audio signals over long distance with little effort. Using MADI offers the unique option to transfer up to 64 channels via a single optical cable (alternatively coaxial cable). In addition to audio, MADI also offers MIDI and RS232 transmission. Important connections can be routed in a redundant way. RME MADI and AES/EBU products offer solutions for all possible setups.

MADI Systems Setup Examples

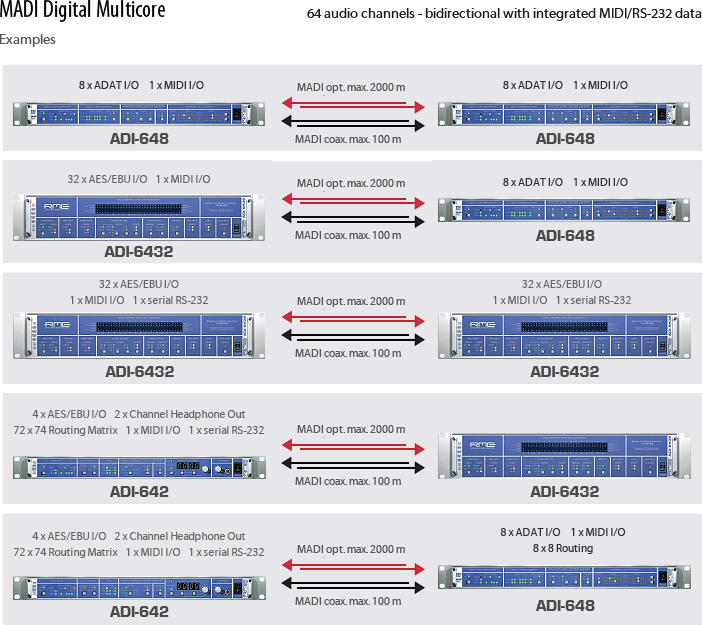

en_madi_center_multicore

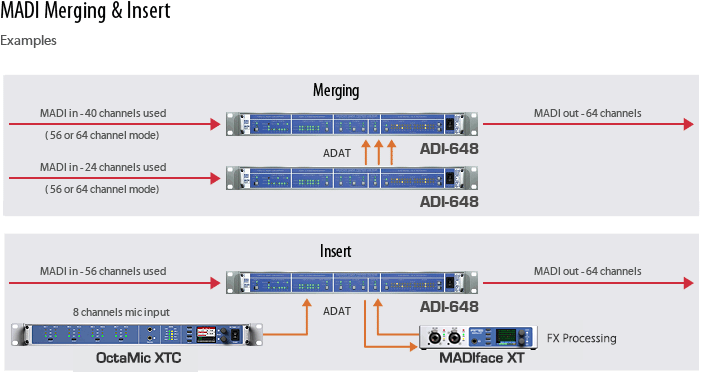

en_madi_center_merging

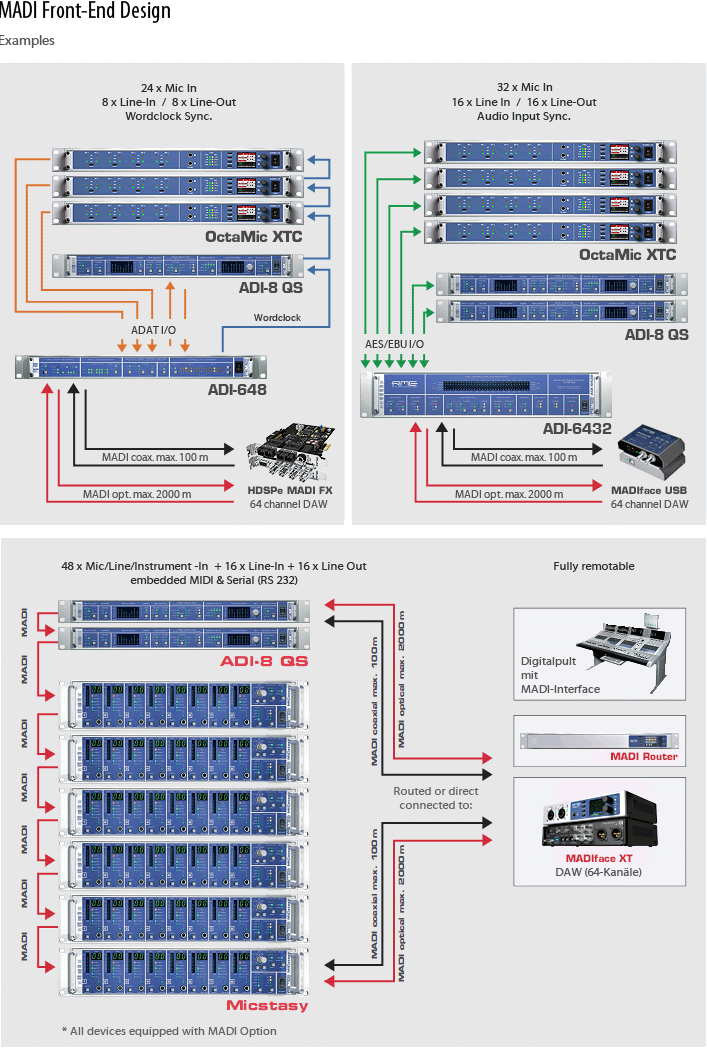

en_madi_center_front_end

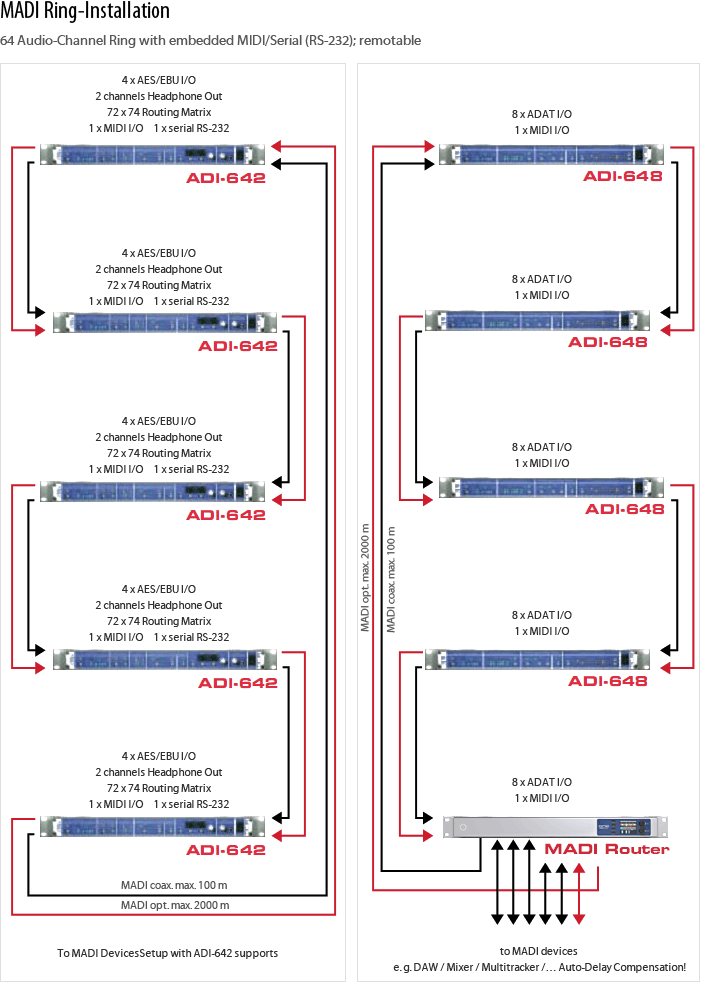

en_madi_center_ring

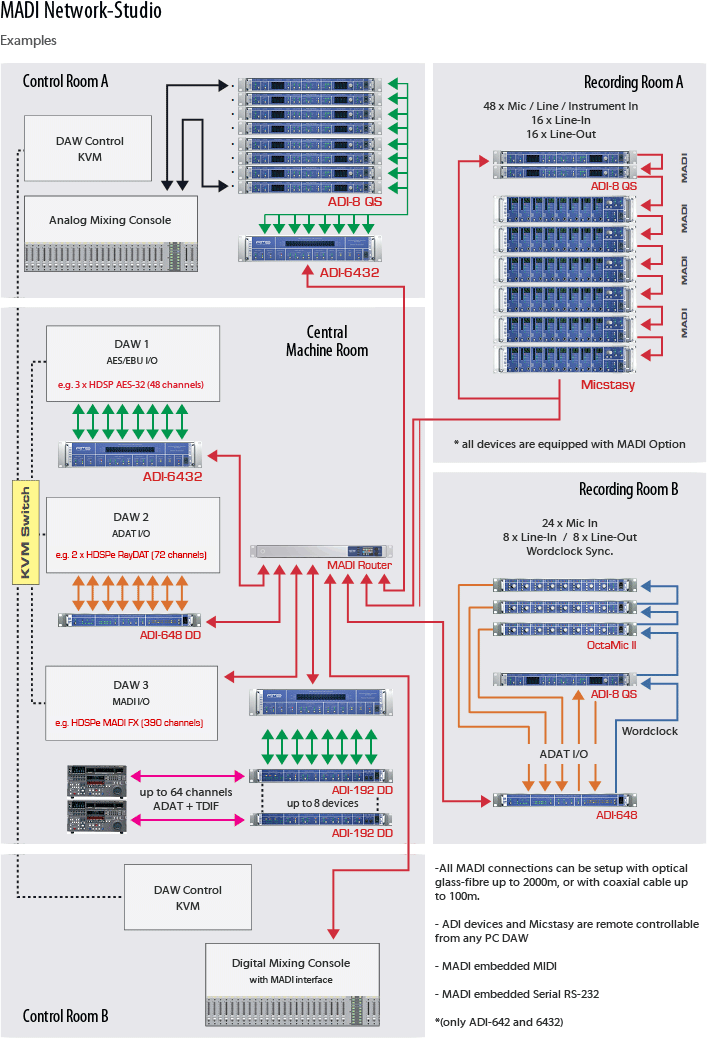

en_madi_center_studio_net
The different rooms were MADI connected with the CMR (Central Machine Room). The room routing is remote controllable from the DAW Workstation – every point can provide and process every signal. Absolute flexibility is guaranteed.

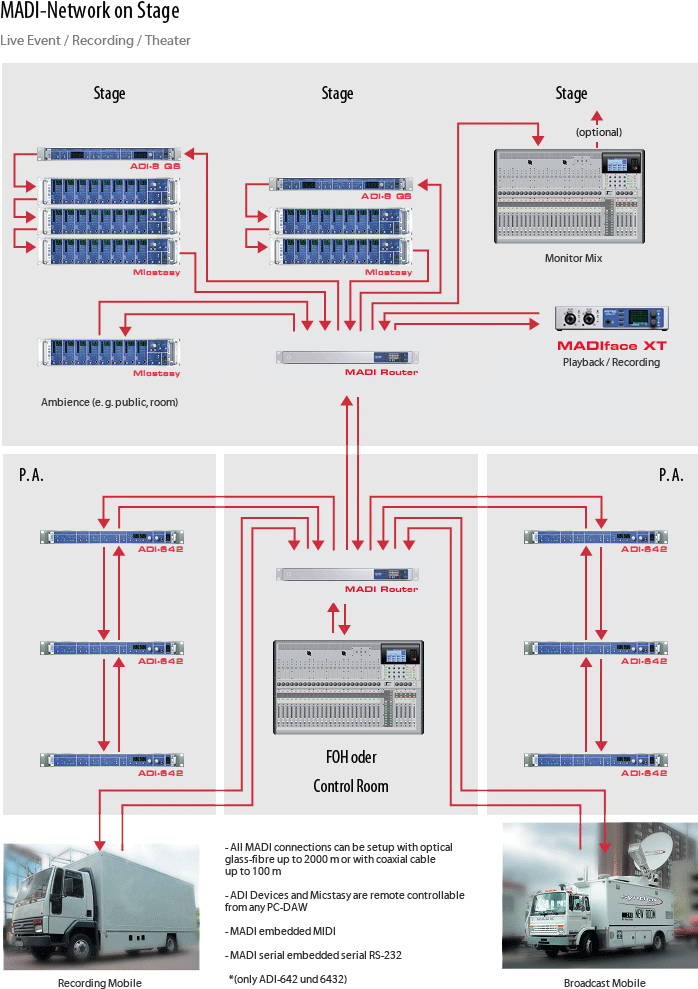

en_madi_center_live
Example: Huge live event with a simultaneous record and broadcast/TV transmission. Safety and flexibility are extremely important. All central connections are redundant. The SAT mobile can transmit a pre-mixed signal (stereo/surround) from the recording mobile or access all single signals.
