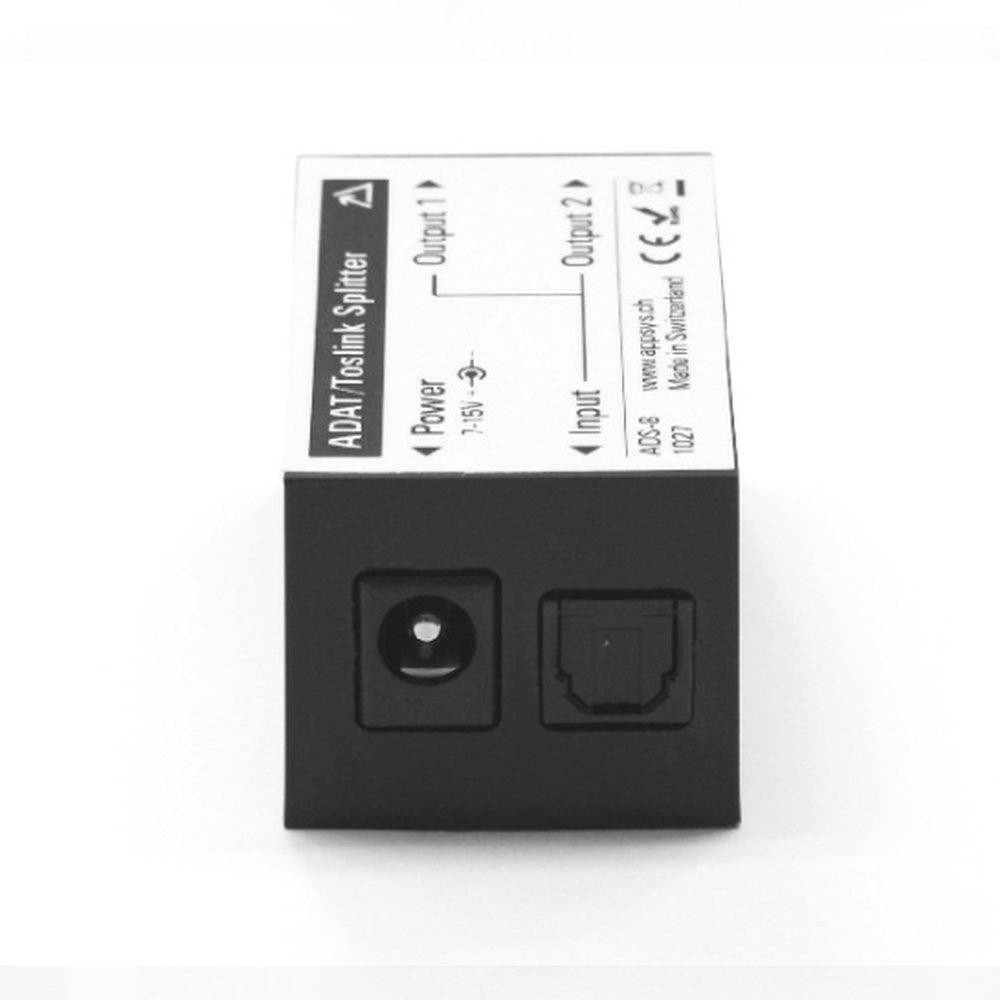

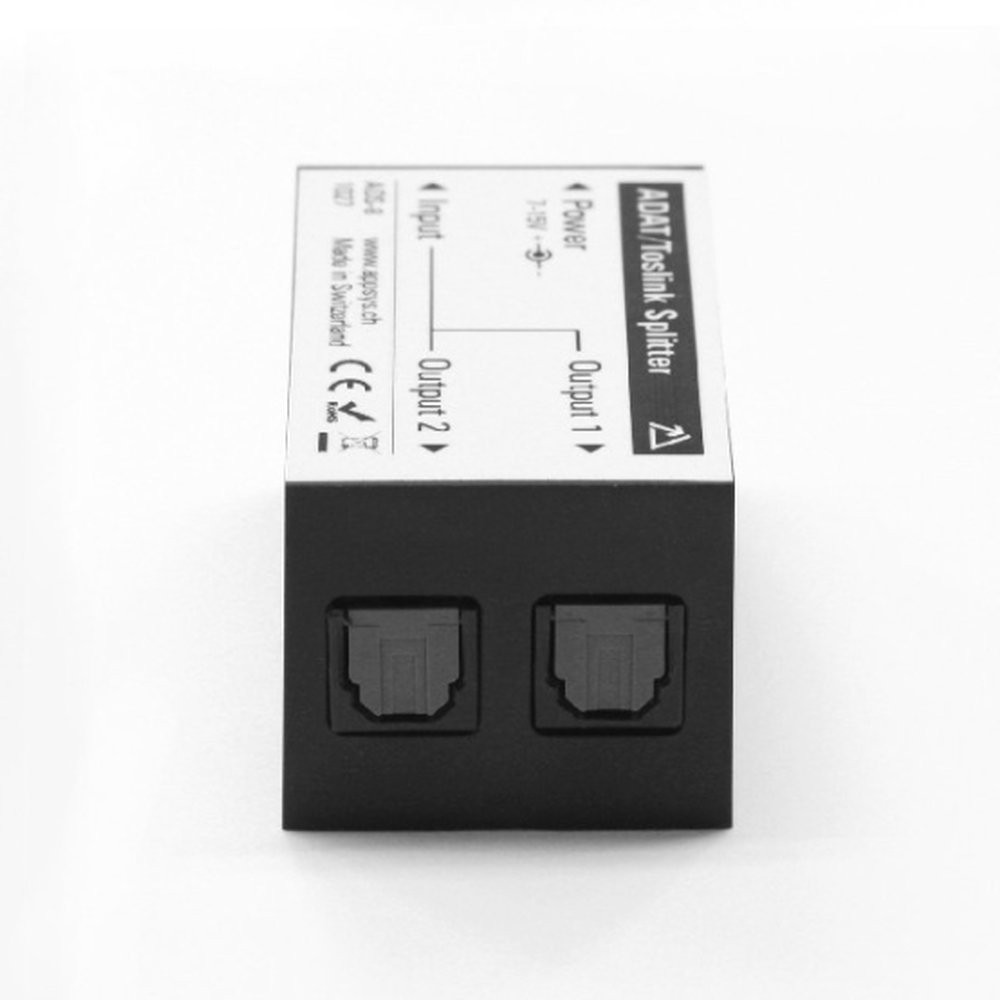

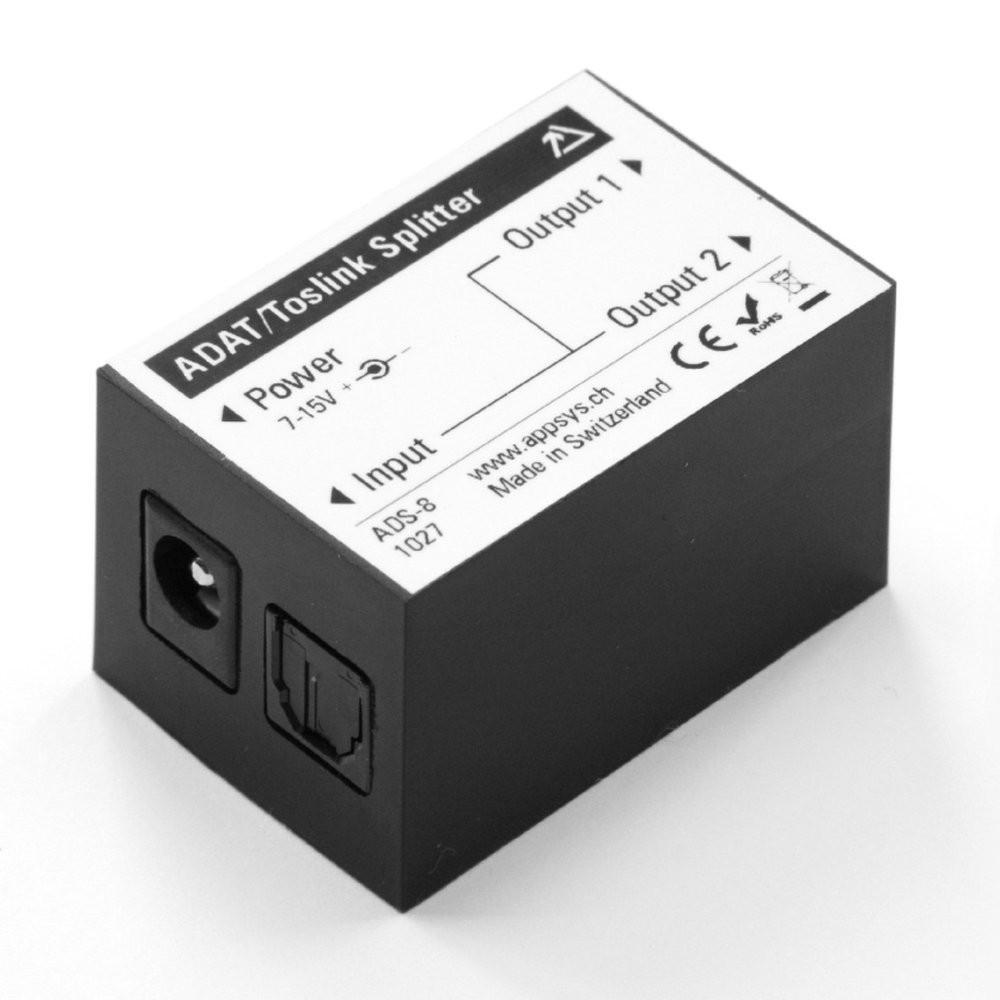

Appsys ProAudio ADS-8

To purchase this product please:

Contact us

Customer Rating: (0)

Active ADAT/Toslink
Splitter & Repeater

  • Doubles maximum transmission distance of an optical connection (standard reach of 5-10m increased to 10-20m, depending on the equipment used)
  • Near-zero latency (< 1µs)
  • All channels present on the input are available on both outputs
  • All channels present on the input are available on both outputs
  • Compatible with all audio formats which can be sent over TOSLINK

Includes

  • Splitter (1 input -> 2 outputs)
  • AC adapter in "green" switching technology
  • Printed manual

Description

Active ADAT/Toslink Splitter & Repeater

The ADS-8 ADAT/Toslink Splitter allows you to connect any signal source to two sinks. The active design overcomes the limitations of traditional passive splitters: They essentially half the amount of light on each output, causing problems because the attenuated signal is too weak for proper transmission of high-speed data.

In contrast, the ADS-8 receives the optical signal, converts it to an electrical signal which can be split without loss to the output transmitters, which operate on each port with full power. As a side effect, it acts as signal repeater which doubles the reach of each connection.

Features

  • Reliable, lossless, true bit-transparent splitting of any signal
  • Doubles maximum transmission distance of an optical connection from normally 5-10m to 10-20m, depending on the equipment used
  • Near-zero latency (< 1µs)
  • All channels present on the input are available on both outputs
  • Compatible with all audio formats which can be sent over TOSLINK
  • Made in Switzerland

Specifications

Model number ADS-8
Input/Outputs Optical connector, F05 Type TOSLINK compatible
Supported audio formats ADAT Lightpipe
S/PDIF (up to 96kHz / 24 bit)
Dolby Digital 5.1 (AC-3)
DTS
all other TOSLINK compatible formats up to 13.2 MBit/s
(NRZ encoding)
Power Supply 7 - 15V DC 60mA, Polarity: Center Positive
Plug: ID = 2.5mm, OD = 5mm, Length = 9mm

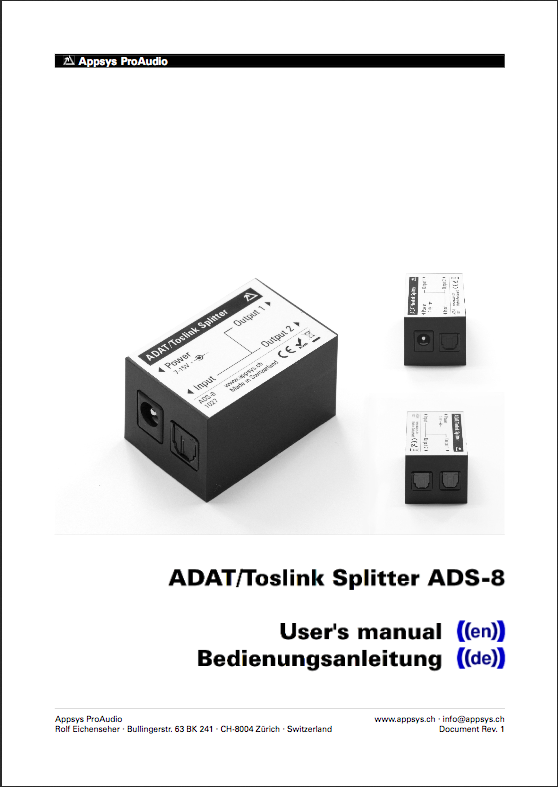

Appsys Pro Audio ADS-8 User Manual
