Appsys Flexiverter Aux Card (AUX-MADI-TP-DUAL)

Dual MADI-TP Card for
Appsys FLX-DANTE/SRC
Auxillary Card for Appsys Flexiverters
- 64 x 64 channel MADI I/O
- 2 x Cat5 Ethernet*
- Compatible with the DiGiCo and Soundcraft/Studer variants of MADI-TP (MADI over Cat5)
*Note: only works with Appsys FLX-DANTE/SRC.
Description


SERIES
Multi-format. Highly Affordable. Most flexible.
Format Boards (AUX)
Insert and switch any AUX board in every main FLX unit
and create the converter of your choice.

AUX-MADI-TP-DUAL

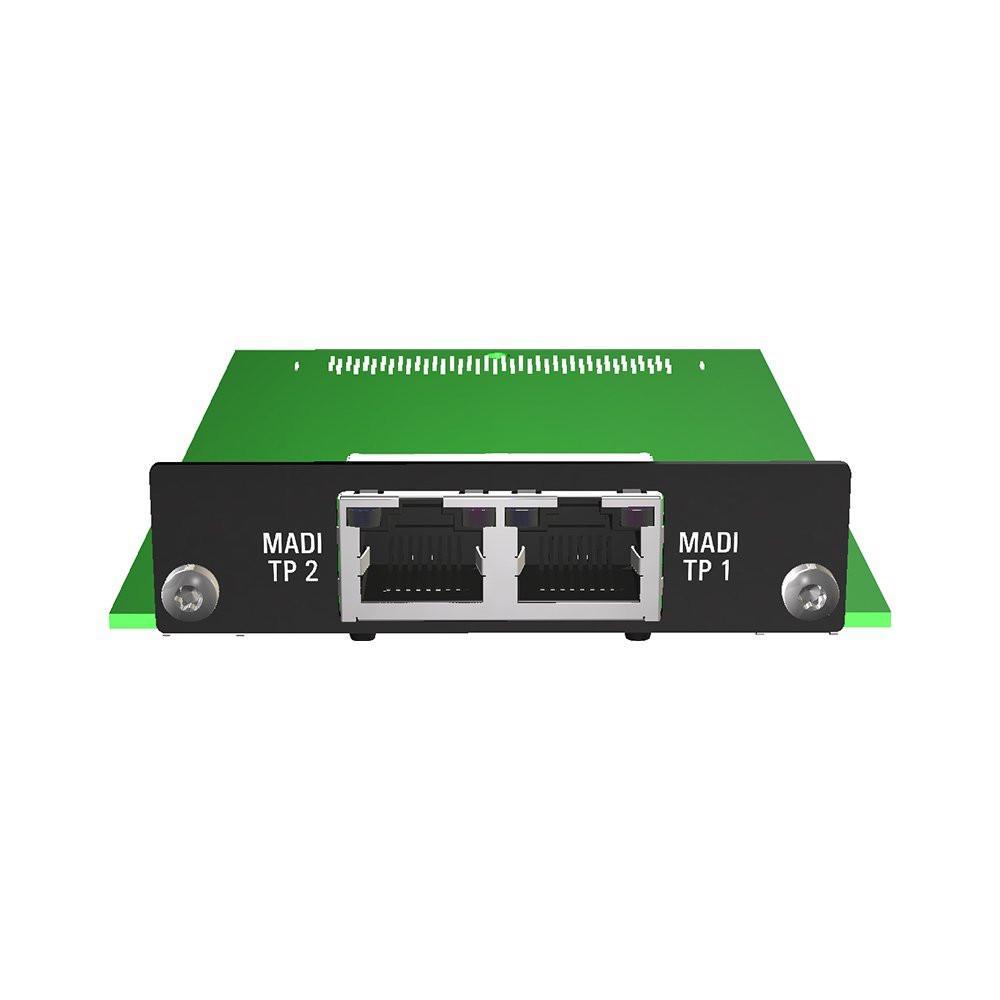

The Appsys AUX-MADI-TP-DUAL card is a 64 x 64 channel MADI over Twisted Pair Extension Card for the Appsys FLX-DANTE/SRC.
The format is compatible with the DiGiCo and Soundcraft/Studer variants of MADI-TP (MADI over Cat5).
The AUX-MADI-TP can be fitted into any Flexiverter (FLX) for the following purposes:
- To use the FLX as standalone converter between the built-in format and this extension card
- To add extra output splits to existing FLX devices by "tapping" channels of another conversion
- To add additional channels/protocols to the FLX when used in a 'double-Flexiverter' or 'Flexiverter+Multiverter' configuration
For a detailed description of possible configurations, please refer to the manual of your base FLX device.

Box Contents
• 1 x AUX-MADI-TP-DUAL card
• 1 x Slot cover plate
• Paper manual
Specification
| Parameter | Value | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimensions | 118 x 80mm (W x H) | ||||||||||
| Weight | 83g | ||||||||||
| Operating temperature | 0..+55°C, non-condensing | ||||||||||
| Storage temperature | -40..+85°C, non-condensing | ||||||||||
| Cable lengths | Max. 70m, depending on a variety of factors. Use high-quality Cat5 cable only. When transmission errors occur, try reducing the cable length. |
||||||||||
| Channel count |
AUX-MADI-TP 64x64 @ 48kHz (56/57ch modes can be configured) 32x32 @ 96kHz (28ch mode can be configured) 16x16 @ 192kHz (14ch mode can be configured) AUX-MADI-TP-DUAL 64x64 @ 48kHz (56/57ch modes can be configured) 64x64 @ 96kHz (28ch mode can be configured) 32x32 @ 192kHz (14ch mode can be configured) |
||||||||||
| Sample rates | 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz | ||||||||||
| Latency | Interface <> Flexiverter internal: 2 samples | ||||||||||
| Connector pinout |
|
