Calrec Apex M6
Small Frame. Big Possibilities.
- Modular I/O platform for audio interfacing, routing and conversion
- Support for up to six modular Calrec cards
- Broad format support including MADI, Dante, Waves SoundGrid, AES3, SDI, analogue and GPIO
- Built-in MADI and redundant ST2110/AES67 connectivity for flexible IP integration
- Hydra2 Mode for interfacing with other Calrec Hydra2 equipment
- Versatile format conversion and internal routing between supported audio formats
- Bridging and migration between MADI, SDI, Dante and ST2110/AES67 environments
- Native NMOS and edge deployment for integration across a wide range of audio infrastructures
Description
Would you like a demo of the Calrec Apex M6?
Give us a call on 01727 821 870, or contact us to book a demo.
Get in touchThe compact 1U modular I/O platform for audio interfacing, conversion, routing, bridging and network edge connectivity.

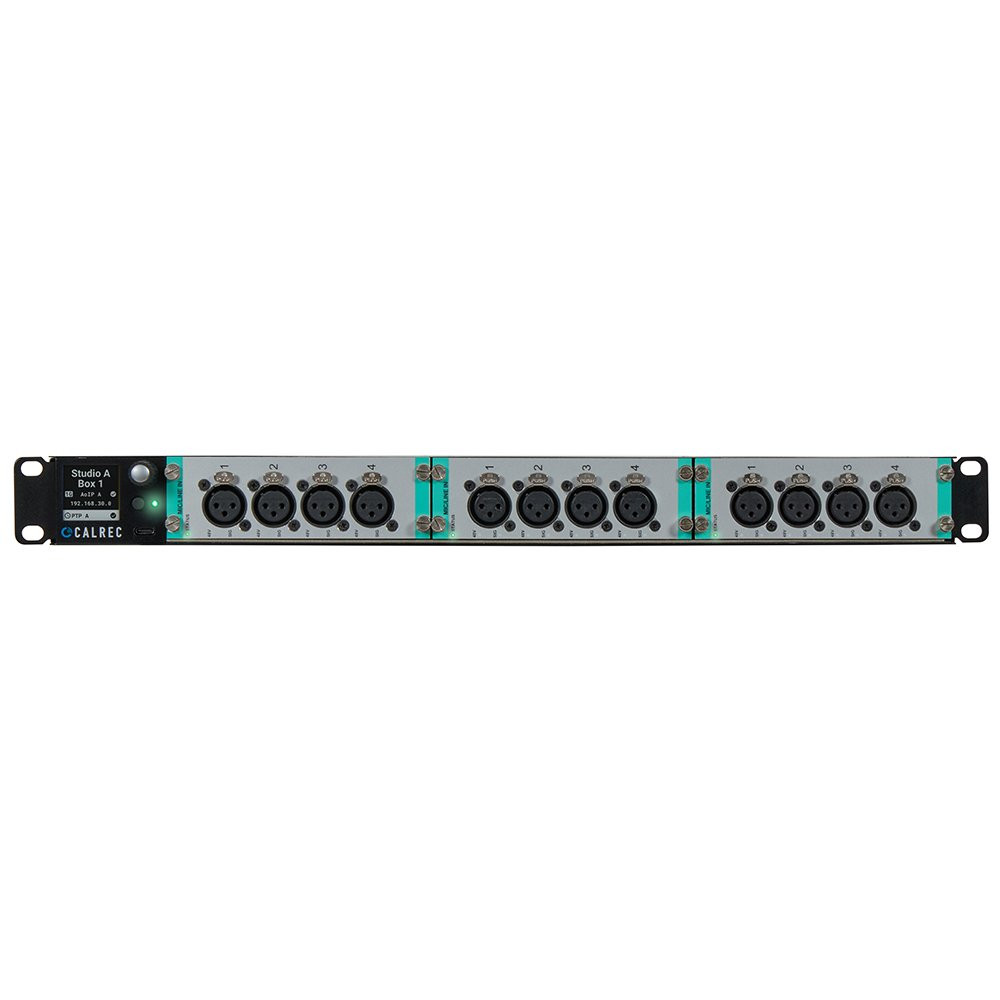

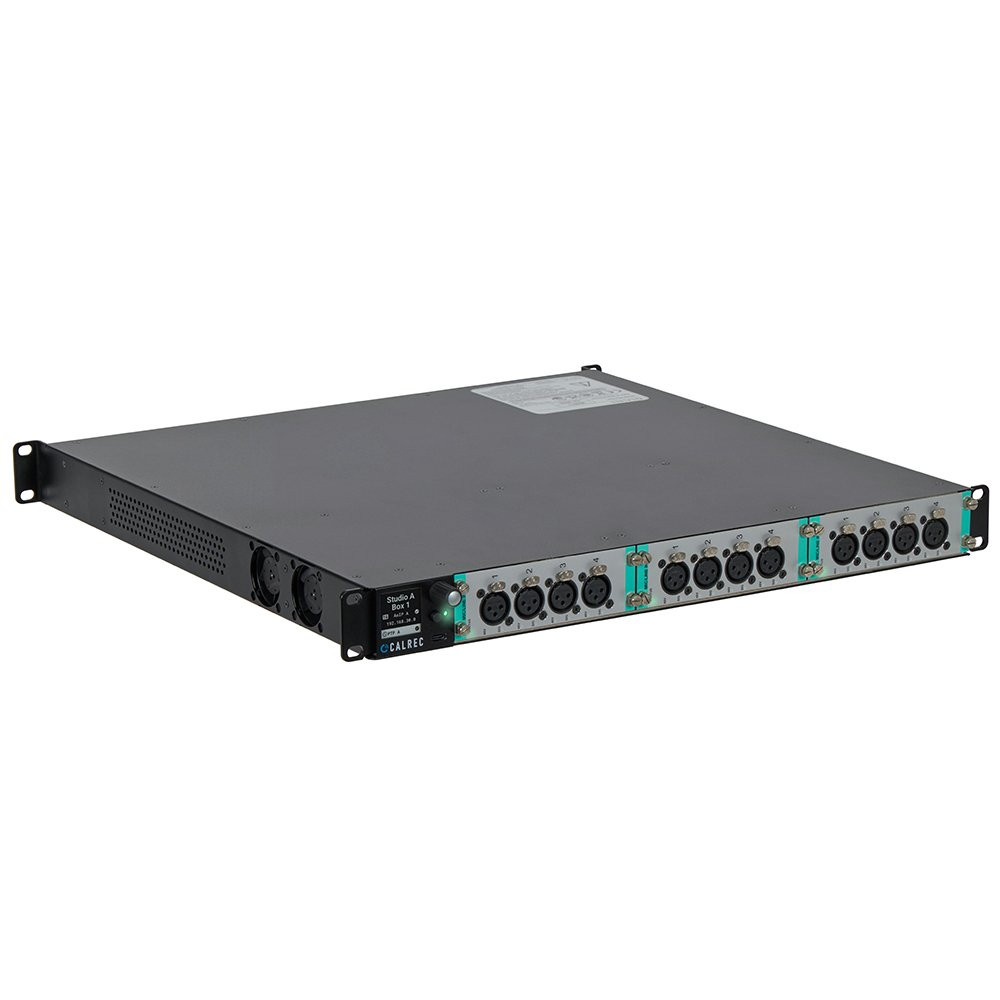

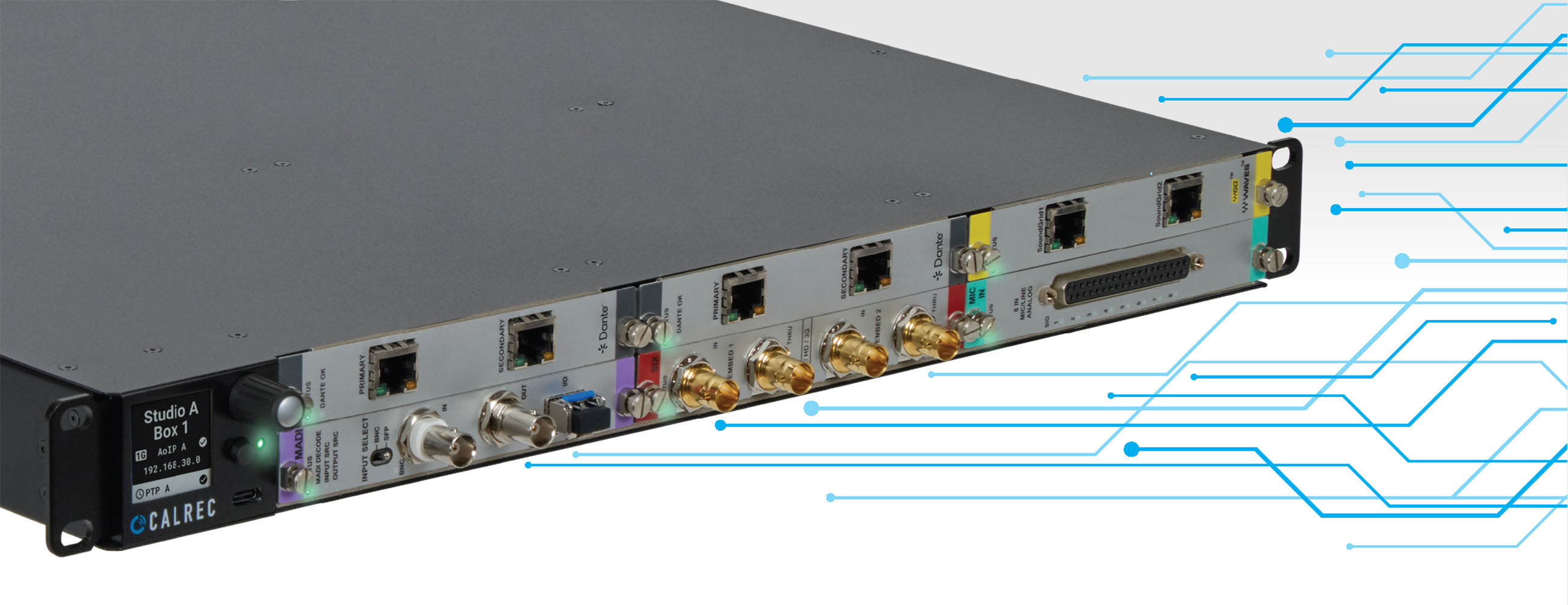

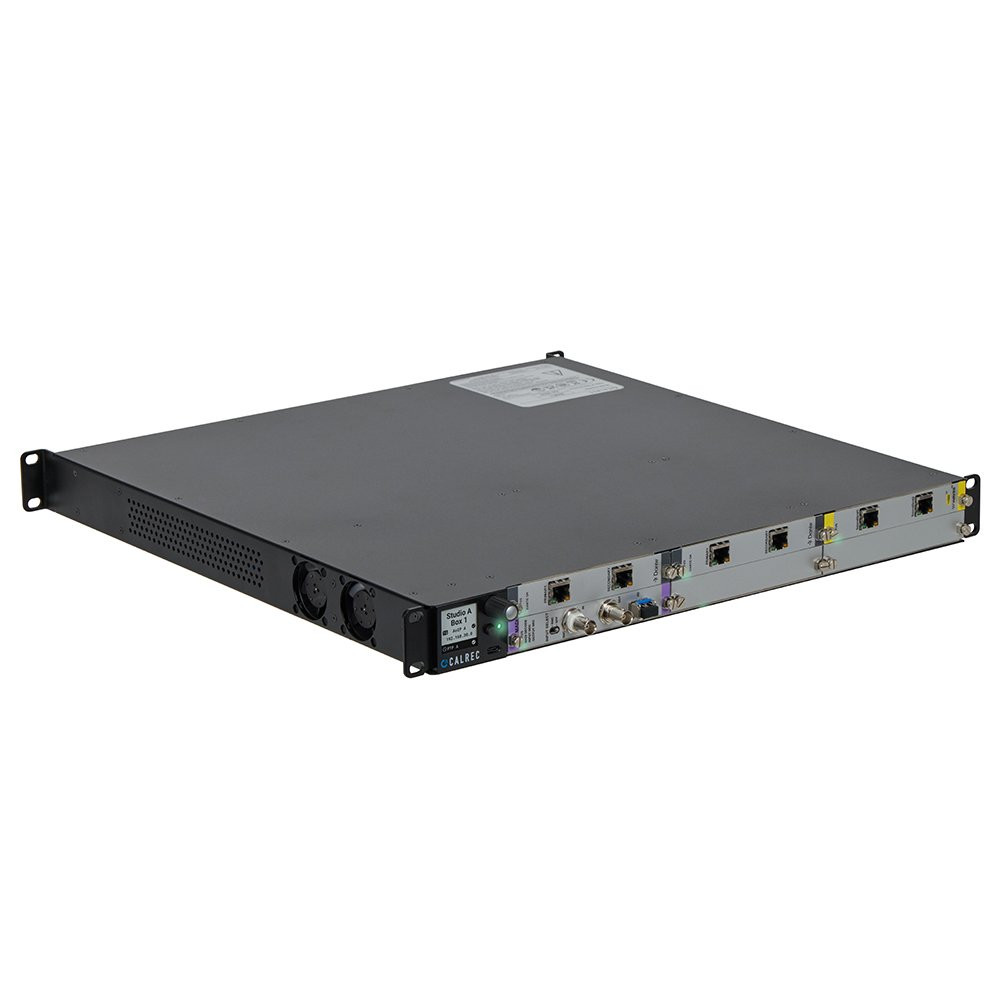

The Calrec Apex M6 is a 1U modular I/O platform that delivers powerful audio interfacing, conversion, routing, bridging and network edge connectivity in a compact package.
Designed to connect virtually any audio environment, it supports ST2110-30, AES67, Dante, MADI, SDI, Waves SoundGrid, AES3 digital formats and analogue workflows, enabling broadcasters to integrate legacy infrastructure, expand IP networks and simplify hybrid operations.
With MADI connectivity built-in as standard, modular expansion, native NMOS support and internal routing, Apex M6 delivers a cost-effective way to connect, convert, route and distribute audio, anywhere in the production workflow.
The Calrec Apex M6 supports up to six Calrec Audio modular cards.
See the full range of Calrec I/O Options.
I/O Expansion

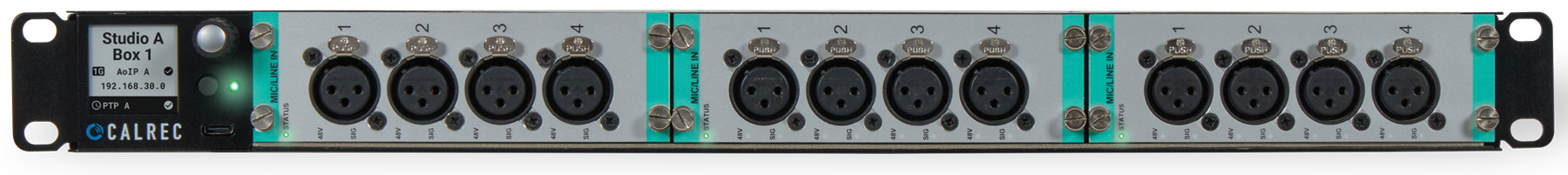

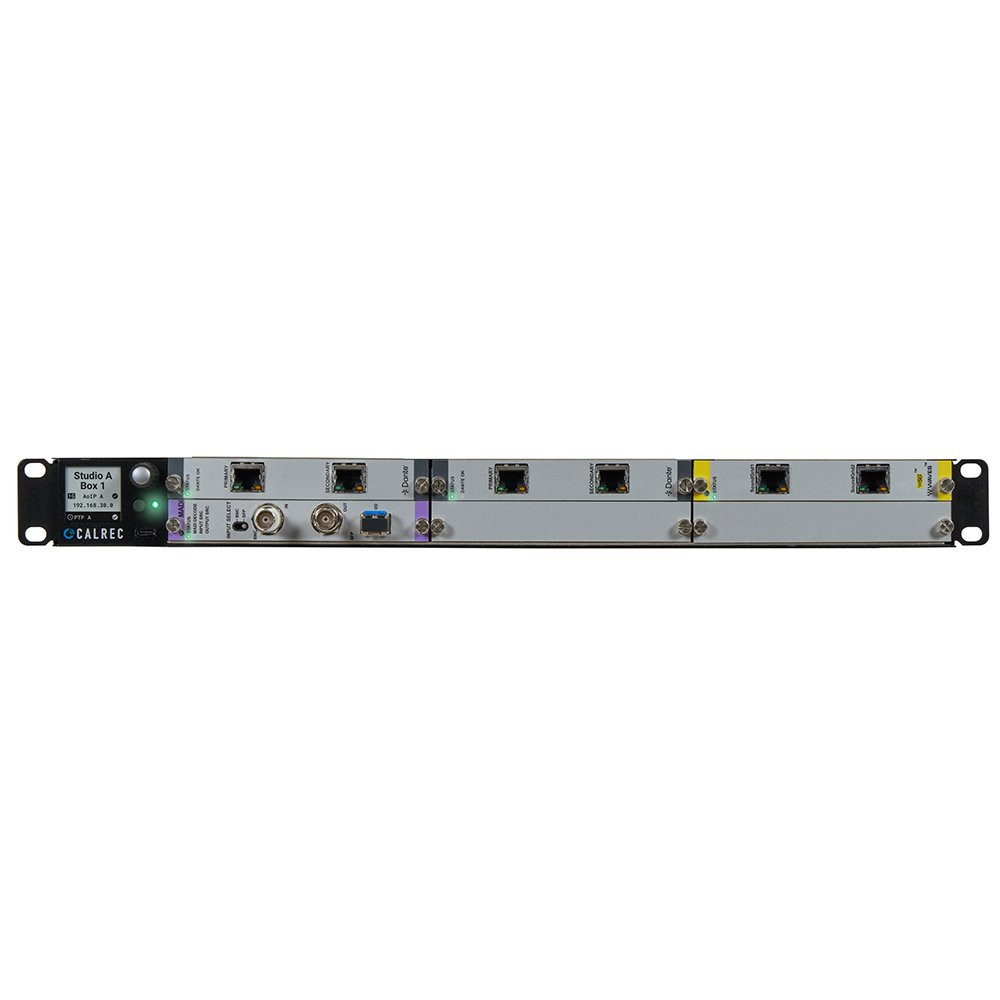

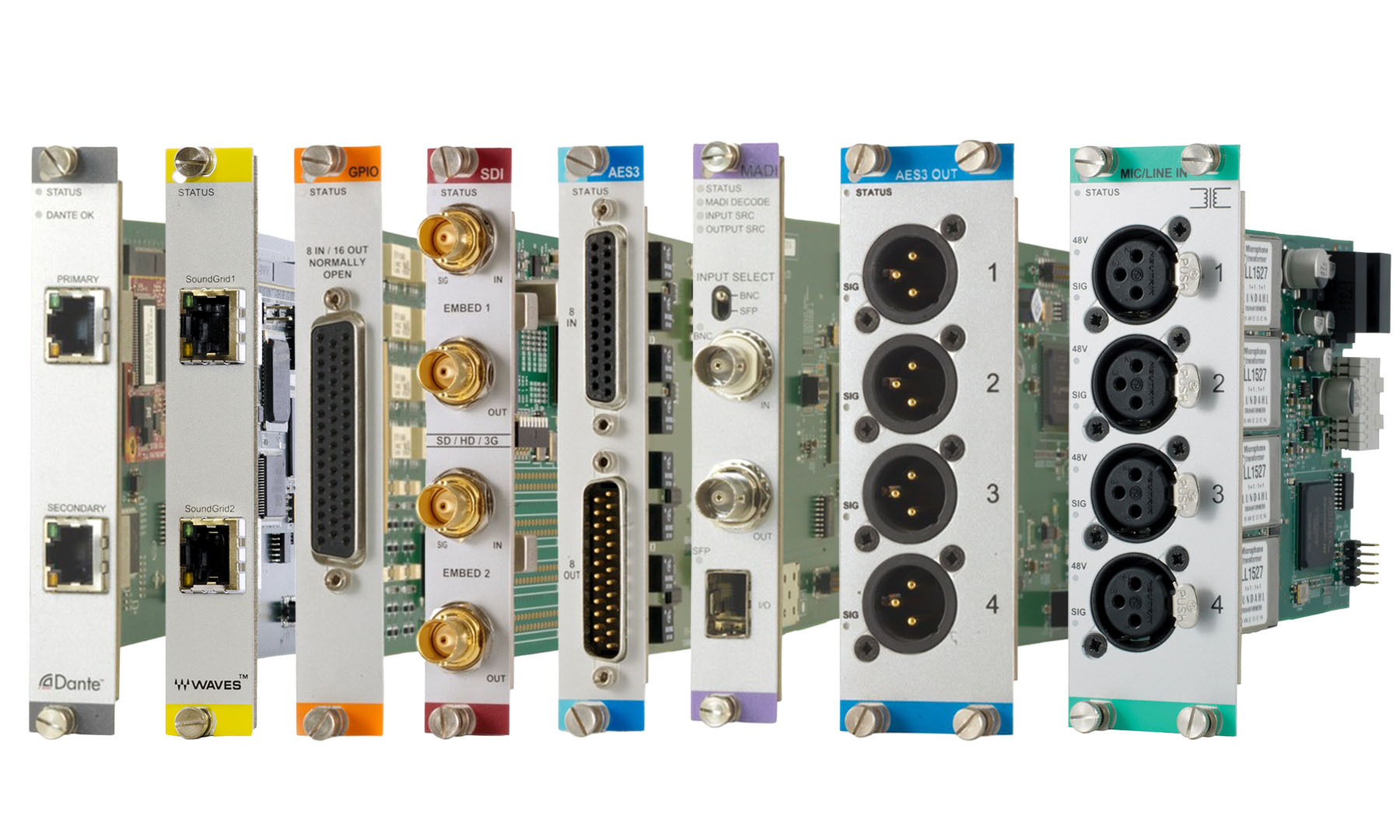

Add up to six I/O cards from Calrec's extensive modular range, including MADI, Dante, Waves SoundGrid, analogue, AES3, SDI & GPIO.
This is in addition to the two built-in MADI I/O ports, GPIO and redundant 1G/10G 2110/AES67 connectivity included as standard.
Format Conversion
Convert any input format to any output format across ST2110, Dante, MADI, SDI, Waves SoundGrid, AES and analogue environments.
Internal Routing
Flexible 1-to-N routing enables any input to be routed directly to any output, regardless of format, allowing signal distribution and format conversion without external routing infrastructure.
Bridging & Migration
Connect MADI, SDI, Dante and ST2110/AES67 environments, enabling both phased migration to IP and interoperability between different audio networking technologies.
Edge Deployment
Apex M6 is a versatile standalone audio interface, enabling connectivity, routing, format conversion and network bridging at the edge of any audio infrastructure.
Calrec Apex M6 | Fully Featured

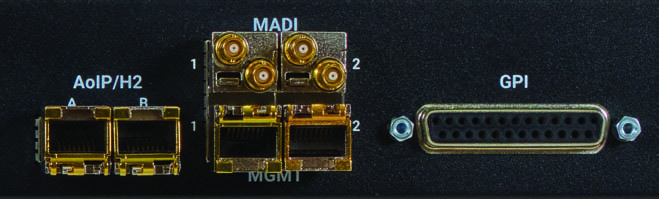

Cost-effective IP migration
Apex M6 provides a cost-effective route into ST2110 and AES67 workflows without replacing existing infrastructure.
With two MADI interfaces built in as standard and compatibility with Calrec's existing I/O card range and audio consoles, broadcasters can reuse existing investments while expanding connectivity and moving to IP at their own pace.

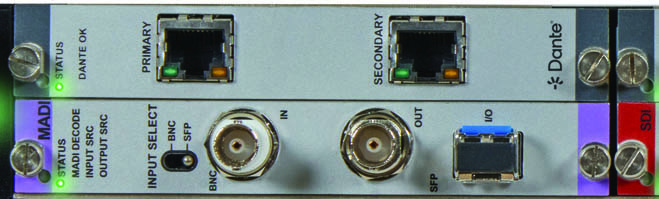

Flexible connectivity & conversion
Acting as both a modular I/O platform and standalone format converter, Apex M6 seamlessly supports ST2110-30, AES67, Dante, MADI, SDI, Waves SoundGrid, AES3 digital formats and analogue workflows.
Internal routing enables direct signal distribution within Apex M6, eliminating the need to route signals through external network and routing infrastructure, simplifying system design and reducing complexity.
Deploy connectivity where it's needed

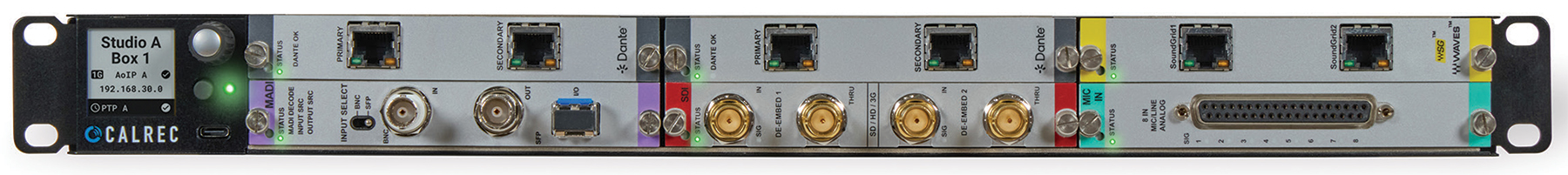

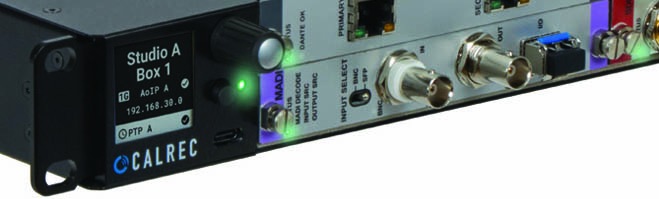

Apex M6 is quick to deploy and easy to identify. A front-panel e-ink display with rotary encoder and button control enables configuration of Hydra2 or AoIP operating modes and IP addresses before connecting to the network, and remains visible without external power.
Native NMOS support enables interoperability across multi-vendor IP environments, including ImPulseV virtualised DSP deployments.
Typical Applications

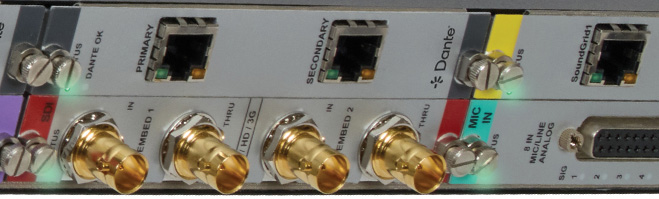

Migration & integration
- ST2110 migration without replacing MADI infrastructure
- Dante integration within IP facilities
- Multi-vendor interoperability projects
- Hybrid SDI, MADI and IP environments

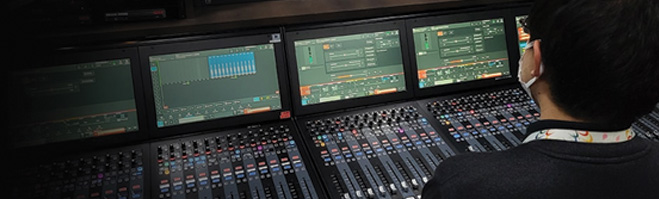

Production & distribution
- SDI audio embedding and de-embedding
- Audio connectivity and contribution workflows
- Edge routing and signal distribution
- Distributed and remote production

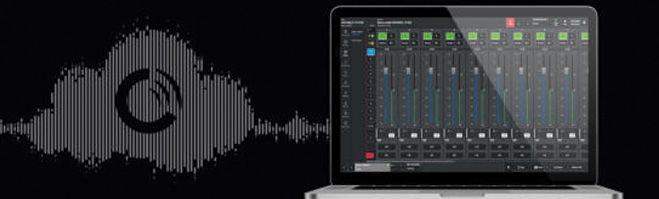

Remote & virtual workflows
- Flypacks and remote venues
- Temporary event infrastructure
- Pop-up production environments
- ImPulseV and virtualised production deployments
Specifications
DSP and Audio I/O
- 1U modular I/O box with slots for up to 6 standard size Calrec modular I/O cards

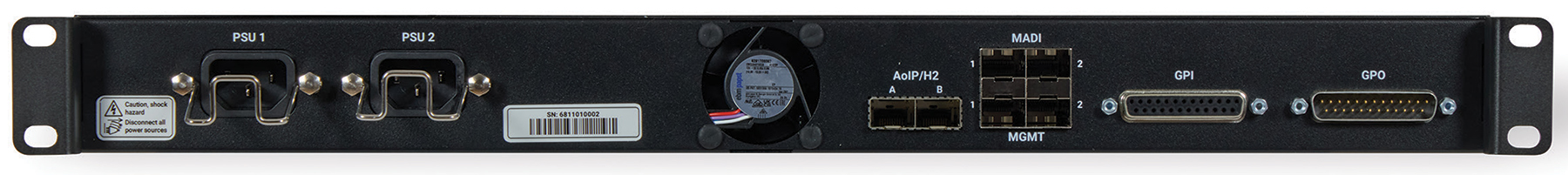

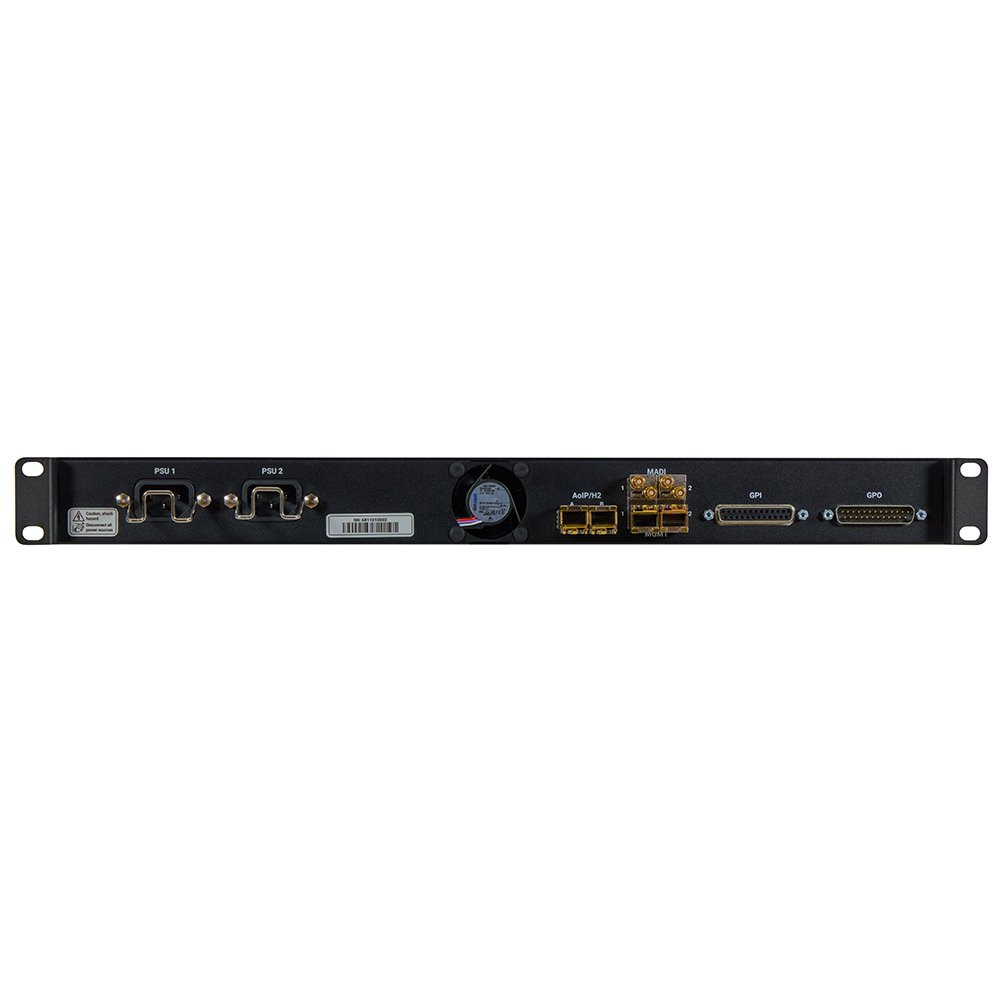

Built-in I/O
- 2 x AoIP/Hydra2 SFP ports:
- 512 x 512 over 32 streams, 1G/10G 2110/AES67
-
Other audio I/O:
- up to 512 x 512, including 2 x built-in MADI SFP ports (each providing 64 x 64)
- 2 x Out-Of-Band management SFP ports, for separation of control data from AoIP audio
GPIO
- 8 x GPIO on D2 connectors
- Wordclock in and out on BNC connectors
Power
- 2 x redundant IEC C14 power inputs
- 1 x USB-C port
