Initial Activation Mode to be selected by customer (PA or PLAYBACK)

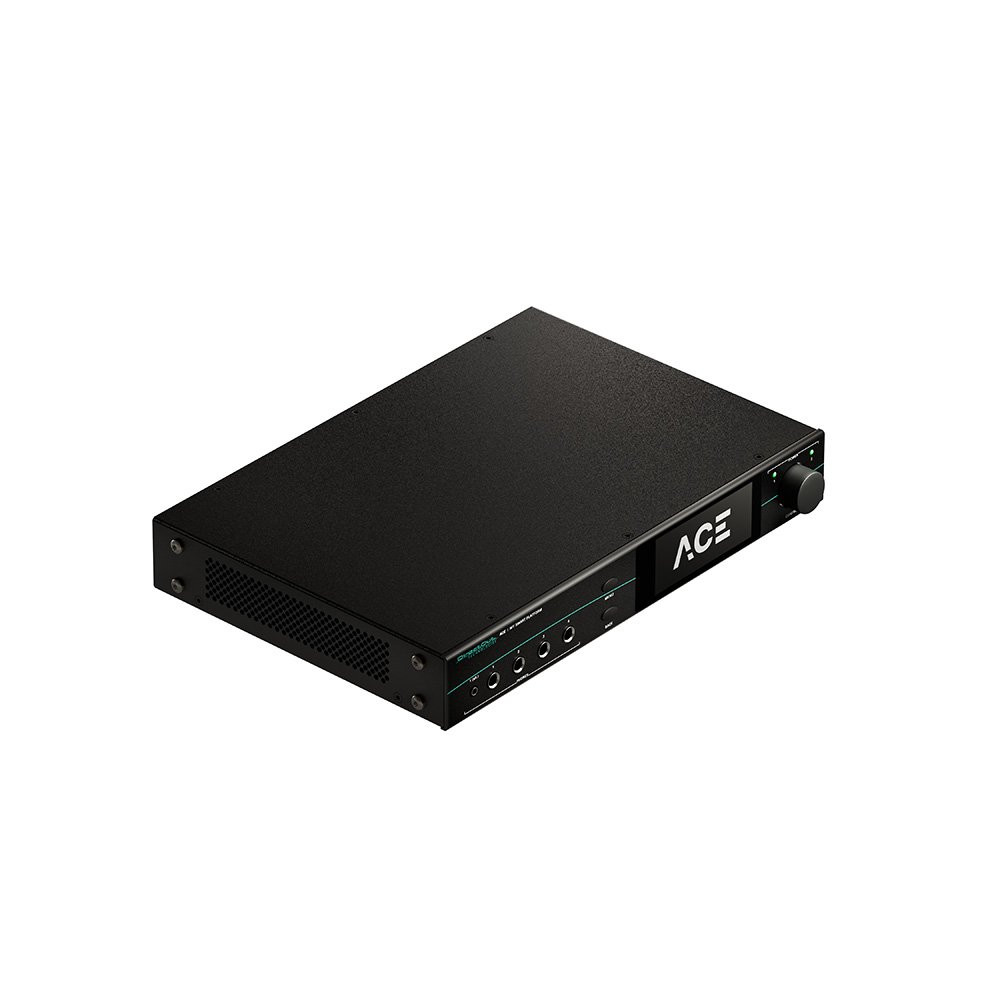

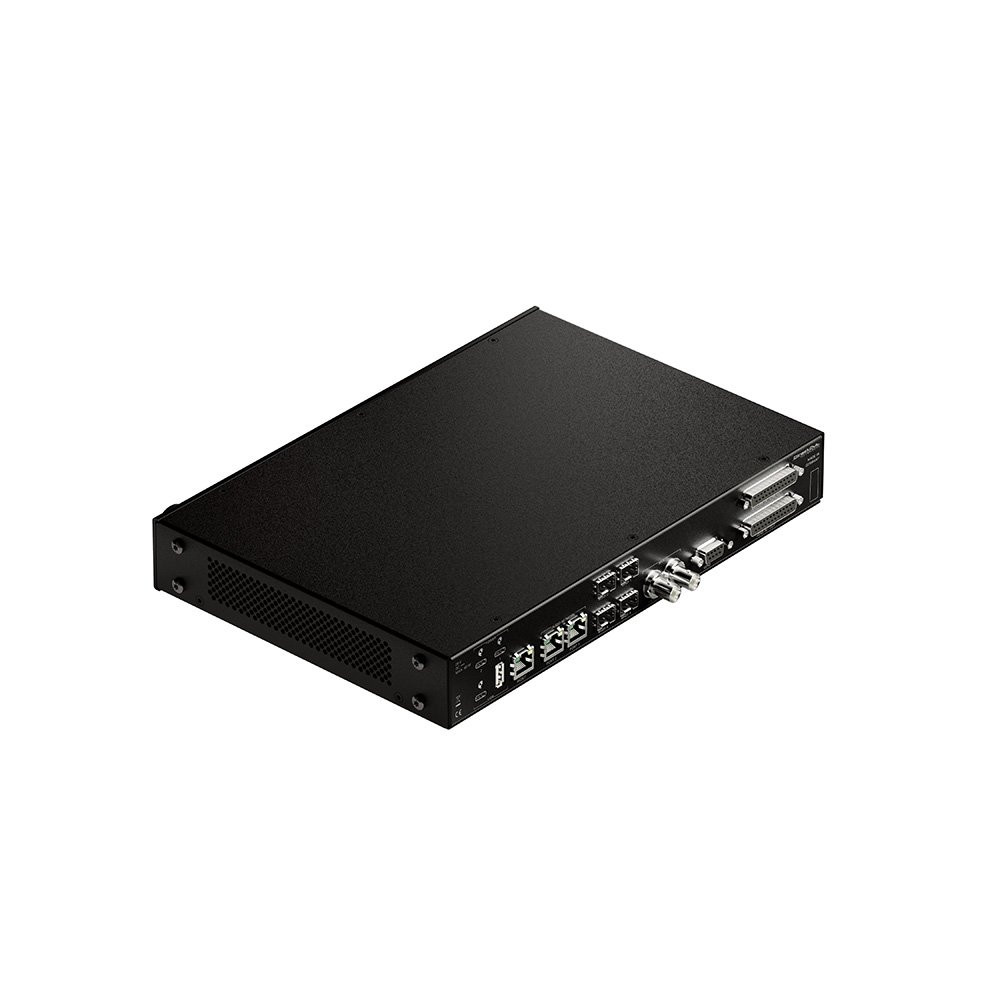

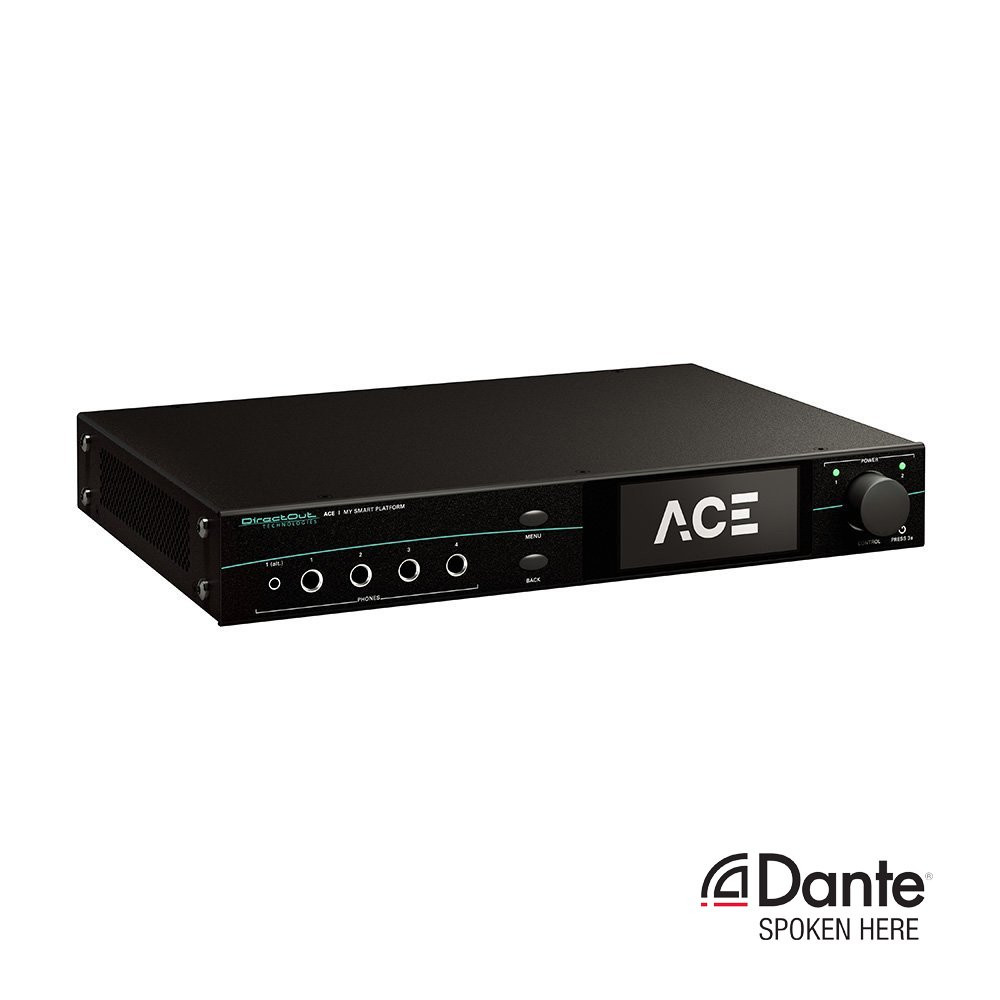

DirectOut ACE DanteThe DirectOut ACE is a compact, backpack-sized Smart Audio Platform designed for professional audio engineers across live sound, front of house, PA and broadcast.DirectOutDO-ACE-DANTE4260473561736
Introducing the DirectOut ACE, a compact smart audio platform designed to adapt seamlessly to a wide range of professional workflows - from playback and drive rack applications, to fully custom processing rigs.

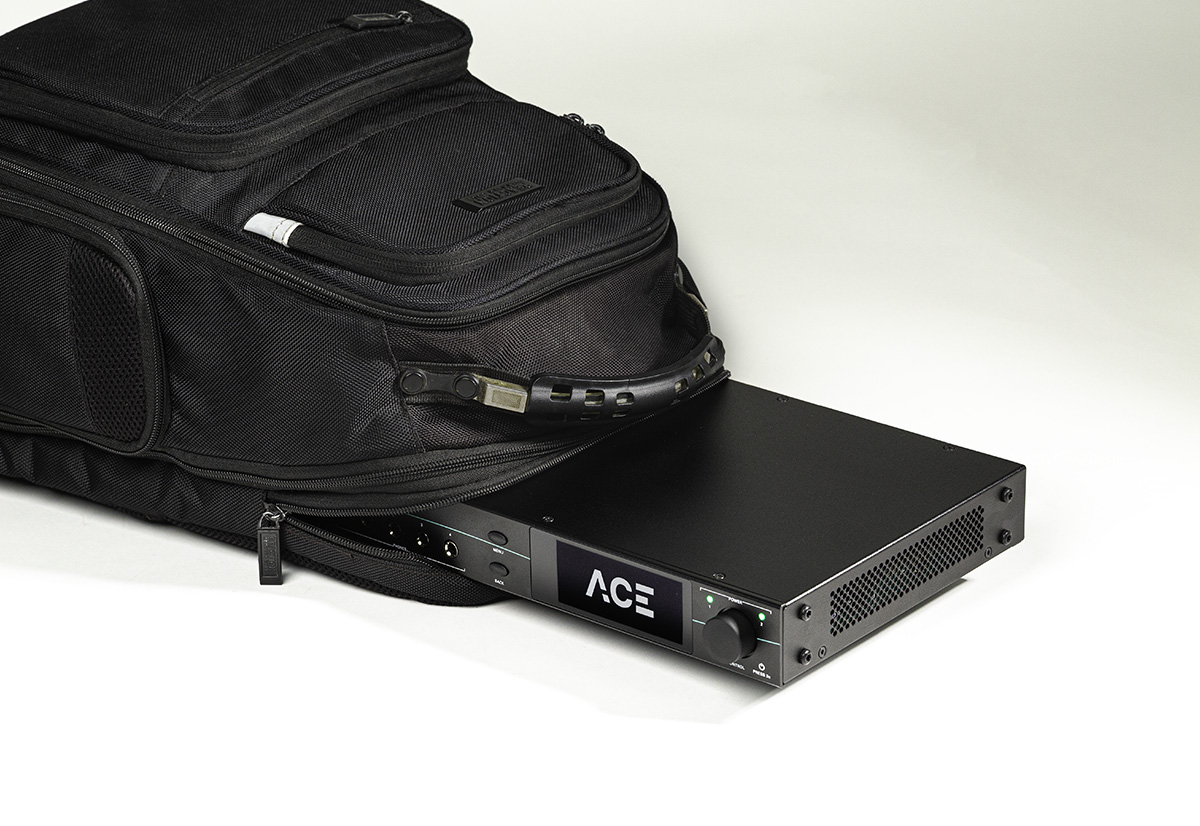

Combining high-end performance, intelligent redundancy, and comprehensive connectivity in a portable, travel-ready format, the DirectOut ACE delivers the power of a full-scale live audio rig - in a package that fits entirely in your backpack!
Connections
4 x MIC/LINE input via DSUB-25
4 x LINE output via DSUB-25
4 x AES3 input/output via DSUB-25
4 x 6.3 mm TRS jack, mono / stereo (+ 1 x 3.5 mm TRS jack, mono/stereo)
2 x USB-C redundant power supplies with locking connectors
Introducing ACE Modes
The DirectOut ACE comes with pre-designed modes controllable via DirectOut's globcon software. Each mode is purpose-built for different professional audio workflows - from vertically optimized configurations for common applications, to a fully open environment for custom signal path design.
There are currently three modes available:

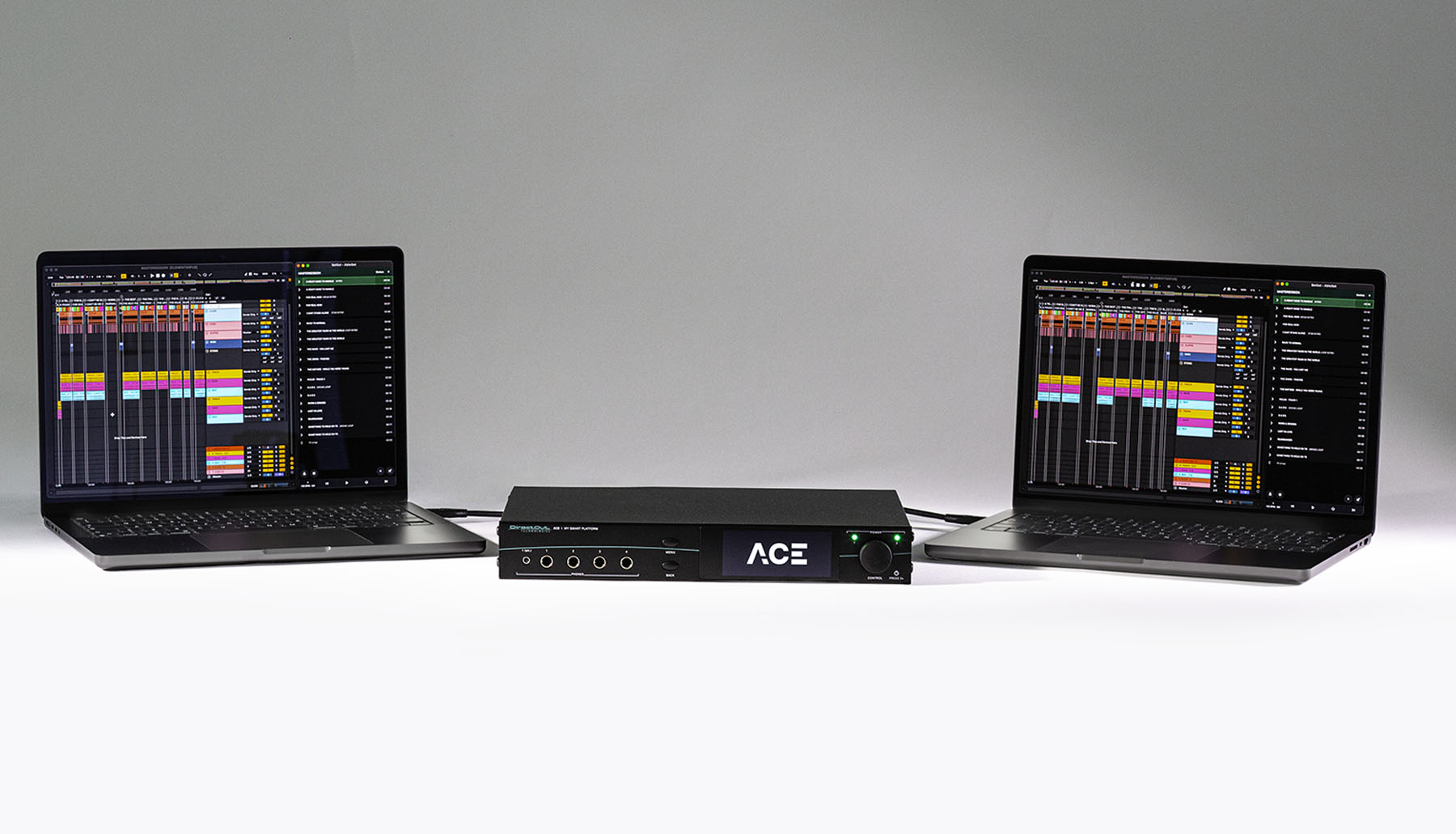

• Playback Mode
Streamlined output routing, with built-in support for EARS (Enhanced Automatic Redundancy Switching)
• PA Mode

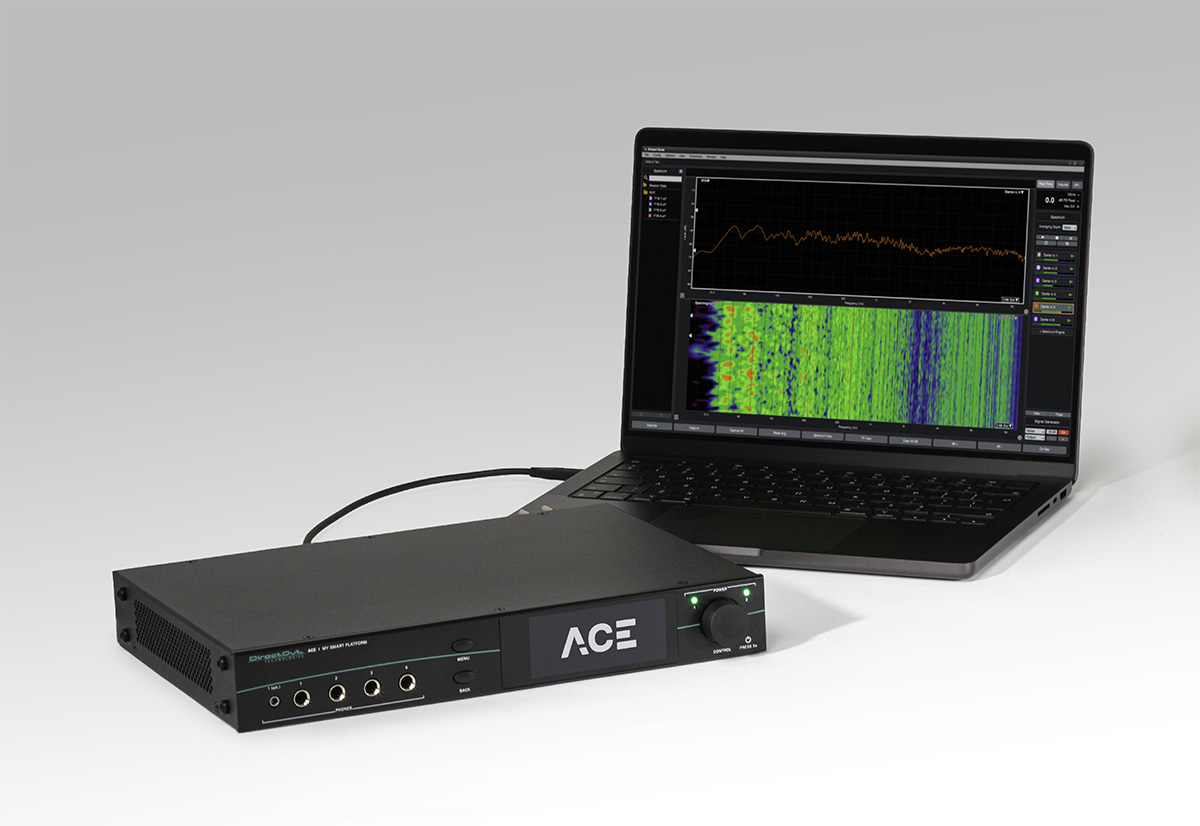

A complete drive rack solution providing immediate access to EQ (FIR, IIR with All Pass), dynamics, delays, and native Smaart® integration, with pre-configured signal flows and redundant input management for live sound and system tuning scenarios.
• PRODIGY Mode
Full access to the same globcon interface as the PRODIGY and MAVEN Series, offering complete freedom to design bespoke signal paths using advanced routing, mixing, summing, snapshot, and redundancy features.
Licenses System
Users select their preferred ACE Mode at activation and can freely switch between modes as requirements evolve, extending functionality through additional perpetual licenses.
When a user has multiple modes activated (e.g. PA Mode and Playback Mode), each one sits separately within ACE. Settings are also preserved when switching between modes.
Which Licenses are required?
1 - Having purchased a DirectOut ACE, customers first choose their preferred ACE Mode at activation (e.g. PA Mode).
2 - Other modes and features can also be activated by purchasing additional licenses directly from the DirectOut webshop.
3 - The table below outlines the requirements for unlocking each additional mode.
Which Licenses are included in the Initial Activations?
PA
PLAYBACK
Full Routing
✓
EARS
✓
FastSRC - MADI
FastSRC - NET
AutoMix
DSP Pack
✓
What upgrades are required to unlock additional modes?
Current Mode
To Activate
Required Additional Licence
PA Tuning
Prodigy Mode
Full Routing
PA Tuning
Playback Mode
Full Routing + EARS
Playback Mode
PA Mode 4 (1 × LRSF feed OR 2 × stereo)
1 × DSP Pack
Playback Mode
PA Mode 8 (2 × LRSF feed OR 1 × LRSF + 2 × stereo OR 8 × stereo)
2 × DSP Packs
What's currently included in an ACE 'DSP Pack'
Input Managers
4
Flex Channels
8
IIR EQ
8
FIR EQ
4 1
Delays
8
Dynamics
8
Summing Busses
8
MatMix
8 Master Outputs
1 Until all 16 available FIR EQ are unlocked
HARDWARE OVERVIEW

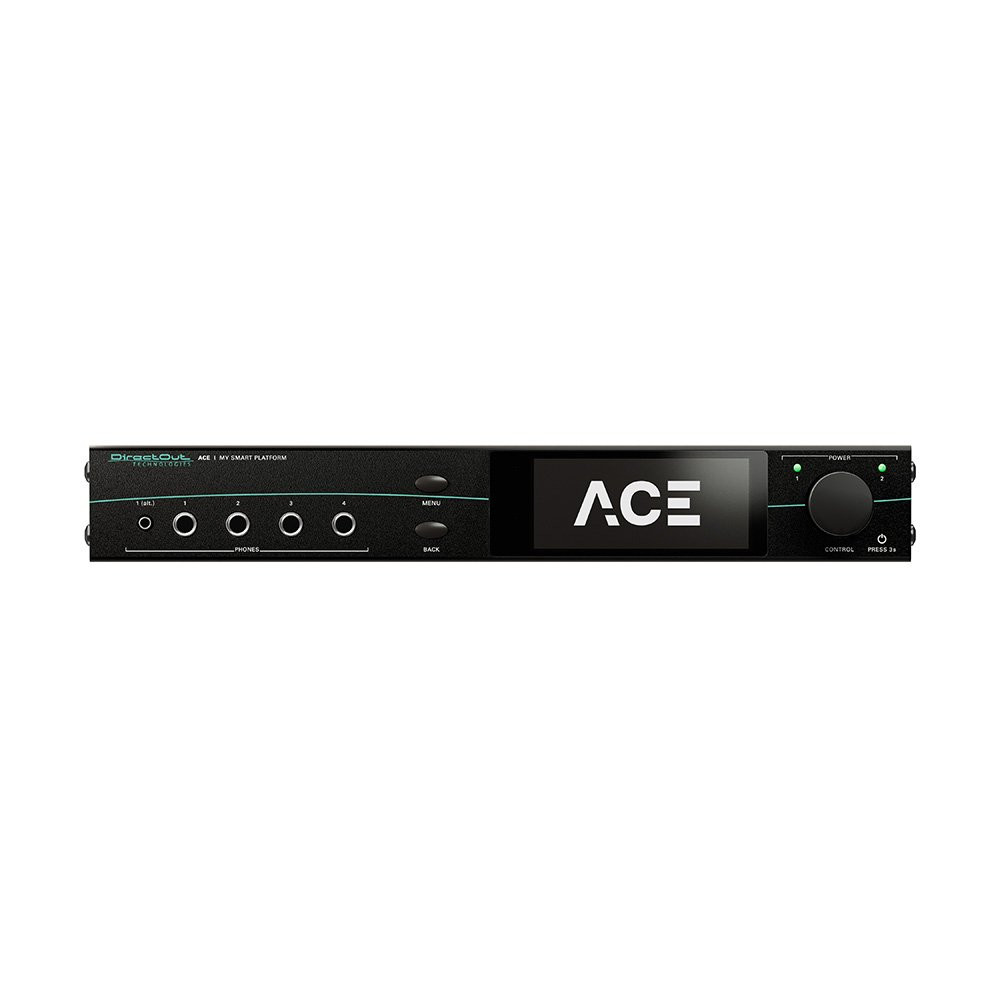

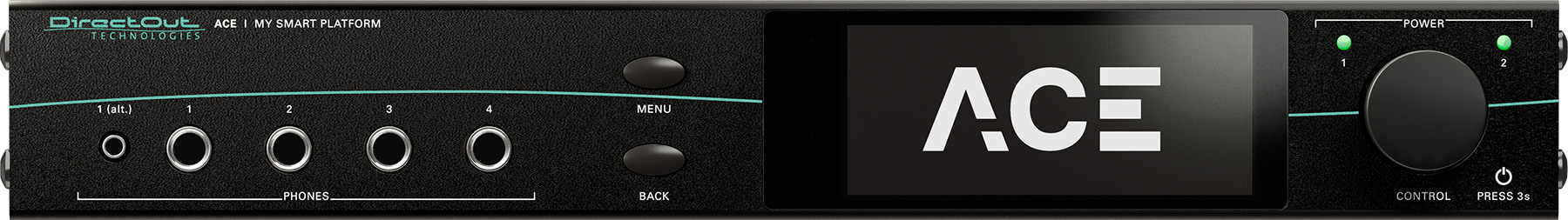

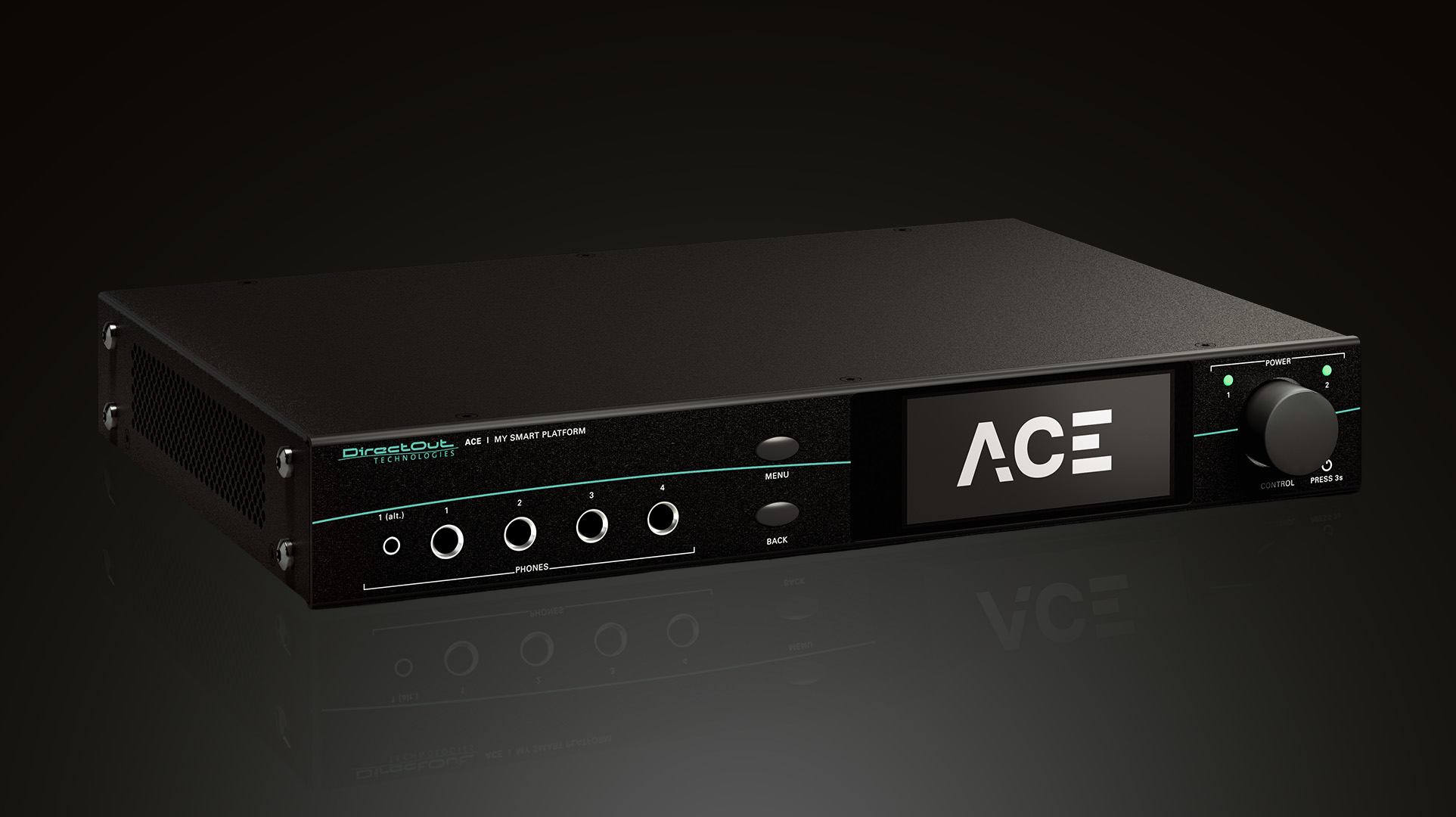

Front Panel
PHONES Outputs: Four 6.3 mm jacks and one 3.5 mm jack with alternate assignment for Phone 1, providing flexible monitoring options for any workflow.
MENU Button: Dedicated control to access the main system menu.
BACK Button: Navigation control to return to the previous menu level.
Touch-Display: High resolution touchscreen delivering fast, intuitive control, real time monitoring and smooth menu navigation.
CONTROL Encoder: Rotary encoder with push function for precise value adjustment and confirmation.
POWER Status LEDs:
Visual indication of the operating state of power supply 1 and power supply 2.

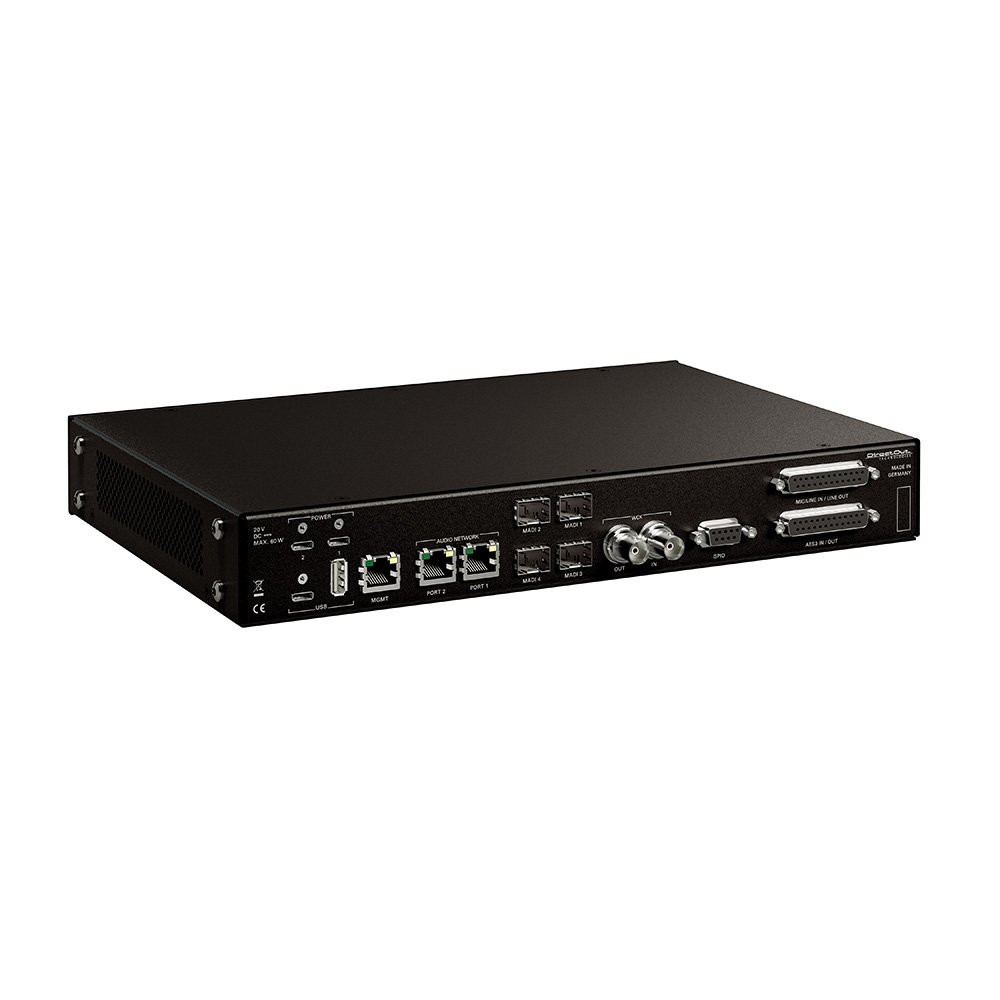

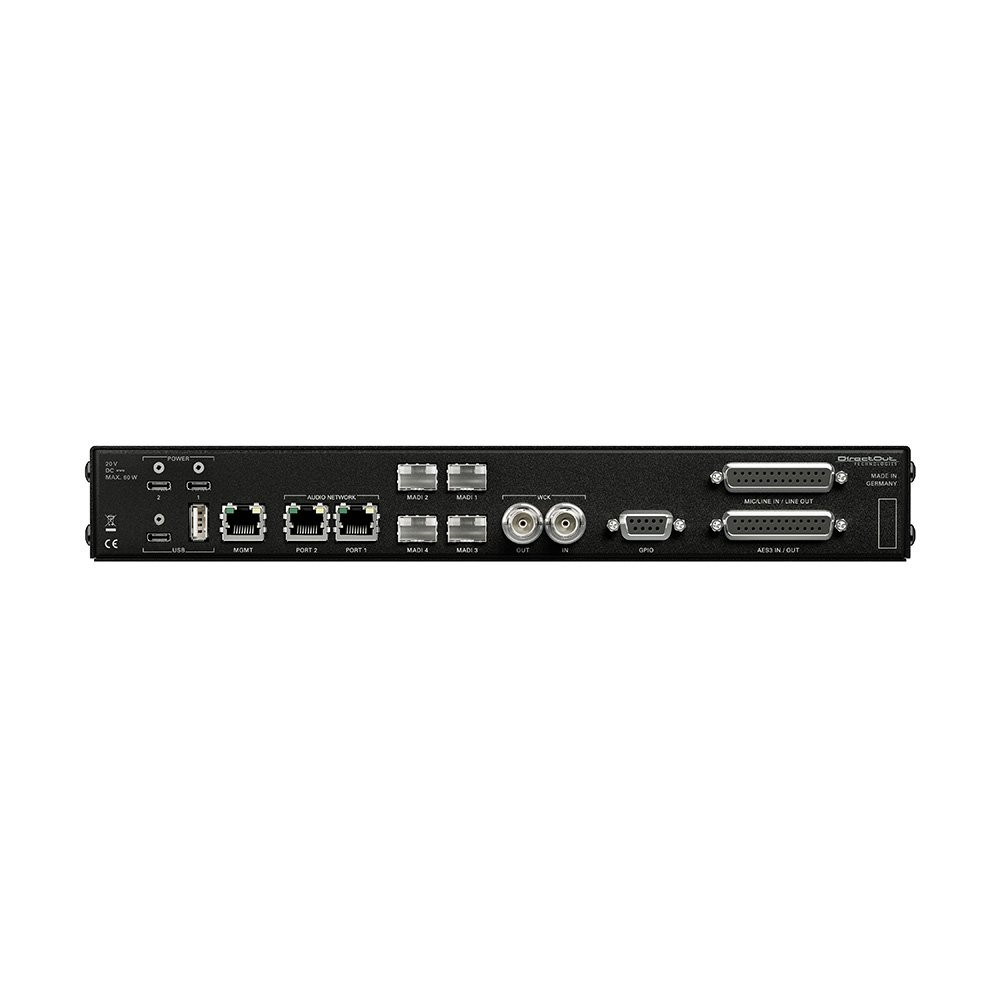

Rear Panel
Redundant USB-C Power Inputs: Dual USB-C connectors with locking screws, enabling redundant power supply or power backup for maximum reliability.
USB Ports: Data connection for optional device control and configuration.
MGMT Ethernet Port: Network interface for remote management and control.
AUDIO NETWORK Interface: Two RJ45 ports supporting Audinate® Dante with 64 channels at 48 kHz.
MADI I/O SFP: 4 x SFP MADI ports delivering up to 64 channels of input and output per port at 48 kHz, fully compatible with DirectOut USB.MADI interface.
WORDCLOCK I/O BNC: Professional clocking interface ensuring rock solid synchronization and pristine audio performance.
GPIO Control Interface: DSUB 9 connector for flexible integration with external control and automation systems.
MIC/LINE I/O DSUB: Four channels of high quality microphone and line level input and output featuring premium AD/DA conversion.
AES3 I/O DSUB: Four channels of AES3 digital input and output with SRC.
Control Software
GlobCon is DirectOut's customisable software platform, offering professional users a powerful and continually evolving tool able to manage any type or size of production environment in a contemporary, flexible, ergonomic and cost-effective way.
Specifically designed to support the professional entertainment and live music industries, GlobCon provides extensive management and control for both point-to-point (e.g. MADI) and audio-networked systems (Dante, Ravenna), with access to matrix mixers, summing busses, and effects like EQ, Dynamics and Delay.
Available for both Mac and PC, globcon is a ”plug and play” solution that allows multiple users to share control of devices using a standard Ethernet infrastructure, enabling large audio networks to be monitored from multiple positions within a venue, arena or any other large-scale production.
The software is available for download from the globCon website, providing integrated control and management of any number of DirectOut devices via an Ethernet network, USB and MIDI ports.
Expansion Options

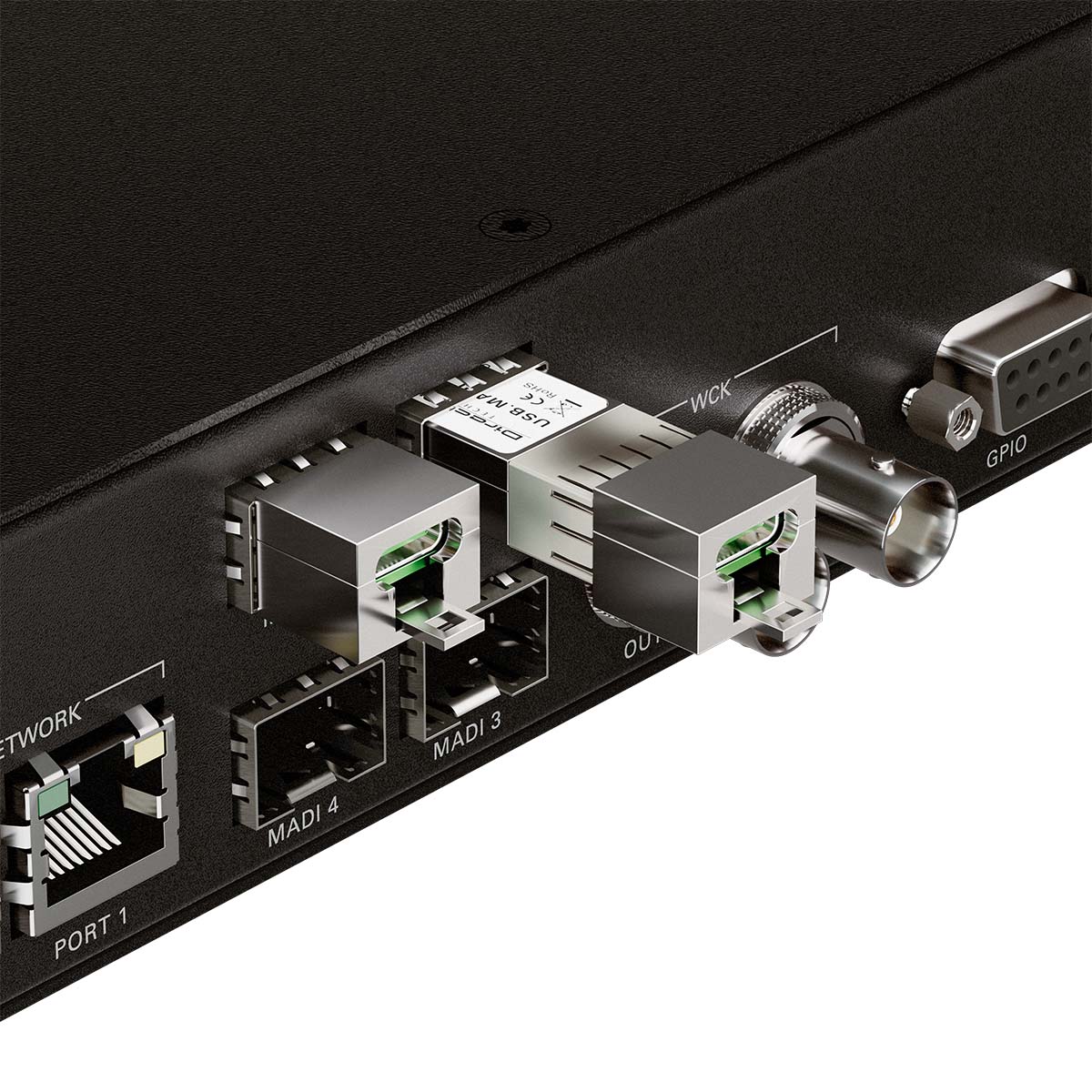

The DirectOut ACE features 4 x SFP slots for further expansion.
Each SFP cage can house a DirectOut MADI module (for 64 x 64 MADI I/O), or a DirectOut MADI.USB module, turning the Ace into a traditional USB audio interface for direct connection with a Mac or PC.
