DirectOut EXBOX.64 (Discontinued)
MADI Signal Converter,
Re-clocker and Extender
Please note: the price displayed is the current list price.
Contact us for the best deal!
- MADI ports:1 x SC-Socket multi/single mode
- 1 x coaxial BNC, 75 ohm
- MADI formats:48k / 96k Frame, 56 / 64 channel, S/MUX
- Sample Rates:44,1 kHz up to 192 kHz
- Power supply:external, 2 x Hirose (9-24 V) 1x PSU supplied, 1x redundant PSU option
- Dimensions:Width 140 mm
Height 42 mm
Depth 140 mm
Optional:
- Rackmount
- Second Power Supply / PSU
If you have any questions or need any further information, please feel free to contact us.
Description
DirectOut EXBOX.64 (Discontinued)

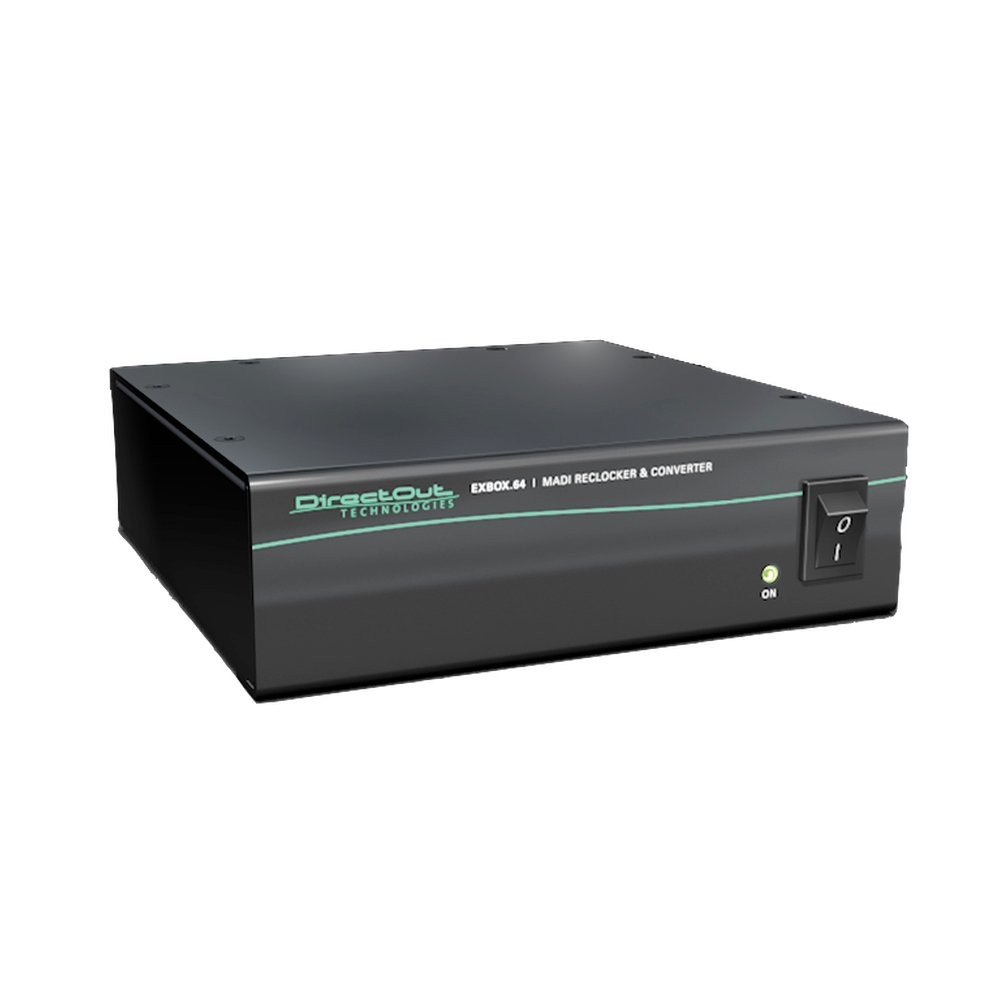

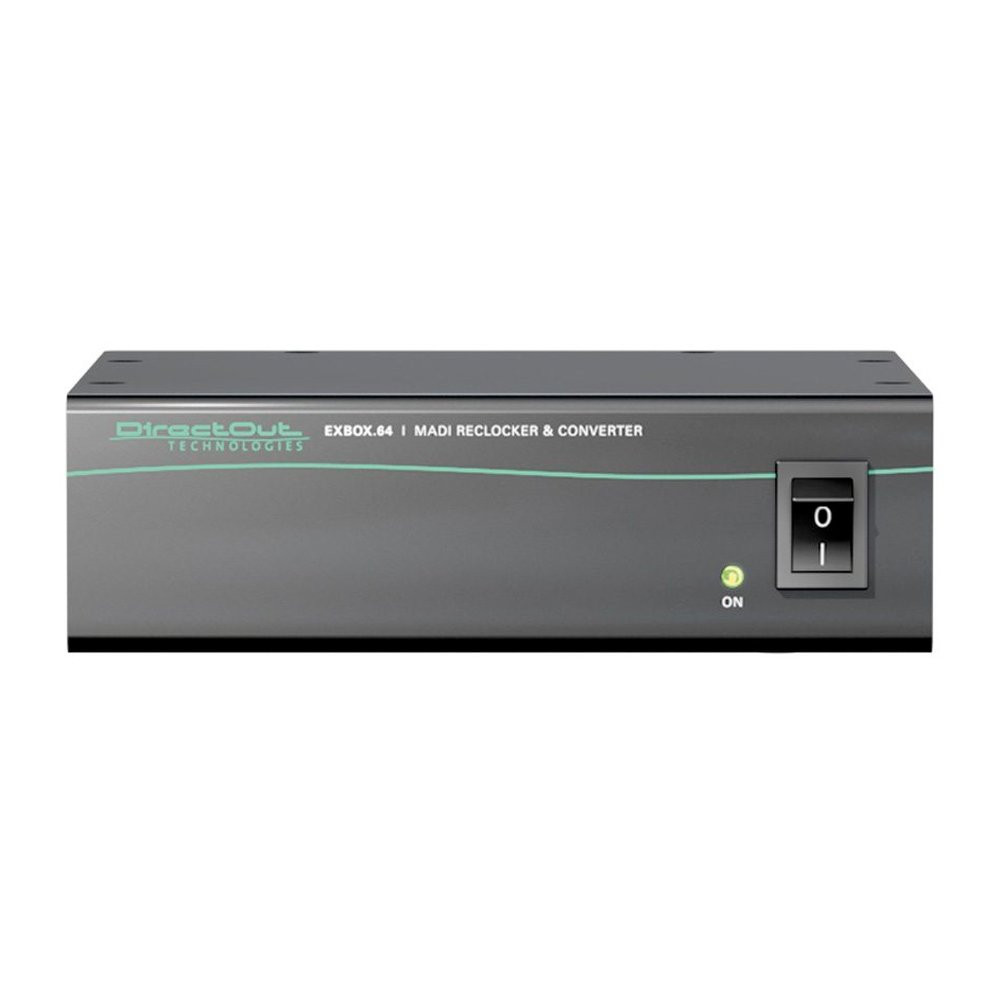

The DirectOut EXBOX.64 is

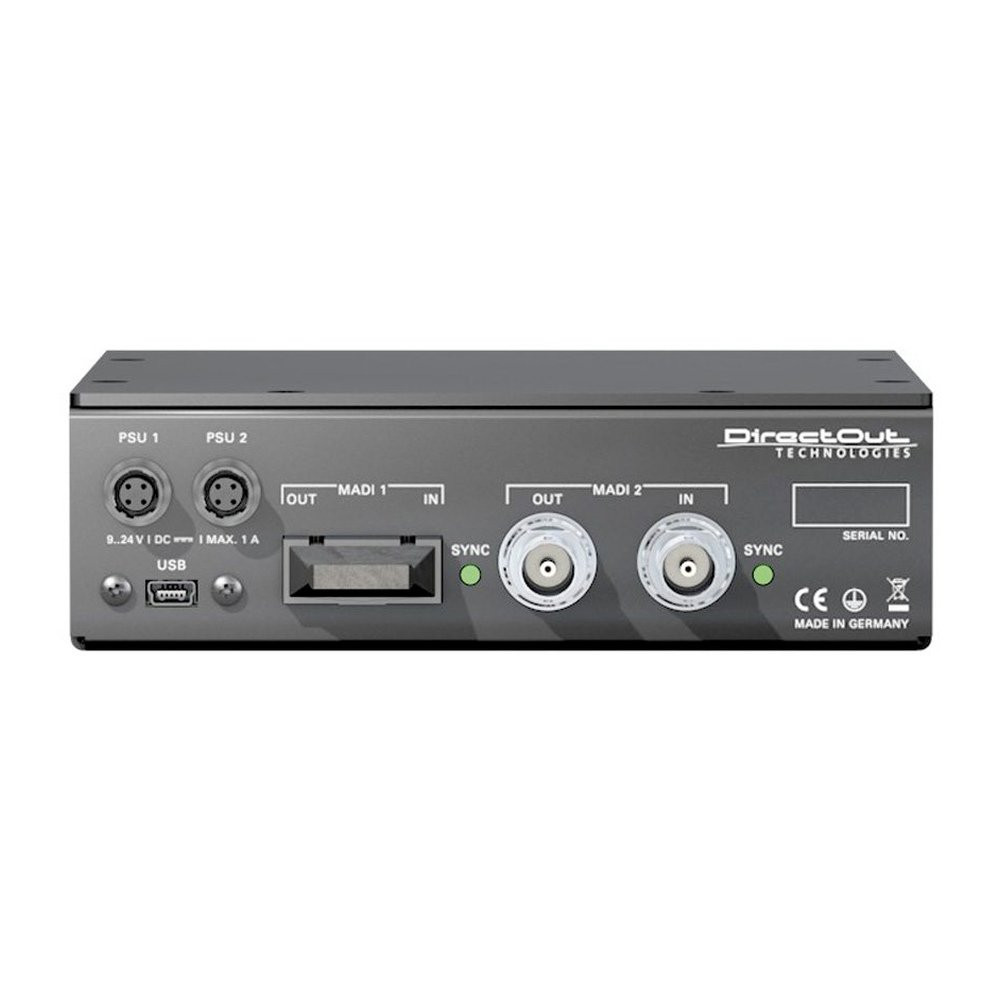

an active signal converter and re-clocker for MADI signals. Two MADI
I/Os (1 x optical SC and 1 x coaxial BNC) enable MADI signals to be
converted from optical to coaxial and vice versa.
The input signals,
which are not required to be in sync with each other, are cross patched
to the corresponding output.
The output signal is re-clocked at the output, thus refreshing the signal for cable length extensions.
Bit transparent
The frame structure of the input
signal is kept unchanged. This means that even proprietary adaptions of
MADI (AES10) will pass through the unit in their native state.
Range extension
The output signal of the coaxial port
is refreshed electrically. As a result, the BNC cable range from the
optical I/O may be extended if necessary with no loss of signal quality.
Noiseless
No signal will be output unless a valid input signal has been detected at the corresponding input port.
Safe operation
Two robust Hirose sockets are
available to plug in up to two external power supply units or battery
packs for safe operating conditions with redundancy.

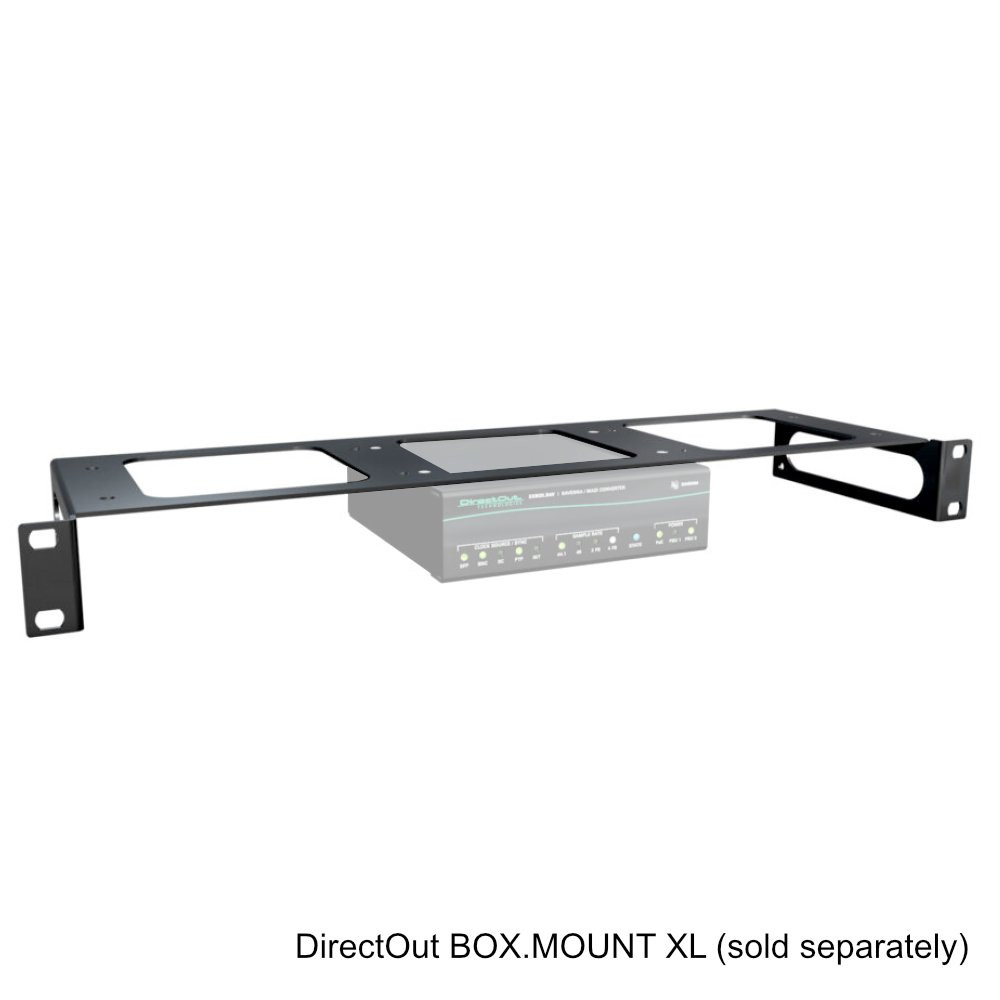

Rack-Ready
Each EXBOX can be mounted into a
standard 19’’-rack by using the optional kit BOXMOUNT.XL. Up to three
devices may fit side-by-side within 1 RU.
Specifications
| Interfaces | |
| MADI ports (I/O): | 2 x SC-Socket multi-mode or 1 x SC-Socket multi-mode & 1 x coaxial BNC, 75 Ω |
| Digital | |
| Sample rates: | 44.1, 48, 88.2, 96, 176.4, 192 kHz (+/- 12,5%) |
| MADI formats: | 48k / 96k Frame, 56 / 64 channel, S/MUX |
| Global | |
| Power supply: | external, 2 x Hirose (9 - 24 V)* |
| Dimensions: | Width 140 mm Height 42 mm Depth 140 mm |
| Weight: | about 1 kg |
| Accessory | |
| BOXMOUNT.XL for 19’’ rack mount |
| Device variants | |
| Single-mode: | MADI port: SC-Socket single-mode |
| Dual PSU: | optional available |
| Notes | |
| * 1 x power supply included |
