Ferrofish VERTOpro 64 (ADAT <> Dante)
64 x 64 ADAT <> Dante Converter
(with optional MADI)
- Compact digital format converters
- Seamlessly integrate your ADAT devices into Audinate® Dante Networks
- Freely convert between ADAT & Dante (and optional MADI)
- MADI available via 2 x SFP Slots
- Flexible single-channel routing
- Front-panel display and controls
- Remote control via RemoteFish software
- Dedicated headphone output for monitoring
Connections
- 8 x ADAT I/O
- 1 x Dante I/O (Primary & Secondary, 1Gbit)
- (Optional) 2 x MADI I/O via SFP
- 1 x MIDI I/O
- 1 x Wordclock I/O
- 1 x Headphone Output
- USB-C (USB-MIDI) for RemoteFish control and firmware updates*
* Note: USB connection does not transmit audio.
Dimensions
- 220 x 135 x 44 mm (W x D x H)
(without rack-mounts) - Weight: 1kg
Description

Dantify your ADAT equipment. Now with complete control.
Dante has become a standard for professional networked audio. The Ferrofish VERTOpro 64 connects up to 64 x 64 ADAT channels with Dante, and adds powerful routing and management functionality directly on the device.
In addition to format conversion, the VERTOpro 64 provides a flexible routing matrix with IPS colour display, integrated headphone monitoring, and complete front-panel operation, providing full-scale 1-to-Any signal routing.
Eight ADAT inputs and eight ADAT outputs provide up to 64 x 64 channels at 48 kHz. The Dante interface provides up to 64 x 64 channels and supports both switched and redundant network operation, as well as AES67.
Two MADI SFP slots allow the VERTOpro 64 to be expanded with optional MADI functionality, enabling dual MADI streams, redundant connections, and direct cross-routing between MADI, Dante, and ADAT at sample rates of up to 192 kHz.
Ferrofish VERTOpro Series - At a glance
Connect the most popular Professional Audio Formats
The VERTOpro Series seamlessly bridges Dante with ADAT and/or MADI (depending on the model), making them ideal for professional studio, broadcast and live sound applications.
MADI without compromise
Up to two MADI SFP modules provides two independent MADI streams or redundant operation for maximum flexibility and reliability.
Intelligent On-Device Routing and Monitoring
The Single-channel routing matrix, headphone output and high-resolution colour display provide intuitive routing, monitoring and device configuration, displaying level meters, routing, clocking and device status in real time.
Optimised for Professional Workflows
Intuitive operation, presets, MIDI and flexible synchronization options ensure seamless integration into any professional audio setup.
Built for the Future
MADI SFP options, firmware updates and the proven Ferrofish operating concept make the Ferrofish VERTOpro Series a future-proof investment.
- 3" IPS Color Display - Level meters, routing, clock status, interface status and device configuration.
- Flexible Routing Matrix - 8-channel block routing plus individual single-channel routing.
- Integrated Headphone Monitoring - Direct monitoring of digital input/output signals without affecting the routing.
- Presets - Eight device presets.
- Device Lock - Protects the device against unauthorized or accidental configuration changes.
- RemoteFish - Remote control from Windows or macOS via USB-MIDI or MIDI.
- USB-C - For USB-MIDI, RemoteFish and firmware updates.
- MIDI CC - Device functions can be controlled using MIDI Control Change messages.
- Up to 192 kHz - All three models support sample rates up to 192 kHz.

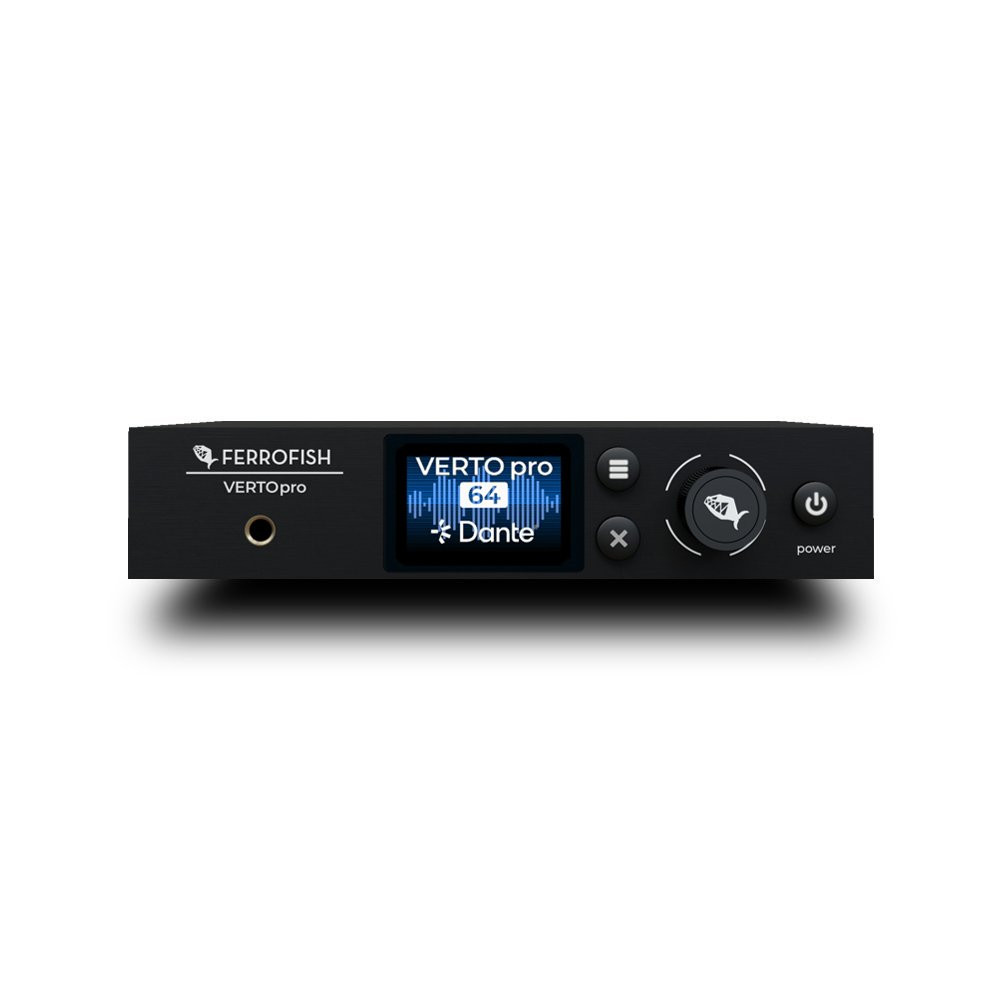

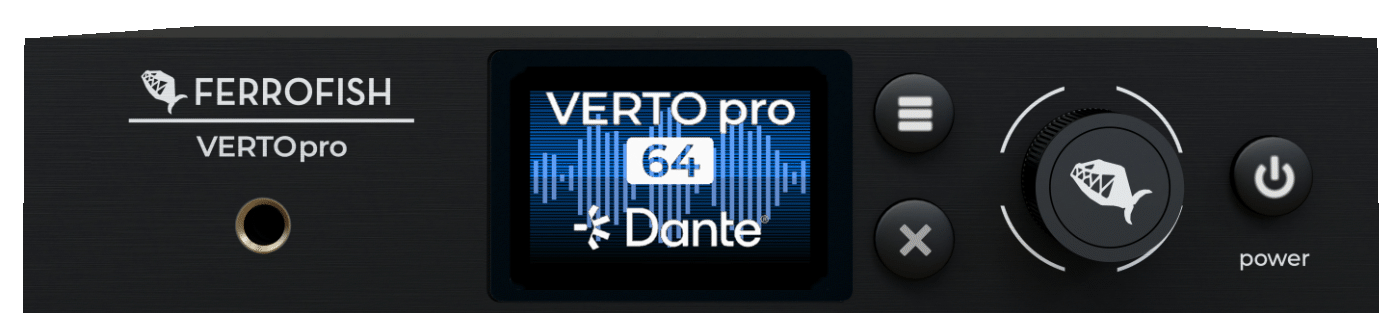

Complete Control. Directly on the Device.
The Ferrofish VERTOpro 64 can be configured directly from the front panel.

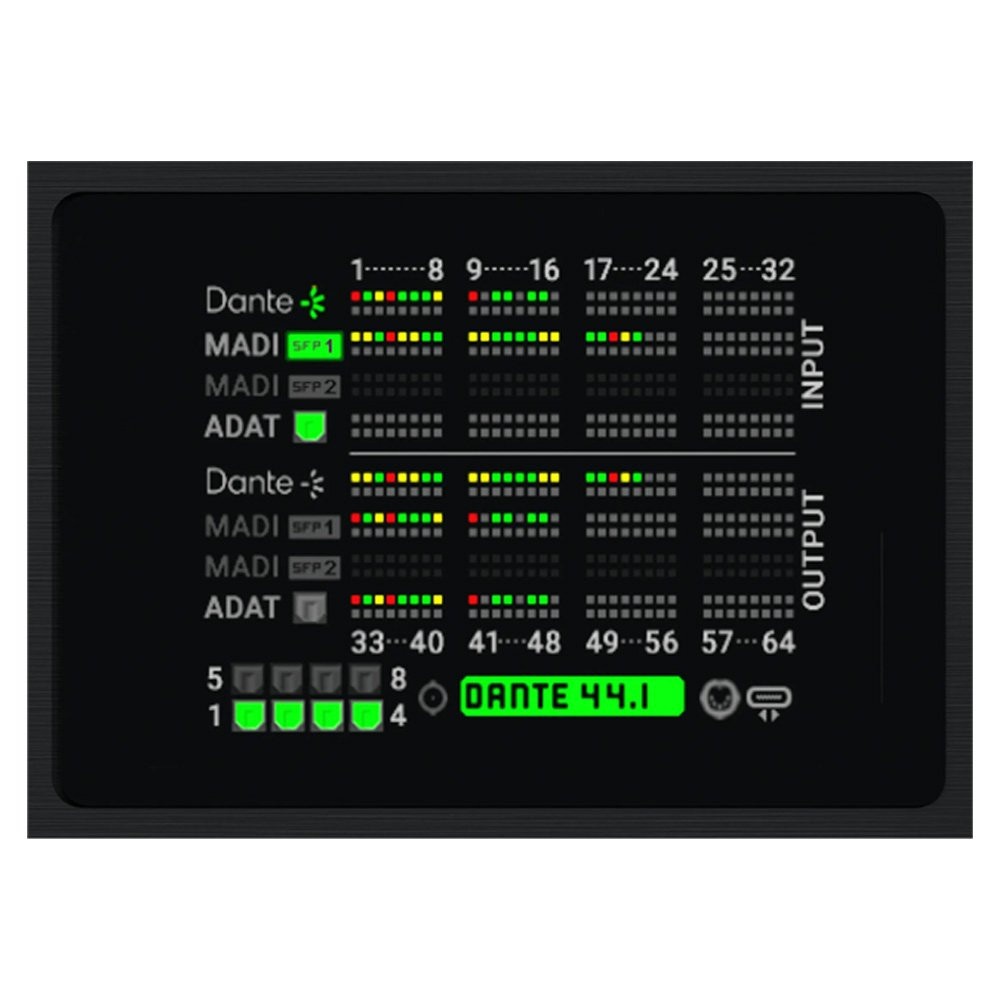

The high-resolution 3″ IPS color display provides level metering, clock and interface status, routing information and access to the device configuration.
A flexible routing matrix is available for signal management, offering both fast 8-channel block routing and precise single-channel routing.
Front-panel headphone monitoring allows you to monitor any digital input or output signal directly without affecting the existing routing.
Other practical features include eight internal preset slots; a device lock to prevent accidental changes, and comprehensive remote control via RemoteFish software (Windows/macOS) using USB-C or MIDI Control Change commands.

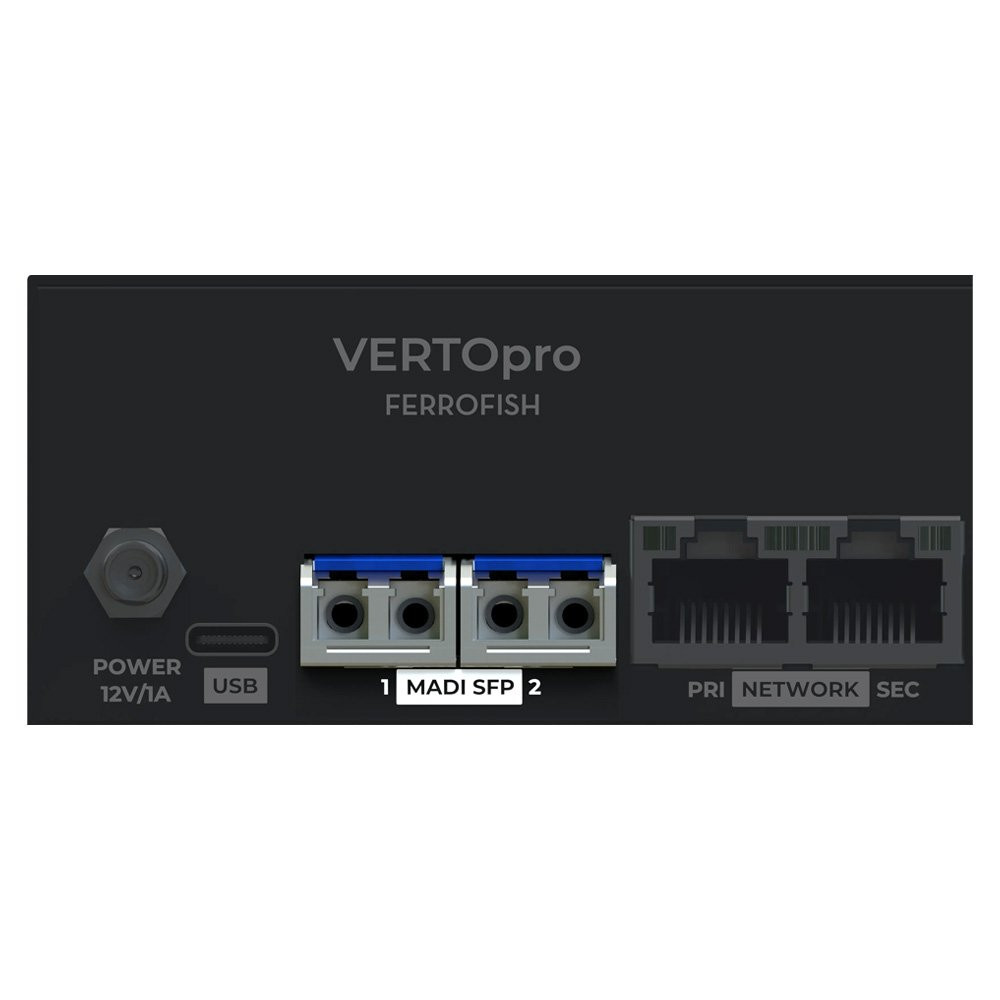

Optional Dual MADI
The Ferrofish VERTOpro 64 features two MADI SFP slots.
MADI functionality can be activated with an optional MADI license and compatible Ferrofish MADI SFP modules.
The two MADI ports can then be used as:
- Two independent MADI streams
- A redundant MADI connection
- MADI-to-MADI routing
- MADI-to-Dante routing
- MADI-to-ADAT routing
Available Ferrofish MADI SFP options:
- Multimode optical – up to 2 km
- Singlemode optical – up to 10 km
- Coaxial – up to 100 m

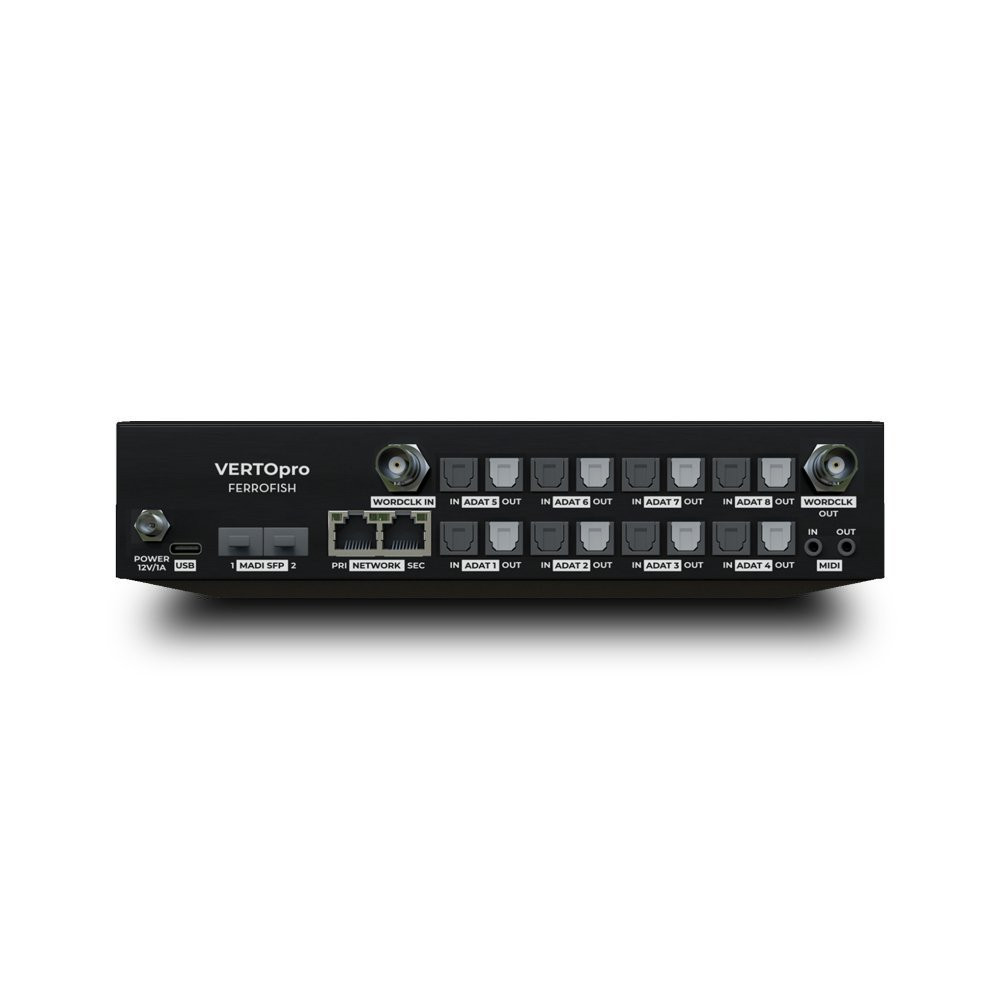

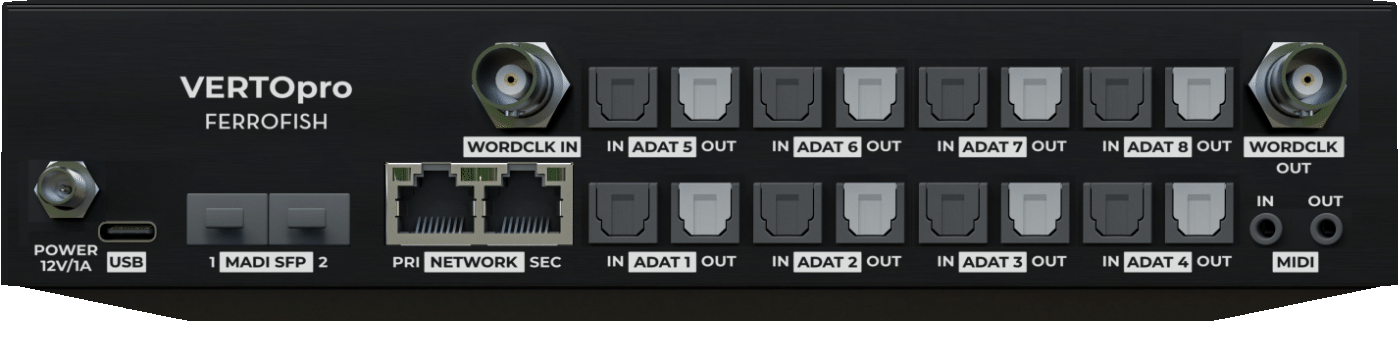

VERTOpro 64 INPUTS & OUTPUTS

ADAT I/O
8 × ADAT Input / 8 × ADAT Output – optical TOSLINK
Channel count:
64 × 64 @ up to 48 kHz
32 × 32 @ up to 96 kHz
16 × 16 @ up to 192 kHz
MIDI I/O
2 × 3.5 mm TRS MIDI Type A
MIDI can be used for device control and MIDI CC operation.
Word Clock I/O
1 × BNC Input / 1 × BNC Output
Switchable 75 Ω input termination.
Dante Network I/O
2 × RJ45 Gigabit Ethernet
PRIMARY / SECONDARY
Supports:
Switched Mode
Redundant Mode
AES67
MADI SFP
2 × MADI SFP slots
Optional MADI functionality.
Supports compatible Ferrofish Multimode, Singlemode and Coax MADI SFP modules.
USB-C
1 × USB-C
USB-MIDI connection for:
RemoteFish
Firmware updates
MIDI control
USB does not transmit audio.
Headphone Output
1 × 6.3 mm stereo headphone output
ESS ES9023 DAC
15–600 Ω headphone impedance
Mono or stereo-pair monitoring
VERTOpro 64 SPECIFICATIONS
Dante I/O
- 64 × 64 @ 48 kHz
- 32 × 32 @ 96 kHz
- 16 × 16 @ 192 kHz
- 2 × RJ45 Gigabit
- Switched and Redundant modes
- AES67
General
- 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
- Half 19-inch, 1U enclosure
MADI
- 2 SFP slots
- 64- and 56-channel modes
USB-C
- USB-C MIDI
HEADPHONE
- 6.3 mm jack
- ESS ES9023 DAC
- 4 gain settings
MIDI I/O
- 3.5 mm TRS MIDI Type A In / Out
- RemoteFish
- MIDI CC
Power Supply
- 12 V DC / 3 A
- Locking connector
- Internal self-resetting polyfuse
ADAT I/O
- VERTOpro 64: 8 × ADAT IN / 8 × ADAT OUT
- SMUX 1/2/4
- SMUX support up to 192 kHz
Wordclock I/O
- BNC In / Out
- Switchable 75 Ω termination
Environmental
- +5 °C to +45 °C
- <75% RH, non-condensing
Weight/Size
- 220 × 135 × 44 mm (W x H x D)
- Weight: 1 kg
Package Contents
- Device
- PSU
- Manual
