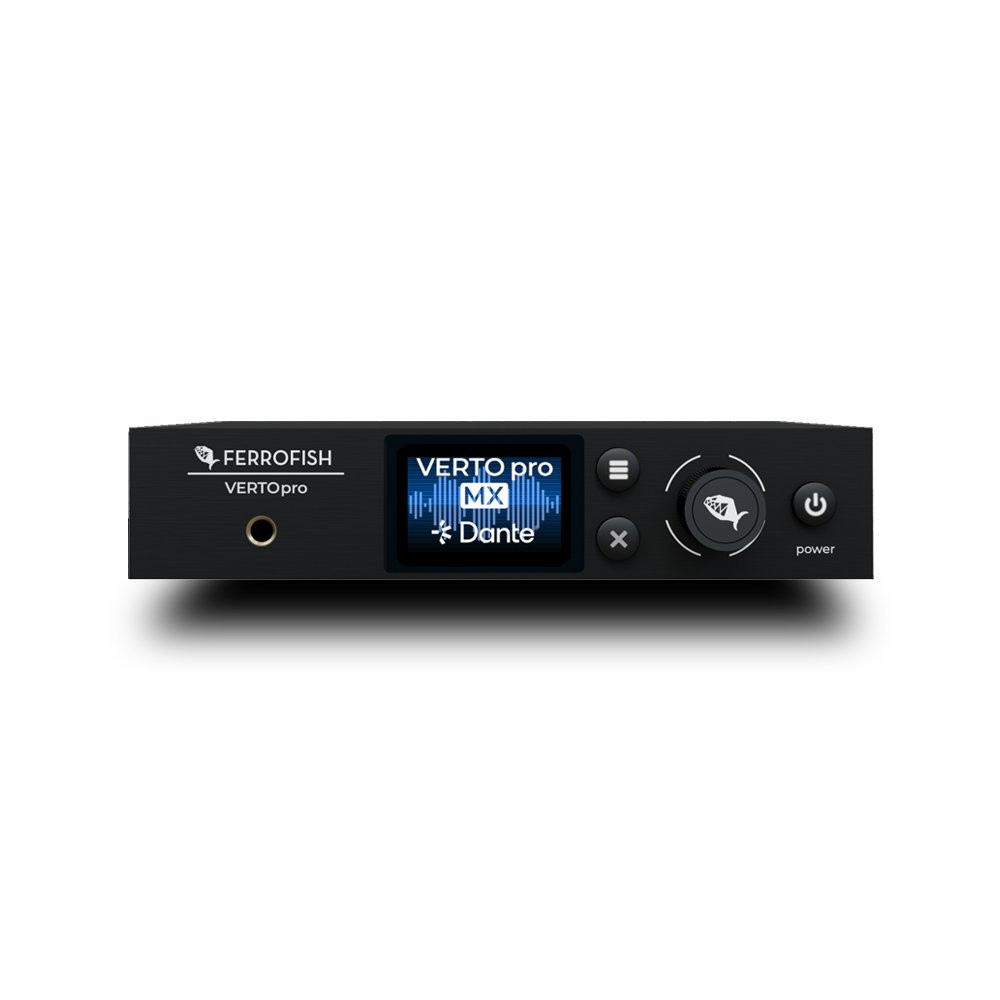

Ferrofish VERTOpro MX (MADI <> Dante)

£1,416.00

Inc 20% VAT

Out of Stock


Shipping Information

Shipping Information



Free Delivery On All Orders Over £149.99

All orders from our webshop over £149.99 are shipped with free delivery (via next working day delivery).

All orders below £149.99 are charged at a standard rate of £15.00 inc VAT (also via next working day).



Delivery Notifications

You will receive an email to the address you have supplied to us when your order has been dispatched.

Delivery Methods and Timescales

The delivery time scale is specified on the product page to indicate when you should expect to receive your order. If all item(s) are in stock and your order was placed before 2pm, subject to passing necessary checks, your order will be shipped the same day. Orders received just after 2pm are also often dispatched the same day, but this cannot be guaranteed.



Delivery Options

Courier – Next Working Day Service

  • Price = Free (Orders over £149.99) / £15.00 (Orders of less than £149.99)
  • Delivery Time – Next working day from date of dispatch (see above)

Courier – Pre-noon, Next Working Day Service

  • Price = £20.00 (all orders)
  • Delivery Time – Next working day from date of dispatch (see above).

Courier – Saturday Delivery Service

  • Price = £25.00 (all orders)
  • Delivery Time – The first Saturday following date of dispatch (see above). Note that for guaranteed Saturday delivery, orders must be placed before 2pm on the Friday. Orders placed after 2pm may still arrive on Saturday, but this cannot be guaranteed.



Additional Information

Due to the nature of the products we sell, we operate a strict fraud screening process.

In the event of a delay, we will contact you either by email or telephone as soon as reasonably possible.

While 99% of UK locations are valid for next day/Saturday delivery, there are a few remote locations which are not covered.

Synthax Audio (UK) cannot deliver outside of the UK and Republic of Ireland*.

*RME products cannot be shipped to the Republic of Ireland.



Missed Deliveries

If you are not in to receive the order at the time delivery is attempted, a card will normally be left to notify you of the missed delivery attempt. This will allow you to either telephone the courier company to arrange a re-delivery at a more convenient time or collect it from your local courier depot or Royal Mail sorting office. For security reasons, all items require a signature.

If for any reason the item is returned to us (e.g. incorrect address specified, multiple failed delivery attempts), then we will inform you immediately by email as soon as we receive the item. From this point forth, you will be given a choice whether you wish us to re-dispatch the item or cancel the order. Please refer to our Cancellations & 14 Day Returns Procedure for more details. For items where delivery failed through no fault of Synthax Audio (UK), you will be liable for the original shipping charge, any courier surcharges and any subsequent delivery charges.



Late Deliveries or Dispatch

We are able to ship almost every order in the specified timescale. However, in very rare circumstances there can be an unforeseen delay. If this does happen, we will make it our priority to get your order dispatched from our warehouse as soon as reasonably possible.

There are also rare cases, beyond our control, when the delivery company itself has a problem which causes a delay in transit. In these situations we will do our utmost to liaise with the relevant delivery company to ensure delivery is completed as swiftly as possible.

Consequential Loss for Late Deliveries

If a delivery is late, then we will provide a refund of any delivery fee that we charged you. We do not provide financial compensation to cover consequential losses, e.g. for time taken off work to receive a delivery, or if the item is intended as a gift and you have to purchase the same item from a more expensive retailer.



Terms of Service

Our full terms of sale can be viewed here.

Customer Rating: (0)

128 x 128 MADI <> Dante Converter

  •  Compact digital format converters
  •  Seamlessly connect MADI devices into Audinate® Dante Networks
  •  Freely Convert between MADI & Dante on a per-channel basis
  •  Flexible single-channel routing
  •  Front-panel display and controls
  •  Remote control via RemoteFish software
  •  Dedicated headphone output for monitoring

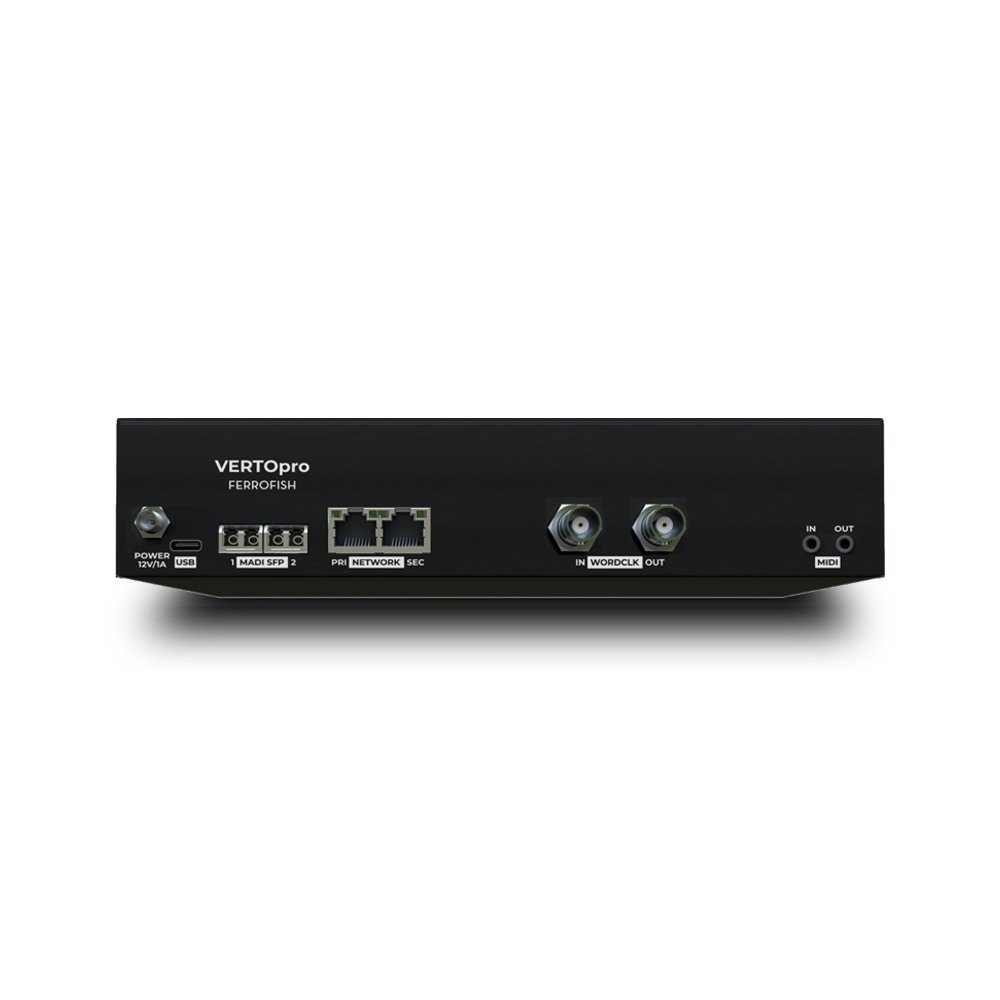

Connections

  • 2 x MADI I/O via included SFPs (Optical, Multimode)
  • 1 x Dante I/O (Primary & Secondary, 1Gbit)
  • 1 x MIDI I/O
  • 1 x Wordclock I/O
  • 1 x Headphone Output
  • USB-C (USB-MIDI) for RemoteFish control and firmware updates*

* Note: USB connection does not transmit audio.

Dimensions

  • 220 x 135 x 44 mm (W x D x H)
    (without rack-mounts)
  • Weight: 1kg



Description

Make MADI future-proof. Now with complete control.

Dante has become a standard for professional networked audio. The Ferrofish VERTOpro MX connects professional MADI systems with Dante and takes the original VERTO MX concept further than ever before!

Two MADI SFP interfaces provide maximum flexibility, operating as two independent MADI streams or as a redundant MADI connection, and at sample rates of up to 192 kHz.

In addition to format conversion, the VERTOpro MX provides a flexible routing matrix with IPS colour display, integrated headphone monitoring, and complete front-panel operation, providing full-scale 1-to-Any signal routing.

The Dante interface provides up to 64 x 64 channels and supports both switched and redundant network operation as well as AES67.

Ferrofish VERTOpro Series - At a glance

Connect the most popular Professional Audio Formats

The VERTOpro Series seamlessly bridges Dante with ADAT and/or MADI (depending on the model), making them ideal for professional studio, broadcast and live sound applications.


MADI without compromise

Up to two MADI SFP modules provides two independent MADI streams or redundant operation for maximum flexibility and reliability.


Intelligent On-Device Routing and Monitoring

The Single-channel routing matrix, headphone output and high-resolution colour display provide intuitive routing, monitoring and device configuration, displaying level meters, routing, clocking and device status in real time.


Optimised for Professional Workflows

Intuitive operation, presets, MIDI and flexible synchronization options ensure seamless integration into any professional audio setup.


Built for the Future

MADI SFP options, firmware updates and the proven Ferrofish operating concept make the Ferrofish VERTOpro Series a future-proof investment.

  • 3" IPS Color Display - Level meters, routing, clock status, interface status and device configuration.
  • Flexible Routing Matrix - 8-channel block routing plus individual single-channel routing.
  • Integrated Headphone Monitoring - Direct monitoring of digital input/output signals without affecting the routing.
  • Presets - Eight device presets.
  • Device Lock - Protects the device against unauthorized or accidental configuration changes.
  • RemoteFish - Remote control from Windows or macOS via USB-MIDI or MIDI.
  • USB-C - For USB-MIDI, RemoteFish and firmware updates.
  • MIDI CC - Device functions can be controlled using MIDI Control Change messages.
  • Up to 192 kHz - All three models support sample rates up to 192 kHz.

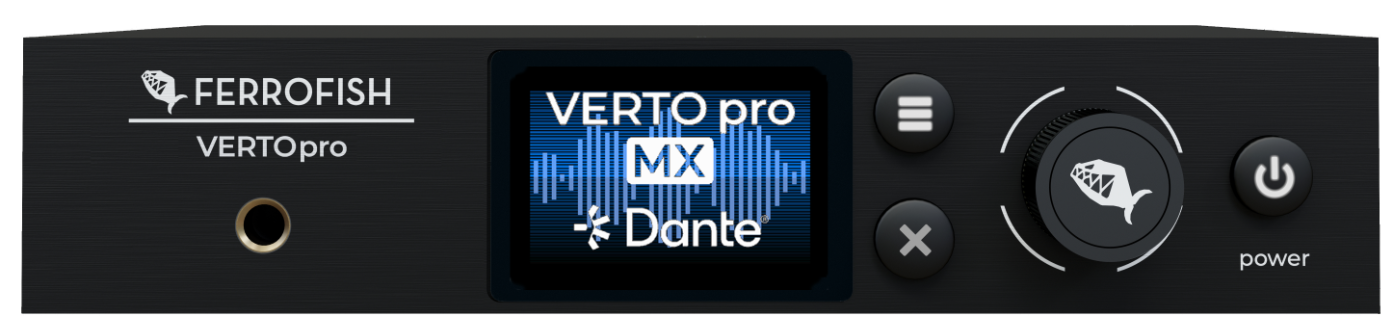

Complete Control. Directly on the Device.

The Ferrofish VERTOpro MX can be configured directly from the front panel.

The high-resolution 3″ IPS color display provides level metering, clock and interface status, routing information and access to the device configuration.

A flexible routing matrix is available for signal management, offering both fast 8-channel block routing and precise single-channel routing.

Front-panel headphone monitoring allows you to monitor any digital input or output signal directly without affecting the existing routing.

Other practical features include eight internal preset slots; a device lock to prevent accidental changes, and comprehensive remote control via RemoteFish software (Windows/macOS) using USB-C or MIDI Control Change commands.

MADI Without Compromise

VERTOpro MX provides two MADI SFP interfaces as standard. Two Ferrofish Multimode MADI SFP modules are included with VERTOpro MX.

The two MADI ports can operate as:

  • Two independent MADI streams
  • A redundant MADI connection
  • MADI 1 ↔ MADI 2 routing
  • MADI-to-Dante routing

Available Ferrofish MADI SFP options:

  • Multimode optical – up to 2 km
  • Singlemode optical – up to 10 km
  • Coaxial – up to 100 m

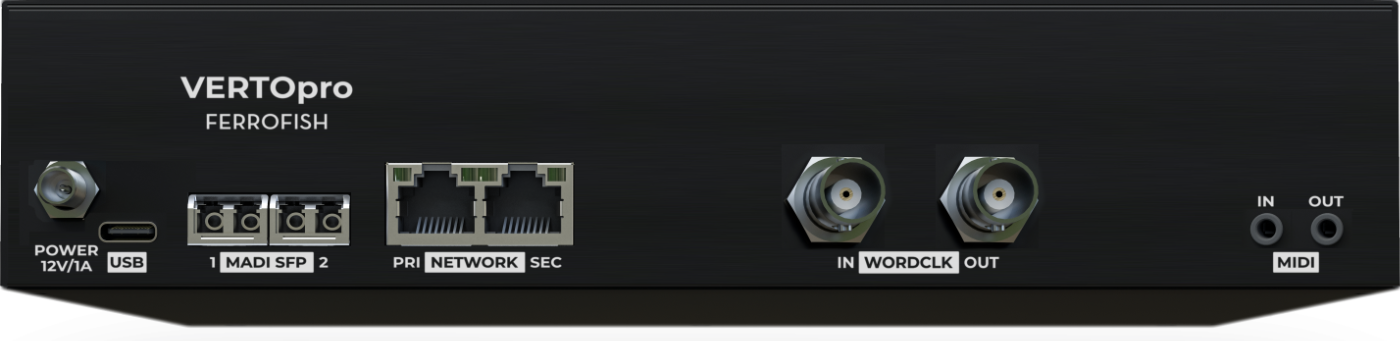

VERTOpro MX INPUTS & OUTPUTS

128
MADI I/O Channels
64
Dante I/O Channels

MADI I/O

2 × MADI SFP slot.
Each SFP provides:

64-Channel Mode
64 × 64 @ up to 48 kHz
32 × 32 @ up to 96 kHz
16 × 16 @ up to 192 kHz


56-Channel Mode
56 × 56 @ up to 48 kHz
28 × 28 @ up to 96 kHz
14 × 14 @ up to 192 kHz


Two Multimode MADI SFP modules are included.

MIDI I/O

2 × 3.5 mm TRS MIDI Type A
MIDI can be used for device control and MIDI CC operation.

Word Clock I/O

1 × BNC Input / 1 × BNC Output
Switchable 75 Ω input termination.

Dante Network I/O

2 × RJ45 Gigabit Ethernet
PRIMARY / SECONDARY
Supports:
Switched Mode
Redundant Mode
AES67

USB-C

1 × USB-C
USB-MIDI connection for:
RemoteFish
Firmware updates
MIDI control

USB does not transmit audio.

Headphone Output

1 × 6.3 mm stereo headphone output
ESS ES9023 DAC
15–600 Ω headphone impedance
Mono or stereo-pair monitoring

VERTOpro MX SPECIFICATIONS

Dante I/O

  • 64 × 64 @ 48 kHz
  • 32 × 32 @ 96 kHz
  • 16 × 16 @ 192 kHz
  • 2 × RJ45 Gigabit
  • Switched and Redundant modes
  • AES67

General

  • 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
  • Half 19-inch, 1U enclosure

MADI

  • 2 SFP slots
  • 64- and 56-channel modes

USB-C

  • USB-C MIDI

HEADPHONE

  • 6.3 mm jack
  • ESS ES9023 DAC
  • 4 gain settings

MIDI I/O

  • 3.5 mm TRS MIDI Type A In / Out
  • RemoteFish
  • MIDI CC

Power Supply

  • 12 V DC / 3 A
  • Locking connector
  • Internal self-resetting polyfuse

Wordclock I/O

  • BNC In / Out
  • Switchable 75 Ω termination

Environmental

  • +5 °C to +45 °C
  • <75% RH, non-condensing

Weight/Size

  • 220 × 135 × 44 mm (W x H x D)
  • Weight: 1 kg

Package Contents

  • Device
  • PSU
  • Manual
  • 2 x Multimode MADI SFP
  • LC/SC cable
