Lake People ANA-TOOL F811
Convert unbalanced to balanced
audio signals (RCA > XLR)
- Consumer to Studio signal converter
- Converts the unbalanced audio signals popular in consumer audio into the balanced signals found in recording studios
- Front-facing spindle trimmers for level adjustment in the range of -3 to +21 dB
- 2 x 4 identical sections from consumer level to studio level
- Balancing, impedance, and level adjustment
- IRT compliant output impedance of 30 Ohms
- Inputs optimized for "-10 dBu" signals
- Made in Germany
In the box
- 1 x ANA-TOOL F811
- 1 x Power Cable
- 1 x Printed Manual
Description
Lake People ANA-TOOL F811
The Lake People ANA-TOOL F811 is a balancing, impedance- and level-matching unit designed to provide interfacing between consumer- and studio equipment.
Features
- 2 x 4 identical sections from consumer level to studio level

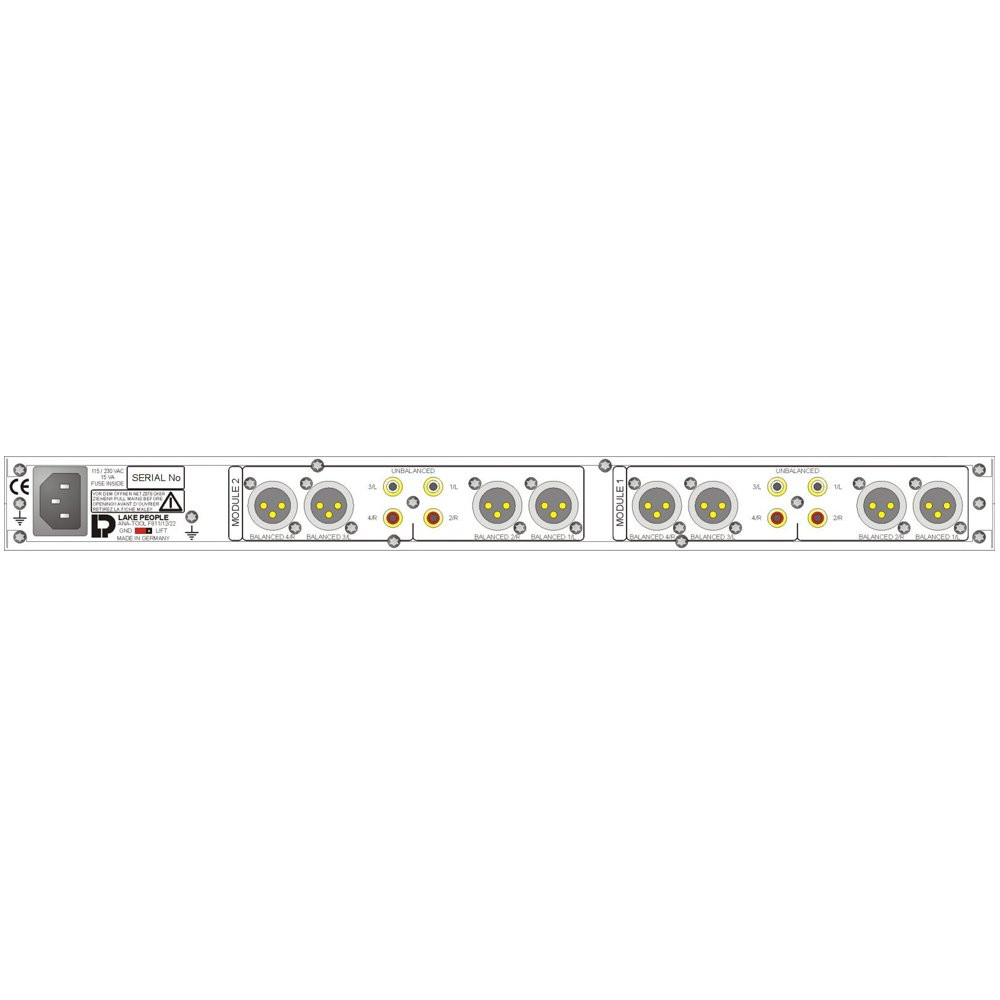

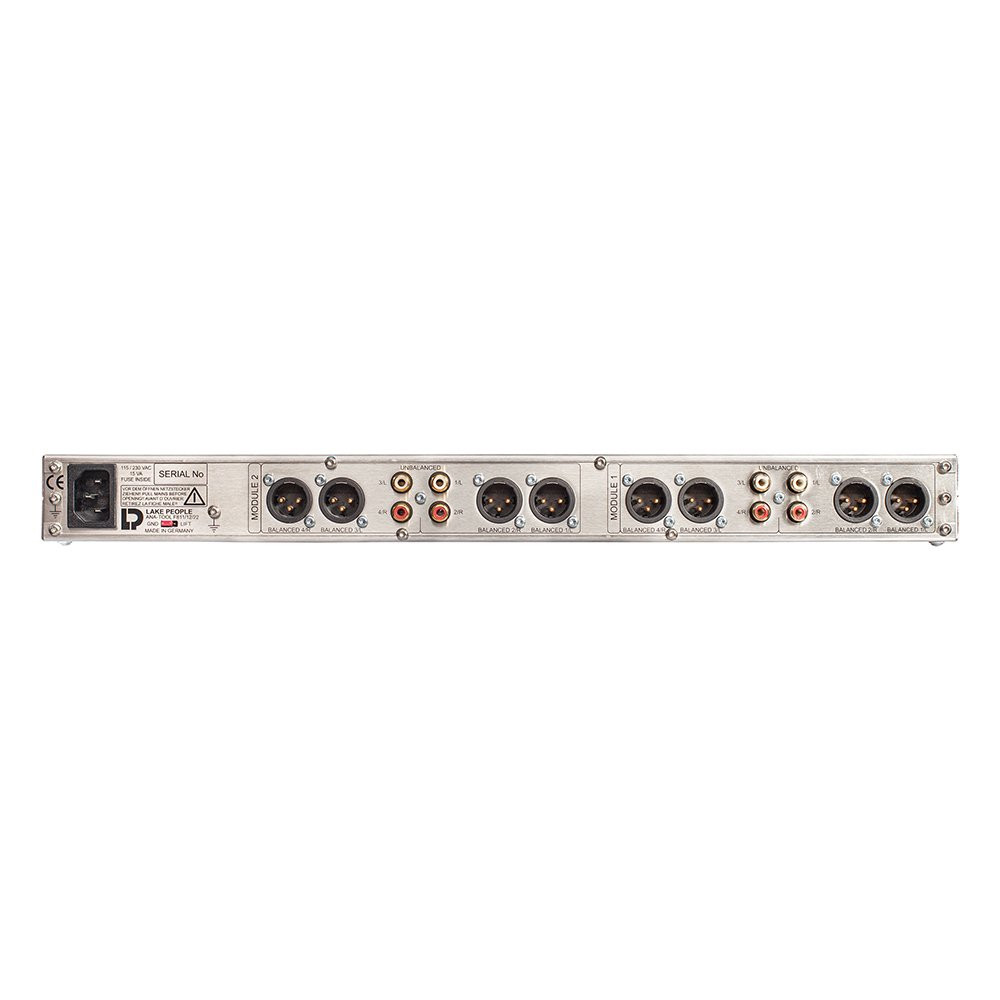

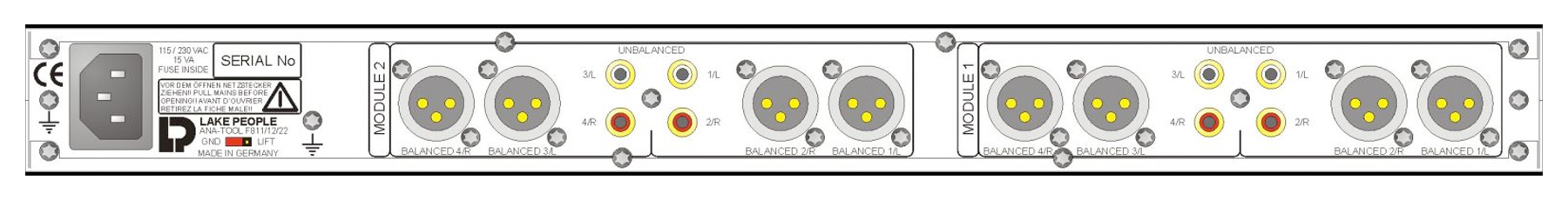

- Rear inputs via Cinch (RCA) sockets

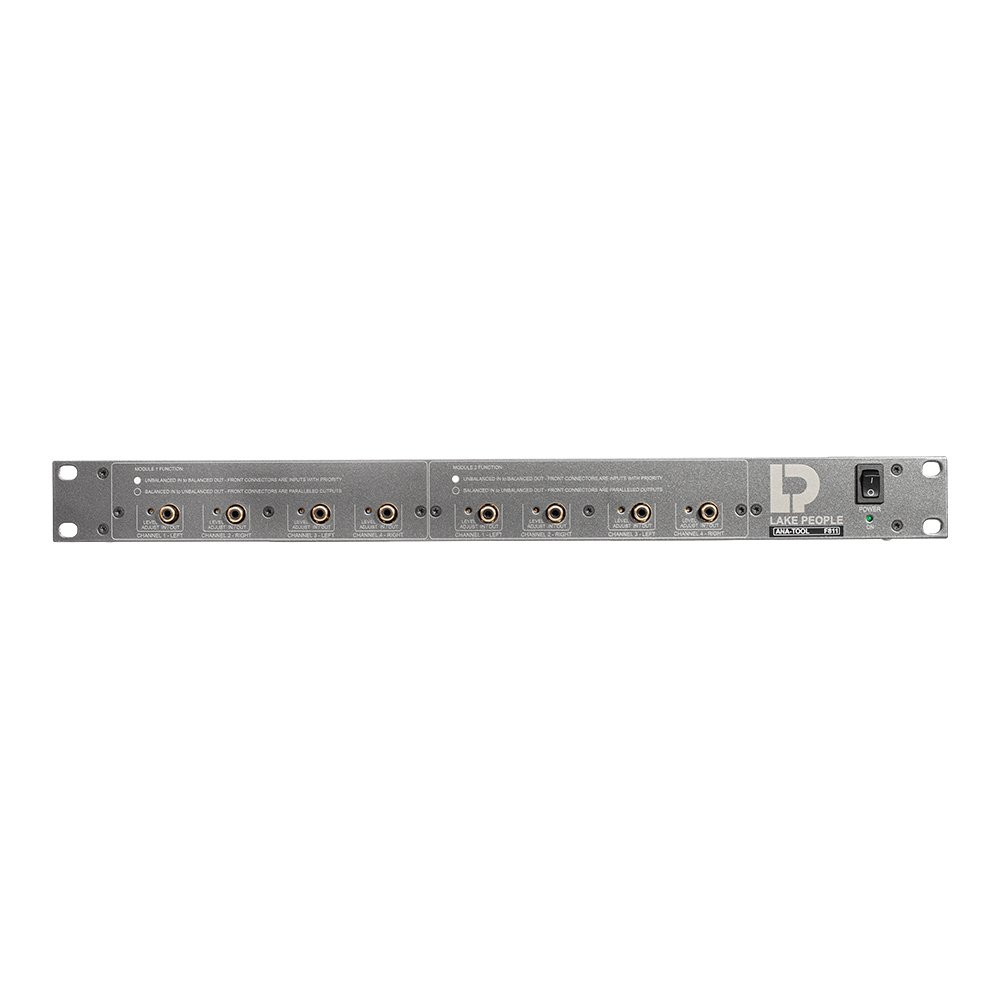

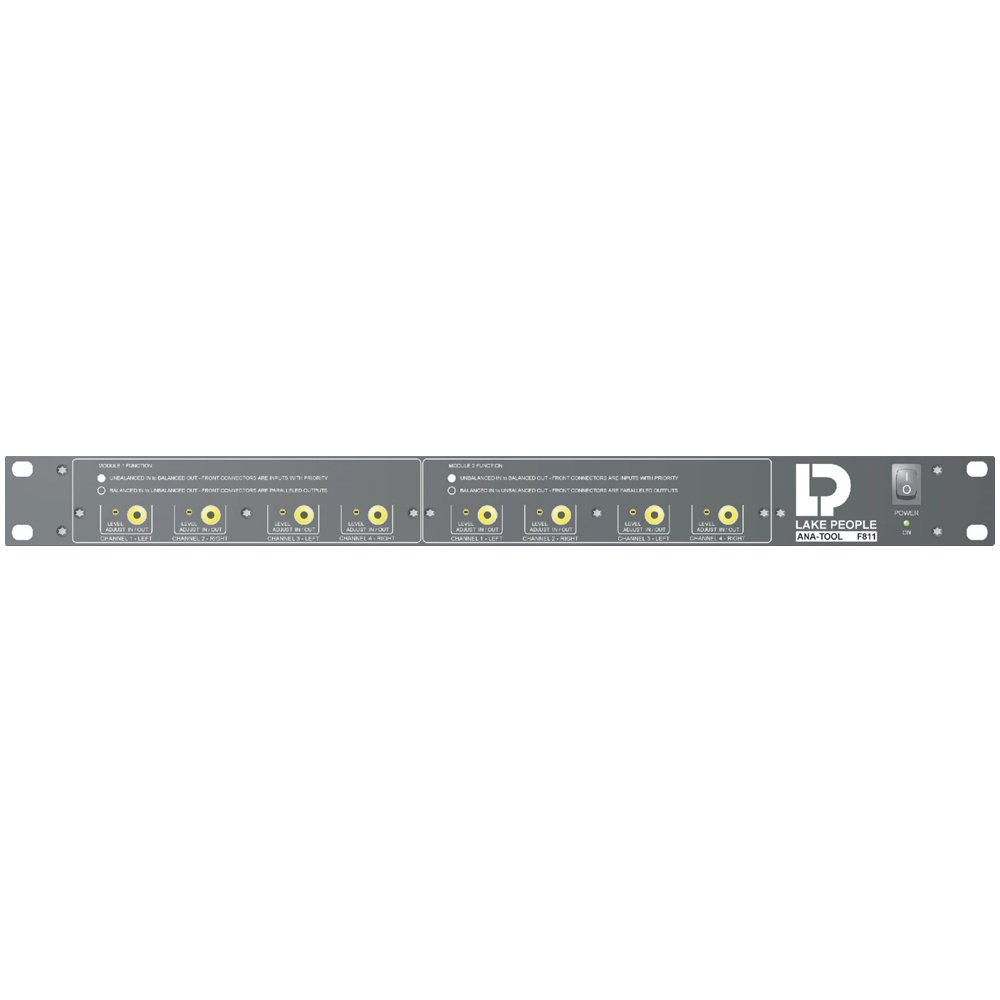

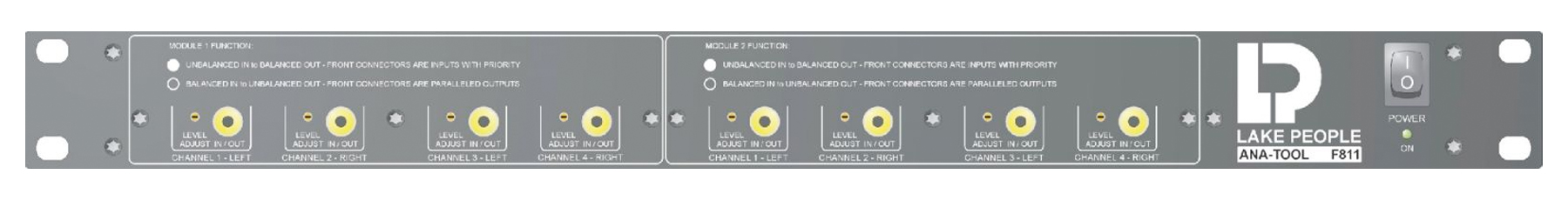

- Front inputs via Cinch (RCA) sockets with priority
- All inputs with gold plated contacts
- Inputs optimized for “-10 dBu” signals
- Impedance 50 kohms
- Internal filters to reduce the bandwidth to a safe and useful range: 5 Hz … 70 kHz (-1 dB)
- Front accessible multiturn trimpots for level adjustment with a range from -3 … +21 dB
- Balancing of the output signals with optimized circuits for highest resistance- and common mode rejection ratio (CMRR)
- Output impedance 30 Ohms according to IRT rules
- XLR type output sockets with gold plated contacts
- 19”, 1 U stainless steel case, front color dark grey
Option:
Outputs with “active feedback” transformers (up to 8 tranformers may be installed)


Specifications
| Item number | 1006212 |
|---|---|
| Dimensions | 483 x 44 x 166 mm (BxHxT) |
| Output impedance | 30 Ohm |
| Input impedance | 50 kOhm |
| Housing | 19" / 1 HE |
| Line I/O | 8 / 8 (XLR/RCA) |
| Max. output level | > +25 dBu |
| Max. input level | > +21 dBu |
| Power supply | Internal 230 V / 115 V AC |
| THD+N (@ -1 dBFs) | < -100 dB |
| Frequency range | 5 Hz - 70 kHz ( -1 dB) |
| Crosstalk | < -100 dB (@ 15 kHz) |
| Gain range | -3 - +21 dB |
