Lake People ANA-TOOL F833
2 x 4 in 1 / 4 x 2 in 1
Summing Amplifier
- Balancing of output signals with optimized circuits for highest resistance and voltage common-mode rejection
- Front-facing spindle trimmers for level adjustment in the range of -12 … +12 dB
- Differentiation of input signals with highest common-mode rejection
- Optimized for line-level signals, impedance 20 kOhm
- Front-panel switchable from 2 x 2 into 1 to 4 into 1.
- IRT compliant output impedance 30 Ohm
- 2 x 2 identical sections
- Made in Germany
In the box
- 1 x ANA-TOOL F833
- 1 x Power Cable
- 1 x Printed Manual
Description
Lake People ANA-TOOL F833
The Lake People ANA-TOOL F833 is a summing amplifier with two identical sections, each with two balanced inputs and one balanced output (4 x 2 in 1).
Features
- 2 x 2 Identical sections with two balanced inputs and one balanced output each (4 x 2 in 1)
- Front side is switchable from 2 x 2 in 1 to 4 in 1 (output signal can then be split to both outputs)

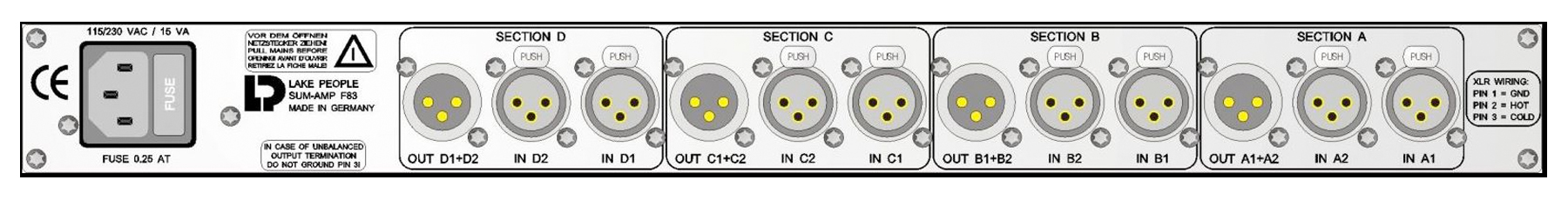

- Rear side inputs balanced symmetrically via XLR
- Optimised for line level signals
- Impedance: 20 kOhm
- Differentiation of the input signals with the highest common mode rejection (CMMR)
- Internal filters for band limitating to a safe and useful range from 5-40 kHz (-1 dB)

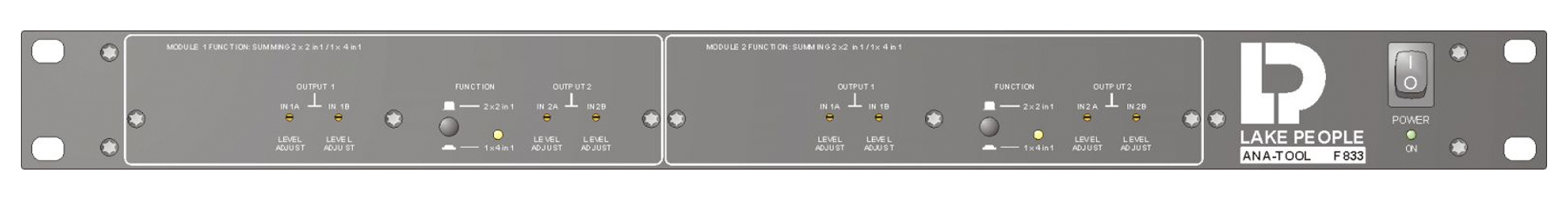

- Multiturn trimpots on the front for level adjustment in the range of -12 up to 12 dB
- Balancing of the output signals with optimised circuits for highest resistance - and voltage common mode rejection ratio
- IRT compliant output impedance of 30 ohms
- XLR input and output sockets with gold-plated contacts
- 19”, 1 U stainless steel case, front color dark grey


Specifications
| Item number | 1006215 |
|---|---|
| Dimensions | 483 x 44 x 166 mm (W x H x D) |
| Output impedance | < 15 Ohm |
| Input impedance | 20 kOhm |
| Housing | 19" / 1 HE |
| Line I/O | 8 / 4 (XLR) |
| Max. output level | > +21 dBu |
| Max. input level | > +25 dBu |
| Power supply | Internal 230 V / 115 V AC |
| THD+N (@ -1 dBFs) | < -100 dB |
| Frequency range | 5 Hz - 40 kHz (-1 dB) |
| Crosstalk | < -100 dB @ 15 kHz |
| Gain range | -21 - +3 dB |
