Lake People ANA-TOOL F844
 2 x 1 in 4 / 4 x 1 in 2
SPLITTING AMPLIFIER, 19"
- 2 x 2 identical sections, each with a balanced input and two balanced outputs
- Front-facing spindle trimmers for level adjustment in the range of -12 … +12 dB
- Differentiation of input signals with highest common-mode rejection

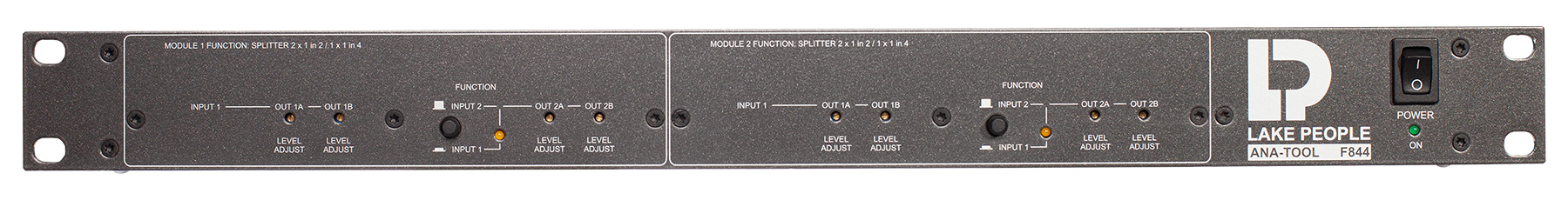

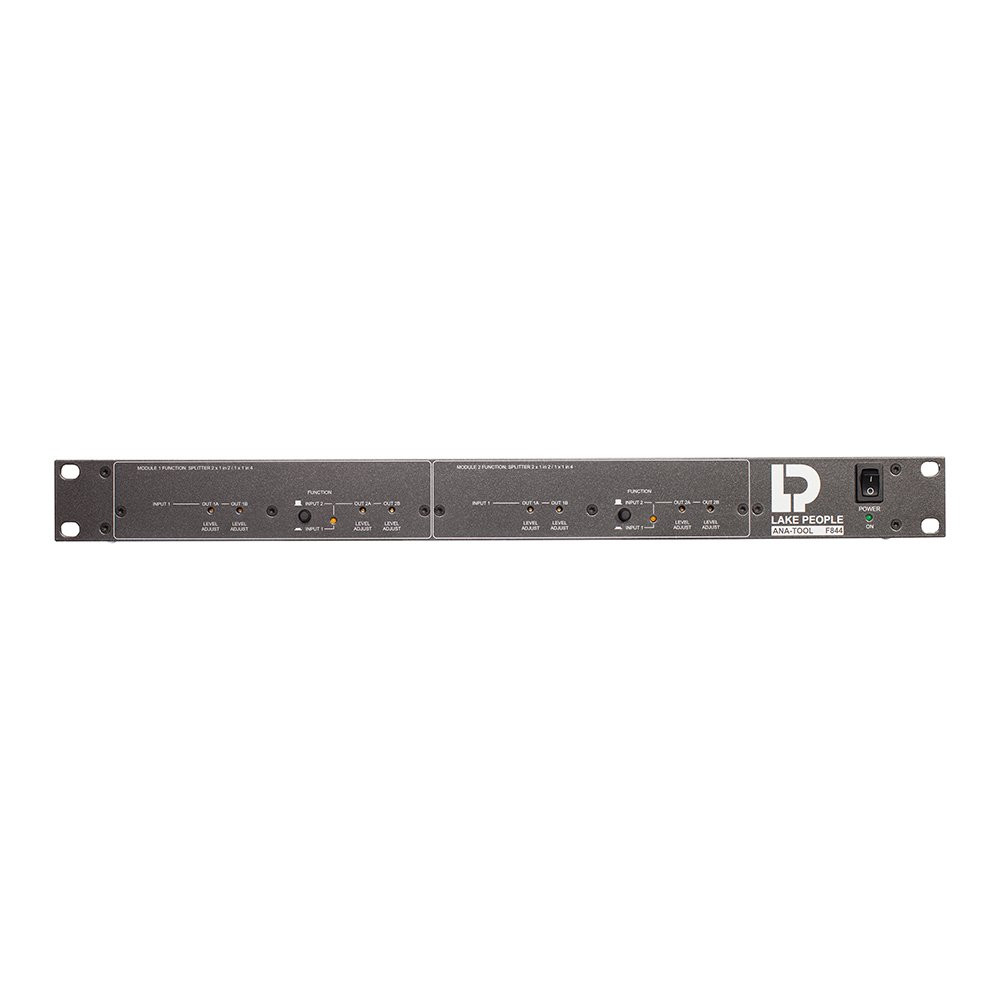

- Front-panel switchable from 2 x 1 into 2 to 1 into 4
- IRT compliant output impedance of 30 Ohms
- Optimized for line-level signals
- Made in Germany
In the box
- 1 x ANA-TOOL F844
- 1 x Power Cable
- 1 x Printed Manual
Description
Lake People ANA-TOOL F844
The Lake People ANA-TOOL F844 is a splitting amplifier with two identical sections, each with two balanced inputs and one balanced output (4 x 2 in 1).
Features
- 4 identical sections with one balanced input and two balanced outputs each (4 x 1 in 2)
- Front operated switch for 2 x 1 in 2 or 1 in 4 operation (1 in 8 with internal access)

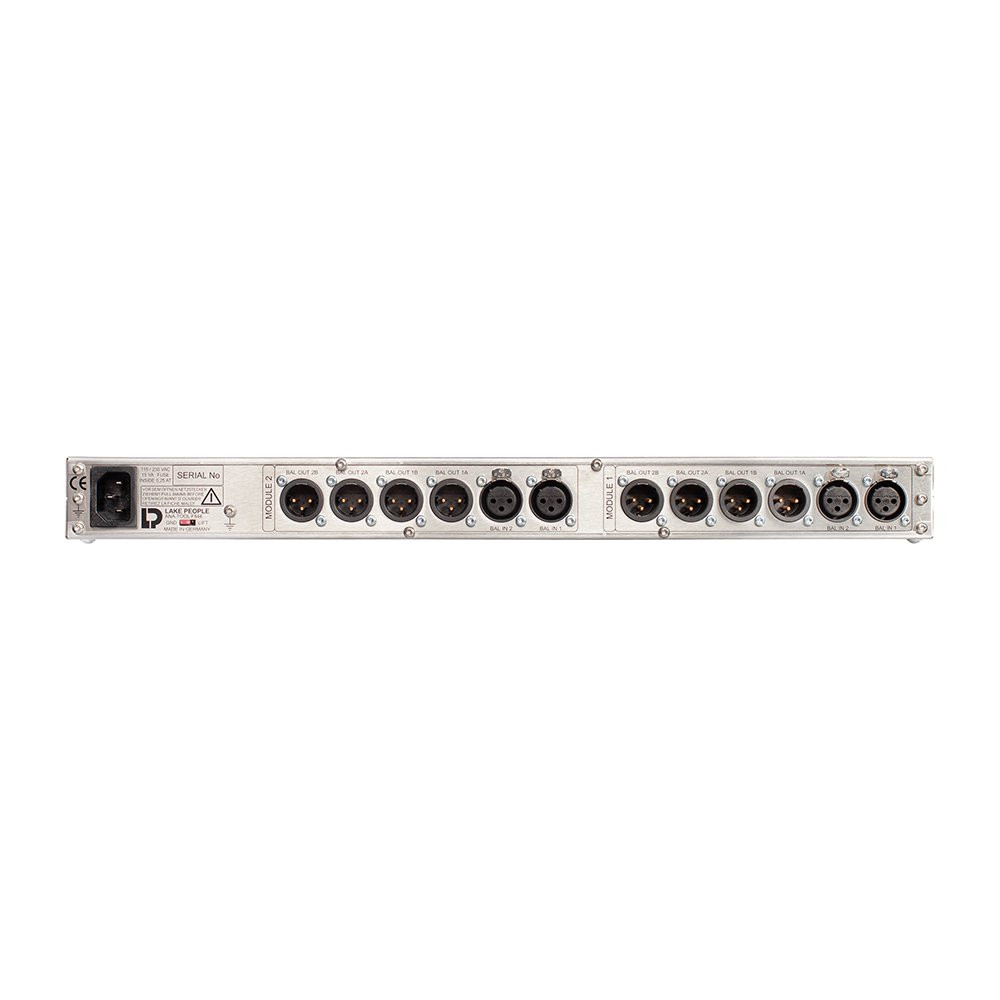

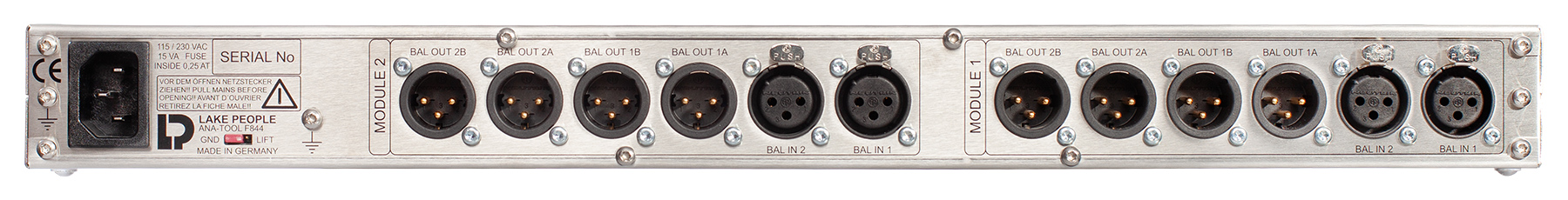

- Rear inputs electronically balanced via XLR
- XLR sockets with gold plated contacts
- Optimized for line-level signals, impedance 20 kohms
- Differencial input circuits specialized for highest common mode rejection ratio (CMRR)
- Internal filters to reduce the bandwidth to a save and useful range: 5 Hz … 70 kHz (-1 dB)
- Front accessible multiturn trimpots for level adjustment with a range from -12 … +12 dB
- Balancing of the output signals with optimized circuits for highest resistance- and voltage common mode rejection ratio (CMRR)
- Output impedance 30 Ohms according to IRT rules
- XLR type output sockets with gold plated contacts
- 19”, 1 U stainless steel case, front color dark grey


Specifications
| Item number | 1006216 |
|---|---|
| Dimensions | 483 x 44 x 166 mm (BxHxT) |
| Output impedance | 30 Ohm |
| Input impedance | 20 kOhm |
| Housing | 19" / 1 HE |
| Line I/O | 4 / 8 (XLR) |
| Max. output level | > +25 dBu |
| Max. input level | > +25 dBu |
| Power supply | Internal 230 V / 115 V AC |
| THD+N (@ -1 dBFs) | < -100 dB |
| Frequency range | 5 Hz - 40 kHz (-1 dB) |
| Crosstalk | < -100 dB @ 15 kHz |
| Gain range | -12 - +12 dB |
