RME M-32 AD Pro II / M-32 DA Pro II

Designed for the next decade

With the M-32 AD and M-32 DA, RME presented two independent 32-channel converters in 2010, which quickly became the industry standard thanks to their high quality, reliability and number of channels.

The M-32 Pro II series is designed to meet the demanding requirements of professional studios, immersive sound installations, live sound systems, and industrial applications that need a reliable solution for analogue conversion with high-end network audio processing. These new converters are available with either 32 analogue inputs or outputs, and either with either Dante® or AVB for a choice of four different models.

Boasting up to 32-channels, fully equipped MADI I/Os (coaxial & optical via optional SPF module), improved specs with extremely low THD values, intelligent channel routing and innovative usability, the brand-new M-32 Pro II Series truly represents the state-of-the art in exceptional audio performance.

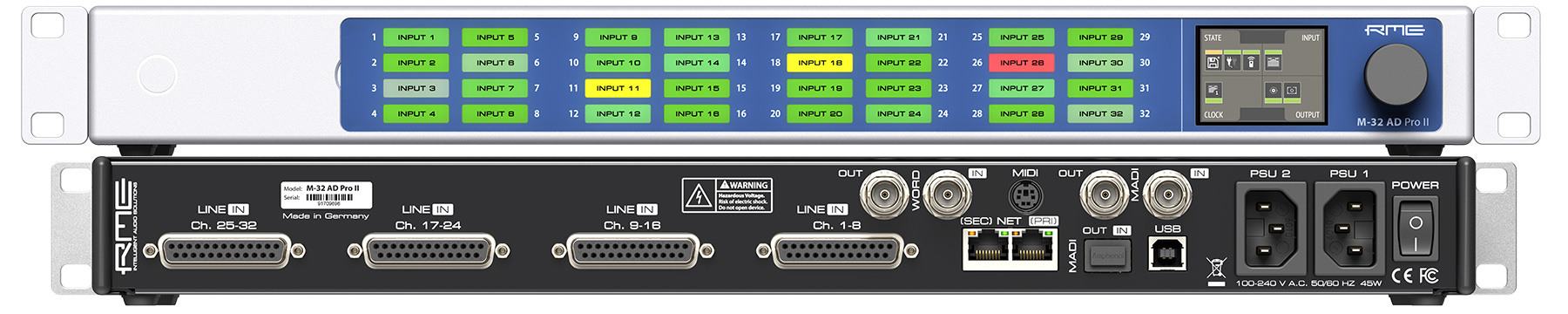

RME M-32 Pro AD II front and back panels

The Ultimate Solution for High-End Network Audio Processing

The latest 32-channel M-32 Pro II is based on state-of-the-art, high-resolution converter components and a fully balanced analogue circuit design that offer signal-to-noise ratios of 120 dB(A) with very low latencies — placing the converters in the reference class.

While the M-32 AD Pro II offers the same outstanding analogue performance as its predecessor, the DA-Converter has even improved the THD+N to -111 dB. All models benefit from impulse response optimization at sampling rates of 88.2 kHz and higher to minimize ringing artifacts in the conversion process.

AVB Network Solutions by RME Audio

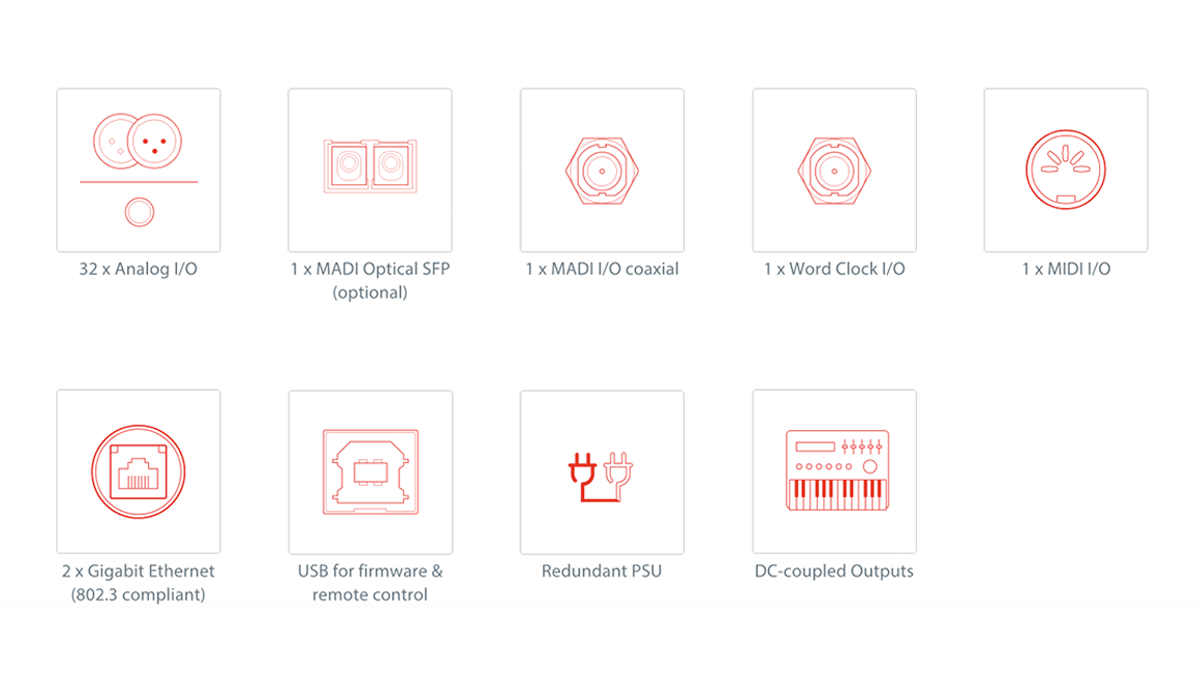

Connections and Features

Plug & play - rapid user interaction

Control all device states directly from the front panel for convenient, direct access to all features.

RME AVB devices can be reached over network (including wirelessly over Wi-Fi) and USB for convenient remote access, allowing the rapid creation of gain groups, phantom power switching and clock configuration.

In addition, a JSON based API and even SysEx MIDI commands can be used to integrate each model virtually anywhere.

The integrated routing matrix allows single channel routing across all analogue and digital I/O. As such, problem-solving of signals, clocking, connectivity or other issues is both simple and straight-forward!

Direct access to all features via the web-interface on any network

RME M-32 Pro DA II front and back panels

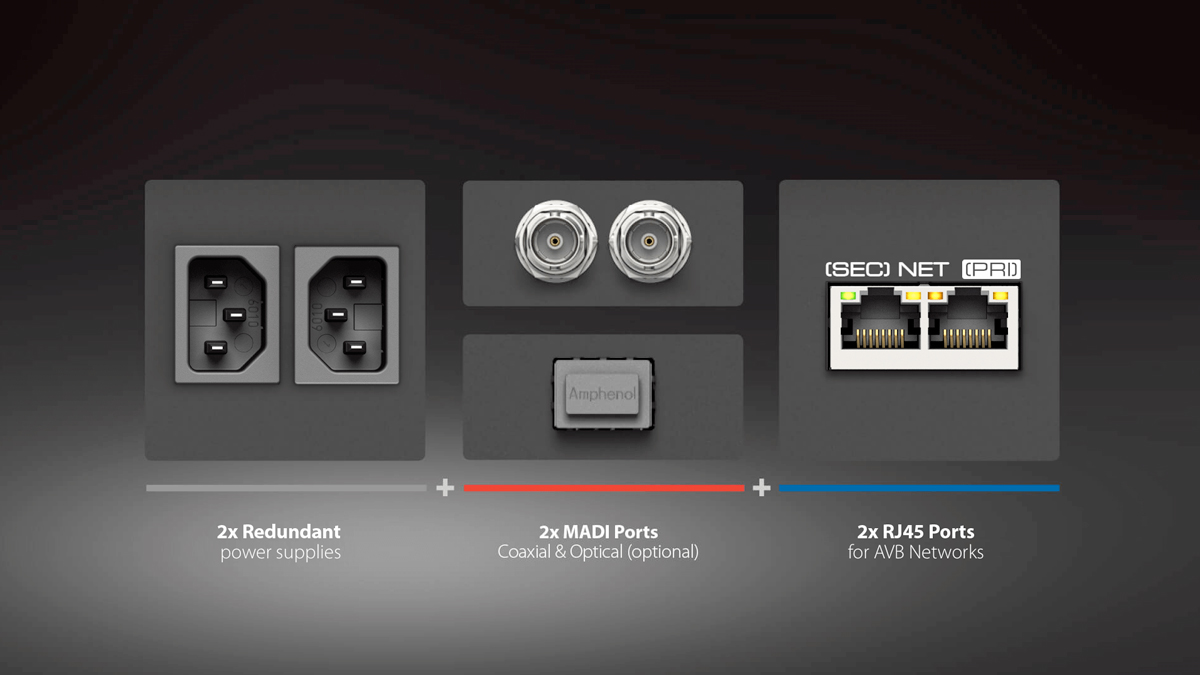

AVB Audio Networking - 2 fully redundant network ports

In addition to the two MADI I/Os including separate signal routing, the new M-32 DA Pro II and M-32 AD Pro II feature an AVB interface based on the open network standards IEEE 802.1 and 1722.1, enabling transmission of the 32 analogue channels at a maximum 192 kHz sampling rate via a single Ethernet cable.

Combined with external AVB switches, the new M-Series converters can be quickly, easily and reliably integrated into more complex network structures thanks to the comprehensive time-synchronous signal processing of the AVB protocol.

Up to 128 audio channels at 48 kHz (96 @ 96k, 64 @ 192k) can be sent and received over AVB in total across all streams.

RME offers an AVB device with two fully redundant network ports, based on the recommendations of MILAN™.

The RME AVB Core has meticulously implemented the IEEE standards for audio- streaming, discovery and control, allowing RME devices to be both discovered and fully controlled by any AVB controller, and making vendor-specific control protocols a thing of the past.

Any signal reaching the M-32 Pro II can be routed and streamed over a network with fixed latency and guaranteed bandwidth - no switch configuration is required!

 Multiple layers of redundancy make the M-32 Pro II Series a perfect companion for any kind of live sound application.

Analogue Line Level Performance

For maximum compatibility with a variety of analogue hardware, the individual channels of the M-32 AD Pro II and M-32 DA Pro II can be operated with different line levels - each with full resolution of the converters.

Besides +19 dBu and +13 dBu, the new M-Series is one of the few solutions available on the market that also allows working with the SMPTE® recommendation of +24 dBu at 0 dBFS.

Available as AD or DA version for unprecedented flexibility and compatibility in format conversion.

Easy to Operate

Tri-color back-lit channel label fields offer an almost indispensable advantage in fixed installations.

Using the provided transparent papers, users can create individual channel labels and securely affix them behind a magnetic cover, where they are illuminated depending on signal level.

This provides a comprehensive overview of analogue channel assignments and signal flow.

Updates included

With hardware built to last, RME makes sure the firmware running on the device does not fall behind.

Since the release of the first version of the M-32 Pro, numerous feature updates have been released, delivering an increase of AVB total stream and channel count from four streams (64 channels) to nine streams (128 channels + additional CRF clock stream), additional stream formats, numerous adjustments for MILAN™ compatibility, single channel routing, preset upload and download, configurable preset names, static IP address assignment, and many more.

These ongoing changes reflect the commitment of RME developers to sound engineers that expect the best performance of their devices for years to last.

Optional: RME MADI SFP Module

The RME M-32 AD Pro II and M-32 DA Pro II's MADI I/O can be expanded via the optional SFP module, increasing the MADI channel count to a maximum of 256 channels and offering MADI redundant operation.

M-32 AD / M-32 DA Pro II

M-32 Pro II AD Line In 1-32:

M-32 Pro DA II Line Out 1-32:
