RME MADI Router

£2,649.00

Inc 20% VAT

Out of Stock

Usually available in 2-3 days


Shipping Information

FREE DELIVERY ON ALL ORDERS!

All orders can be shipped with free delivery. For orders over £50.00 this will be a next day courier service and for orders of less than £50.00 this will be First Class Royal Mail postage.

Other chargeable service options are available (see below).

Delivery Notifications

You will receive an email to the address you have supplied to us when your order has been dispatched.

Delivery Methods and Timescales

The delivery time scale is specified on the product page to indicate when you should expect to receive your order. If all item(s) are in stock and your order was placed before 2pm, subject to passing necessary checks, your order will be shipped the same day. Orders received just after 2pm are also often dispatched the same day, but this cannot be guaranteed.

See below for delivery options:

Royal Mail – First Class Recorded Delivery*

  • Price = FREE
  • Delivery Time – We cannot guarantee delivery time via Royal Mail. If this is a problem, please select a courier service

*Only available on orders with a value of less than £50

Courier – Next Working Day Service

  • Price = Free (Orders of £50+) / £9.95 (Orders of less than £50)
  • Delivery Time – Next working day from date of dispatch (see above)

Courier – Pre-noon, Next Working Day Service

  • Price = £9.95 (Orders of £50+) / £19.95 (Orders of less than £50)
  • Delivery Time – Next working day from date of dispatch (see above)

Courier – Saturday Delivery Service

  • Price = £19.95
  • Delivery Time – The first Saturday following date of dispatch (see above)

Due to the nature of the products we sell, we operate a strict fraud screening process and therefore we are only able to deliver to the billing address.

In the event of a delay, we will contact you either by email or telephone as soon as reasonably possible.

While 99% of UK locations are valid for next day/Saturday delivery, there are a few remote locations which are not covered.

Synthax Audio (UK) cannot deliver outside of the UK and Republic of Ireland*.

*RME products cannot be shipped to the Republic of Ireland.

Missed Deliveries

If you are not in to receive the order at the time delivery is attempted, a card will normally be left to notify you of the missed delivery attempt. This will allow you to either telephone the courier company to arrange a re-delivery at a more convenient time or collect it from your local courier depot or Royal Mail sorting office. For security reasons, all items require a signature.

If for any reason the item is returned to us (e.g. incorrect address specified, multiple failed delivery attempts), then we will inform you immediately by email as soon as we receive the item. From this point forth, you will be given a choice whether you wish us to re-dispatch the item or cancel the order. Please refer to our Cancellations & 14 Day Returns Procedure for more details. For items where delivery failed through no fault of Synthax Audio (UK), you will be liable for the original shipping charge, any courier surcharges and any subsequent delivery charges.

Late Deliveries or Dispatch

We are able to ship almost every order in the specified timescale. However, in very rare circumstances there can be an unforeseen delay. If this does happen, we will make it our priority to get your order dispatched from our warehouse as soon as reasonably possible.

There are also rare cases, beyond our control, when the delivery company itself has a problem which causes a delay in transit. In these situations we will do our utmost to liaise with the relevant delivery company to ensure delivery is completed as swiftly as possible.

Consequential Loss for Late Deliveries

If a delivery is late, then we will provide a refund of any delivery fee that we charged you. We do not provide financial compensation to cover consequential losses, e.g. for time taken off work to receive a delivery, or if the item is intended as a gift and you have to purchase the same item from a more expensive retailer.

Our full terms of sale can be viewed here.

Customer Rating: (0)

12 Port MADI Digital Patch Bay
& Format Converter

  • 12 bridged MADI streams, including
  • 4 composed MADI streams
  • On-screen routing in 8-channel groups
  • 12 MADI ports (4 x optical, 4 x coaxial, 4 x twisted pair)
  • Redundant power supplies
  • Word Clock I/O
  • USB connector for firmware updates and preset storage


Description

Overview

Building on the eight year success of the MADI Bridge and the MADI Converter, RME presents a newly designed device that is a worthy successor of both - in fact, its innovative core will redefine and inspire MADI systems for years to come.

The MADI Router is a compact device designed to link MADI devices of any manufacturer with unprecedented flexibility in signal routing. It provides this flexibility by serving as a format converter between optical and electrical signals, as a signal repeater, and as a distributor and merger of several MADI signals, all at the same time.

RME MADI System Setups

The MADI Router combines many advantages of point-to-point audio connections, such as low latency and fast recovery time from signal line interruptions, with the flexibility of networked audio connections in which any device has access to any channel available on the network of connected devices.

At the simplest level input signals are passed on to the desired output unaltered. This type of connection is beneficial when manufacturers have embedded additional status or remote control data information in the MADI stream.

It is also possible to create new arrangements of audio channels within a MADI output stream. For this purpose four independent matrices are provided, each one reflecting 768 IN x 64 OUT audio channels. Any channel of any valid MADI input stream may be source to each crosspoint matrix. The output of each matrix can then be passed on to any of the 12 MADI Router's outputs.

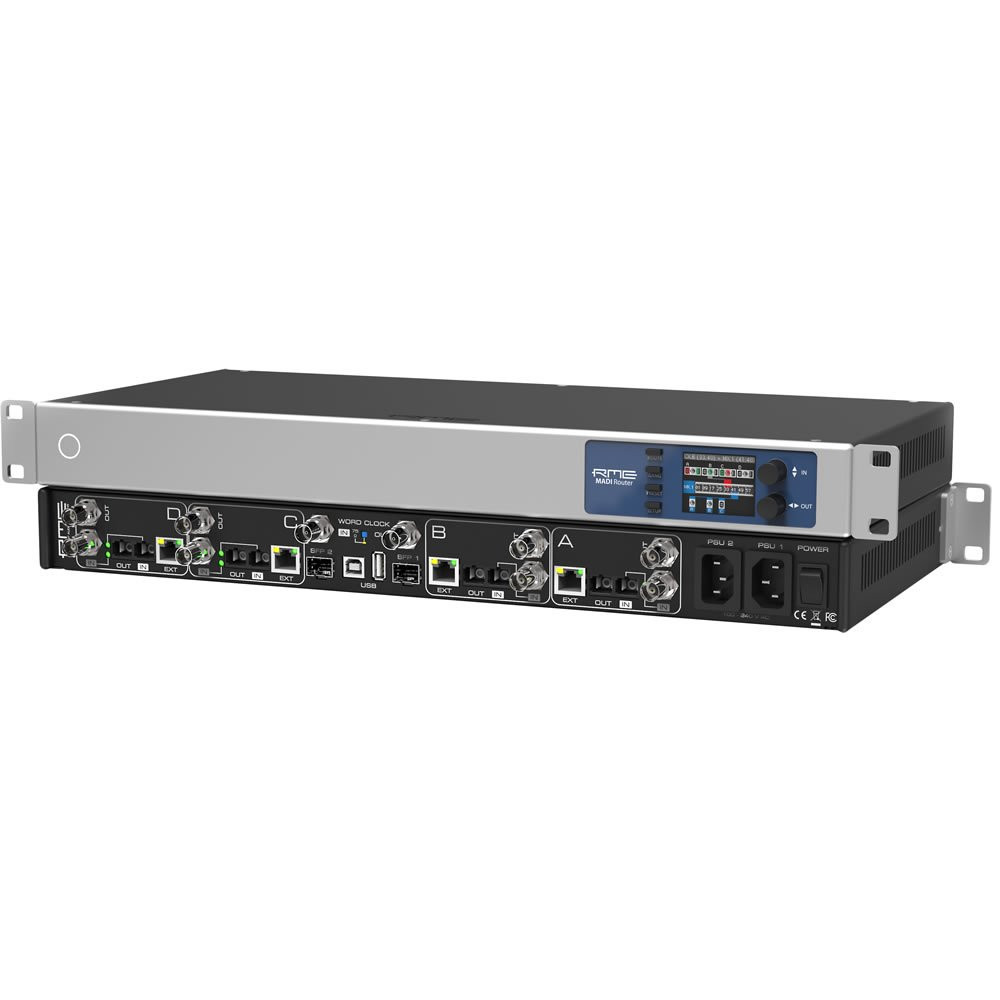

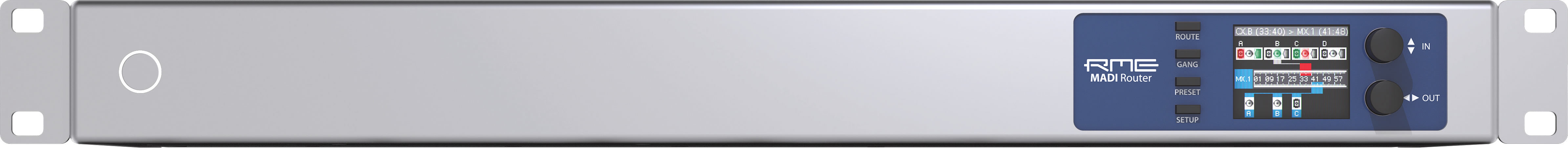

RME MADI Router Front Panel - Click To Enlarge

Features

The MADI Router is designed to be simple and easy to operate. It is the only MADI routing device on the market that can be completely programmed and controlled without the help of external remote control software.

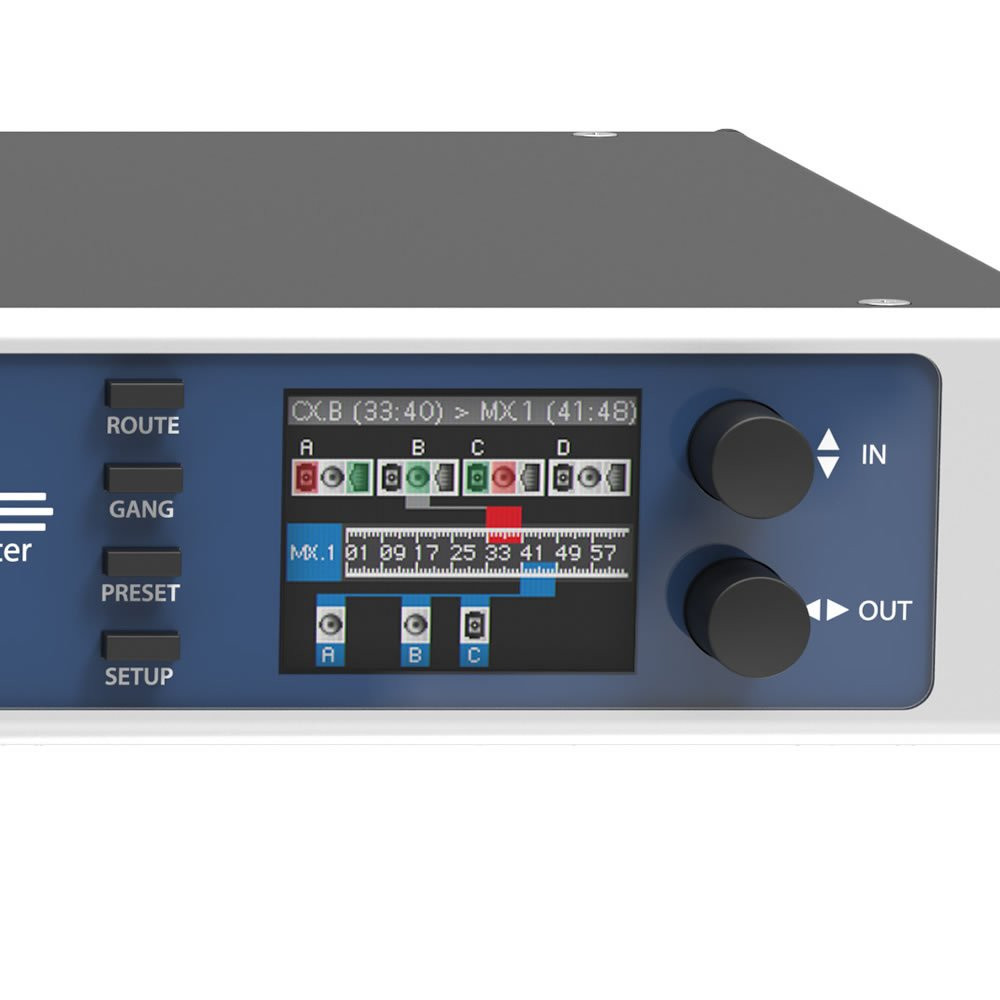

In order to achieve this capability, a TFT display has been integrated on the front panel. It conveniently shows the current state of the device and leads the user through all required settings that are needed to set up a network. User interaction is conducted by four buttons and two rotary encoders surrounding the display.

The complete state of the device is saved with any user interaction (AutoSave) and automatically recalled within ten seconds after the unit is switched back on. Additionally, 15 internal presets let users save and recall, as well as preview and preselect routings.

On its back, the device provides a variety of connectors to achieve maximum compatibility and versatility for a broad range of different use cases. Four optical and four coaxial MADI inputs are accepting MADI signals at any sampling rate and channel format, the outputs carry either a refreshed or one of the four newly created MADI signals over distances of up to 200m (coaxial) or 2000m (optical).

A novelty among RME devices are the MADI TP ports. These four combined in- and outputs bring MADI to common twisted pair network cables that can directly connect MADI TP devices over distances of up to 150m while passing on power along with the MADI signals. The four MADI TP ports provide sufficient power for the AES3 and ADAT Converters.

All twelve MADI ports are completely independent but grouped symmetrically in four sections 'A' to 'D' for quick identification. The word clock input may be used as reference to any of the four routing matrices or simply be refreshed and passed on to the output. The word clock output can further provide the extracted word clock signal from any of the 12 MADI inputs.

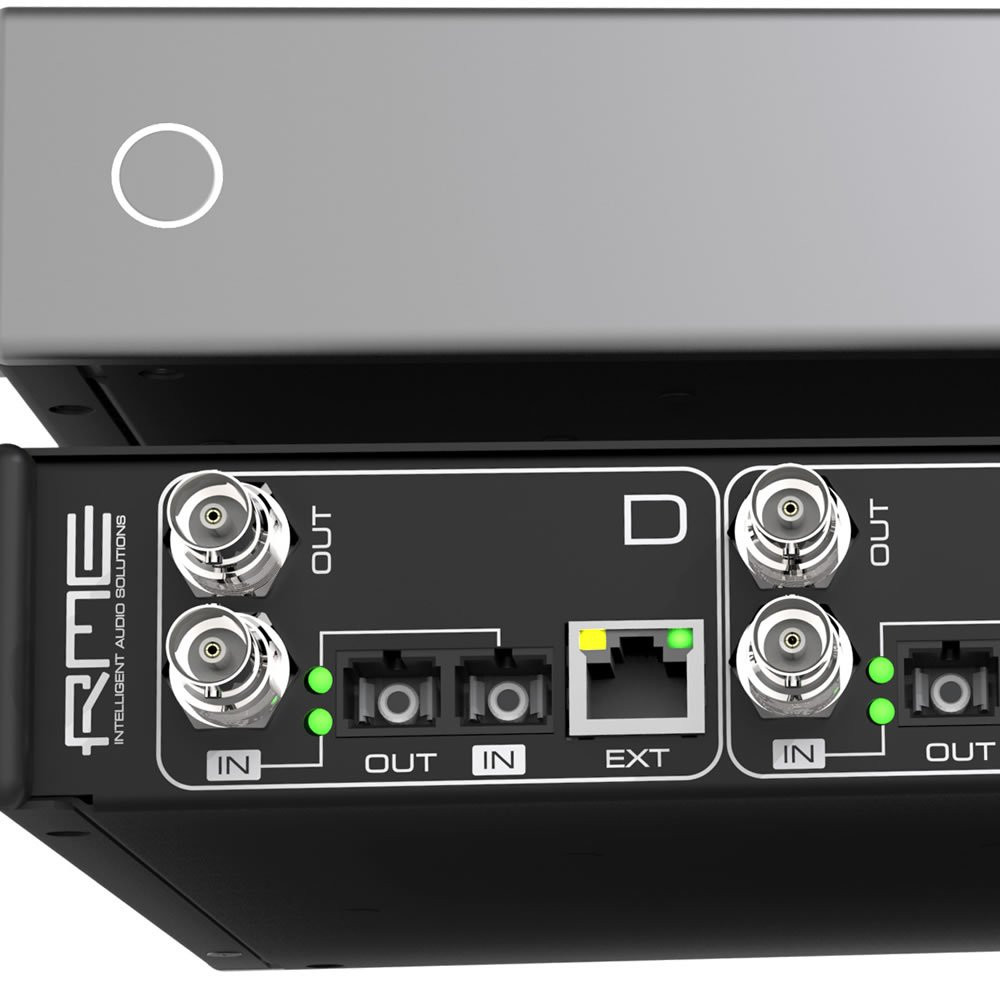

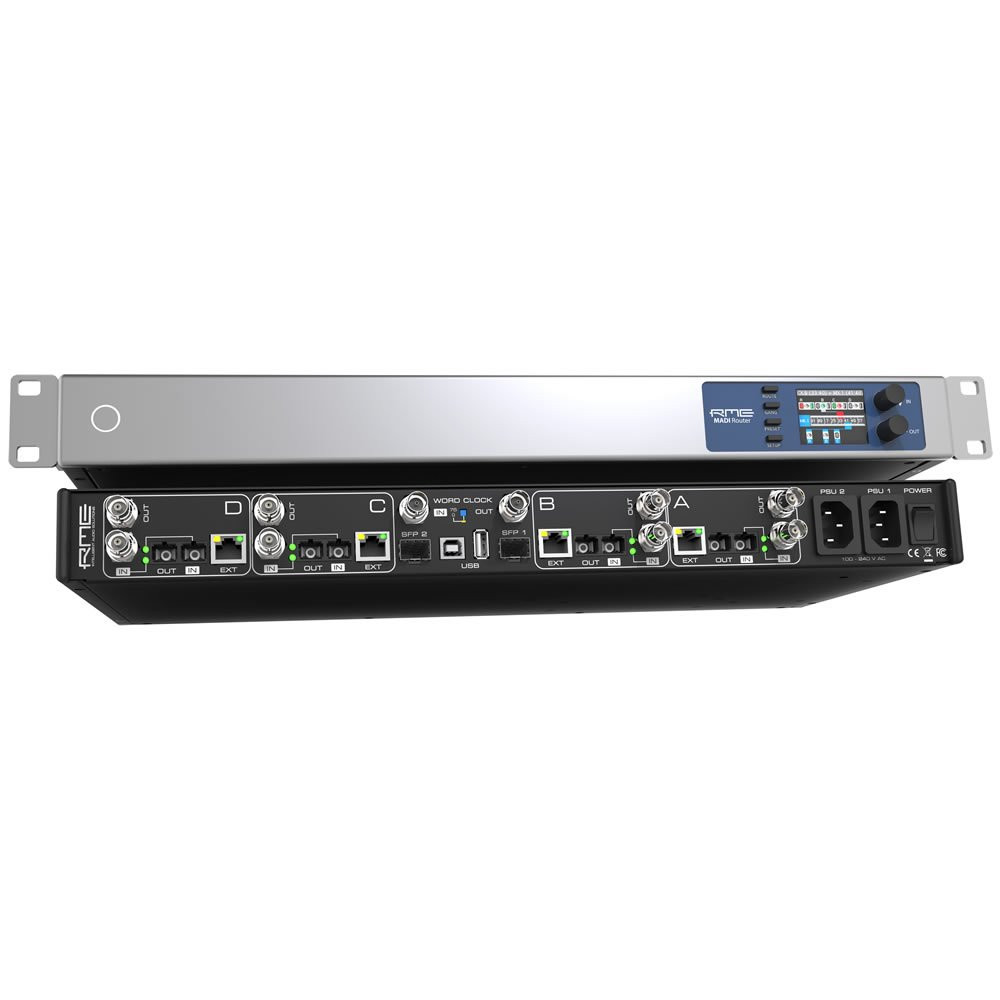

RME MADI Router Rear Panel - Click To Enlarge



Two redundant 100W switching power supplies provide sufficient power for the MADI Router itself plus up to eight additional passive devices that draw their power from the MADI TP connections. The AC inlets support a locking mechanism that can be used with matching, optional AC power cords.

Specifications

  • Power supply: Two internal redundant power supplies, 100-240V AC, max. 100W
  • Dimensions without rack ears (WxHxD): 440 x 44 x 240 mm (17.32" x 1.73" x 9.45")
  • Temperature range: +5° up to +50° Celsius (41° F up to 122°F)
  • Relative humidity: < 75%, non condensing
  • Weight: 2.8 kg


Inputs | MADI

  • Coaxial via BNC, 75 Ohm, according to AES10-1991
  • High-sensitivity input stage (< 0.2 Vpp)
  • Optical via FDDI duplex SC connector
  • 62.5/125 and 50/125 multimode compatible
  • Both Optical and Coaxial ports accept any MADI signal
  • Twisted Pair via RJ45 connector (input and output)
  • Pinout “EXT": 1-2 receive, 3-6 send, 4-5 DC +48V, 7-8 -48V
  • Note: The Twisted Pair implementation uses standard ethernet technology such as 8b/10b encoding for DC-balance, which is important to achieve stability over long cable runs. At the time of writing it is proprietary to RME. Implementations of other manufacturers may show incompatibilities.


Inputs | Word Clock

  • BNC, not terminated (10 kOhm)
  • Switch for internal termination 75 Ohm
  • Automatic Double/Quad Speed detection
  • SteadyClock guarantees super low jitter synchronization
  • Capacitive coupled, galvanically isolated input
  • Signal Adaptation Circuit: signal refresh through auto-center and hysteresis
  • Overvoltage protection
  • Level range: 0.7 Vpp – 3.3 Vpp

Outputs | MADI

  • Coaxial via BNC, 75 Ohm, according to AES10-1991
  • Output voltage 750 mVpp
  • Cable length: up to 200 m
  • Optical via FDDI duplex SC connector
  • 62.5/125 and 50/125 multimode compatible
  • Fiber length: up to 2000m


Outputs | Word Clock

  • BNC
  • Max. output voltage: 3.3 Vpp
  • Output voltage @ 75 Ohm: 1.65 Vpp
  • Impedance: 10 Ohm
  • Frequency range: 27 kHz – 200 kHz


Product Reviews

Customer Reviews

This item currently has no reviews.

Purchased this product?

Please login to review this product
