Dynaudio Core Sub Compact
High-End Compact Subwoofer for
Dynaudio Core Series Monitors
- Speaker configuration: 2 x 9" woofers
- Pascal Class-D amplifiers
- Power: 560 W (2 x 280 W)
- Frequency response: 15 - 200 Hz (+/- 3dB)
- Max. SPL (sound pressure level): 109 dB
- 24-Bit / 192 kHz converter
- Line input: XLR
- Digital input: 1x AES3 XLR and 1 x BNC word clock
- Dimensions (W x H x D): 418 x 360 x 378 mm
- Weight: 26.1 kg
Description
Dynaudio Core Sub
We know, and we agree: if the space exists for it, the full-size Core Sub is the way to go. More is more, after all. But for many studios, space is already lacking – and with rooms getting filled with ever more equipment thanks to increasing demands for immersive content, having a compact system that still packs a punch is more important than ever.
In size, Core Sub Compact is half a Core Sub. In performance, you’ll get everything you demand.
It digs down to 16Hz. It’ll put out 109dB at a listening distance of 1m (in a small studio, you’ll definitely know it’s there). It has a full set of DSP controls from the rest of the Core family. It uses 280W of high-quality Pascal amplification for each of its twin drive-units. And it won’t take up valuable floor or wall space.
We challenge you to find a meaningful low frequency it can’t handle, whatever your project.
More power to you
Core Sub Compact might be smaller in size, but in processing power it’s a giant. It uses the same amp module and DSP engine you’ll find in the rest of the Core family – which means you get all the customisation options you could want. Analogue, AES3 digital… you can deal with everything from a 2.1-channel system right up to a full-on 9.1.6 immersive rig.
It also means total consistency with the rest of the Core family, regardless of which combination of speakers you use. Core Sub Compact’s tonality is identical to its higher-frequency cousins – it really is an integrated bass-extension system, not just a boom-box.

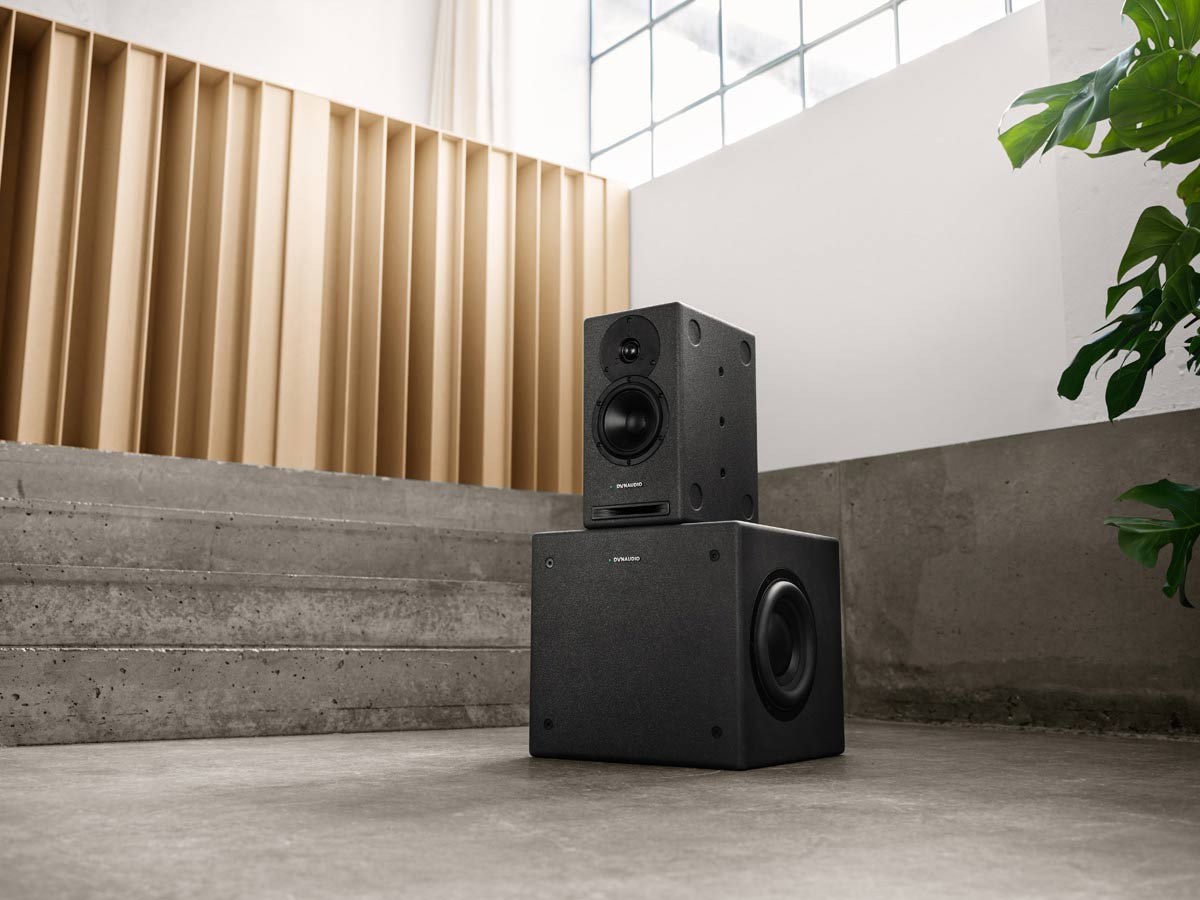

Need more versatility? You can use more than one Core Sub Compact in your system for more even bass-distribution. They’ll happily sit underneath or behind a desk, directly underneath a Core speaker (thanks to the built-in location indentations).
And you don’t have to worry about vibration. The two Dynaudio MSP+ Hybrid Drive units work in an opposed configuration. Combine that with the ultra-stable cabinet and you can mix at maximum SPL with your priceless Ming vase sitting right on the sub. Worry-free.
The Hybrid Drive is a clever thing – specifically engineered for subwoofers. The rigid aluminium core is sandwiched between a layer of paper damping on the rear, and our proprietary MSP (Magnesium Silicate Polymer) material in a cap on the front to eliminate ringing. Put the whole thing in front of a muscular ferrite magnet system and you’ve an incredibly solid engine for bass. Plus, you get two…
Reference monitoring is all about trust – and solid bass-management is crucial in letting you know exactly how your material and room really sound. Core Sub Compact is the way to hear it.
Key features
Hand-crafted
Designed, developed, tested and made in Denmark. All the drivers are hand-made at Dynaudio HQ, and each speaker is individually calibrated before it leaves the Dynaudio factory
Advanced materials
Core Sub uses new Dynaudio MSP+ Hybrid Drive units – made with MSP and aluminium – designed specifically for subwoofers. Dual-action damping ensures tight, controlled bass
-

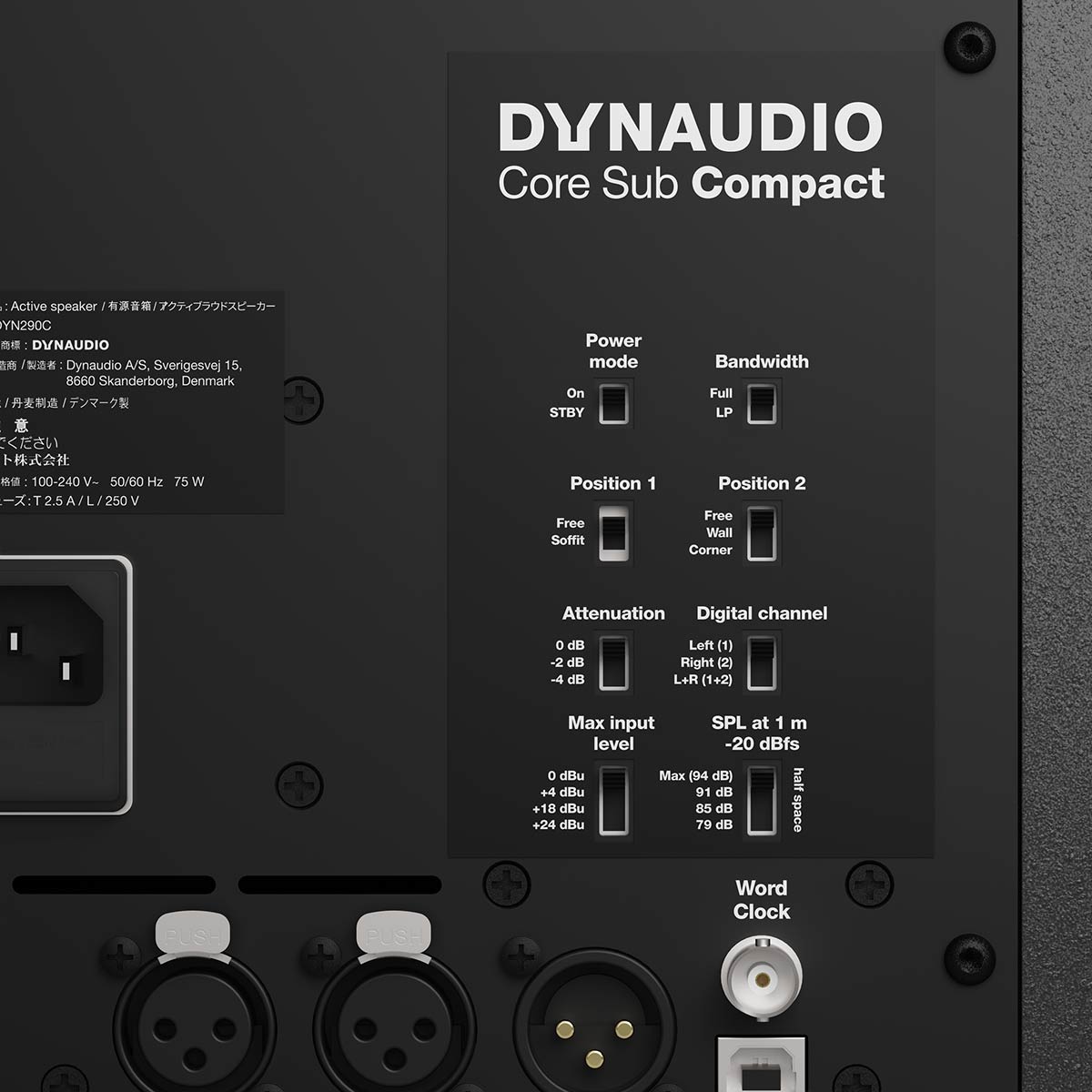

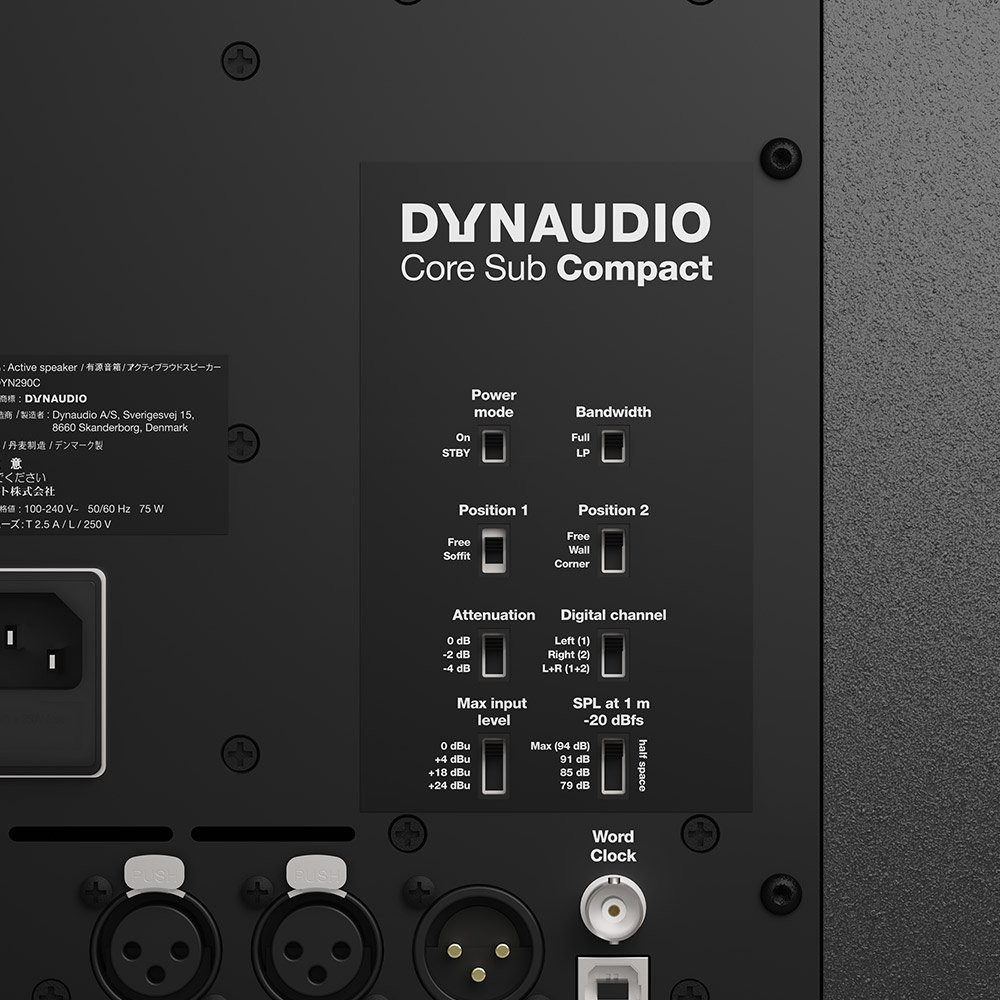

Advanced DSP
Uses the same DSP engine you'll find in the rest of the Core range – so you can customise its response to its position in the room for seamless consistency and integration
-

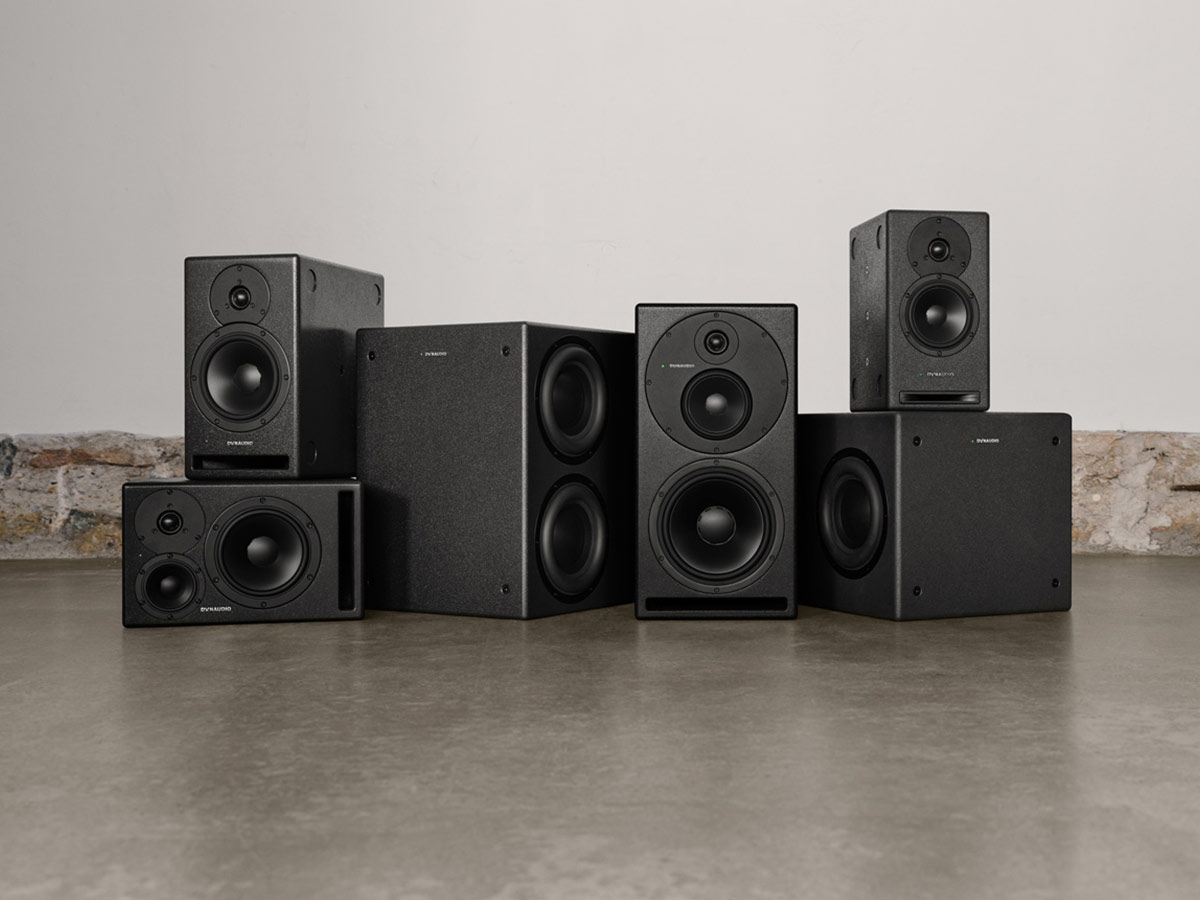

Mix-and-match
Use as many Subs as you need with your Core speakers – stack them in neat arrays or even mount them on walls. Core Sub Compact aligns physically and electronically with your studio
Specification
- Type: Subwoofer
- Crossover: N/A
- Crossover frequency (Hz): N/A

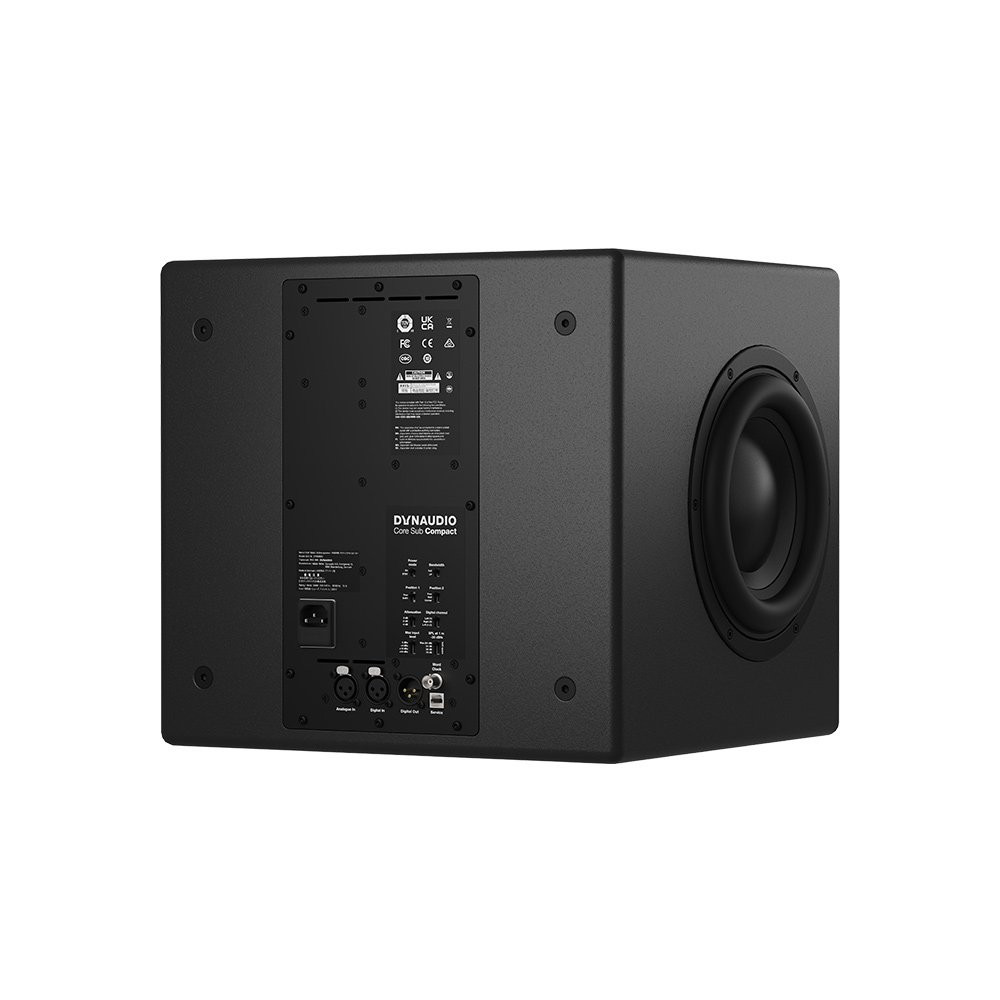

- Analogue inputs: 1x XLR female, balanced
- Digital inputs: 1 x AES3 XLR female, 1 x BNC word clock
- Digital outputs: 1x AES3 XLR male, pass-through
- Amplifiers: Pascal Class-D amplifiers (2 x 280W)
- Amplifier power tweeter (Watt): N/A
- Amplifier power woofer (Watt): 2 x 280W
- AC Power Input: 100 - 240V, 50/60Hz
- Auto on/off: Yes
- Max Stand-by Power Consumption (Watt): 0.48W
- Peak SPL (Anechoic dB @ 1 m): 109
- Maximum SPL (Anechoic dB @ 1 m): 100
- Maximum SPL (Half space dB @ 1 m): 106
- Box principle: Sealed
- Tweeter: N/A
- Woofer: 2 x 9in MSP + Hybrid Drive
- Weight: 26.1 kg / 57 .5Ib
- Dimensions (W x H x D): 418 x 360 x 378mm,
16 1/2 x 14 x 15in - Speakers per packaged box: 1
- Frequency response (+/- 3 dB): 16Hz-200Hz
- Frequency response (- 6 dB): 15Hz-230Hz
- Resolution: Max. 24-bit / 192kHz, depending on input-signal
(32, 44.1, 48, 96 & 192kHz sample rates supported; analogue runs at 48kHz)
