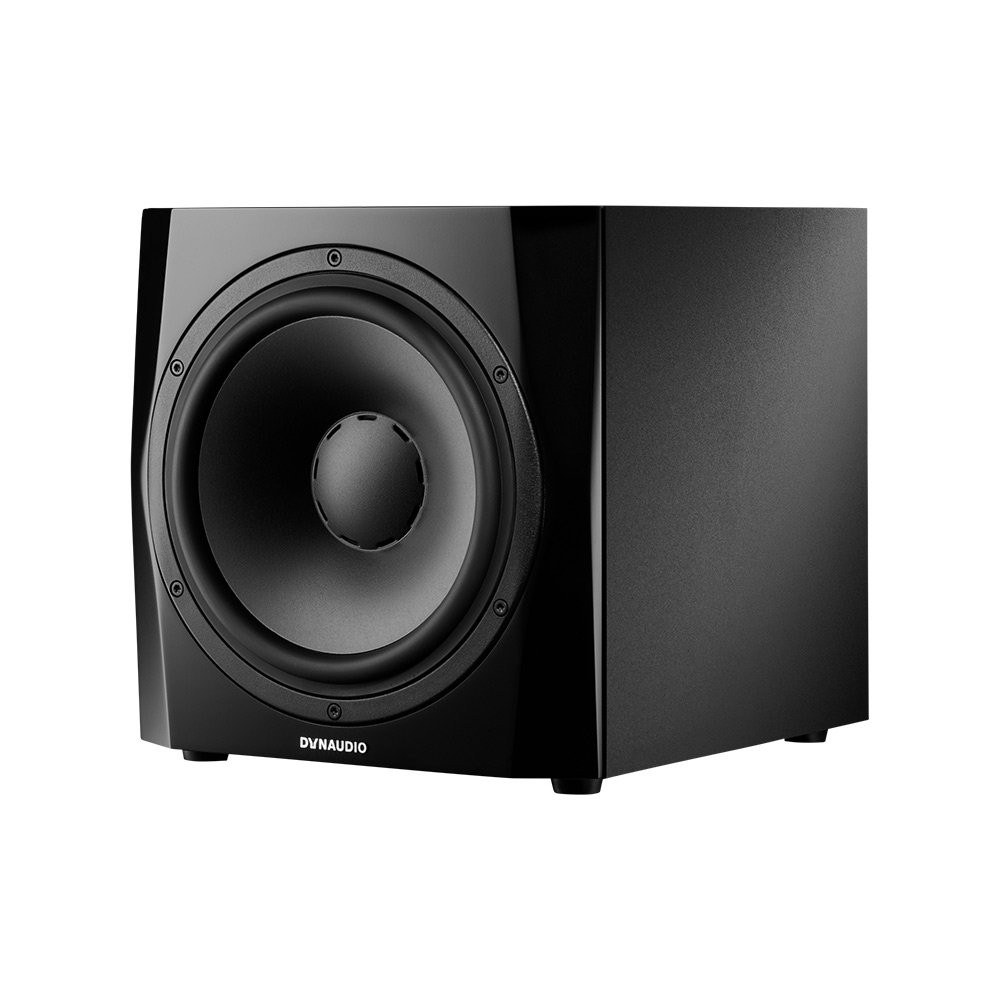

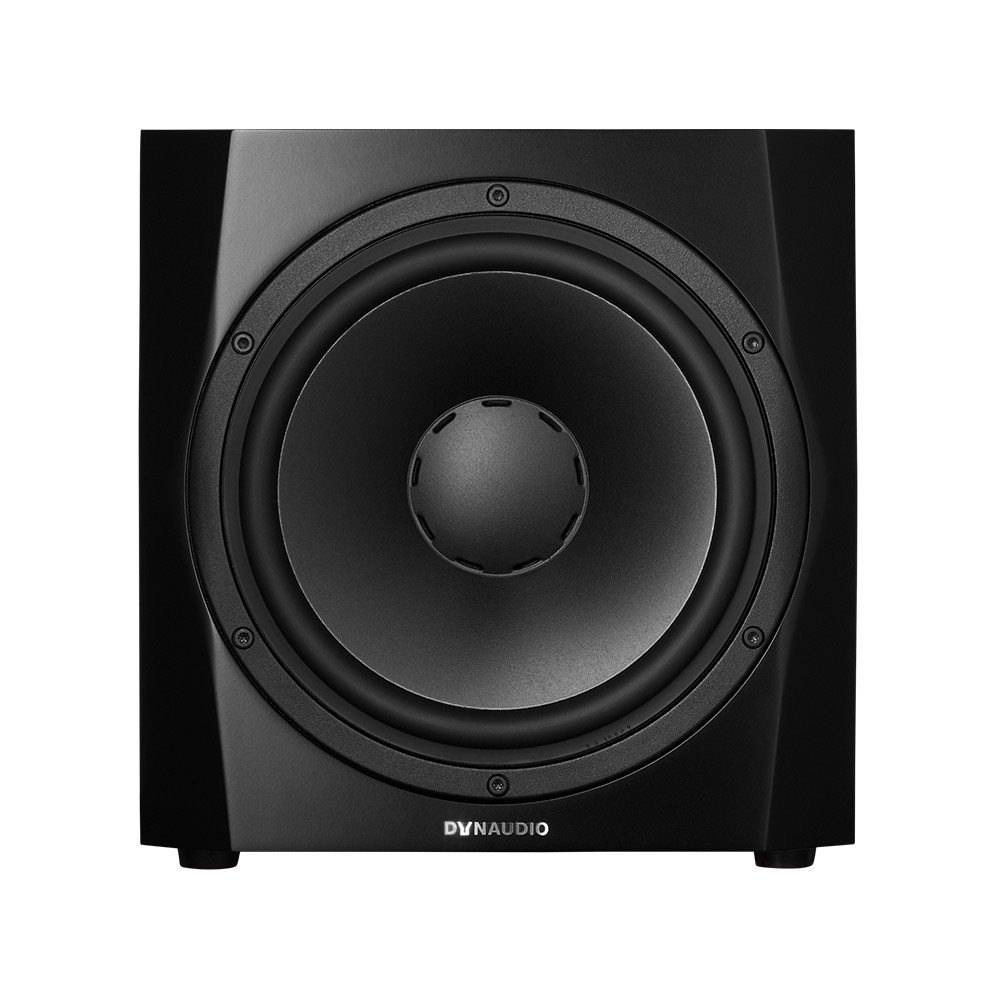

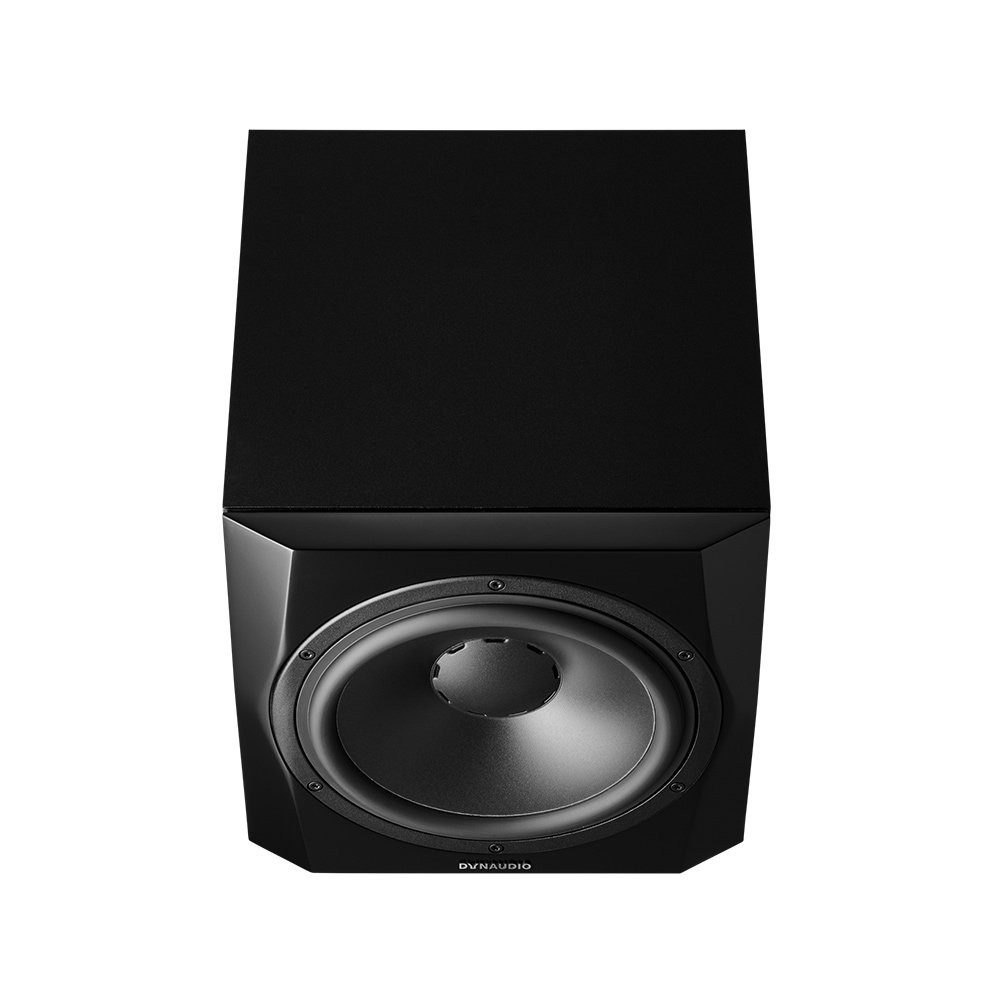

Dynaudio 9S Subwoofer
9.5" Active Subwoofer for
Dynaudio Studio Monitors
- Power: 300 Watt
- Equipped with: 9.5" (24 cm) woofer
- Class-D amplifier
- Frequency range: 22 - 175 Hz (+/- 3 dB)
- 37 mm front panel
- Master/slave function
- Adjustable lowpass filter
- Connection: XLR
- SAT output with switchable highpass filter
- Auto On/Off function
- Dimensions (WxDxH): 266 x 320 x 276 mm
- Weight: 10.5 kg
Description
Dynaudio 9S Subwoofer
The Dynaudio 9S subwoofer is designed to complement the LYD Series and other Dynaudio Pro studio monitors, including the classic BM range.
Studio-quality components and construction make the 9S, with its double front baffle and 9.5" long-throw driver, the ideal subwoofer for full bass extension during mixing and mastering.
Dynaudio made it a priority to make the 9S compact, while still maintaining the utmost in sonic accuracy. In terms of size, it resembles the BM 9S II that it replaces... but when it comes to performance, it’s actually more comparable to the larger BM 14S II.
The 9S will expand any studio monitor setup, regardless of whether you’re working in stereo or surround. Its massive yet tight low-end takes the burden off your main monitors – letting them focus on delivering the frequency range above 50-150Hz, depending on how you set the crossover filter.
The 9S's long-throw driver ensures the necessary movement to reproduce super low-end frequencies, all the way down to 22Hz, in great detail. Running the show is a 300W Class D amplifier module, which significantly outperforms the previous BM 9S II.
Features
-
300-watt state-of-the-art Class D amplifier module
-
9in long-throw MSP woofer for accurate low-end frequency reproduction
-
22-175 Hz frequency range
-
Sealed, black-vinyl cabinet
-
37mm front baffle
-
Master/Slave feature for daisy-chaining multiple subwoofers
-
Adjustable lowpass filter to set the perfect crossover frequency
-
SAT output with defeatable highpass filter
Specification
System: | Single driver, active 9in subwoofer |
---|---|
Analog inputs: | 1 x XLR LFE, 2 x XLR Stereo |
Analog outputs: | 1 x XLR Slave Out, 2 x XLR SAT Out |
Frequency Response (±3dB): | 22Hz - 175Hz |
Max SPL: | 106dB |
Auto ON/OFF: | Yes |
Box principle: | Sealed |
High pass filter: | Flat / 60 / 80Hz |
Low pass filter: | 50Hz -150Hz |
Phase adjustment: | 0/180 degrees |
---|---|
Woofer: | 230mm MSP |
Amplifier: | 300W Class-D |
AC power input: | 100-120V/200-240V 50/60Hz |
Standby power consumption: | < 0.5W |
Maximum power consumption: | 350W |
Weight: | 10.5kg / 23.1lb |
Dimensions (W x H x D): | 266 x 276 x 320mm |
Shipping box dimensions (W x H x D): | 400 x 430 x 400mm |
