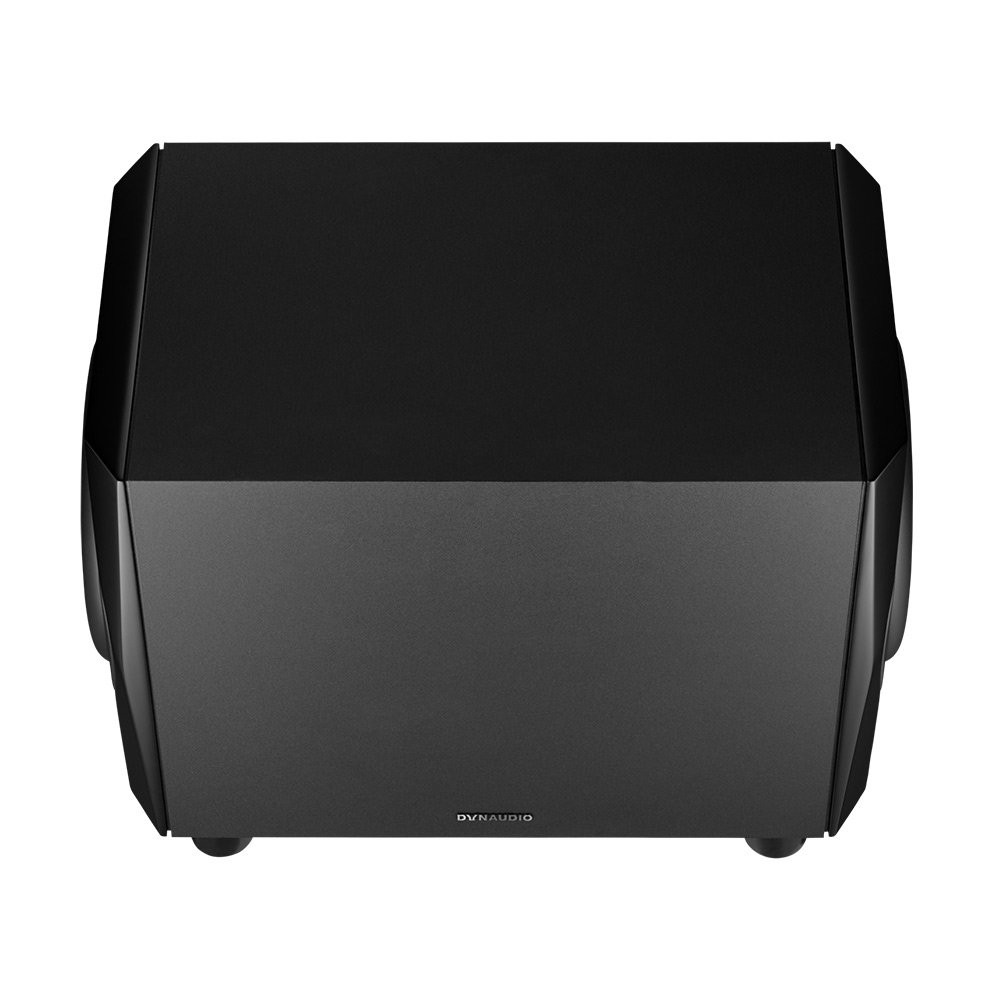

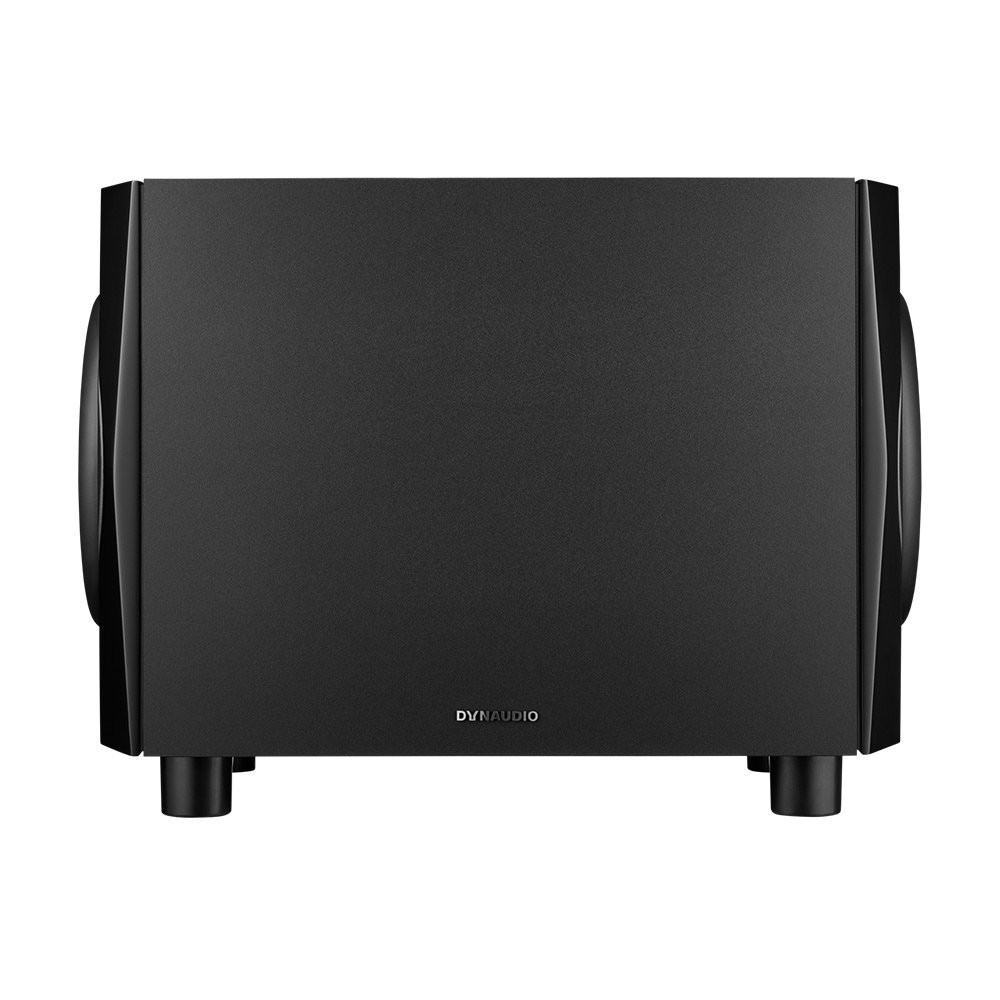

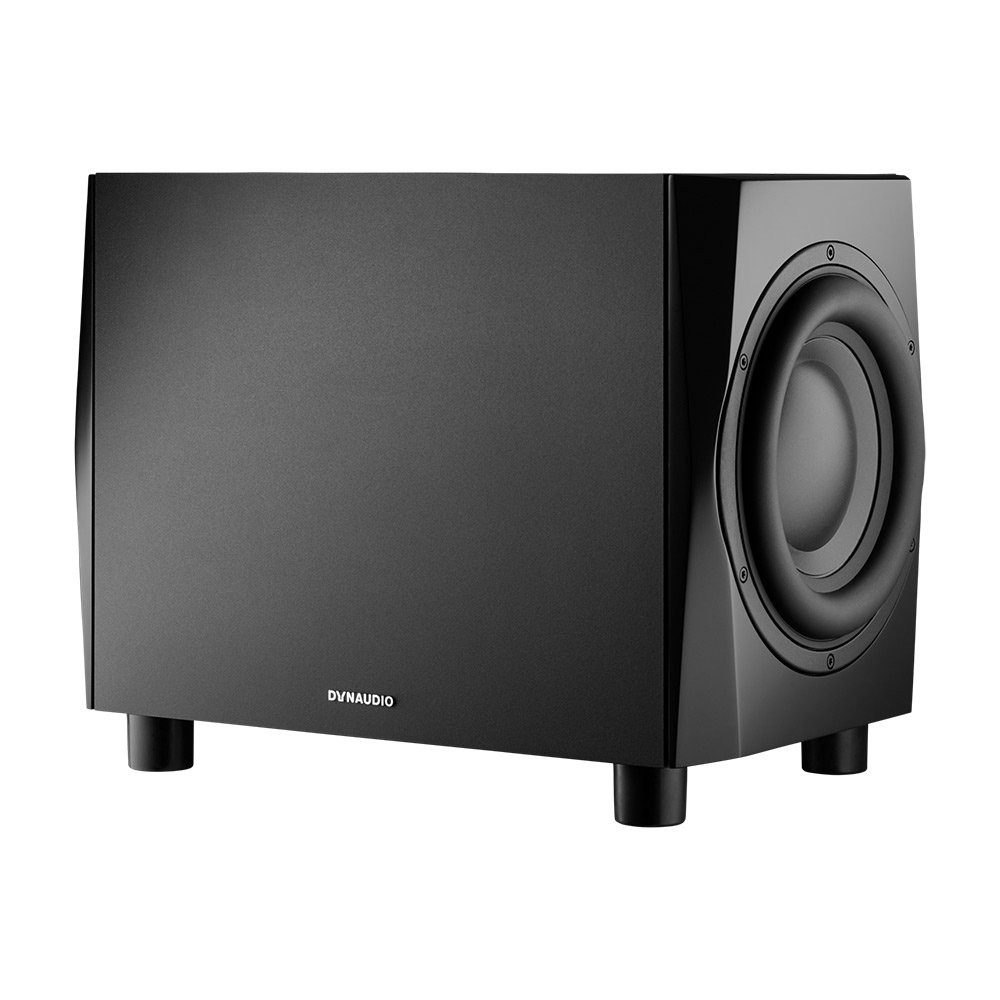

Dynaudio 18S Subwoofer
Twin 9.5" Active Subwoofer for
Dynaudio Studio Monitors
- Exceptionally low frequency range 16 Hz
- Power: 500 W
- Equipped with 2 x 9.5" (24 cm) long-throw woofers
- Class-D amplifier
- Frequency range: 16 - 230 Hz (+/- 3 dB)
- Maximum SPL (1m): 110 dB
- Crossover frequency: 50 - 150 Hz adjustable low pass filter
- Master/slave function
- Extended DSP with presets
- Connections: XLR, RCA
- SAT output with switchable high pass filter
- LCD
- Auto on/off function
- Dimensions (W x D x H): 470 x 268 x 333 mm
- Weight: 20.5 kg
Description
Dynaudio 18S Subwoofer
Adding 18S to your Dynaudio monitors will open up a new world of performance that lets you mix and master with painstaking accuracy… and deliver tracks that translate beautifully to any playback system.
Dynaudio's advanced DSP modelling technology acoustically matches the 18S to any Dynaudio Pro Studio Monitor from BM Classic, LYD and upwards, turning two-way systems into three-way set-ups. Its punch is delivered by two of Dynaudio's MSP+ Hybrid Drive units and a 500W amp, for absolute control and power.
Getting the 18S to match seamlessly with Dynaudio professional monitors is key for absolute accuracy when mixing and mastering. That has meant assessing the acoustic characteristics of each of Dynaudio's popular high-end studio speakers, and creating custom performance maps for each one. And it’s future-proof: when Dynaudio add new studio speakers to the line-up, their performance maps will be added for the 18S via firmware updates – so it can grow along with your needs and equipment.
With this information at its disposal, the 18S’s display and menu system lets you select the specific Dynaudio speakers you’re using in your monitoring setup. This means the roll-off can be tailored perfectly. And, if you combine a LYD 48 stereo or surround setup, you’ll essentially have a full-blown four-way monitoring system at your disposal.

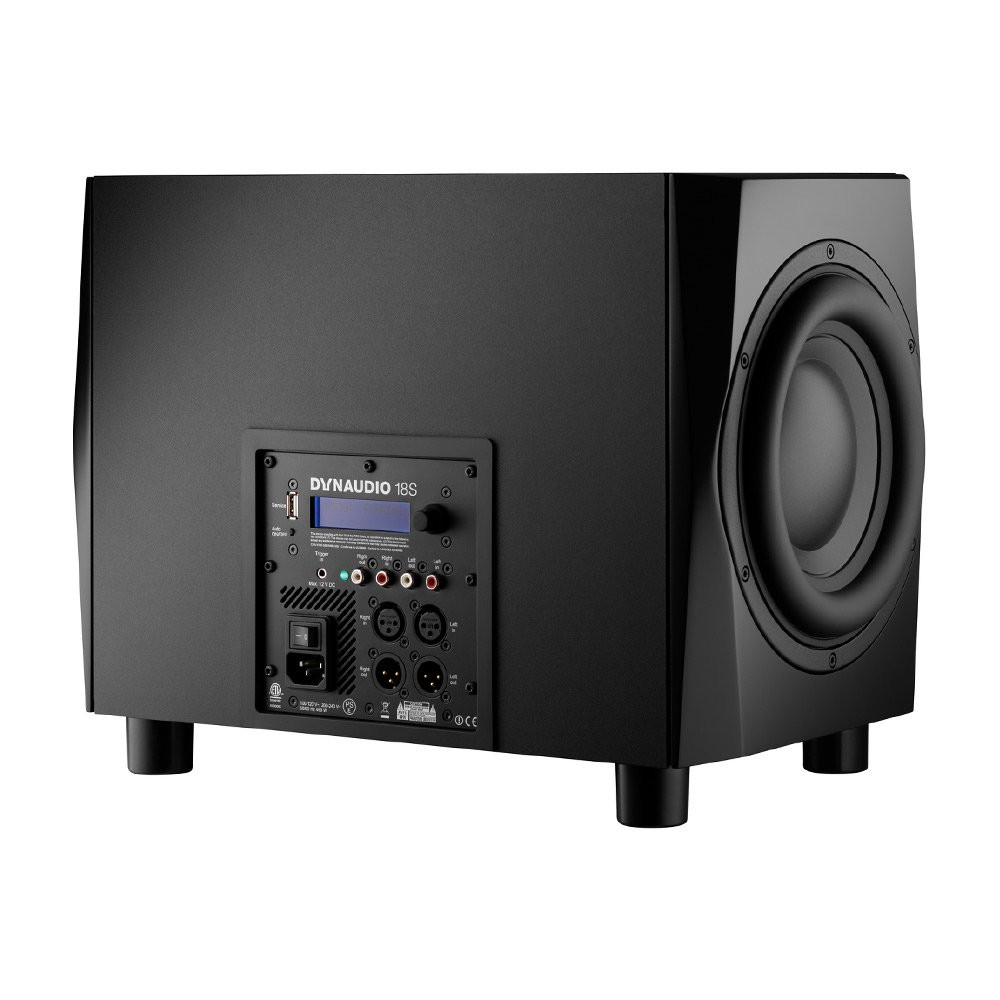

The 18S has a selection of RCA or XLR connections for flexibility with your studio setup, and comes with a number of handy features to help more advanced systems too. This includes the ability to set a time delay to ensure the sub and speakers are working perfectly in sync: all you need to do is enter the distance from the sub to the speakers, and the sub will adjusts itself automatically using both time and phase delays.
There’s also a full three-filter parametric EQ to easily defeat room modes that could affect the accuracy of your final recording.
MSP+ Hybrid Drive
The Dynaudio 18S features a brand-new driver design - made from aluminium, rather than Dynaudio's standard Magnesium Silicate Polymer material - with paper backing and an MSP dust-cap on the front. Why place the drivers at each end of the cabinet? Because a subwoofer requires a different balance between stiffness, lightness and damping than standard speaker drivers.
The new MSP+ Hybrid Drive units have been designed specifically with
subwoofers in mind, to provide the best performance possible.
Features
500-watt state-of-the-art Class D amplifier module
Dual 9in MSP+ Hybrid Drive long-throw woofers for accurate low-end frequency reproduction
Advanced DSP with presets for a wide range of Dynaudio Pro studio monitors
Preset speaker crossover filters
Time alignment for adjusting according to position
Three-band, built-in Parametric EQ
Dual opposing driver design principle
16-230Hz frequency range
Master/Slave feature for daisy-chaining multiple subwoofers
Get to know the Dynaudio 18S studio subwoofer
Supported Dynaudio Products
The 18S comes with presets designed to work with the following monitors;
• BM6 Classic
• BM15 Classic
• LYD 5
• LYD 7
• LYD 8
• LYD 48
• M5P
Specification
System: | Twin opposed 9in driver, closed box, active DSP subwoofer |
---|---|
Analog inputs: | 2 x balanced XLR, 2 x unbalanced RCA phono |
Analog outputs: | 2 x balanced XLR, 2 x unbalanced RCA phono |
Frequency Response (±3dB): | 16Hz – 230Hz |
Max SPL: | 110dB |
Auto ON/OFF: | Yes |
Box Principle: | Sealed |
Low Pass Filter: | Adjustable/preset |
Phase Adjustment: | 0/180 degrees |
Woofer: | 2 x 230mm MSP+ Hybrid Drive |
---|---|
Amplifier: | 500W Class-D |
AC power input: | 100-120V/220-240V 50/60Hz |
Standby power consumption: | < 0.5W |
Maximum power consumption: | 490W |
Weight: | 21.5kg / 45.2lb |
Dimensions (W x H x D): | 447 x 300 x 268mm |
I/O Connectors: | XLR balanced/RCA |
Dimensions with feet (W x H x D): | 447 x 333 x 268mm |
Shipping box dimensions (W x H x D): | 600 x 450 x 400mm |
