Ferrofish A32pro Dante

£3,559.00

Inc 20% VAT

In Stock

Order by 2pm for next day delivery (Mon-Fri)


Shipping Information

Synthax Audio UK Logo

Free Delivery On All Orders Over £50.00

All orders from our webshop over £50.00 can be shipped with free delivery:

  • For orders over £50.00, this will be via a next working day delivery courier service
  • For orders under £50.00 this will be via First Class Royal Mail postage* (unless a different courier option is selected at checkout)

*Please note: Royal Mail First Class is NOT guaranteed next day delivery. For guaranteed next working day (or Saturday) delivery, please select one of our other courier options (see delivery options below).

Delivery Notifications

You will receive an email to the address you have supplied to us when your order has been dispatched.

Delivery Methods and Timescales

The delivery time scale is specified on the product page to indicate when you should expect to receive your order. If all item(s) are in stock and your order was placed before 2pm, subject to passing necessary checks, your order will be shipped the same day. Orders received just after 2pm are also often dispatched the same day, but this cannot be guaranteed.



Delivery Options

Royal Mail – First Class Recorded Delivery*

  • Delivery Time – We cannot guarantee delivery time via Royal Mail. Whilst items shipped using Royal Mail First Class usually take 1 - 2 days, please note this is NOT a guaranteed next day delivery service. If this is a problem, please select one of our courier service options.

*Only available on orders with a value of less than £50

Courier – Next Working Day Service

  • Price = Free (Orders of £50+) / £9.95 (Orders of less than £50)
  • Delivery Time – Next working day from date of dispatch (see above)

Courier – Pre-noon, Next Working Day Service

  • Price = £9.95 (Orders of £50+) / £19.95 (Orders of less than £50)
  • Delivery Time – Next working day from date of dispatch (see above).

Courier – Saturday Delivery Service

  • Price = £19.95
  • Delivery Time – The first Saturday following date of dispatch (see above). Note that for guaranteed Saturday delivery, orders must be placed before 2pm on the Friday. Orders placed after 2pm may still arrive on Saturday, but this cannot be guaranteed.

Due to the nature of the products we sell, we operate a strict fraud screening process and therefore we are only able to deliver to the billing address.

In the event of a delay, we will contact you either by email or telephone as soon as reasonably possible.

While 99% of UK locations are valid for next day/Saturday delivery, there are a few remote locations which are not covered.

Synthax Audio (UK) cannot deliver outside of the UK and Republic of Ireland*.

*RME products cannot be shipped to the Republic of Ireland.



Missed Deliveries

If you are not in to receive the order at the time delivery is attempted, a card will normally be left to notify you of the missed delivery attempt. This will allow you to either telephone the courier company to arrange a re-delivery at a more convenient time or collect it from your local courier depot or Royal Mail sorting office. For security reasons, all items require a signature.

If for any reason the item is returned to us (e.g. incorrect address specified, multiple failed delivery attempts), then we will inform you immediately by email as soon as we receive the item. From this point forth, you will be given a choice whether you wish us to re-dispatch the item or cancel the order. Please refer to our Cancellations & 14 Day Returns Procedure for more details. For items where delivery failed through no fault of Synthax Audio (UK), you will be liable for the original shipping charge, any courier surcharges and any subsequent delivery charges.



Late Deliveries or Dispatch

We are able to ship almost every order in the specified timescale. However, in very rare circumstances there can be an unforeseen delay. If this does happen, we will make it our priority to get your order dispatched from our warehouse as soon as reasonably possible.

There are also rare cases, beyond our control, when the delivery company itself has a problem which causes a delay in transit. In these situations we will do our utmost to liaise with the relevant delivery company to ensure delivery is completed as swiftly as possible.

Consequential Loss for Late Deliveries

If a delivery is late, then we will provide a refund of any delivery fee that we charged you. We do not provide financial compensation to cover consequential losses, e.g. for time taken off work to receive a delivery, or if the item is intended as a gift and you have to purchase the same item from a more expensive retailer.



Terms of Service

Our full terms of sale can be viewed here.

Customer Rating: (0)

32 In / 32 Out AD/DA
Dante, MADI & ADAT Converter

Analogue I/O

  • 32 x Balanced analogue inputs
  • 32 x Balanced analogue outputs
  • 2 x Balanced Main TRS Outputs
  • 2 x Phones Outputs

Digital I/O

  • 1 x MADI optical I/O via SFP
  • 1 x MADI Coaxial I/O via SFP
  • 4 x ADAT TOSLINK inputs
  • 4 x ADAT TOSLINK outputs
  • 2 x Dante RJ-45 Ethernet connector (64 Dante Inputs / 64 Dante Outputs)
  • 1 x Wordclock (BNC)
  • 1 x MIDI I/O (3.5mm mini-jack)

Additional Features

  • 4 x Touch-Screen TFT Screens for control over all levels & settings
  • All 64 channels visible simultaneously (peak & level display)
  • Silent, fan-less design
  • Extensive routing/mixing possibilities
  • Redundant Power Supplies*
  • USB connection for firmware updates and remote control
  • Remote Control via MIDI or USB (via RemoteFish software)
  • GPIO
  • 2 x QSFP Slots for future expansion

*Please note the Ferrofish A32pro Dante ships with a single power supply. Additional PSUs can be purchased here.



Description

Overview - The Future of Audio Conversion

The Ferrofish A32pro and A32pro Dante are the latest in a long line of professional AD/DA converters from German pro audio manufacturer Ferrofish.Continuing the company's successful tradition of designing high-quality, cost-effective AD/DA converters for studio, live audio and broadcast production, the A32pro and A32pro Dante are the natural successors to the popular Ferrofish A32 and A32 Dante models, packing more functionality than ever before into a single 1U frame.

Ferrofish A32pro & A32pro Dante - Overview Video

See more videos at Synthax TV



In addition to the completely revised front-panel design, the four TFT screens and highly-intuitive operation of previous models are now supplemented by a touch-screen interface and large encoder knob. Changes to device settings can be made directly from the front of the unit simply by tapping the functions - it couldn't be easier!

Packed with analogue and digital audio features, the Ferrofish A32 Pro is an incredibly flexible and space-saving tool, offering up to 32 analogue inputs and 32 analogue outputs in only 1U of rack-space! Two independent headphone outputs (and an additional TRS stereo output) offer further flexibility for monitoring and routing in recording studio, live audio and broadcast applications.

Redundant MADI and power supplies (optional) provide important fail-safe options, especially useful in live operations. Powerful on-board routing also allows for format conversion between the different digital interfaces, and the new DSP-STICK slots provide an upgrade-path for planned future DSP-based expansions.

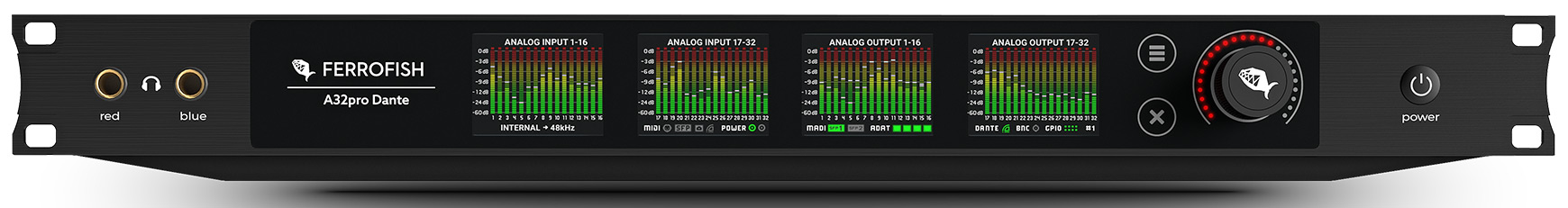

Ferrofish A32pro Dante front panel close-up

Ferrofish A32pro Dante - Front Panel



32 x 32 A-D/D-A Conversion with ESS

The Ferrofish A32 Pro series feature the latest generation of converter chips from ESS, for high quality sound recording and audio playback. In addition a stereo TRS Main Out delivers a simple and fast way to connect stereo monitors or recorders.

Dual Headphone Outputs

With the Ferrofish A32 Pro, Ferrofish say they've 'broken the Highlander rule of "there can be only one"', doubling the number of headphone outputs. Both headphone outputs are driven by TPA6120A from Texas Instruments, with adjustable gain stages for headphones and IEMs of various impedances. The Highlander would be envious - if he owns headphones.

Dante Network I/O (redundant)

Two RJ-45 ports connect to any Dante audio network. Simply connect a LAN Ethernet cable (CAT5/CAT6) to the primary port. The secondary port takes automatically over in case of a network error (Dante Port Redundancy).

Highest Feature Density

  • 32 x 32 analogue I/O channels, fully balanced on DSub25 (Tascam pinout)
  • 32 x 32 ADAT I/O channels on TOSLINK jacks with 96kHz support
  • 64 x 64 MADI I/O channels on LC SFP module, user exchangeable, coax SFP module optional available
  • 64 x 64 DANTE I/O channels on dual Ethernet ports with redundant functionality*
  • Wordclock I/O on BNC connectors with proprietary jitter reduction circuit
  • MIDI I/O on 3.5mm TRS connectors (MIDI 2.0 pinout)
  • GPIO port for remote preset switching and alert monitoring on DSub15
  • Dual stereo headphone 1/4" TRS outputs with high-end amp modules and dedicated DAC
  • Latest generation ESS A/D and D/A converter chips with 192kHz and 24Bit data path
  • Highly intuitive four screens multitouch user interface
  • Illuminated touch sensitive high-res encoder
  • Flexible routing matrix
  • MIDI-over-MADI
  • Dedicated dual headphone monitoring matrix
  • Dual power input redundant system with monitoring and alert system
  • SHARC DSP for internal signal processing
  • Dual expansion slots for optional DSP sticks
  • Simple MIDI CC mode for remote control by simple MIDI commands
  • Remote controllable via RemoteFish app for Mac & Windows (USB, MIDI, MIDI over MADI and Dante*), or via GPIO

*A32pro Dante only

Intuitive TFT Touchscreen User Interface

Combining the highly intuitive user interface of the A32 Pro with a large, multi-touch overlay covering all four high-res TFT screens, control of the A32 Pro couldn't be easier.

Intuitive TFT Touchscreen User Interface

Combining the highly intuitive user interface of the A32 Pro with a large, multi-touch overlay covering all four high-res TFT screens, control of the A32 Pro couldn't be easier.

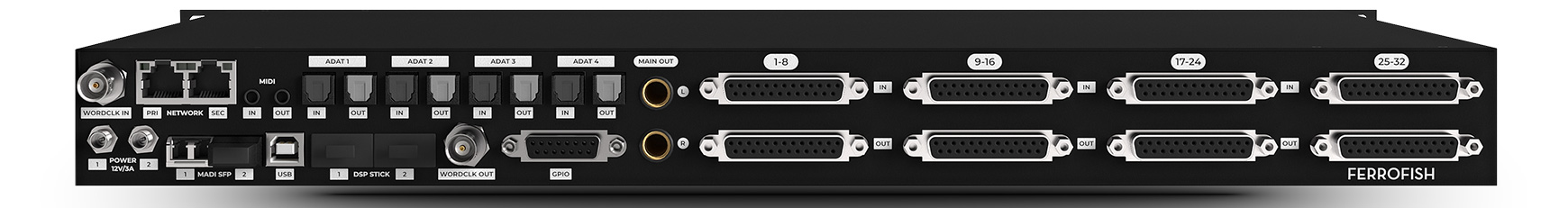

Ferrofish A32pro Dante back panel close-up

Ferrofish A32pro Dante - Back Panel



GPIO Port - Remote Control & Monitoring

The newly added GPIO port allows remote control of important parameters of the A32 Pro via simple electronic signals, whilst simultaneously providing monitoring of device statuses at any time.

Modular Expansion Ports

For the highest possible degree of flexibility, the MADI I/Os have been designed as a dual SFP slot bay for a maximum of 256 I/O channels. The SFP slots can accommodate both optical and coaxial SFP modules.

A dual QSFP slot bay is also available for future expansion modules.

Remote Control via USB, MIDI, MADI and GPIO

The Ferrofish A32 Pro provides a variety of remote control options, ensuring maximum flexibility for a wide range of professional audio applications.

Software Control with RemoteFish (Mac/PC)

Full remote control of the Ferrofish A32 Pro Dante is available via USB, MIDI, MIDI over MADI, or Audinate's Dante protocol via the RemoteFish software application, available as a free download for both Mac and PC.

RemoteFish provides an extended user interface for control over all input and output gains, channel routing, settings adjustments, and the saving and loading of presets.

RemoteFish Software - Overview Video

See more videos at Synthax TV

Highest Feature Density

• Highly flexible dual monitoring matrix including balanced operation

• Sophisticated routing matrix

• Additional balanced TRS Main Outputs for fast and easy connection

• Redundant power and MADI switchting modes including monitoring

• Permanent monitoring and alert modes, even over GP outputs

• Remote controllable by USB, MIDI or Ethernet by Remotefish App.

• Remote operation by MIDI CC and Note On/Off commands.

• Quiet fanless design in 1RU enclosure



Ferrofish UK replacement power supply

Optional: Additional UK Power Supply

The Ferrofish A32pro Dante ships with a single UK power supply.

If you'd like to add a second power supply (for redundancy), additional PSU's are available here.



Official Ferrofish MADI Coaxial SFP

Optional: Ferrofish MADI Coax SFP Module

The Ferrofish A32pro Dante can be upgraded with an official Ferrofish MADI Coax SFP, providing MADI I/O on BNC connectors.

If you'd like to MADI coaxial I/O to your Ferrofish A32pro Dante, the SFP module is available here.

Specifications

Dante I/O

• 2 x RJ-45 Ethernet connector (CAT5/6 cables)


• 64 x 64 channel Brooklyn series board built-in.



MADI I/O (AES10)


• Dual SFP Slots for MADI: Multimode or Singlemode SFP module as default configuration, optional second SFP module optional

• 64 channels @32kHz, 44.1kHz, 48kHz

• 32 channels @64kHz, 88.2kHz, 96kHz

• 32 channels @128kHz, 176.4kHz, 192kHz*

* both MADI ports are used to achieve full 32+32 channel transmission


• Support of MIDI over MADI.
• Latency: 3 samples
• Redundancy: Automatic switching between optical <-> coax MADI when signal lost.



Analogue Inputs (AD)

• Latest generation of Analogue / Digital Converters from ESS Tech.


4 x DSub25 (Tascam format)

• Digital gain: +20dBu … -8 dBu, 1dB steps

OpAmps


• OPA1604 / OPA1664

Level indicator


• TFT screen, 28 levels



Analogue Outputs (DA)

• Latest generation of Digital / Analogue Converters from ESS Tech.


4 x DSub25 (Tascam format)


• Digital gain: +20dBu … -8dBu, 1dB steps

OpAmps


• OPA1604 / OPA1664

Level indicator


• TFT screen, 28 levels



Headphone Outputs

• 2 x ¼” (6.3mm) TRS jack, stereo with HQ amp section and dedicated DAC path

• Provides an independent stereo channel

• Selectable mono/stereo or M/S decoded source of all inputs and outputs

• Digitally controlled volume level



ADAT I/O

• 4+4 optical interfaces (8 channels each with 48 kHz)

• 32 channels @32kHz, 44.1kHz, 48kHz

• 16 channels @64kHz, 88.2kHz, 96kHz

• n/a @128kHz, 176.4kHz, 192kHz

• Latency: 3 samples



GPIO Port


• 4x General Purpose Inputs for switching Presets #1-4.

• 4x General Purpose Outputs for monitoring Lock/Power/MADI/Temp alerts.



MIDI I/O

• 2 x 1/8″ (3.5mm) TRS connector for remote control

• Conversion MIDI <> MIDI-over-MADI possible

• MIDI 2.0 pinout



Wordclock I/O

• BNC: 1 x input, 1 x output

• 75 Ohm Termination switchable for input

Power Supply

12V, 3A

• 2 x input jacks with screw lock for redundant power.

• Voltage supervision, warning message on screen when PSU input fails

• Internal resettable polyfuse

• 1 x Power Supply included, second PSU optional



USB Port

• 1 x USB 2.0 for Remote/Updates



Additional Features

• 192 kHz operation (S/MUX up to 192kHz).

• GPIO Port for remote preset switching and alert monitoring

• DSP Plugin-ready

• A/D and D/A converters with switchable filters

• Dual Headphone output for easy monitoring

• MIDI over MADI Preset Management

• Extensive routing/mixing possibilities.

• Redundancy (MADI I/O, Dante I/O, Power Supplies).



Internal Clock

• Temperature compensated oscillator, with high accuracy.

• Initial accuracy: +/-1.5ppm

• Over temperature range: +/-2.5ppm

• Aging: +/-1ppm



PLL

• Digitally controlled PLL / Jitter reduction system

• Output jitter: 50ps … 100ps typ.



LCD Displays

• 4 x TFT Multitouch Screen User Interface

• Two-layer illuminated touch-sensitive high-resolution encoder

• Highly intuitive control of the unit



Audio Core Processor

• SHARC ADSP-2148x series DSP

• Routing and processing of all 384 audio channels.

• Source to headphone output.

• Calculation of upcoming audio processing algorithms.



Dimensions

• 1RU, fanless design

• Depth: 31cm (12.6”) (including connectors)



Weight

• 4.1kg (9 lbs)



Ambient temperature

• 41°F up to 113°F (+5°C up to +45°C)
