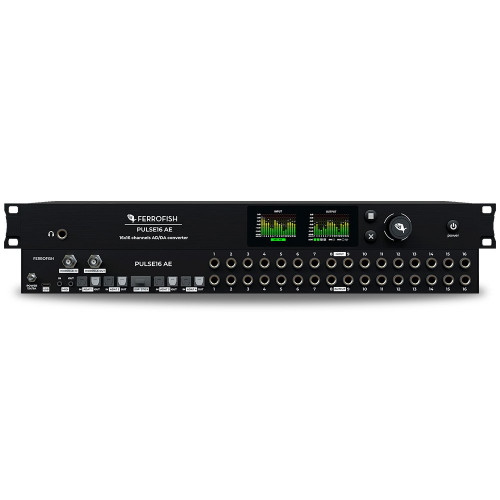

Ferrofish Pulse 16 AE

£959.00

Inc 20% VAT

In Stock


Shipping Information

Shipping Information



Free Delivery On All Orders Over £149.99

All orders from our webshop over £149.99 are shipped with free delivery (via next working day delivery).

All orders below £149.99 are charged at a standard rate of £15.00 inc VAT (also via next working day).



Delivery Notifications

You will receive an email to the address you have supplied to us when your order has been dispatched.

Delivery Methods and Timescales

The delivery time scale is specified on the product page to indicate when you should expect to receive your order. If all item(s) are in stock and your order was placed before 2pm, subject to passing necessary checks, your order will be shipped the same day. Orders received just after 2pm are also often dispatched the same day, but this cannot be guaranteed.



Delivery Options

Courier – Next Working Day Service

  • Price = Free (Orders over £149.99) / £15.00 (Orders of less than £149.99)
  • Delivery Time – Next working day from date of dispatch (see above)

Courier – Pre-noon, Next Working Day Service

  • Price = £20.00 (all orders)
  • Delivery Time – Next working day from date of dispatch (see above).

Courier – Saturday Delivery Service

  • Price = £25.00 (all orders)
  • Delivery Time – The first Saturday following date of dispatch (see above). Note that for guaranteed Saturday delivery, orders must be placed before 2pm on the Friday. Orders placed after 2pm may still arrive on Saturday, but this cannot be guaranteed.



Additional Information

Due to the nature of the products we sell, we operate a strict fraud screening process.

In the event of a delay, we will contact you either by email or telephone as soon as reasonably possible.

While 99% of UK locations are valid for next day/Saturday delivery, there are a few remote locations which are not covered.

Synthax Audio (UK) cannot deliver outside of the UK and Republic of Ireland*.

*RME products cannot be shipped to the Republic of Ireland.



Missed Deliveries

If you are not in to receive the order at the time delivery is attempted, a card will normally be left to notify you of the missed delivery attempt. This will allow you to either telephone the courier company to arrange a re-delivery at a more convenient time or collect it from your local courier depot or Royal Mail sorting office. For security reasons, all items require a signature.

If for any reason the item is returned to us (e.g. incorrect address specified, multiple failed delivery attempts), then we will inform you immediately by email as soon as we receive the item. From this point forth, you will be given a choice whether you wish us to re-dispatch the item or cancel the order. Please refer to our Cancellations & 14 Day Returns Procedure for more details. For items where delivery failed through no fault of Synthax Audio (UK), you will be liable for the original shipping charge, any courier surcharges and any subsequent delivery charges.



Late Deliveries or Dispatch

We are able to ship almost every order in the specified timescale. However, in very rare circumstances there can be an unforeseen delay. If this does happen, we will make it our priority to get your order dispatched from our warehouse as soon as reasonably possible.

There are also rare cases, beyond our control, when the delivery company itself has a problem which causes a delay in transit. In these situations we will do our utmost to liaise with the relevant delivery company to ensure delivery is completed as swiftly as possible.

Consequential Loss for Late Deliveries

If a delivery is late, then we will provide a refund of any delivery fee that we charged you. We do not provide financial compensation to cover consequential losses, e.g. for time taken off work to receive a delivery, or if the item is intended as a gift and you have to purchase the same item from a more expensive retailer.



Terms of Service

Our full terms of sale can be viewed here.

Customer Rating: (0)

16-Channel AD/DA Converter
Analogue <> ADAT

  •  High quality 16 x 16 channel AD/DA converter
  •  16 balanced TRS inputs (¼-inch / 6.3)
  •  16 balanced TRS outputs (¼-inch / 6.3 mm)
  •  32 x 32 ADAT channels @48kHz
  •  32bit, 192kHz ESS converters
  •  Wordclock sync Via internal, ADAT or BNC
  •  Headphone output
  •  Single channel routing matrix
  •  Level meter display
  •  Easy User interface
  •  DSP-Stick port for future upgrades
  •  USB and MIDI ports for remote control
  •  MIDI CC messages to control the unit

Description


INCREASE YOUR PULSE RATE

The Ferrofish PULSE16 AE is a versatile and compact AD/DA converter designed for seamless integration into studio or live setups.

With 16 high-quality balanced analogue inputs and outputs, it ensures precise and clean signal conversion.

The PULSE16 AE offers full visual control via its vibrant front-panel displays, simplifying real-time monitoring and configuration.

Built to accommodate professional workflows, its robust clocking options and compatibility with standard studio connections make it an essential tool for engineers seeking reliable performance in a 19″ 1HU rack form factor.



Who's it for?

The Ferrofish Pulse 16 AE connects via ADAT, making it the ideal expansion for any audio interface or sound card with ADAT I/O.

Keep everything permanently connected in your studio so you’re ready to record as soon as inspiration strikes!

Connect to your audio interface and record your keyboards, synthesizers, drum machines and mixing consoles; or connect additional pairs of studio monitors, and route out (and back in) to hardware FX boxes like EQs, Reverbs and Compressors.

All captured via Ferrofish’s transparent AD and DA conversion, relied on by professional studios and live engineers the world over.




Premium Conversion Architecture

Experience pristine audio quality through carefully selected ESS converters and temperature-compensated clock design. The Pulse16 AE maintains Ferrofish’s reputation for exceptional sound quality, delivering crystal-clear conversion up to 192kHz with professional +20dBu headroom.


High-resolution Display

The high-resolution front panel display provides immediate visual feedback of all input and output signals, offering professional-grade metering and system status at a glance. Multi-colored level meters ensure precise level monitoring in any environment.

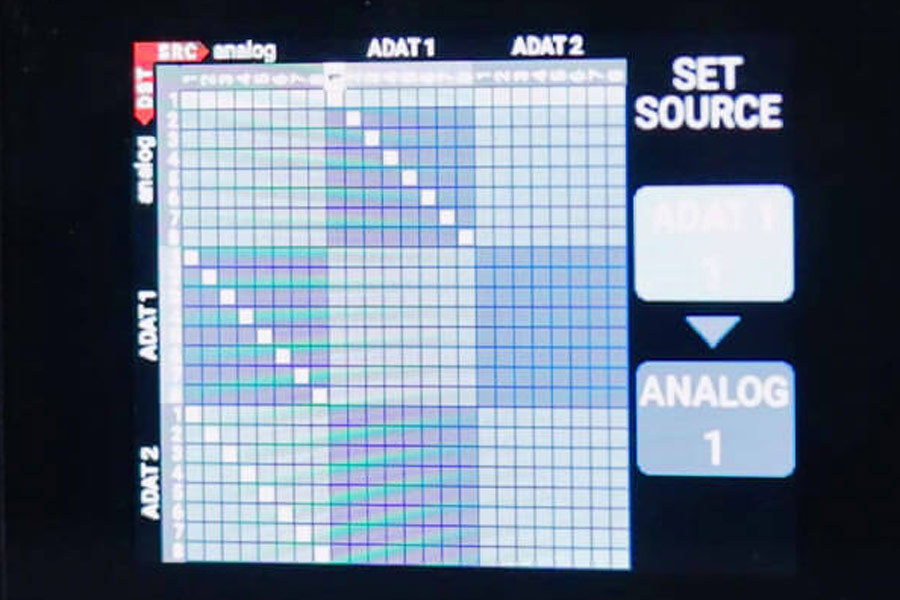

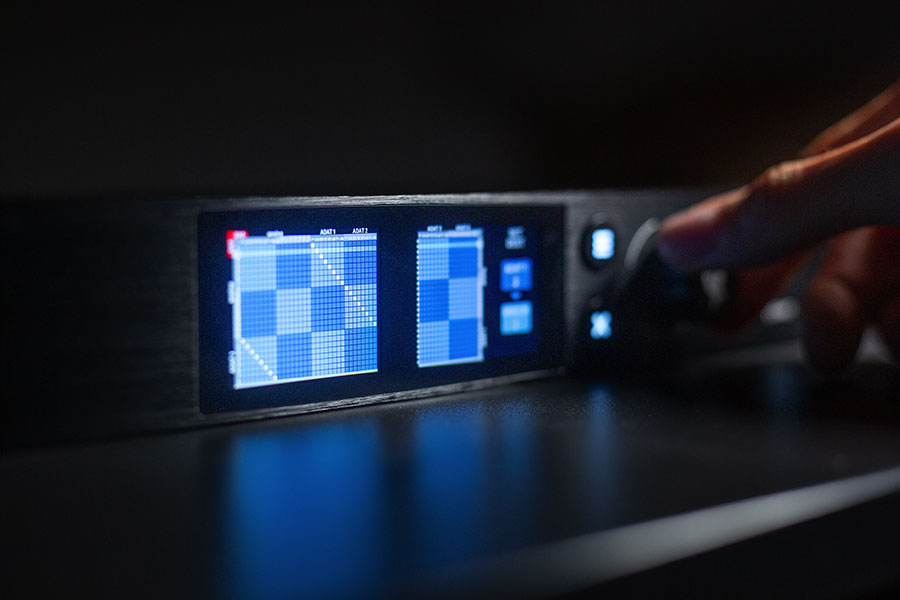

Internal Routing Matrix

The PULSE16 provides an internal matrix for routing all Ins to Outs. Routes to single channels, stereo pairs, or groups of four/eight channels. Front headphone output monitors every mono or stereo I/O.


Advanced Headphone Monitoring

The dedicated headphone output, powered by a separate ESS DAC, delivers exceptional monitoring capabilities with precise 1dB-step volume control. Four-stage amplification ensures compatibility with any headphone impedance, making it perfect for critical listening and tracking sessions.

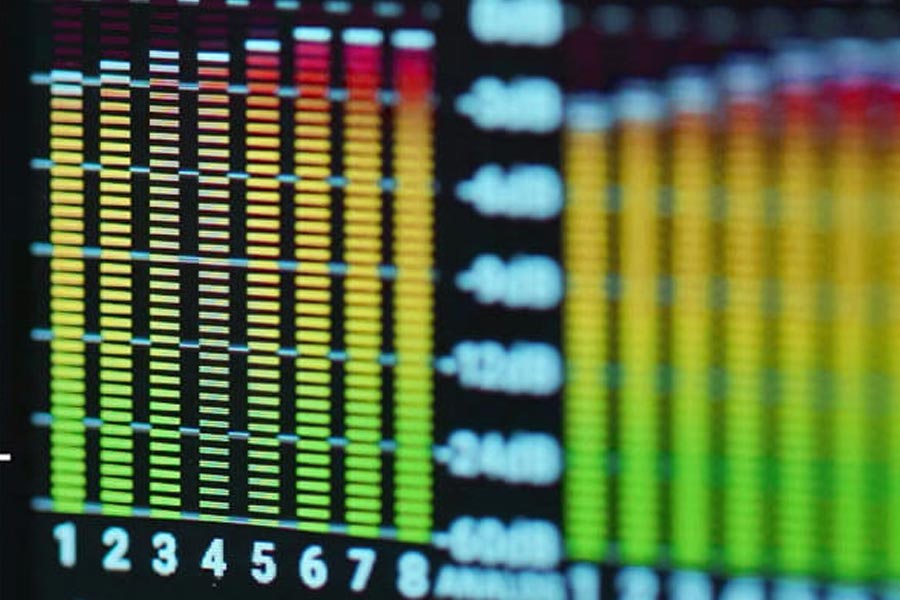

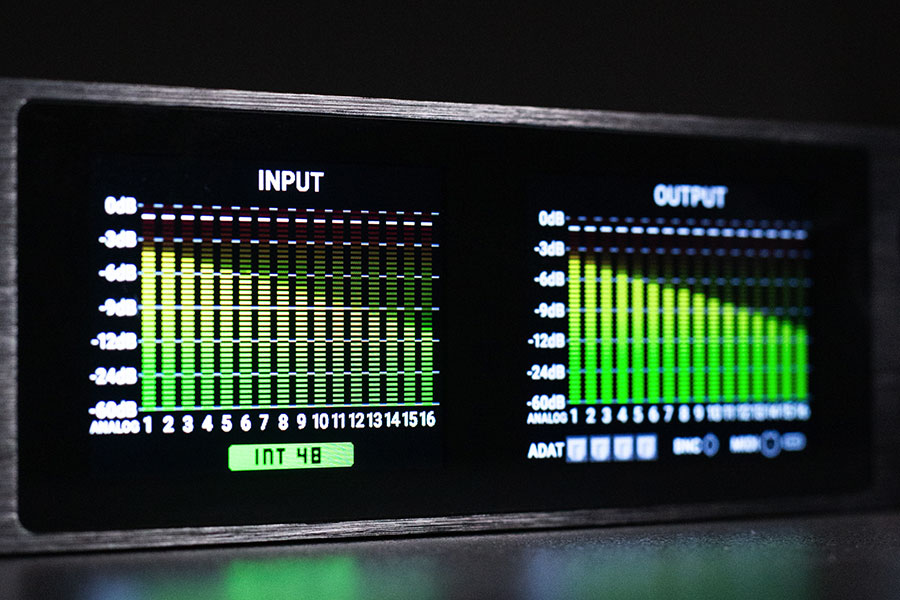

Visual Monitoring & Metering

The display provides immediate visual feedback of all input and output signals with professional-grade metering and multi-colored level meters for precise monitoring.


Full Software Remote Control

Take command of your audio routing and settings through RemoteFish software for Mac and PC. USB-C provides instant access, and MIDI I/O integrates with larger systems and firmware updates.

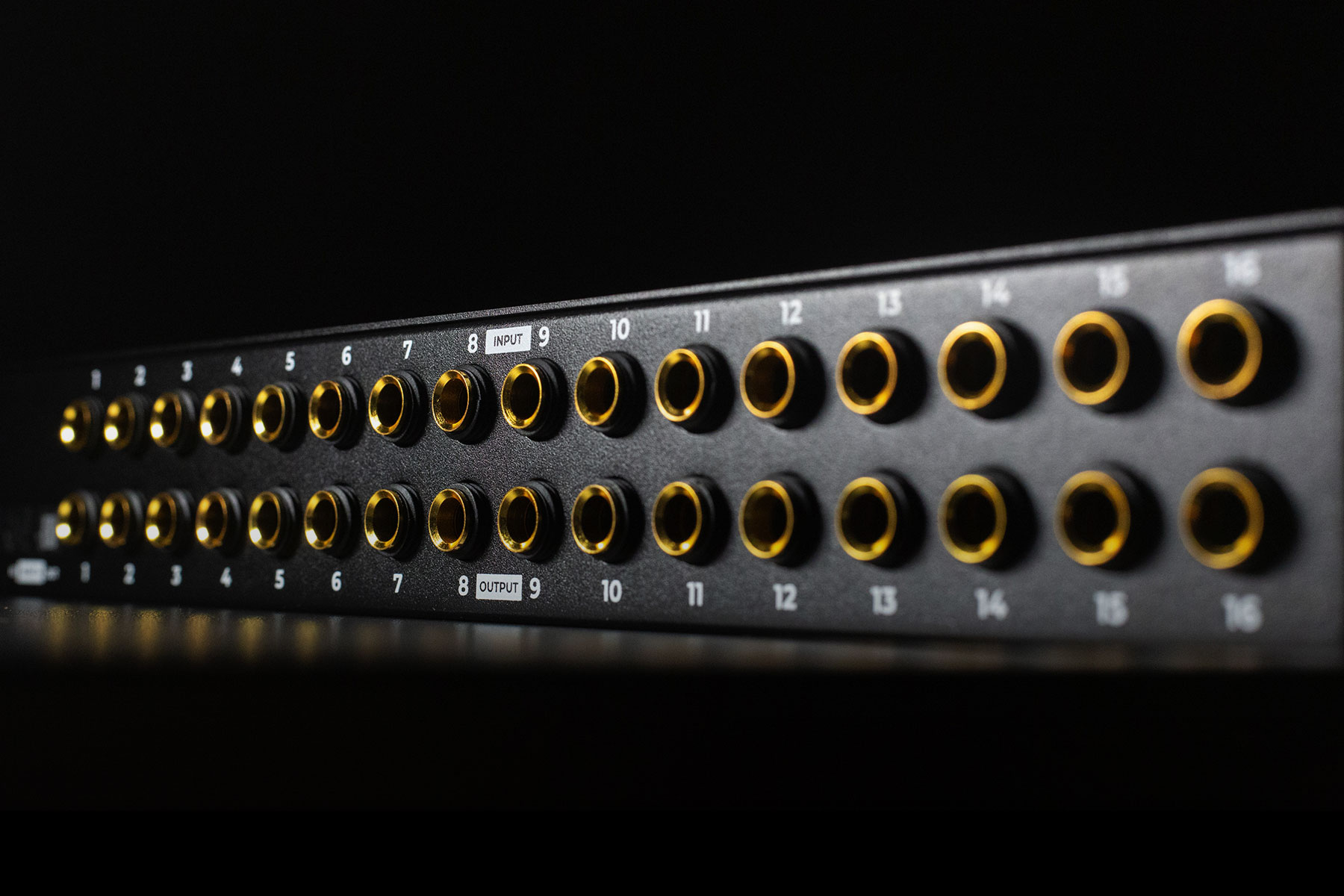

Analogue I/O

The Ferrofish Pulse 16 AE offers 16 x balanced line-level inputs and 16 x balanced line-level outputs.

The analogue inputs are individually adjustable in 1 dB steps from +20dBu to -8dBu (which corresponds approximately to the level of -10dBV for use with consumer devices). Multiple input gains can be adjusted at the same time (mono, stereo, 4ch etc).

Analogue outputs are also indivudally adjustable in 1 dB steps from +20dBu to -8dBu. Note that the level metering will not change, as output levels are shown pre-attenuation.

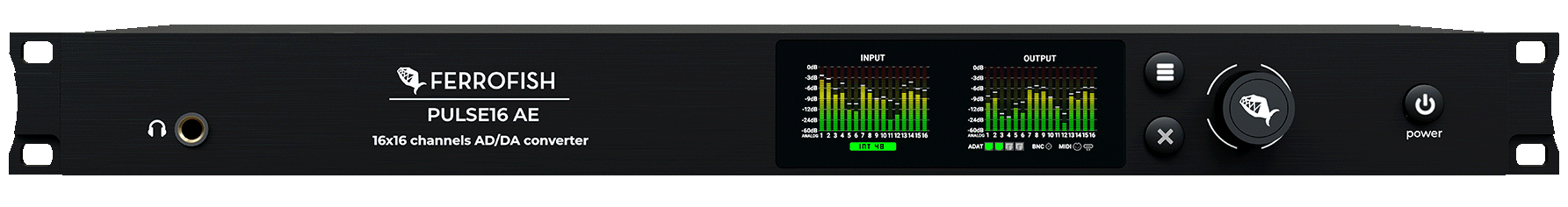

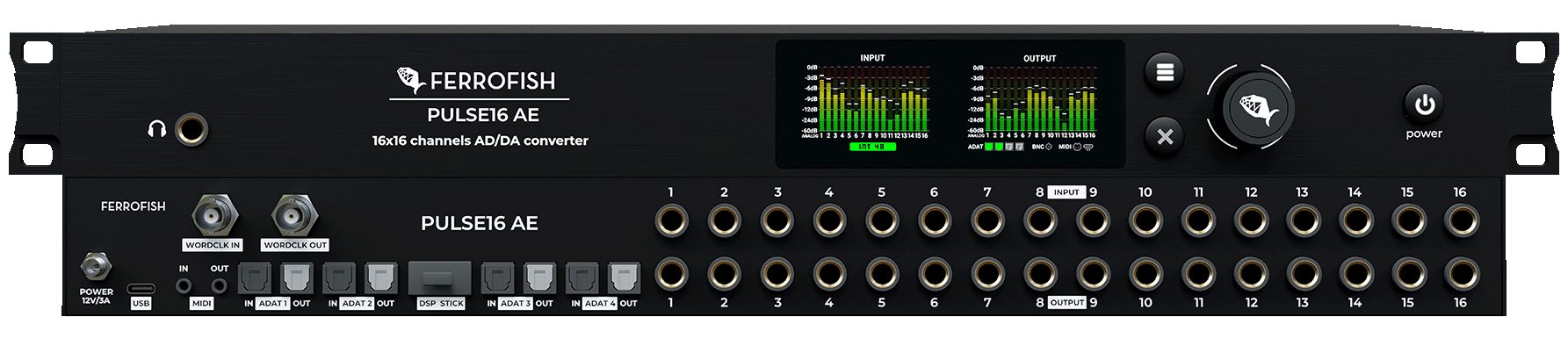

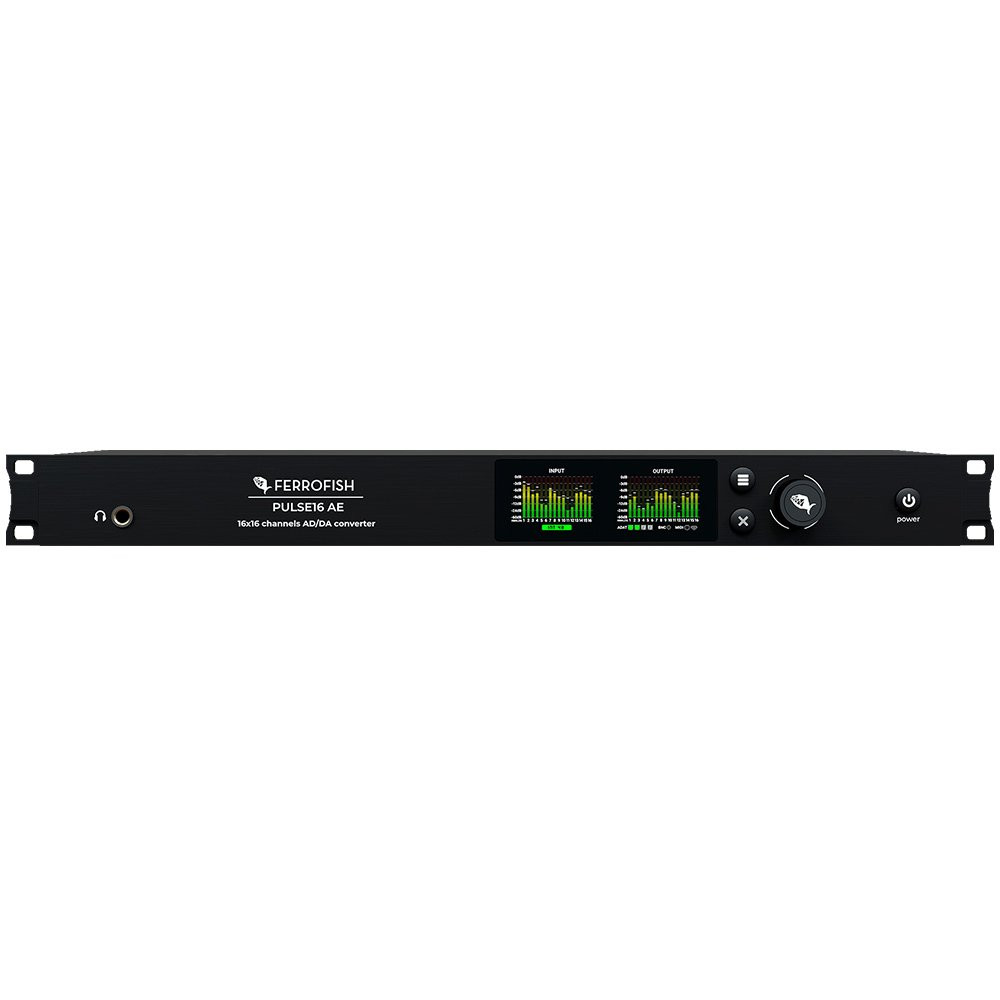

Front Panel

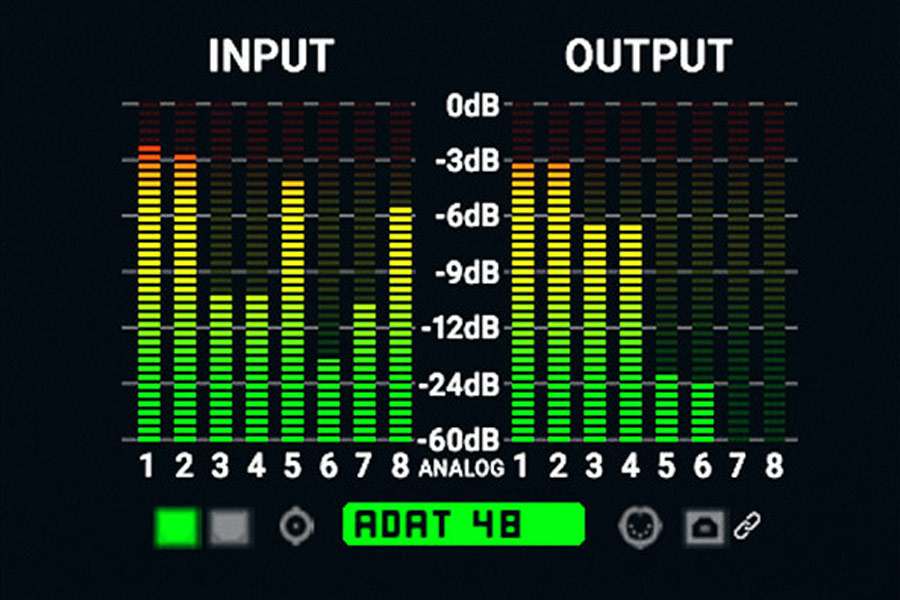

Level Metering

The front panel TFT display shows the levels of all 16 analogue inputs and outputs as well as the status of the device. Pressing the MENU button takes you to the main menu from where the device can be set up.

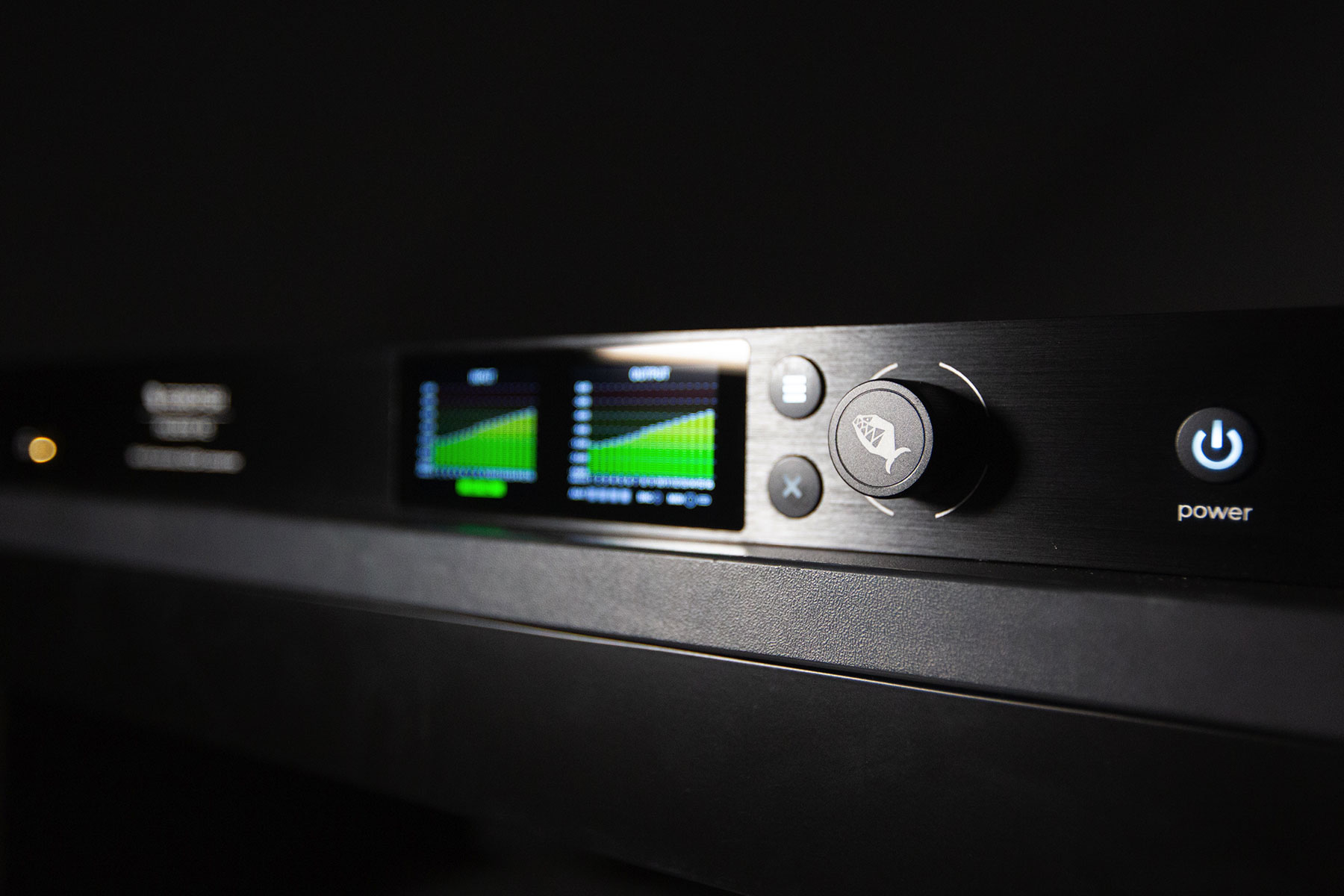

Controls

Control of the device is offered via the front panel, which consists of a MENU button (three horizontal bars), an ESC button (X symbol), the rotary knob for headphone control and menu navigation, and the POWER button.

To prevent switching off the device accidentally, the POWER button must be pressed for approximately 3 seconds.

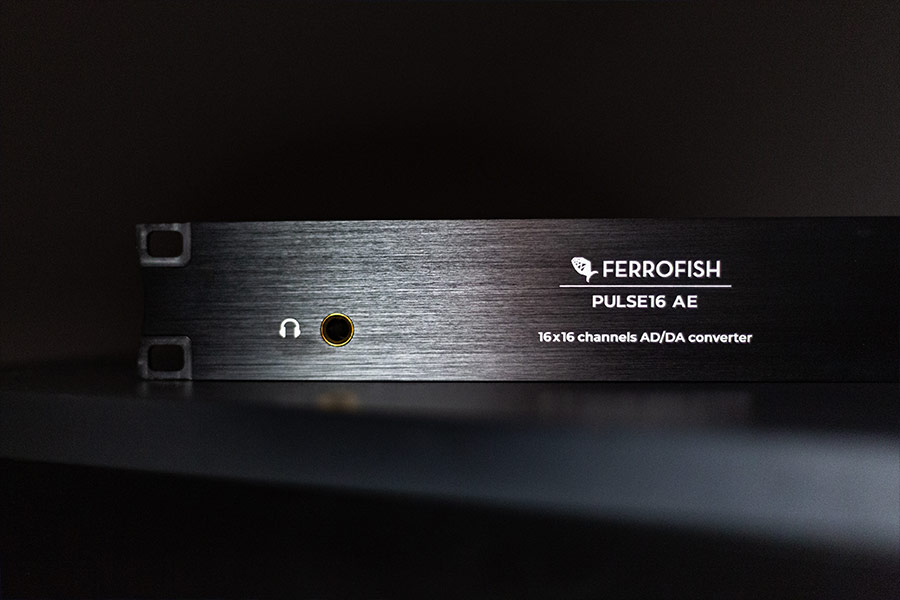

Headphone output

The Pulse 16 AE’s headphone output is powered by a high-quality DAC and amplifier chip, controllable via the large encoder on the front panel. Any of the devices incoming and outgoing signals can be monitored, including both mono and stereo pairs.

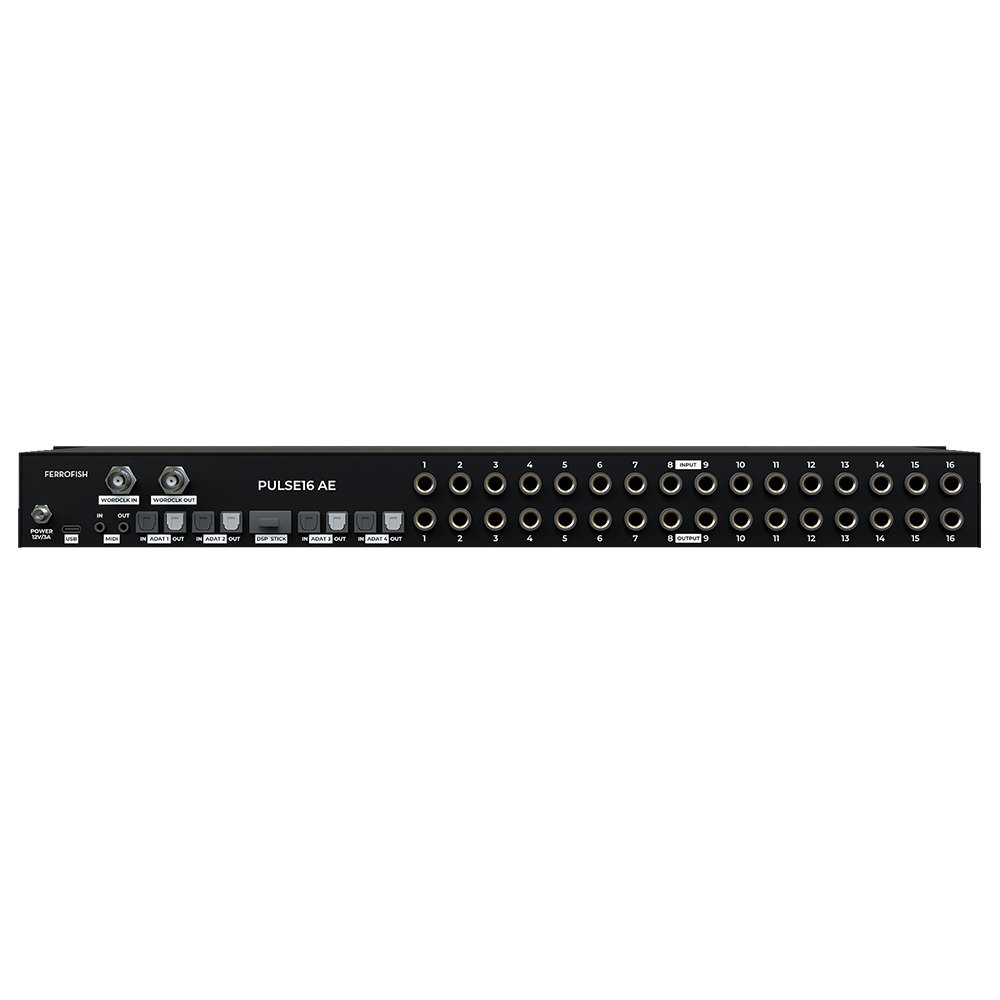

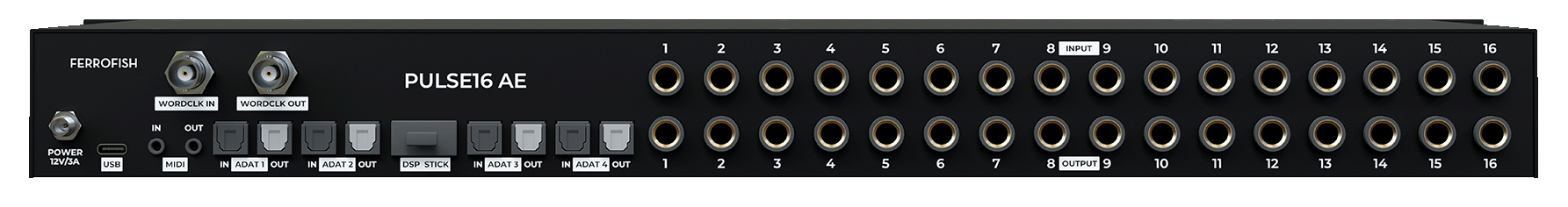

Rear Panel

POWER Input

Power is provided via the included ‘line-lump’ power supply. To secure the connection, be sure to lock it in place to prevent against accidentally disconnecting the device when in use.



USB-C PORT

The USB port serves as USB MIDI connection. After you connect the device to your PC/MAC, you can control it remotely using the RemoteFish software or update the firmware with the Update loo software. You can find both in the download area of the Ferrofish website. Please note that audio transmission via USB is not provided.



DSP STICK

This DSP STICK slot is intended for future updates. A protection cap is included to protect the slot when it’s not in use.



ADAT IN/OUT

The PULSE16 AE has four ADAT input and output pairs (TOSLINK optical). This allows transmission of 32+32 audio channels at up to 48kHz. At higher frequencies, the number of channels is reduced: 4+4 @ 96kHz, or 2+2 @ 192 kHz (per ADAT port).

To learn more about ADAT and how it's used in pro audio, see our guide 'What is ADAT?'.



MIDI IN/OUT (type A)

Modern and space-saving 3.5mm jacks can also be used for MIDI control, as an alternative to the MIDI-USB connection. Conventional 5 pin DIN cables can be connected via an adapter cable, which you can purchase from your favourite supplier, or also from our online shop.


WORDCLOCK IN/OUT

The Ferrofish Pulse 16 AE’s WordClock can be set to Internal, ADAT or BNC.

The Wordclock I/O is used to receive and synchronise the clock from other digital devices via BNC. Set the clock source to BNC in the CLOCK view via the menu. The current clock is output to the WORDCLOCK OUT jack.

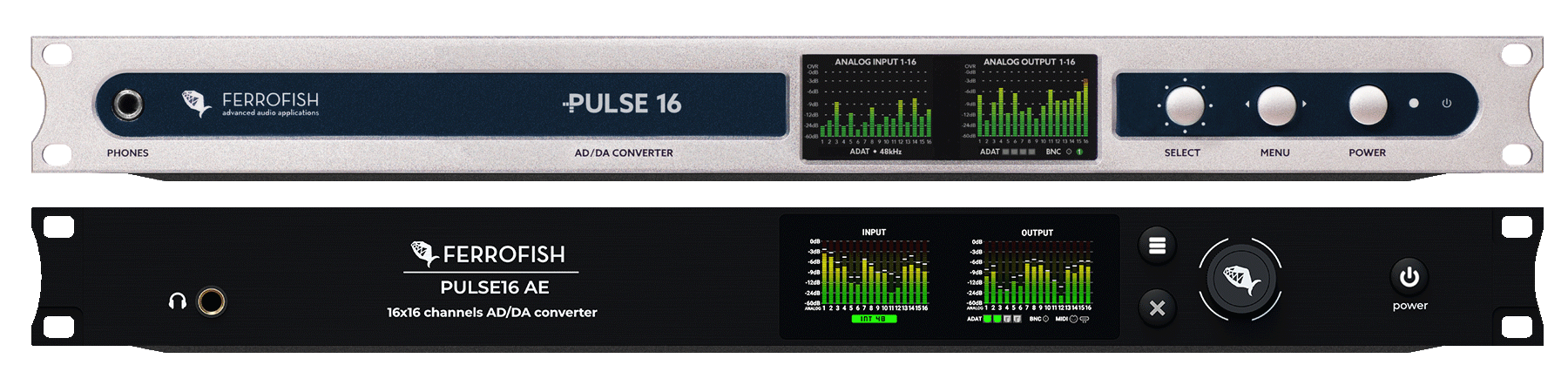

Differences between Pulse16 (Previous) and Pulse16 AE (New)


Colour

  • Previous: Silver

  • New (AE): Black

Converter Technology

  • Previous: Cirrus Logic AD/DA.

  • New (AE): ESS ES9017 (D/A) + ESS ES9840Q (A/D) with higher dynamic range and lower THD+N

DSP Expansion

  • Previous: None

  • New (AE): Optional DSP stick for advanced audio processing

MADI Option

  • Previous: Optional MADI upgrade via SFP module and License

  • New (AE): No MADI upgrade option.*

  • *The Pulse 16 AE does not include a MADI upgrade option. The Pulse 16 MX (MADI) and Pulse 16 DX (Dante) remain available, both of which include MADI I/O as standard.

Routing

  • Previous: 8-channel group-based.

  • New (AE): Single-channel routing (send any input to any output)

Remote Control & I/O

  • Previous: No USB-C remote (just MIDI DIN). No MIDI Controller Messages.

  • New (AE): USB-C for RemoteFish. Understands MIDI Controller Messages.

Menu & UI

  • Previous: Classic UI.

  • New (AE): Modern UI aligned with A32pro/Pulse8 AE





Presets

The Ferrofish Pulse 16 AE can store up to eight presets. For saving, use the knob to navigate to SAVE PRESET. Loading a preset is done simply by selecting one of the preset numbers.

When loading a preset, you can also choose which parts of the selected preset should actually be loaded.

Navigate between the options with the rotary knob, use the MENU button to make a selection, and select Load! to execute.





Software Control - REMOTEFISH

Remote control your Ferrofish Pulse 16 AE via MIDI / USB-MIDI with the RemoteFish software, available as a free download for both Mac and PC. RemoteFish provides an extended user interface, for control over all input and output gains, channel routing, adjusting settings, and saving and loading presets.

Click here to download RemoteFish from the Ferrofish website



How to connect



Ferrofish Pulse 16 AE - Features

Feature Details
Analogue I/O
  • 16 x balanced TRS inputs (¼-inch / 6.3 mm)
  • 16 x balanced TRS outputs (¼-inch / 6.3 mm)
  • 1 x Headphone Output (¼-inch / 6.3 mm)
ADAT Connectivity
  • 4 x ADAT input ports
  • 4 x ADAT output ports
  • Supports SMUX for higher sample rates (up to 96 kHz with 8 channels via SMUX/2 or 48 kHz with 16 channels)
Clocking
  • Word Clock input and output (BNC connectors)
  • Internal clock with high stability or external sync via ADAT or Word Clock
Routing
  • Single-channel routing (send any input to any output)
Signal Monitoring
  • High-resolution front display for signal level monitoring (both input and output)
  • Clear visual feedback with multi-coloured LED meters
Controls & User Interface
  • Front-panel control knob and buttons for quick navigation and configuration
Connectivity
  • USB-C for remote configuration using Ferrofish RemoteFish software
  • MIDI input/output for firmware updates or potential future features
Headphone Output
  • 6.3mm jack output
  • Amplification power adjustable in four stages
  • Digital volume control with 1 dB resolution
  • Dedicated monitoring path via a separate ESS DAC (ES9023)
  • Supported impedance range: 15 – 600 Ω
DSP Processing
  • Expandable via optional DSP stick
AD Converter
  • ADC: ESS ES9840Q
  • 32-bit / 192 kHz
  • Dynamic Range: 116 dB
  • THD+N: –108 dB
  • Output impedance: 6 kΩ
DA Converter
  • DAC: ESS ES9017
  • 32-bit / 192 kHz
  • Dynamic Range: 120 dB
  • THD+N: –110 dB
  • Output impedance: 110 Ω
PLL (Phase-Locked Loop)
  • Digitally controlled PLL with active jitter reduction
Power
  • External 12V/3A power supply
  • Power consumption: 12 VA (nominal), <1 VA (standby)
  • Connector: 2.54 mm barrel jack with locking screw
  • Center-positive connector
Fuse
  • Internal polyfuse, self-resetting
Operating Conditions
  • Temperature range: +5 °C to +45 °C
  • Humidity: <75 %, non-condensing
Form Factor
  • Rack-mountable: 19“/1HU
  • Dimensions: 50 × 4.4 x 19 cm
  • Weight: 2 kg
