RME M-1610 Pro Now Available – High-End AD/DA Converter (MADI/AVB) with SteadyClock FS

21st August 2020 3:19 pm

RME M-1610 Pro - Now Available - Synthax Audio UKRME introduces next-generation, high-end AD/DA with SteadyClock FS and ADAT, MADI and AVB I/O.

The RME M-1610 Pro is now available, a high-end multi-channel audio and format converter with state-of-the-art, audiophile grade converters from RME Audio.

First announced at NAMM 2020, the M-1610 Pro combines the outstanding performance of RME’s M-32 Pro AD and DA converters into a single 1U unit.

A multitude of signal integration options offer professional studio, live and broadcast users extensive analogue and digital I/O connections, including AVB (Audio Video Bridging) network functionality, to match the exceptional audio quality in both directions.



Flexible Analogue and Digital I/O

Connectivity consists of 16 balanced line-level inputs; 8 balanced line-level outputs; 32 ADAT output channels; and 64 MADI channels via coaxial, plus an additional 64 via the optional optical SFP.

Additional flexibility is provided by the integrated AVB interface, offering two redundant Gigabit Ethernet ports for synchronised and prioritised transmission of up to 8 AVB streams (up to 16 channels per stream), with a total of 128 channels.

A powerful on-board headphone output provides built-in monitoring for all incoming signals, with all analogue channels switchable between three different line levels (+13/+19/+24 dB).

Finally redundant power supplies offer automatic failsafe for live and ‘mission critical’ applications, making the M-1610 Pro one of the most versatile and powerful professional audio converters on the market.

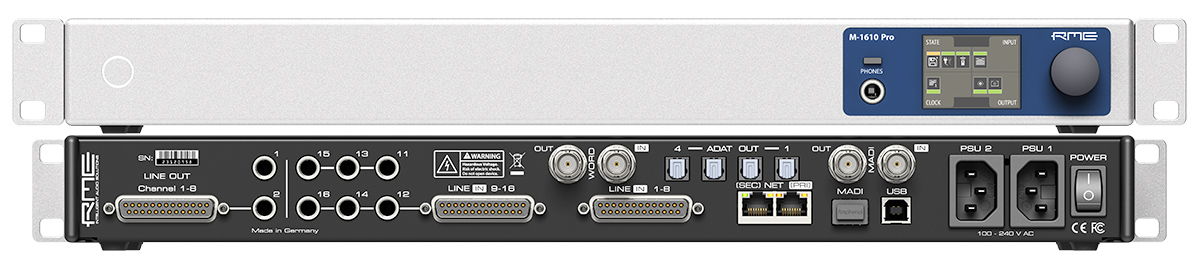

RME M-1610 Pro - Front and Back Panel - Synthax Audio UKThe RME M-1610 Pro features analogue I/O, ADAT ouputs,
MADI I/O (coaxial / optical) and redundant AVB.



RME SteadyClock FS - Synthax Audio UKSteadyClock FS – ‘Femtosecond’ digital clock

Like all new RME devices, the M-1610 Pro features SteadyClock FS, RME’s latest digital clocking and jitter rejection technology, which can be used as a clock master in any digital audio system.

Originally developed for the award-winning ADI-2 Series of converters, RME’s femtosecond clock is accurate to 10-15 (or one quadrillionth) of a second, reducing intrinsic jitter (when converting from and to analogue, over all digital formats) to a new all-time low.

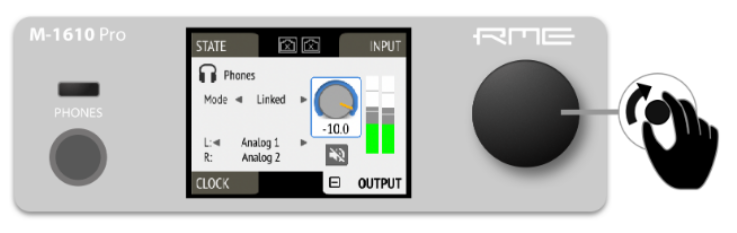

RME M-1610 Pro - Front Panel Control - Synthax Audio UKExtensive Front Panel Control

The M-1610 Pro’s front panels houses controls for all of the device’s functionality via a large pushable encoder, with a TFT display for selecting controls and settings, including routing and the saving and loading of presets. A dedicated headphone button allows for instant monitoring of any incoming signal.



RME M-1610 Pro - Web Remote - Synthax Audio UKRME Web Remote – Browser-based routing and mixing

In addition to the front panel, the RME M-1610 Pro is also controllable via the browser-based web remote.

With a flexible and user-friendly interface, the web remote provides extended control of the M-1610 Pro’s many features such as adjusting input reference levels; channel routing for all analogue and digital I/O; changing Word Clock and sample rate settings; and saving / recalling presets.

Connection to the web remote can be made via AVB, or via USB when not using the M-1610 Pro as part of an AVB network.



Next-Generation Network Audio Devices

The M-1610 Pro expands RME’s growing line-up of professional AVB devices, as well as providing MADI-based systems with additional audiophile-level I/O for high-end multi-channel recording, mixing and monitoring.

Alongside RME’s newly released RME 12Mic and RME AVB Tool, the M-1610 Pro demonstrates RME’s strength for innovation and developing ground-breaking audio solutions.

From the company’s beginnings in manufacturing cutting-edge PCI and Firewire technologies, to developing industry-leading USB and MADI solutions, RME now turns its attention to setting new standards in the field of AVB, offering professional audio users a selection of ultra-reliable and future-proof devices designed for the next decade.

Find out more about the RME M-1610 Pro

See the full range of RME audio networking devices




RME-Logo - Synthax Audio UKIf you’d like to know more about any of RME’s audio interfaces, soundcards, AD/DA Converters or microphone preamps, give us a call on 01727 821 870 to speak to one of our team or to arrange a demo.
You can also contact us here.
